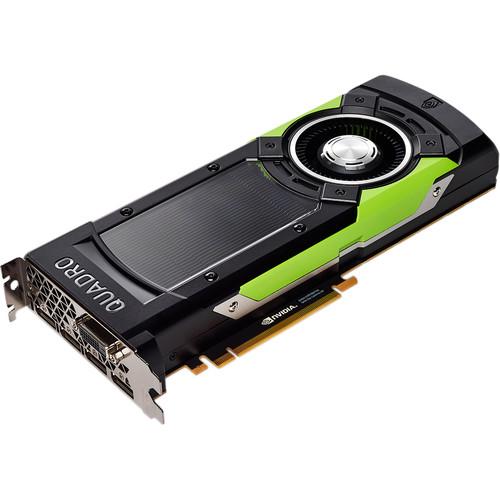

User Manual for HP Quadro GP100 Graphics Card Click to enlarge the picture
Contents of the user manual for the HP Quadro GP100 Graphics Card
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
|
User manual for the HP Quadro GP100 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description With 16GB of HBM2 VRAM, the HP Quadro GP100 Graphics Card is the first workstation board from NVIDIA to utilize the HMB2 memory interface. This HP version of the GP100 is designed to upgrade HP workstations for more powerful graphics processing and is priced with HP's Smart Buy discount. HBM2 memory dies sit atop an interposer and connect directly with the GPU die, rather than separately from it. This design facilitates a memory bus that is an order of magnitude wider than traditional GDDR memory implementations, in this case, 4096 bits for a 717 GB/s total bandwidth. Otherwise, this card offers 3584 CUDA cores providing up to 10.3 TFLOPS of single-precision computing power. For applications that require double precision and half-precision computing, such as scientific multiphysics simulations and machine learning, the GP100 can crank out 5.2 and 20.7 TFLOPS in those operations, respectively. The output panel on this card features four DisplayPort terminals and a dual-link DVI-D port. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD, DCI 4K, 5K, and 8K displays. The DVI port and included DisplayPort to DVI adapters can be used for connecting to legacy hardware while other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, the GP100 uses a blower-style cooler. This cooler uses a radial fan to force air through the card's heatsink and out through the rear of the case. This cooling configuration can be used in crowded workstation environments with multiple GPUs or where space between computer components can be a concern, as hot air is not recirculated back into the case. - CUDA
- NVIDIA's parallel computing platform which enables an increase in computing performance by harnessing the parallel nature of GPU processing. CUDA compatible applications can assign intensive parallel computing tasks, such as real-time video rendering, to the GPU to process, freeing up the computer's CPU to run other tasks.
- GPUDirect Support
- Using GPUDirect, multiple GPUs, third party network adapters, solid-state drives (SSDs) and other devices can directly read and write CUDA host and device memory, eliminating unnecessary memory copies, dramatically lowering CPU overhead, and reducing latency, resulting in significant performance improvements in data transfer times for applications.
- NVLink Support
- NVIDIA's NVLink is a high-bandwidth, energy-efficient interconnect. On the GP100 NVLink enables ultra-fast communication between two GP100 GPUs using separately available NVLink bridges. The technology allows data sharing at rates several times faster than the traditional PCI-express 3.0 interconnect, resulting in dramatic speed-ups in application performance and creating a new breed of high-density, flexible servers for accelerated computing.
- Quadro Sync II
- By connecting up to four compatible Quadro GPUs to a separate Quadro Sync board you can perfectly synchronize the display outputs of all the connected GPUs for critical video wall and extended desktop applications utilizing multiple displays. Quadro Sync also enables NVIDIA Quadro Mosaic technology on those synchronized displays and projectors, providing an easy way to scale the resolution of any application. Quadro Sync II allows for two Quadro Sync cards to be used in the same system, enabling support for up to 32 displays with stereoscopic visuals and support for projector overlap, and WMI (Windows Instrumentation Management).
- Mosaic
- Leverage multiple displays to easily span any application across multiple displays or projectors from a single workstation, without sacrificing performance or power. Combined with NVIDIA's nView desktop management software you also get bezel correction and projector overlap for seamless multi-display exhibition.
UPC: 190781998136 In the Box HP Quadro GP100 Graphics Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Quadro GP100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Quadro GP100 Specs | GPU | NVIDIA Quadro GP100:
CUDA Cores: 3584
Node Size: 16 nm
Architecture: Pascal | | Interface | Host: PCI Express 3.0 x16
Secondary: 2-way NVLINK | | Memory | Interface Width: 4096-bit
Interface: HBM2
Bandwidth: 717 GB/s
Configuration: 16 GB | | Floating Point | Half Precision Performance: 20.6 TFLOPS Single Precision Performance: 10.3 TFLOPS Double Precision Performance: 5.2 TFLOPS | | Outputs | 4 x DisplayPort 1.4
1 x DVI-D DL | | Maximum Resolution | DisplayPort: 7680 x 4320
Dual-link DVI: 2560 x 1600
Single-link DVI: 1920 x 1200 | | APIs | Graphics:
Shader Model 5.1
OpenGL: 4.5
DirectX: 12
Vulkan 1.0
Compute:
CUDA
DirectCompute
OpenCL | | Form Factor | Width: Single-slot
Length: 10.5" / 267 mm
Form Factor: Full-height, full-length | | Power Consumption | 235 W | | Compliance | Not Specified by Manufacturer | | System Requirements | Power Supply: Not Specified by Manufacturer
CPU: Intel Core i5/i7/Xeon or newer, AMD Phenom/Opteron or newer
PCI Slots: 1 x PCI Express 3.0 x16
RAM: 2 GB (8 GB recommended)
Storage: 200 MB of available disk space
Optical Drive: Blu-ray or DVD-ROM drive for software installation (downloads also available) |
