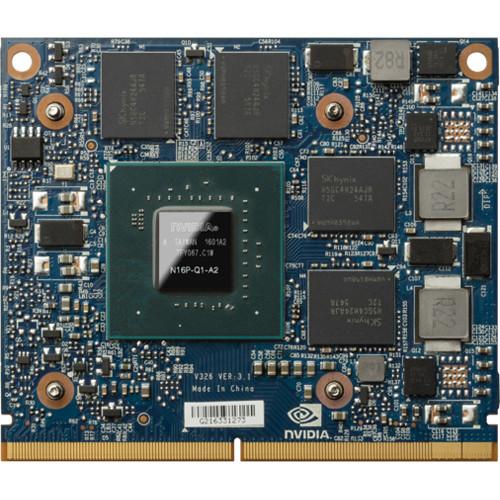

User Manual for HP Quadro M1000M Graphics Card Click to enlarge the picture
Contents of the user manual for the HP Quadro M1000M Graphics Card
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
|
User manual for the HP Quadro M1000M Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Upgrade your Z1 G3 workstation PC with this Quadro M1000M Graphics Card from HP. As a power-efficient Maxwell-architecture chip, the M1000M provides more graphics processing power while generating less heat than the previous generation Kepler-architecture chips. The M1000M is made up of 512 CUDA cores coupled with 2GB of GDDR5 vRAM with a 128-bit interface for 80GB/s bandwidth for data transfer. Having this processing horsepower enables your Z1 G3 to run CAD, 3D animation, design, video editing, and other types of professional and scientific software programs that support CUDA and other APIs such as OpenCL or OpenGL. Since this card is an MXM form factor, it has no output hardware on its own. Install it in the Z1 G3 and it will run the display as well as external video outputs up to 4096x2160 resolution. UPC: 190780243480 In the Box HP Quadro M1000M Graphics Card Limited 1-Year Warranty (or the remainder of the warranty of the HP product in which it is installed) Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Quadro M1000M Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP M1000M Specs | GPU | NVIDIA Quadro M1000M:
CUDA Cores: 512
Node Size: 28 nm
Architecture: Maxwell | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 128-bit
Interface: GDDR5
Bandwidth: 80 GB/s
Configuration: 2 GB | | Floating Point | Single Precision Performance: 1 TFLOPS
Double Precision Performance: 32 GFLOPS | | Outputs | None, dependent on host hardware connections (supports DisplayPort 1.2 output) | | Maximum Resolution | DisplayPort: 4096 x 2160 | | APIs | OpenGL: 4.5
DirectX: 12 (hardware feature level 11)
Shader Model: 5.0
CUDA: Yes
OpenCL: 1.2 | | Form Factor | MXM Module: 3.2 x 2.75" / 82 x 70 mm
Cooler: 11.61 x 3.54" / 295 x 90 mm | | Power Consumption | 40 W (maximum) | | Compliance | Not Specified by Manufacturer | | System Requirements | Compatibility: HP Z1 G3 with available MXM PCI-E slot | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 11.4 x 7.4 x 2.7" |
