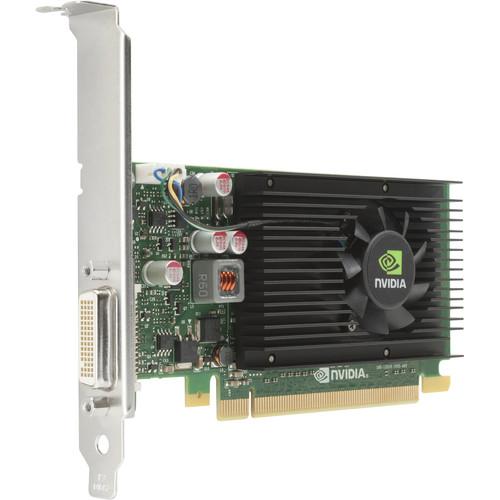

User Manual for HP Quadro NVS 310 Graphics Card Click to enlarge the picture
Contents of the user manual for the HP Quadro NVS 310 Graphics Card
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
|
User manual for the HP Quadro NVS 310 Graphics Card contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The HP Quadro NVS 310 Graphics Card provides a reliable hardware and software platform to enable fast, cost-effective integration, deployment, and support across large enterprises. The GPU features DisplayPort 1.2, NVIDIA Mosaic technology, and NVIDIA nView desktop-management software, and can drive up to two 30" displays at 2560 x 1600 resolutions. This lets you maximize your productivity by better managing your desktop applications and increasing your desktop real estate. Plus, the GPU is tested on business applications and designed to provide the balance between performance and power in order to meet your business needs. - NVIDIA Unified Architecture
- Take advantage of the architecture designed to dynamically allocate graphics processing unit (GPU) resources for optimized performance.
- NVIDIA Unified Driver Architecture (UDA)
- Part of the NVIDIA Forceware unified software environment (USE), UDA provides forward and backward compatibility with software drivers. The driver also supports NVIDIA products, simplifying upgrades.
- NVIDIA High-Definition Video Technology
- Get a high-definition video processor with specialized software to deliver picture clarity, smooth video, accurate color, and precise image scaling for SD and HD video content. Features include high-quality scaling, spatial temporal de-interlacing, inverse telecine, and high-quality HD video playback-all with low CPU utilization and power consumption.
- PCI Express 2.0 Host Interface
- PCIe 2.0 doubles the bandwidth for a given interface width compared to PCIe 1.0. For example, an x8 slot in PCIe 2.0 is the equivalent of a x16 slot in PCIe 1.0.
UPC: 889296695868 In the Box HP Quadro NVS 310 Graphics Card Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Quadro NVS 310 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP NVS 310 Specs | GPU | NVIDIA Quadro NVS 310:
CUDA Cores: 48
Base Clock: Not specified by manufacturer | | Memory | Clock Speed: 875 MHz
Configuration: 1 GB
Interface: DDR3
Interface Width: 64-bit
Bandwidth: 14 GB/s | | Technologies | Microsoft DirectX: 11
OpenGL: 4.2
CUDA: Yes | | Interface | PCI Express 2.0 x16 | | Display Support | Display Connectors:
2 x DisplayPort
Maximum Digital Resolution: 2560 x 1600
Maximum Analog Resolution: 1920 x 1200
Multi Monitor Support: Up to 2 | | Power Requirements | Power Consumption: 19.5 W
Minimum System Power Requirement: Not specified by manufacturer
PCI Power Connectors:
Not specified by manufacturer | | Dimensions | Height:: 2.7" / 68.6 mm
Length: 6.1" / 155 mm
Width: Single-Slot | | Weight | ~ 0.3 lb (142 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.6" |
