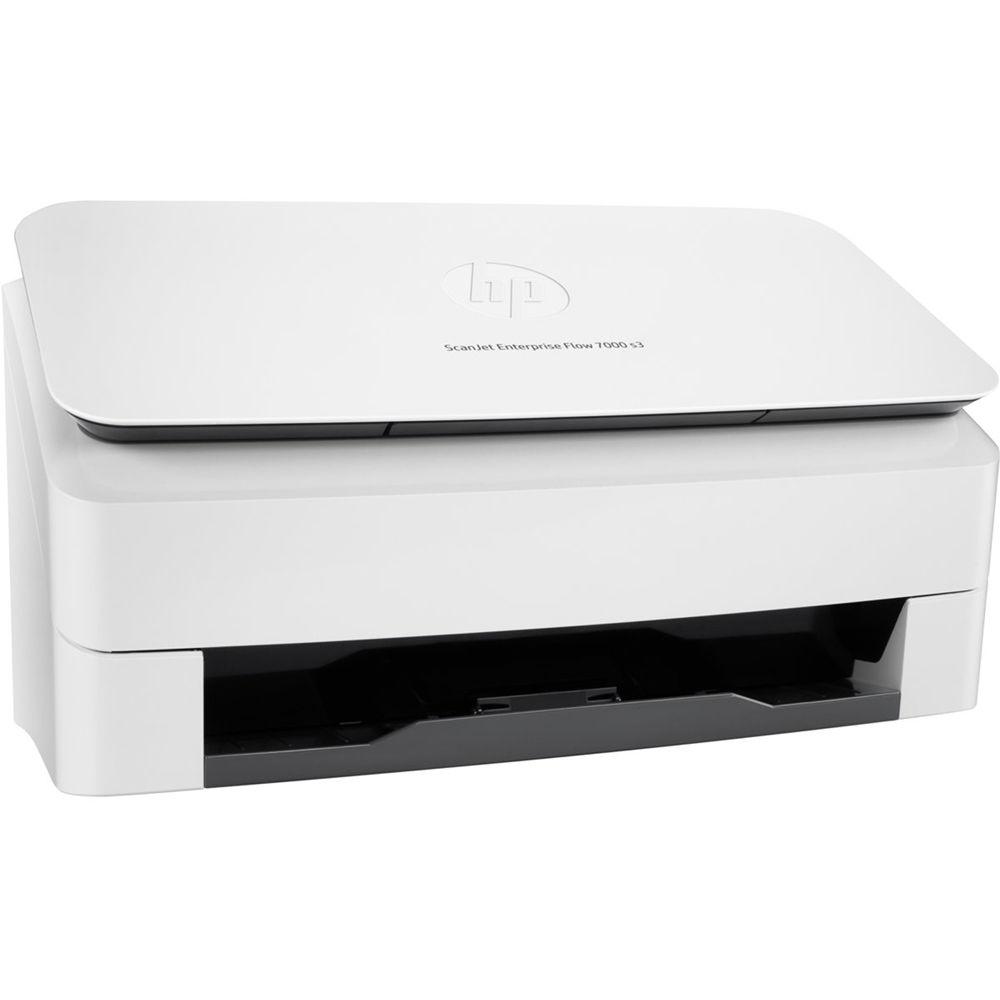

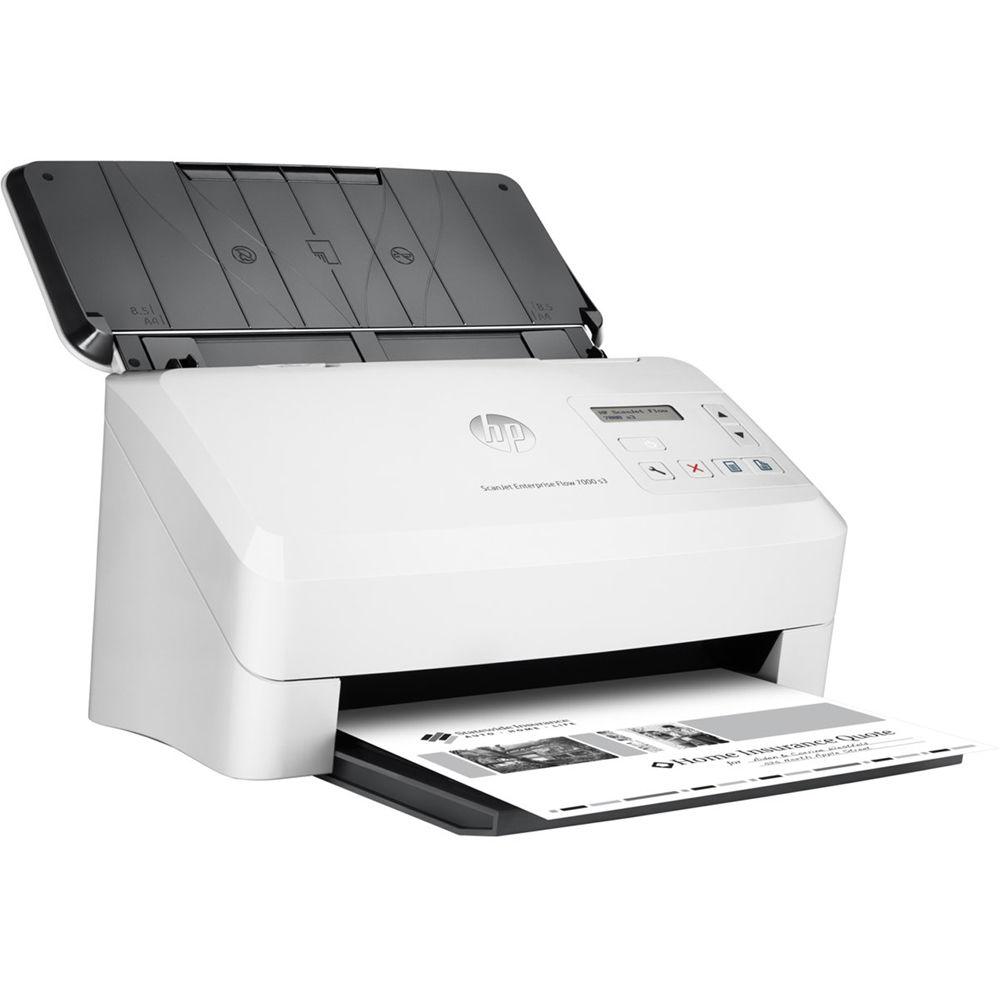

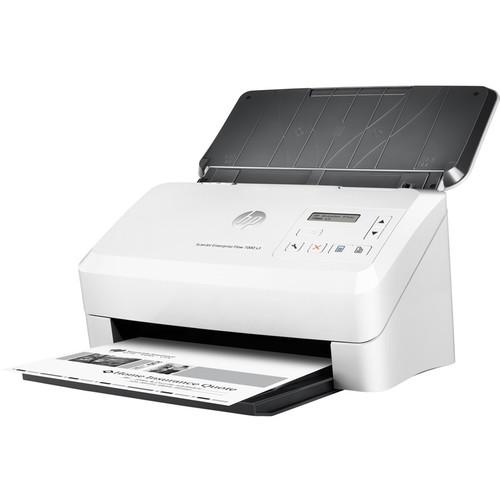

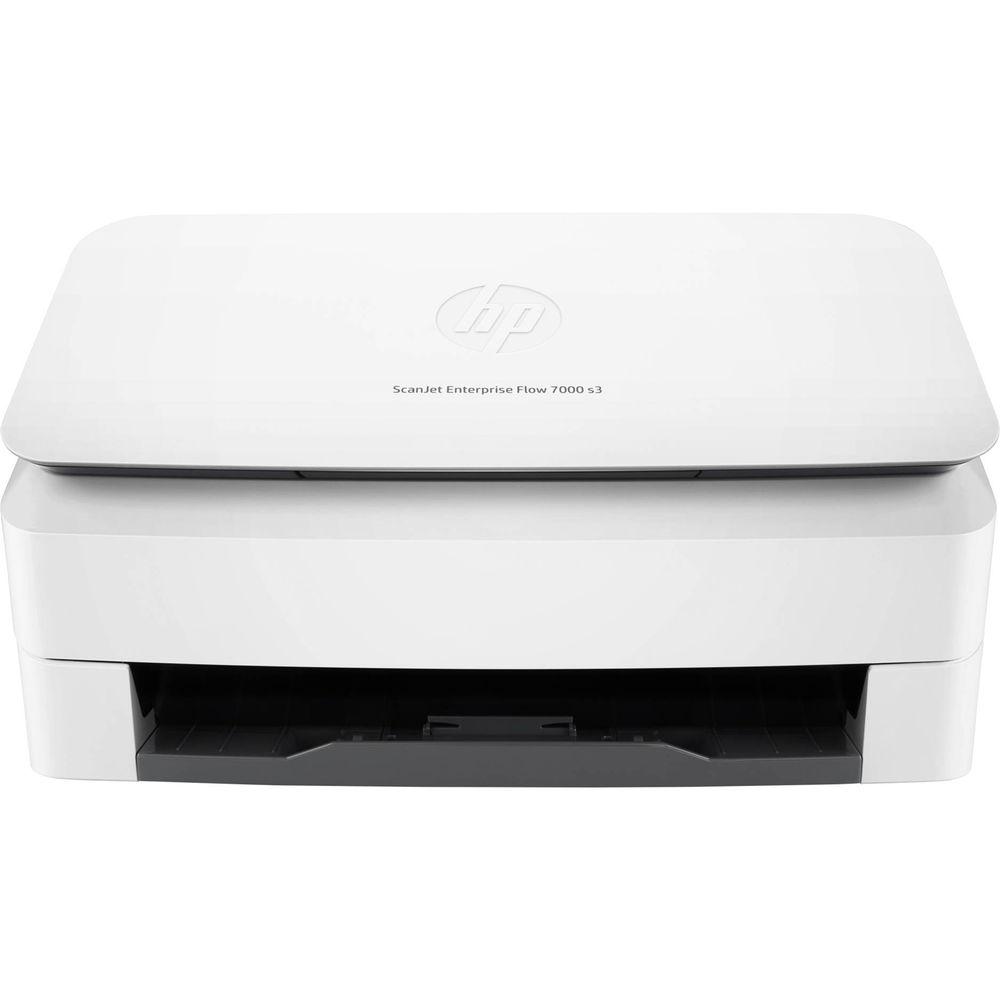

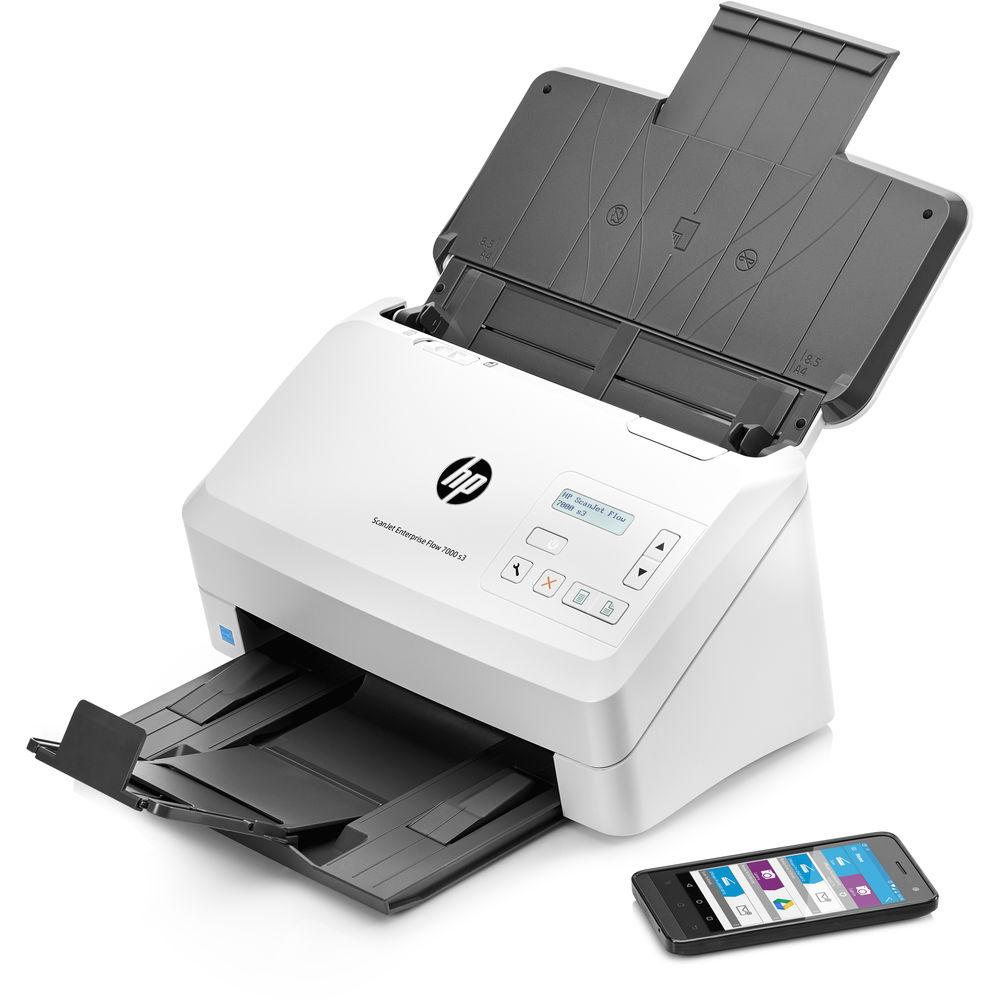

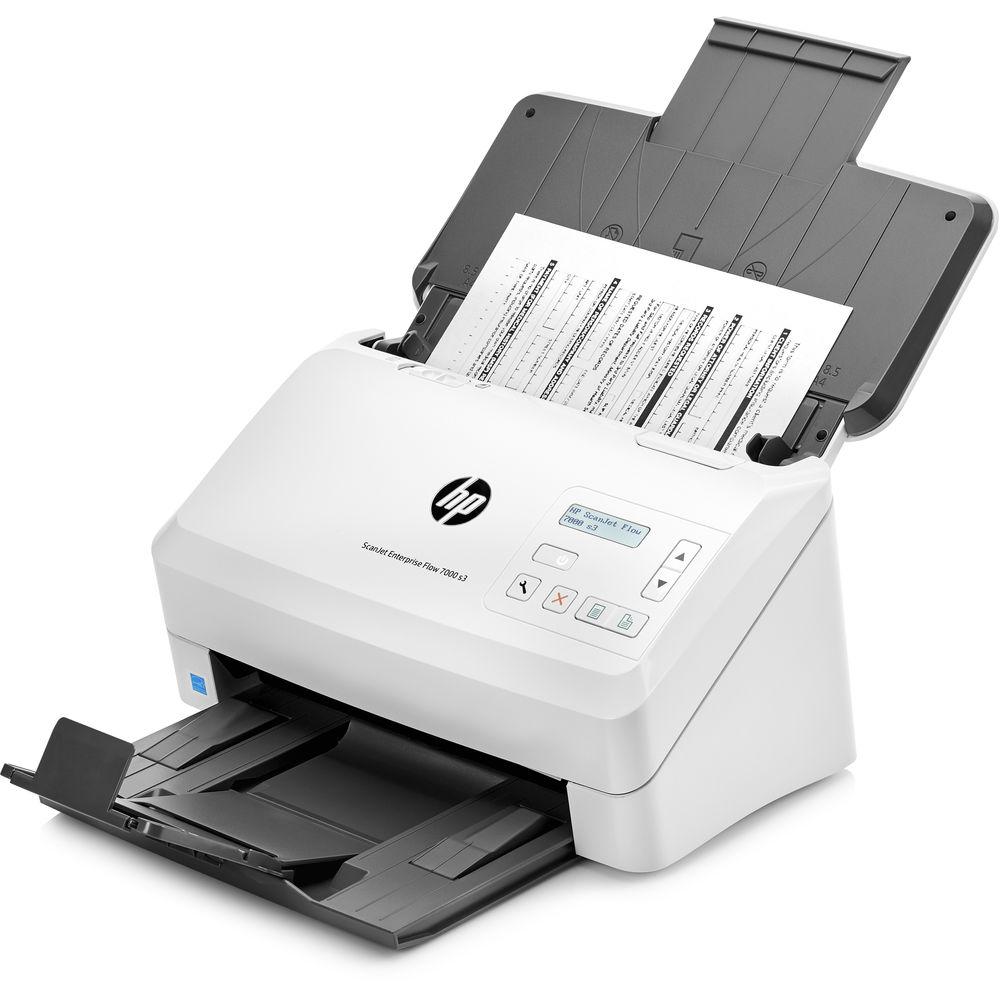

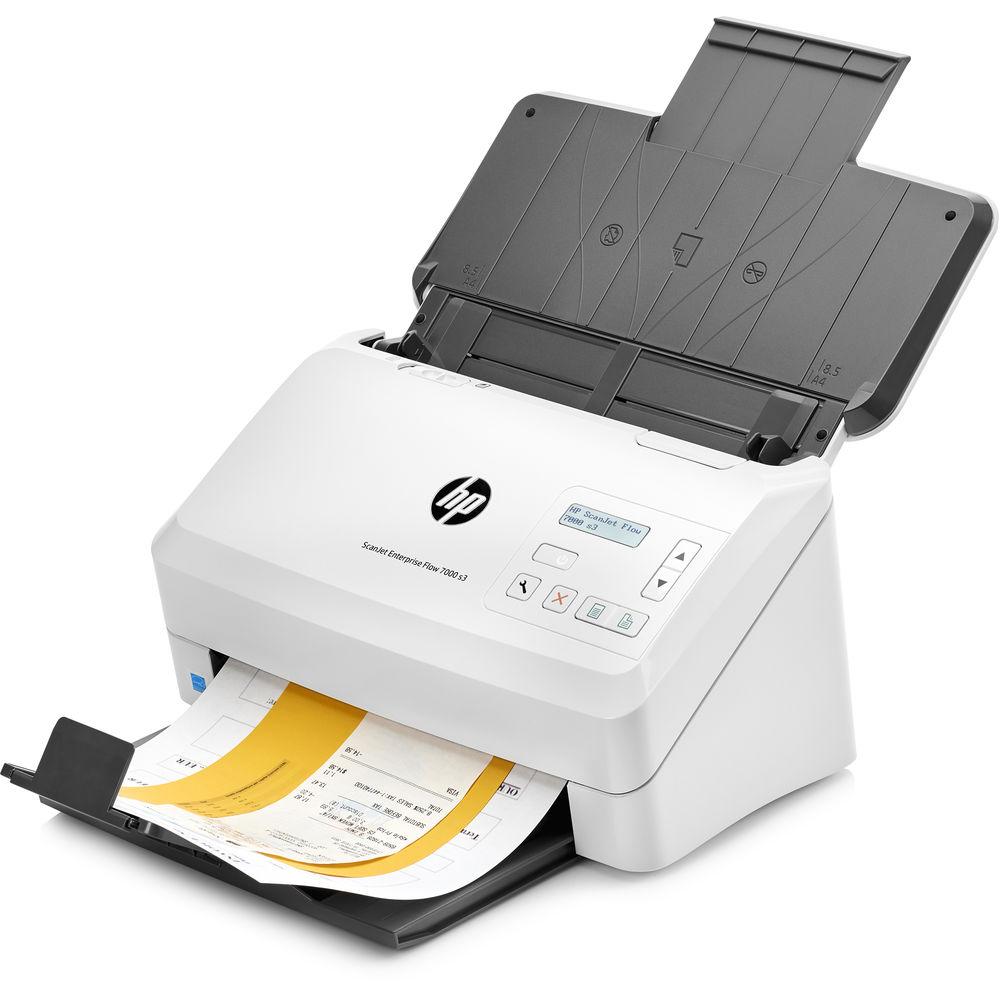

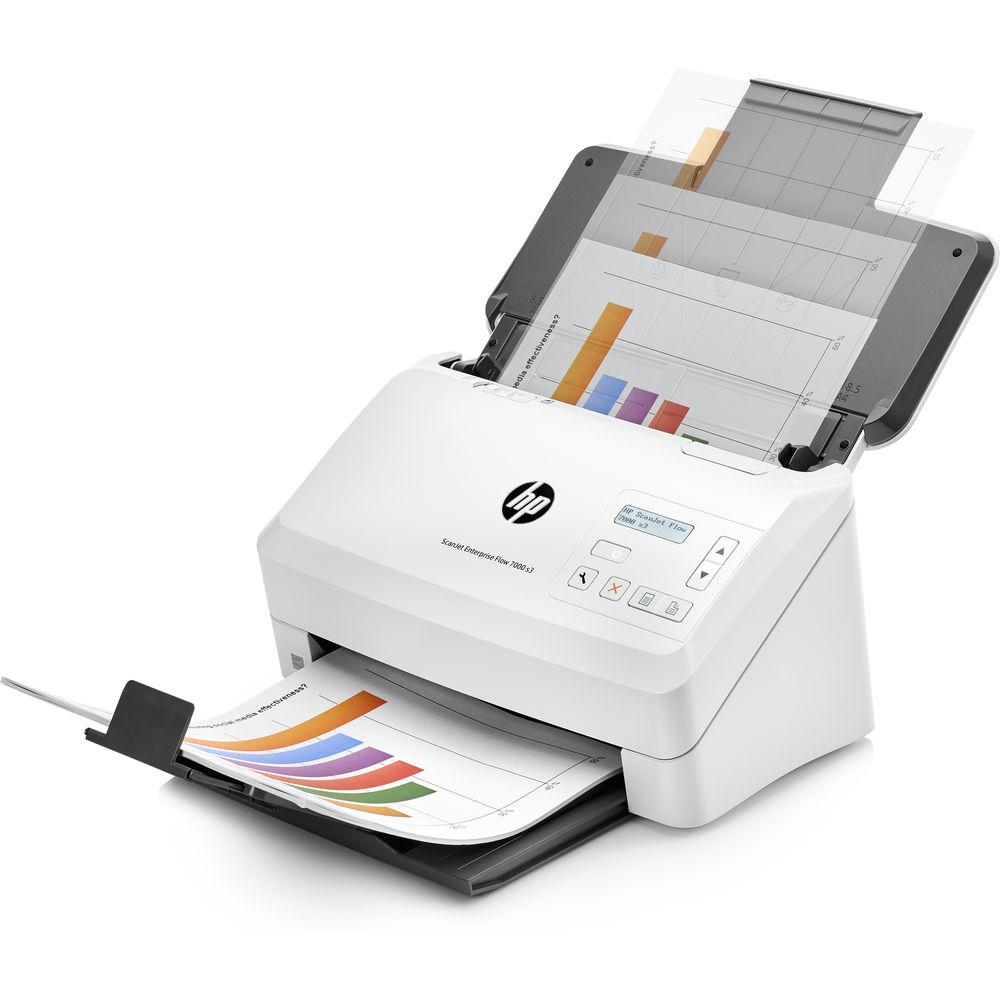

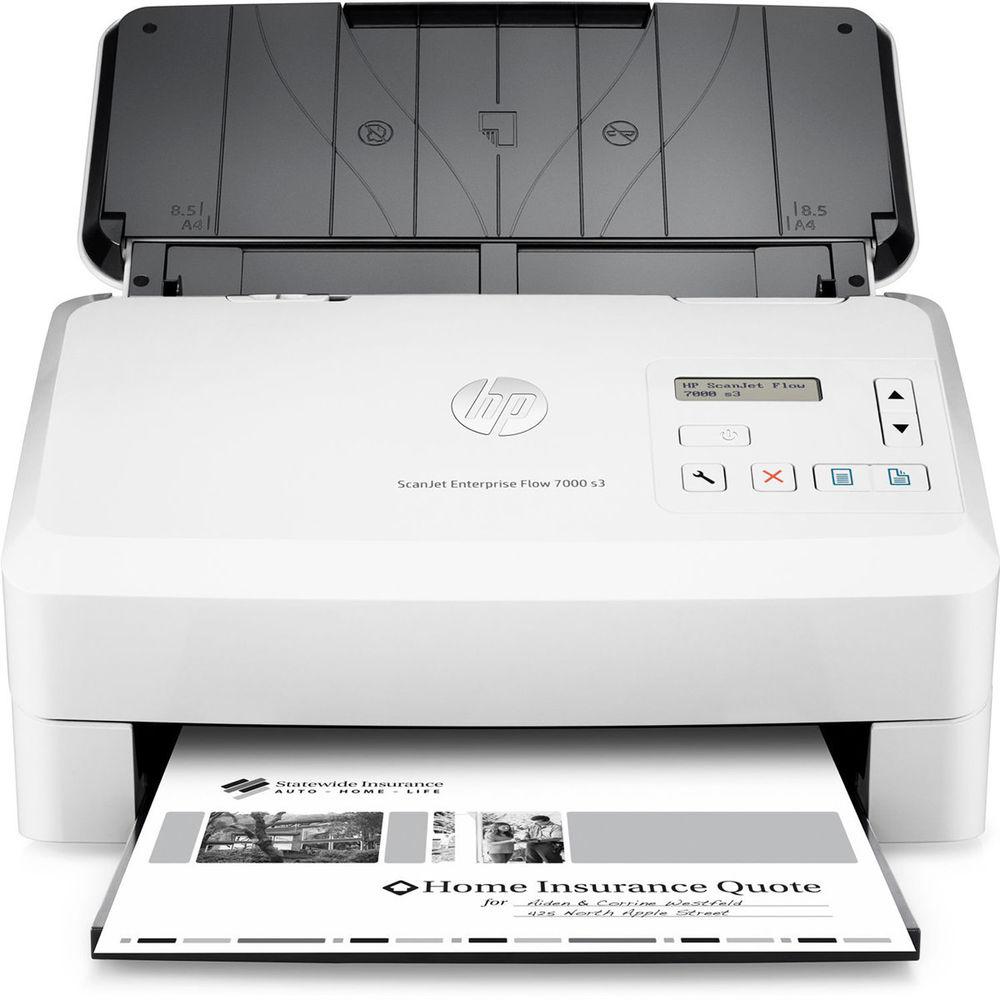

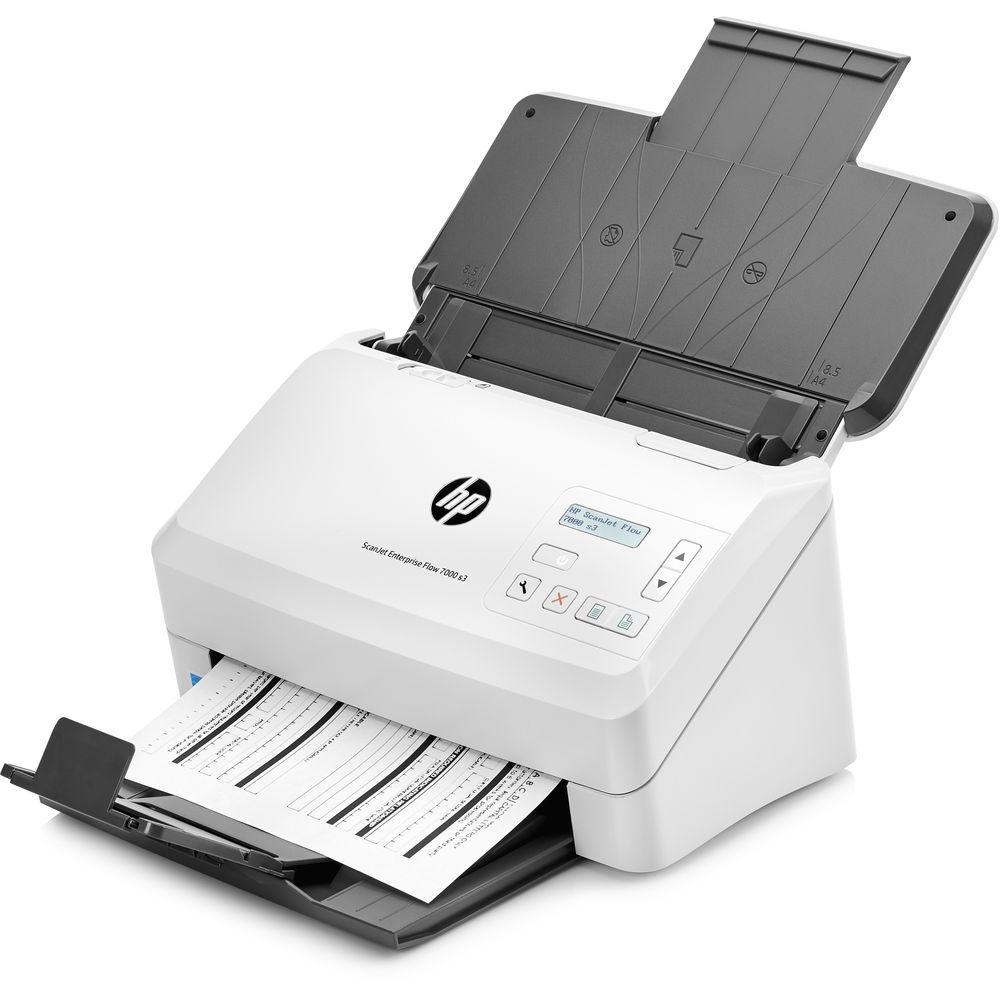

User Manual for HP Scanjet Enterprise Flow 7000 s3 Sheet-Feed Scanner Click to enlarge the picture
Contents of the user manual for the HP Scanjet Enterprise Flow 7000 s3
- Product category: Flatbed & Document Scanners HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Flatbed & Document Scanners
 |
User manual for the HP Scanjet Enterprise Flow 7000 s3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Easily transform your paper documents into 600 dpi files with this Scanjet Enterprise Flow 7000 s3 Sheet-Feed Scanner from HP. This efficient ADF scanner is capable of digitizing pages at speeds of up to 75 ppm in single-sided mode and 150 ipm when set to automatic duplexing and at 300 dpi. Around 80 sheets can be loaded at a time, with the unit accepting media from 2 x 2.9" to 8.5 x 122" in size. The Scanjet Enterprise Flow 7000 offers both a USB 2.0 and a USB 3.0 slot for high-speed data transfer, and you can also equip it with Wi-Fi connectivity by purchasing a separately available accessory. Producing 24-bit color images and 8-bit grayscale files, the unit features a simple 2-line LCD display as well as five function buttons for easy control. It scans to several text and image file formats, including JPEG, TIFF, PDF, XLS (Excel), DOCX (Word), and others. Finally, the Scanjet 7000 is designed to be durable and handle up to 7500 pages per day. - Advanced Features
- Auto-color detect, auto-crop, auto-exposure, auto-orient, OCR, edge removal, background cleanup, remove hole, color drop out, straighten the page, scan to cloud, scan to email, PDF security, misfeed detection, batch processing, barcode, and scan to multiple destinations
- Included Software
-
- HP WIA scan driver
- HP TWAIN scan driver
- HP Smart Document Scan Software
- HP Scanner Tools Utility
- I.R.I.S. Readiris Pro
- I.R.I.S. Cardiris
- Nuance PaperPort
- EMC ISIS driver
- Kofax VRS Pro
UPC: 889894865670 In the Box HP Scanjet Enterprise Flow 7000 s3 Sheet-Feed Scanner 2 x Software CD USB Cable Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Scanjet Enterprise Flow 7000 s3 Sheet-Feed Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 7000 s3 Specs | Maximum dpi Resolution | 600 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 150 ipm (Color) | | Simplex Speed | 75 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 122" / 309.9 cm | | Color Depth | 24-Bit (External)
48-Bit (Internal) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Multi-Feed Detection | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Life Expectancy | 7500 Sheets per Day | | Connectivity | USB 2.0, USB 3.0 | | Wireless Connectivity | None | | File Formats | BMP, DOCX, HTML, JPEG, PDF, PNG, PPTX, RTF, TIFF, TXT, WPD, XLS, XML, XPS | | Media Types | Business Card, Checks | | Paper Weight | 11 to 110 lb | | Operating System Compatibility | Windows | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Control Panel | 5 Buttons | | Drivers | TWAIN v2.1, WIA, ISIS | | Processor Speed | 550 MHz | | Memory | 512 MB | | Maximum Sheet Capacity | 80 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, EPEAT Silver | | Operating Humidity | 15 to 80% | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Humidity | 0 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Dimensions | 13.5 x 12.2 x 12.6" / 34.3 x 31.0 x 32.0 cm | | Weight | 8.4 lb / 3.81 kg | | | | Package Weight | 11.745 lb | | Box Dimensions (LxWxH) | 15.6 x 11.9 x 9.5" |
