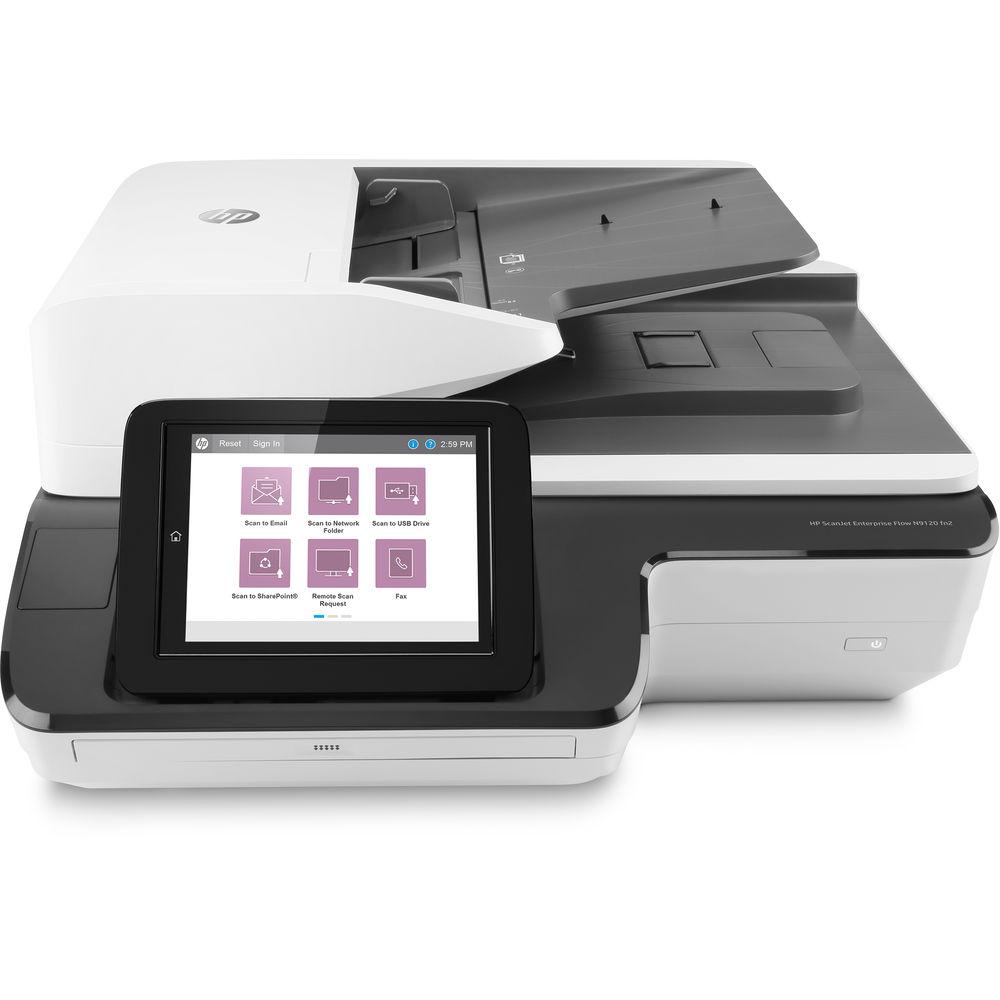

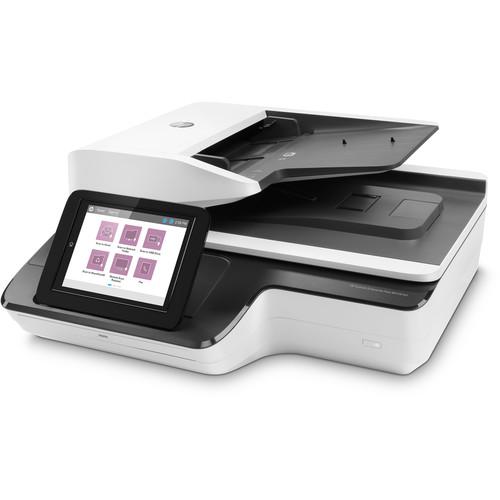

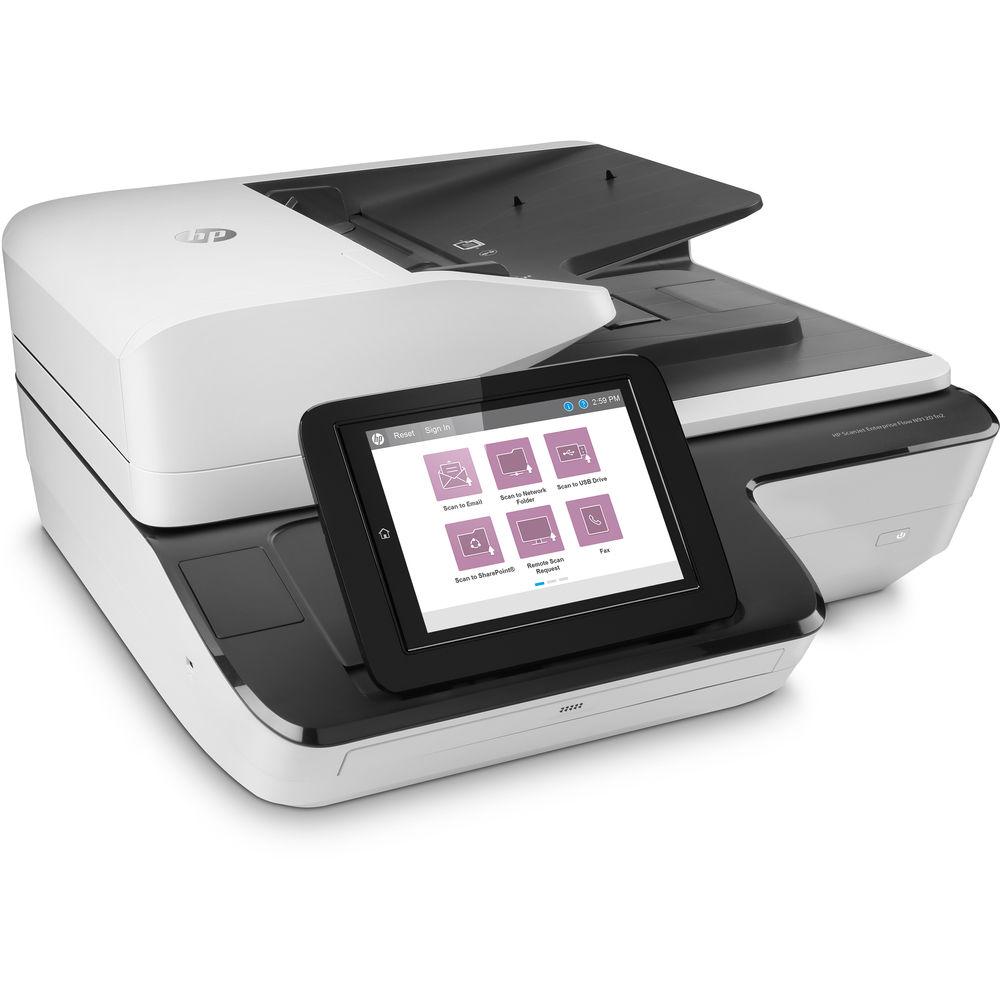

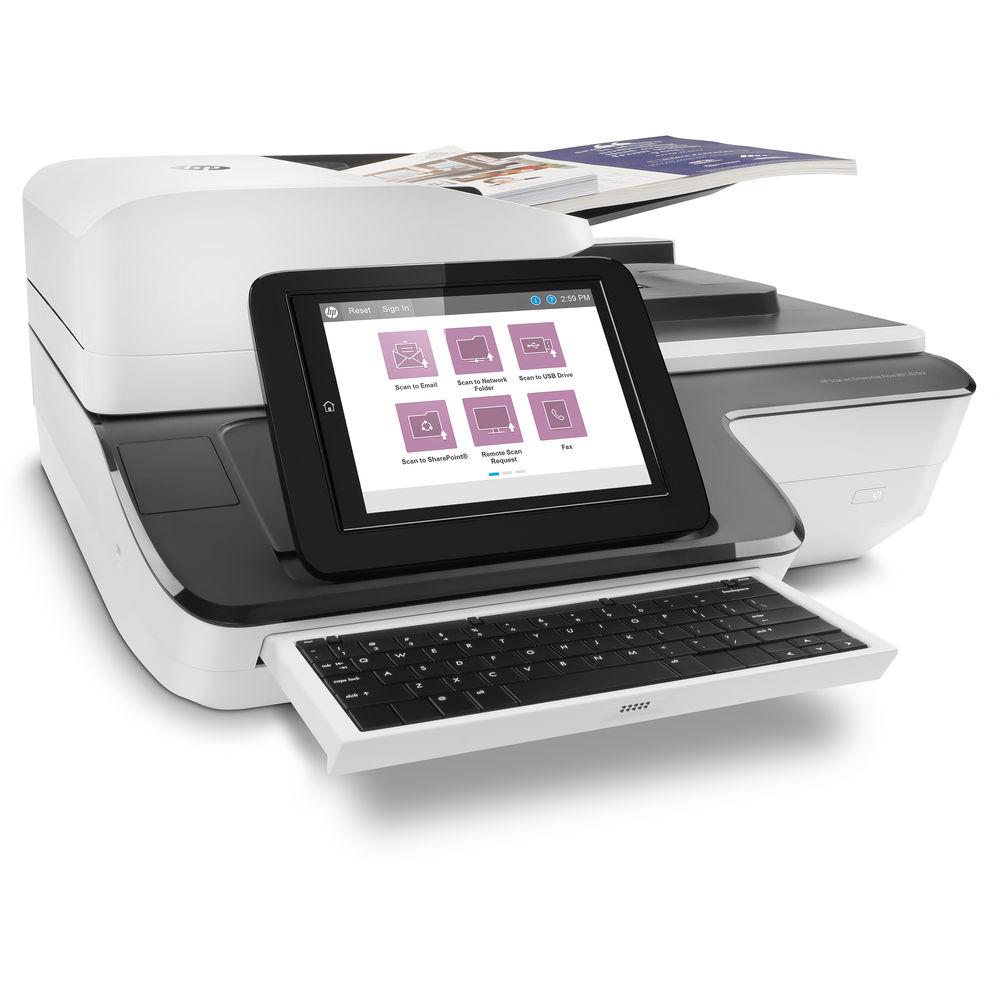

User Manual for HP Scanjet Enterprise Flow N9120 fn2 Flatbed Scanner Click to enlarge the picture
Contents of the user manual for the HP Scanjet Enterprise Flow N9120 fn2
- Product category: Flatbed & Document Scanners HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Flatbed & Document Scanners
 |
User manual for the HP Scanjet Enterprise Flow N9120 fn2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

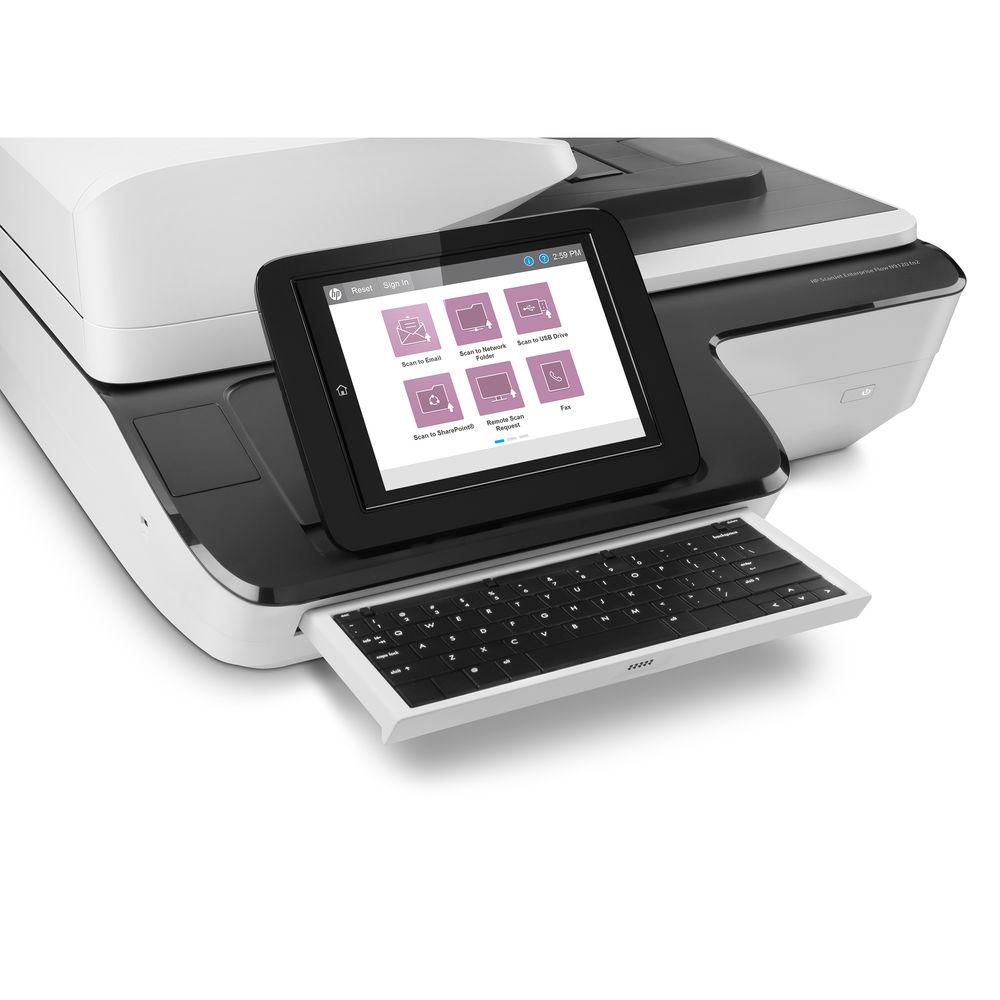

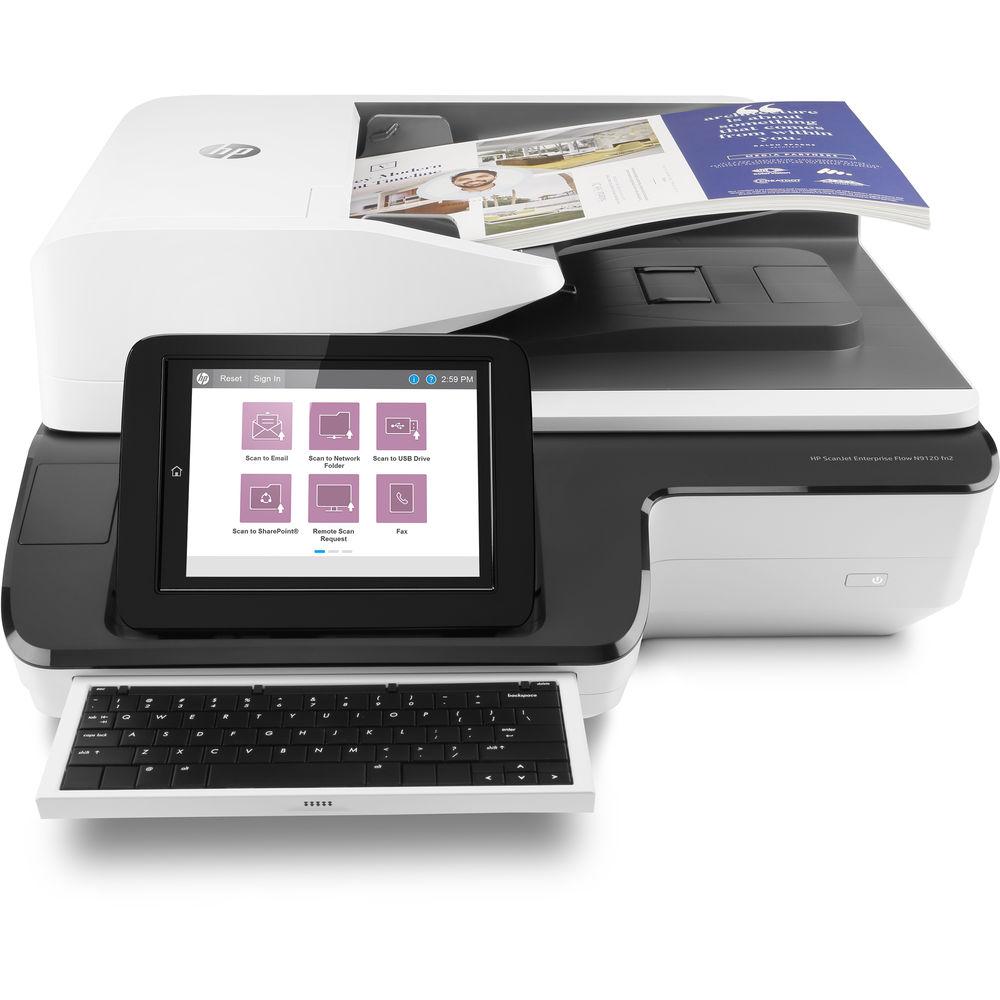

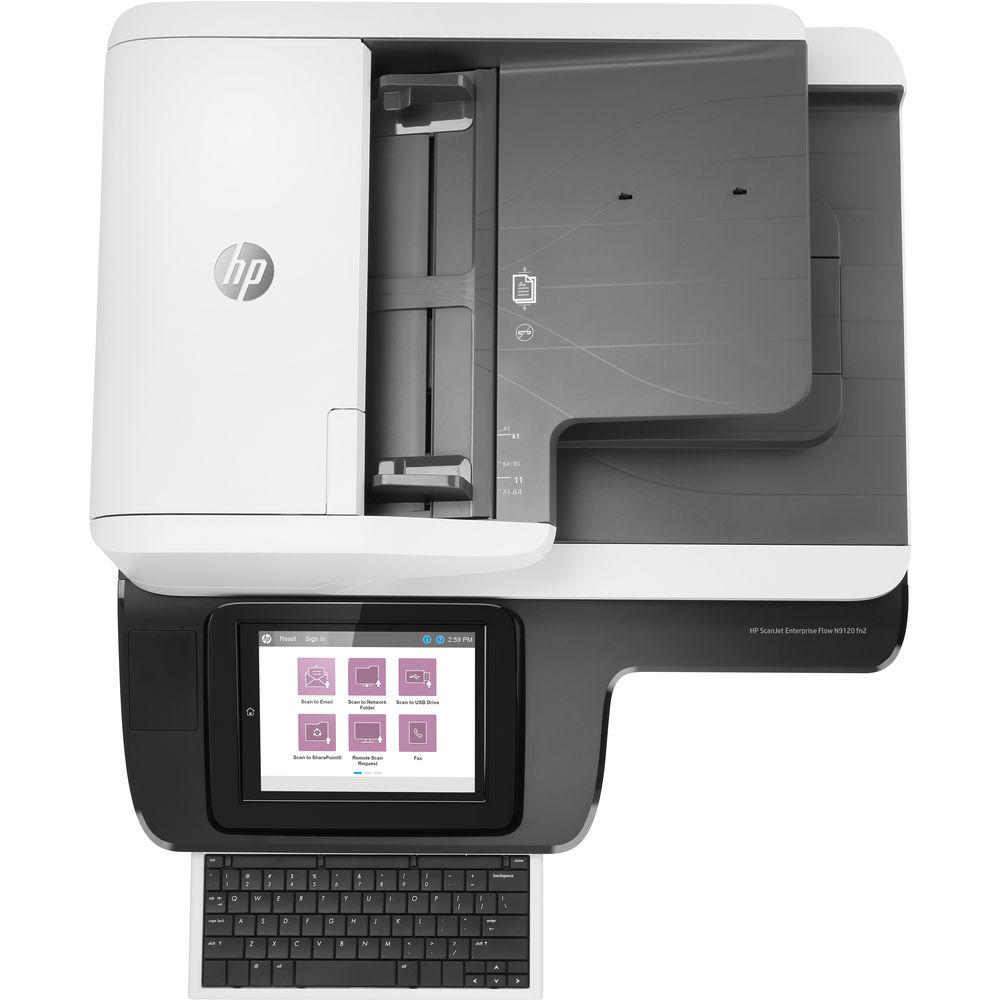

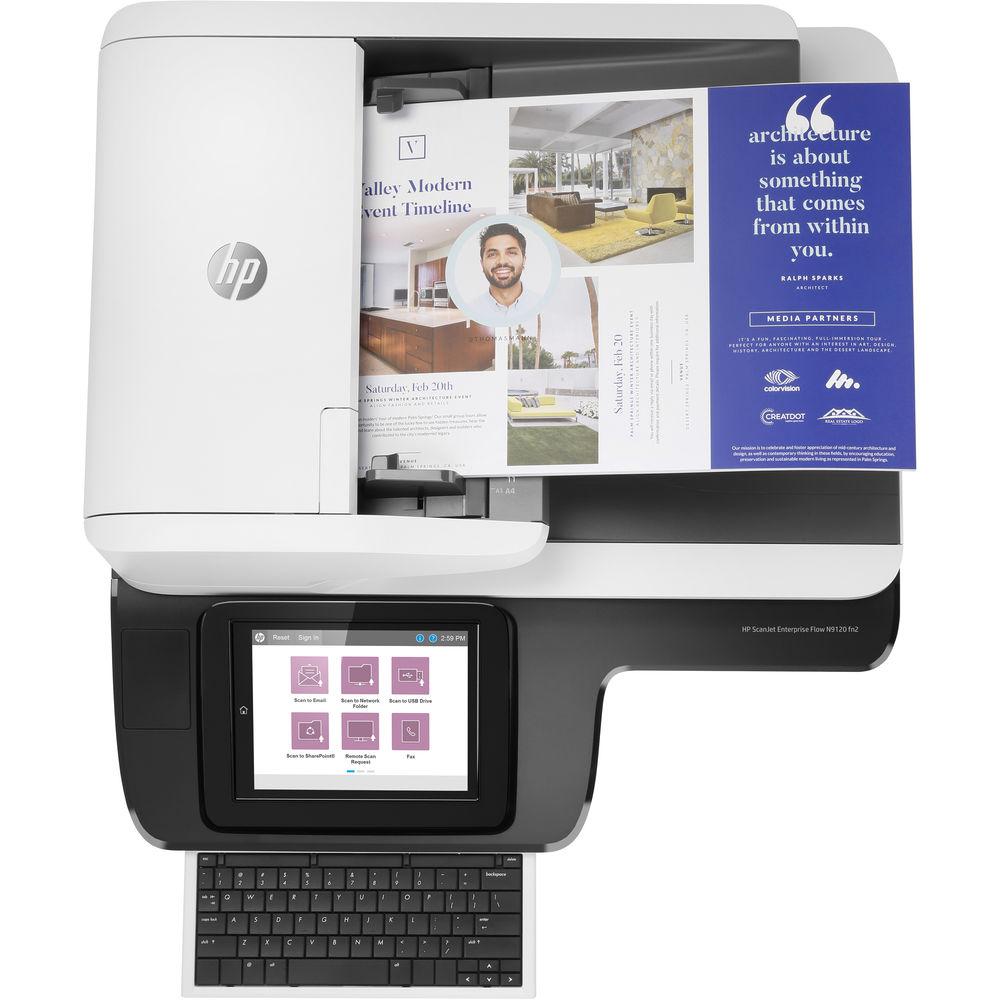

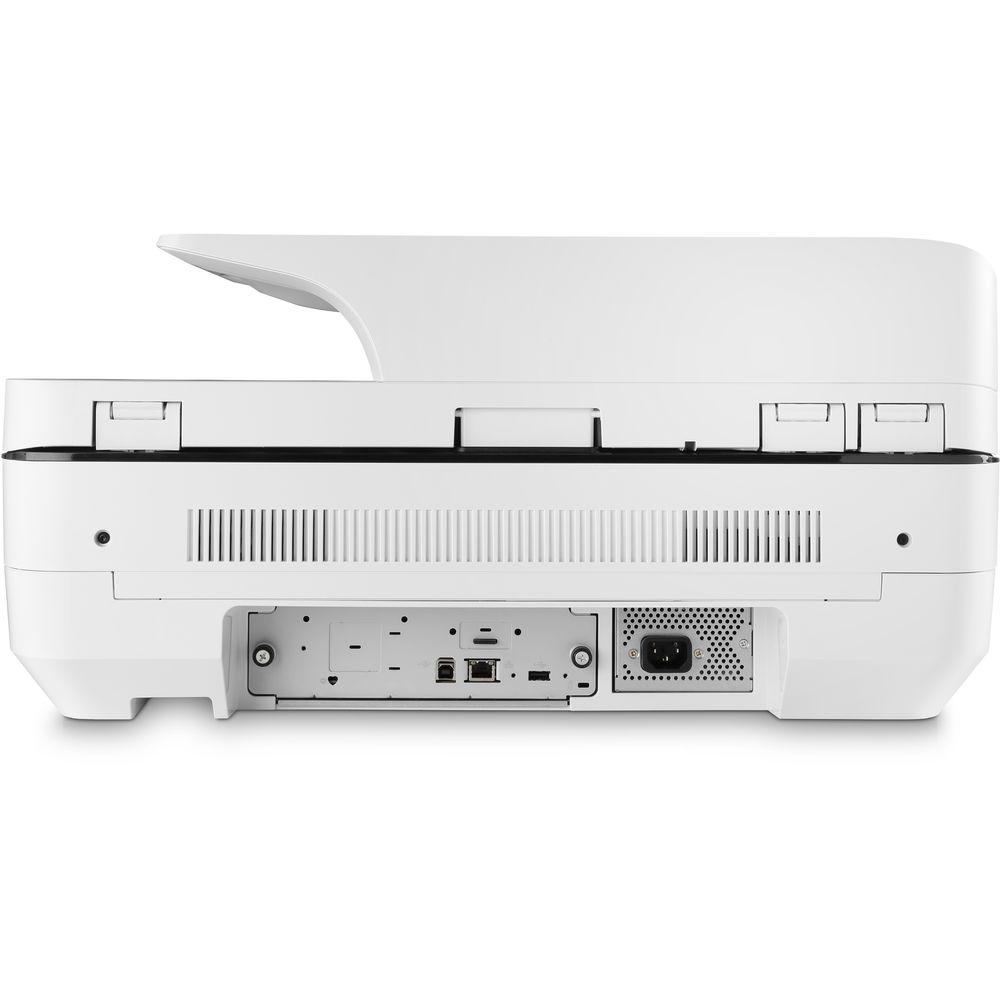

Product description Designed for demanding workplaces, the Scanjet Enterprise Flow N9120 fn2 Flatbed Scanner from HP can efficiently transform your paper documents or books into 600 dpi files. It counts with a large flatbed ideal for bound media as well as an automatic document feeder, with both options scanning pages as large as 11.7 x 17" and the ADF going up to 11.7 x 34" when "long scan size" is selected. Speeds of up to 120 ppm are possible in single-sided mode, and go up to 240 ipm when the unit is set to automatic duplexing. The Scanjet Enterprise Flow N9120 offers both USB 2.0 and Ethernet connectivity, allowing you to network the unit for easy job sending from multiple locations. An 8" touchscreen, complemented by a pull-out keyboard, also makes operation easy when you're up close and personal. The scanner produces 24-bit color images and can export to several different file formats including PDF, JPEG, TIFF, PNG, and HTML with the assistance of included OCR software. Around 200 sheets can be loaded in the ADF at one time, with the unit handling large workloads of up to 20,000 pages a day. - Advanced Features
- Optimize text/picture, image adjustments, job build, output quality setting, selectable scan resolution (75 to 600 dpi), auto-detect color, Edge Erase, job notification, blank page suppression, HP Quick Sets, HP EveryPage, auto-orientation, embedded Optical Character Recognition (OCR), auto crop to page, and auto-tone
- Included Software
-
- HP Browser
- Mac OS Welcome Screen
- HP Scan
- Kofax VRS Pro2
- Nuance PaperPort
- I.R.I.S Readiris Pro
- I.R.I.S Cardiris
UPC: 190781818670 In the Box HP Scanjet Enterprise Flow N9120 fn2 Flatbed Scanner 2 x Software and Documentation CDs USB Cable Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Scanjet Enterprise Flow N9120 fn2 Flatbed Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP N9120 fn2 Specs | Maximum dpi Resolution | 600 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 240 ipm (Color) | | Simplex Speed | 120 ppm (Color) | | Maximum Document Width | 11.7" / 29.7 cm | | Maximum Document Length | 34" / 86.4 cm | | Color Depth | 24-Bit (External) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF, Flatbed | | Life Expectancy | 20000 Sheets per Day | | Connectivity | USB 2.0, Ethernet | | Wireless Connectivity | None | | File Formats | BMP, HTML, JPEG, Multi-Page TIFF, PDF, PNG, RTF, TIFF, TXT, Unicode TXT, XPS | | Media Types | Business Card, Envelopes, Labels | | Paper Weight | 12 to 53 lb | | Operating System Compatibility | macOS/OS X, Windows, Linux | | Image Sensor | 1 x Charge-Coupled Device (CCD)
1 x Contact Image Sensor (CIS) | | Control Panel | LCD Touchscreen | | Drivers | TWAIN v2.1, WIA, ISIS | | Processor Speed | 1.2 GHz | | Memory | 3584 MB | | Maximum Sheet Capacity | 200 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, EPEAT Silver | | Operating Humidity | 15 to 80% | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Humidity | 0 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Dimensions | 23.7 x 29.7 x 24.5" / 60.2 x 75.4 x 62.2 cm | | Weight | 47.2 lb / 21.41 kg |
