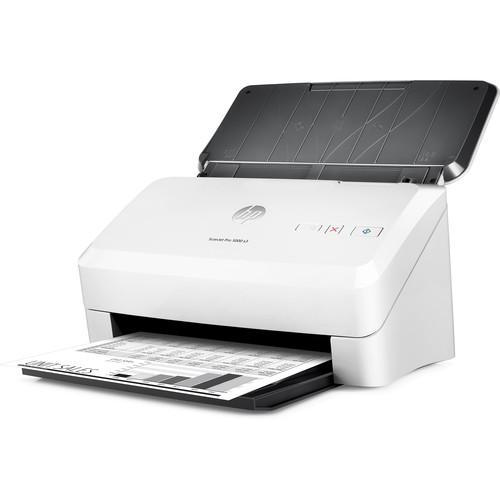

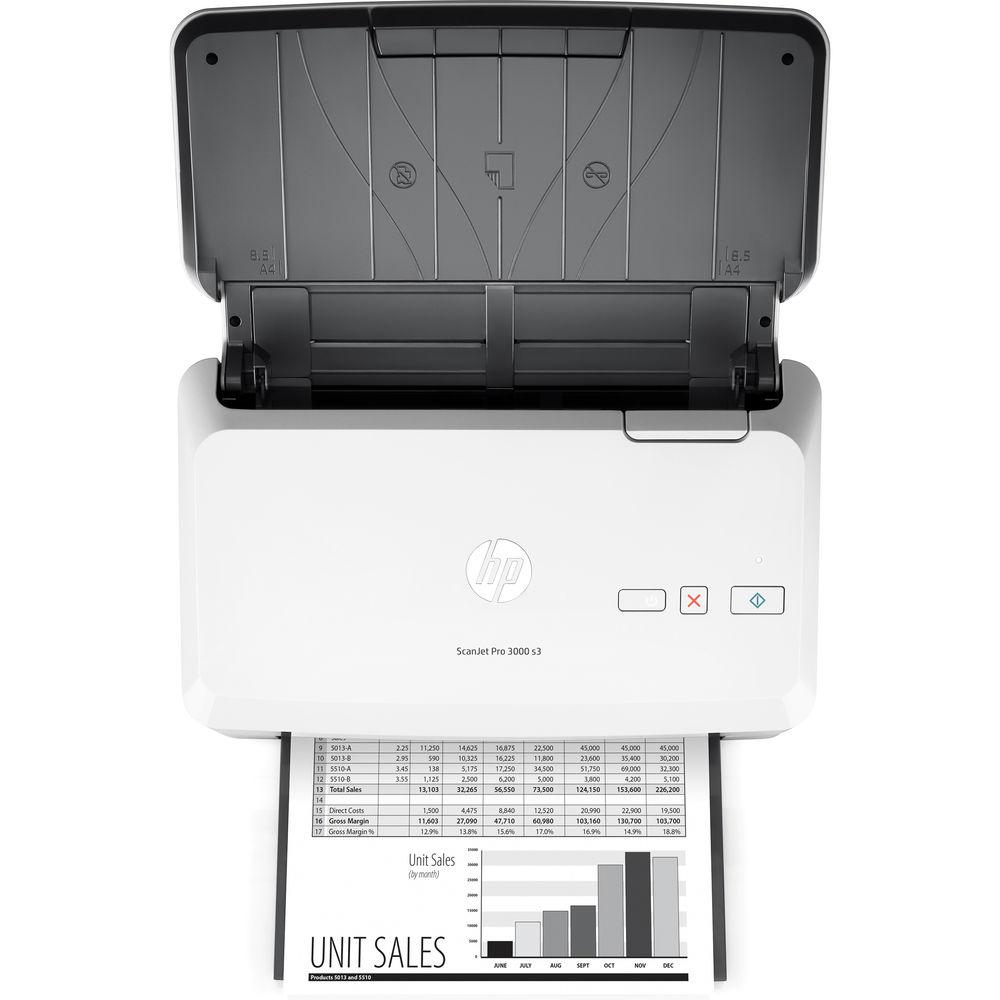

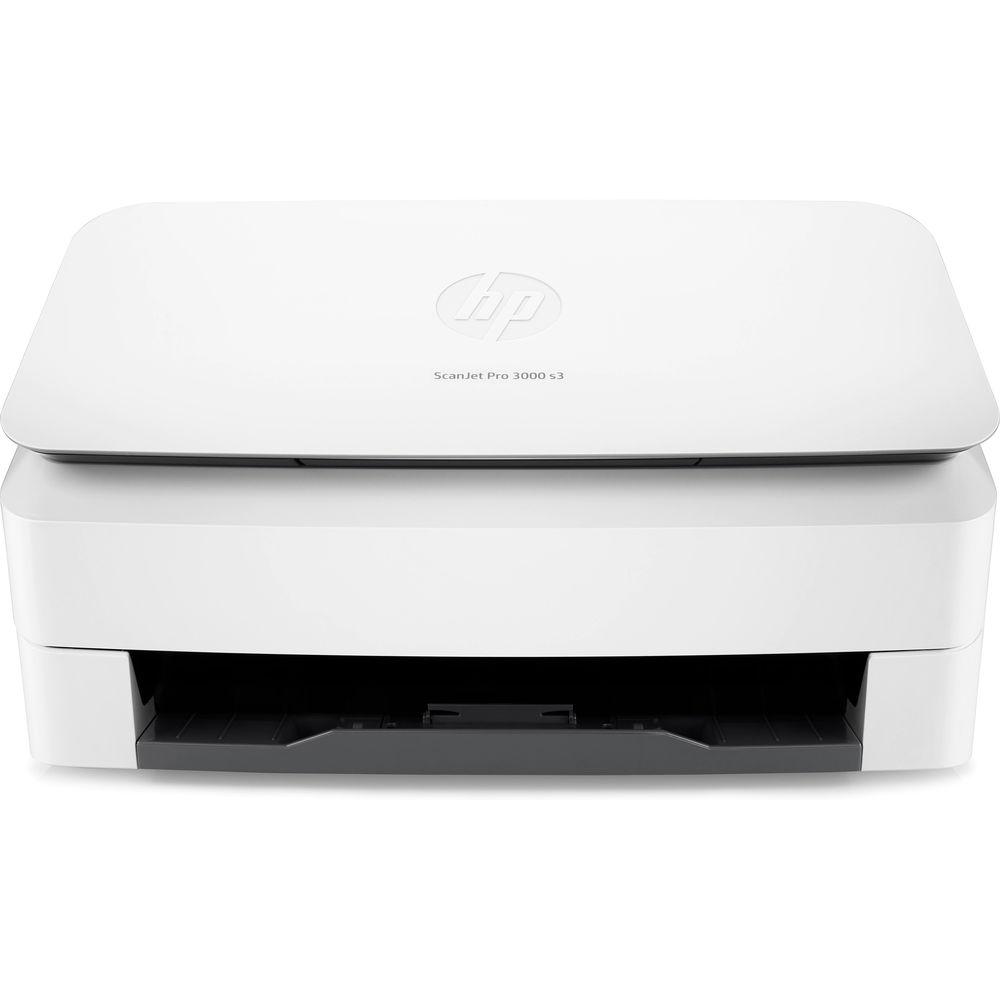

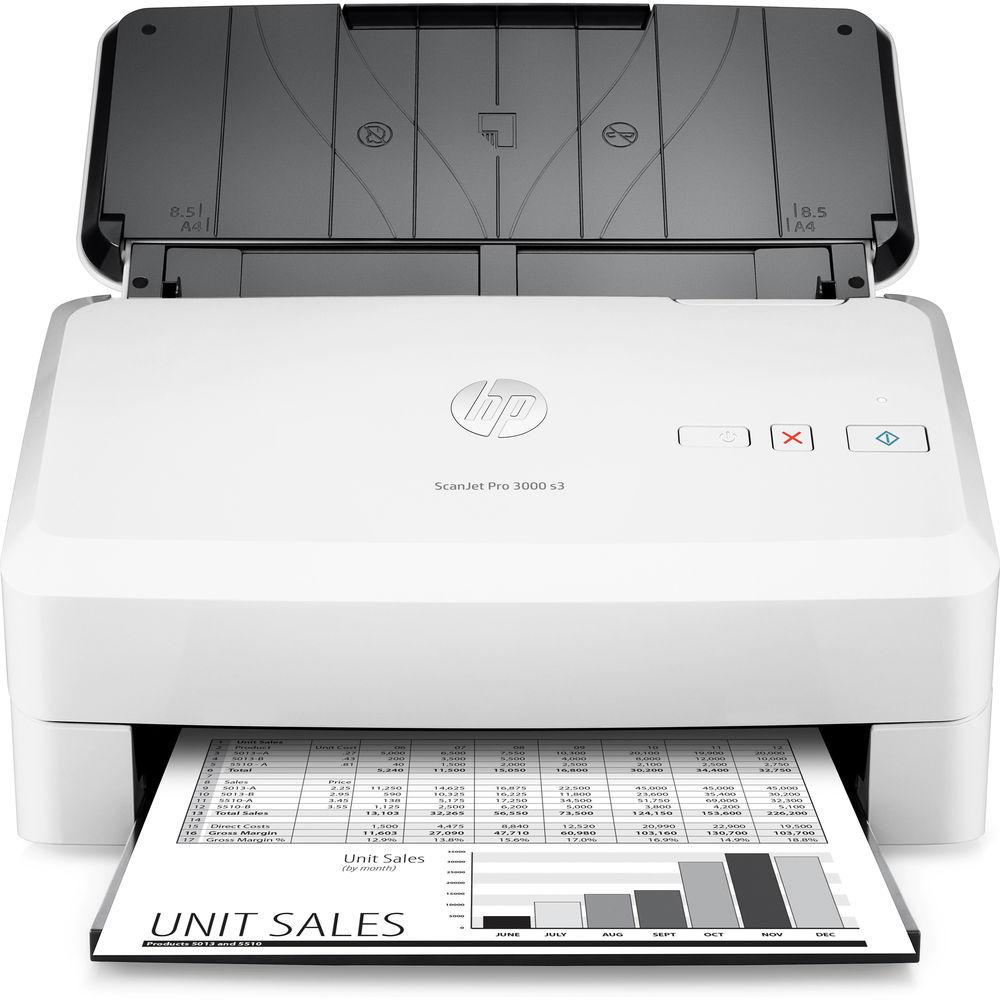

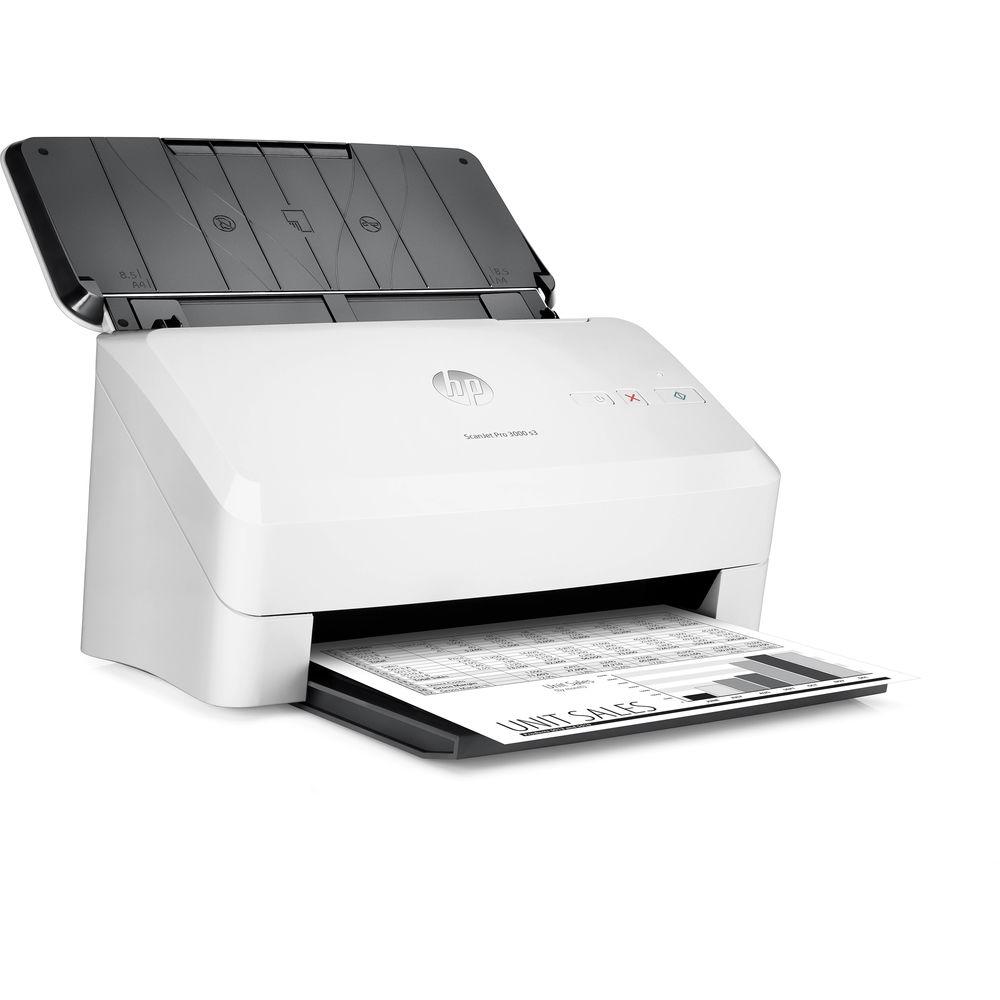

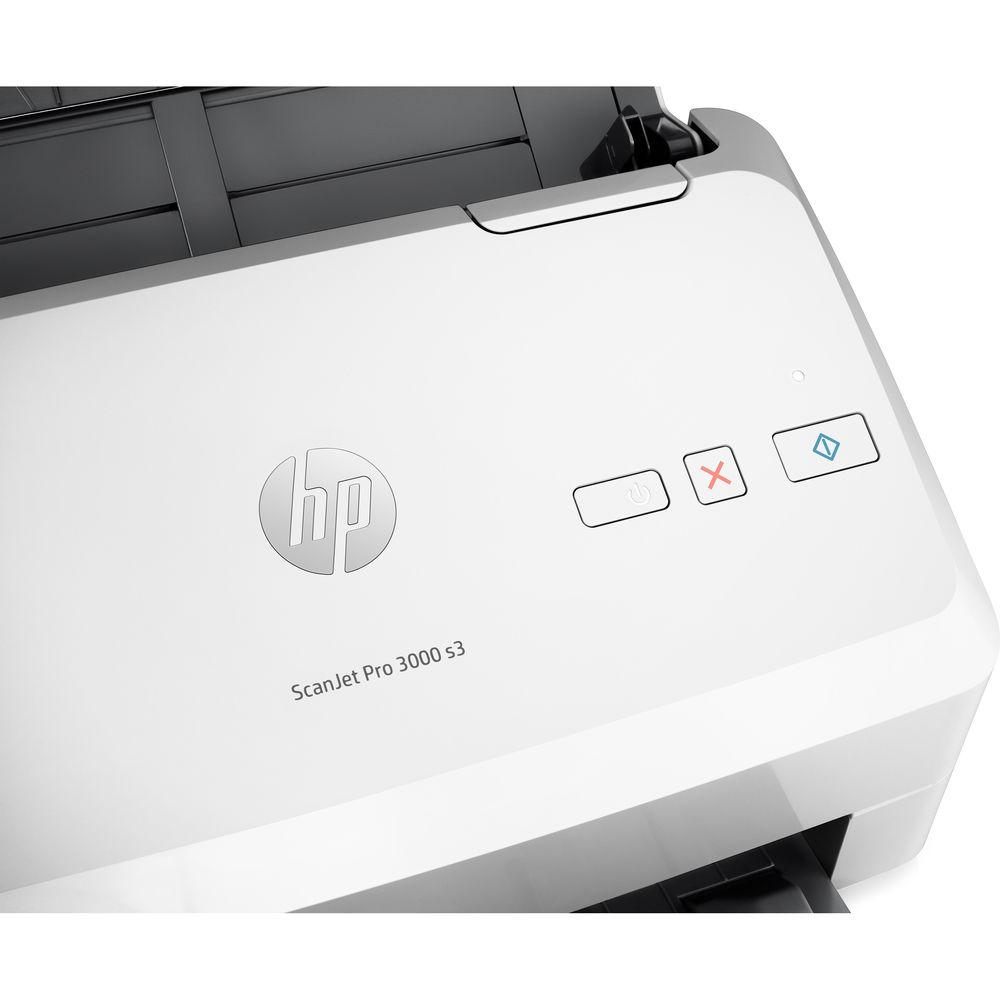

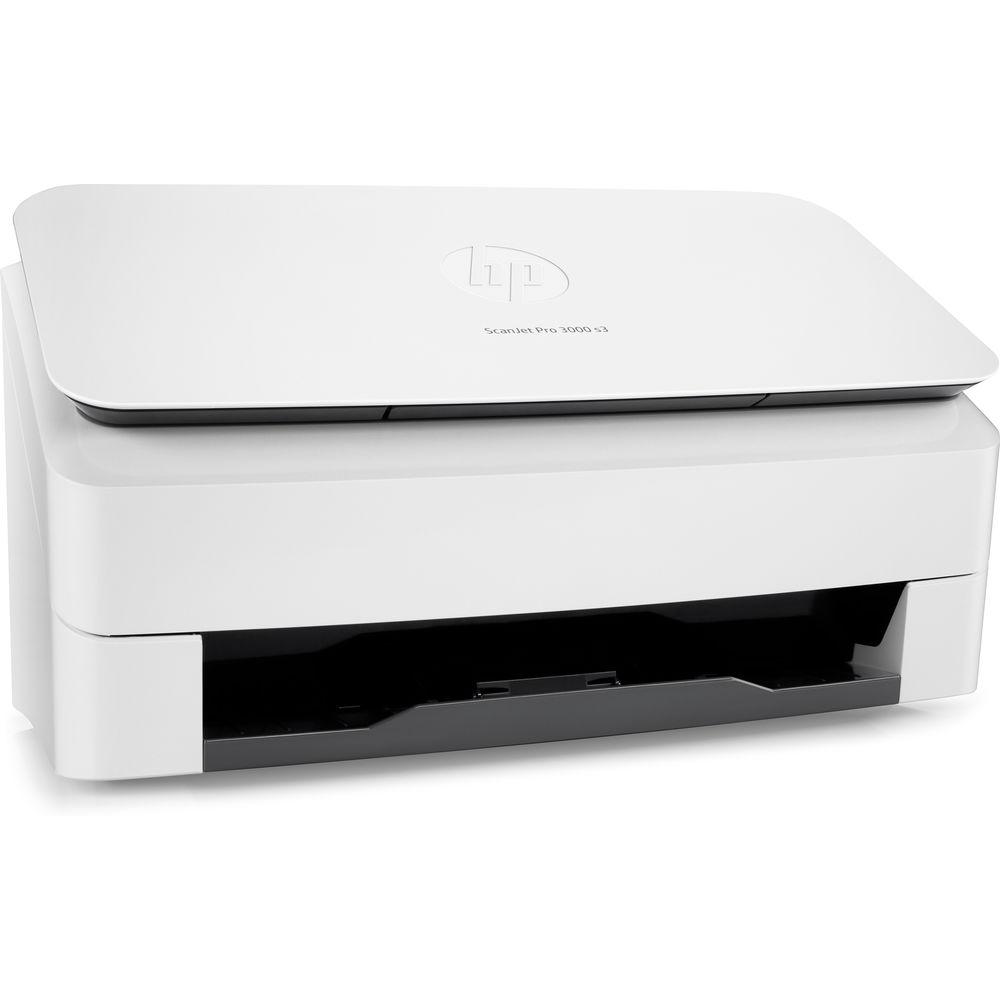

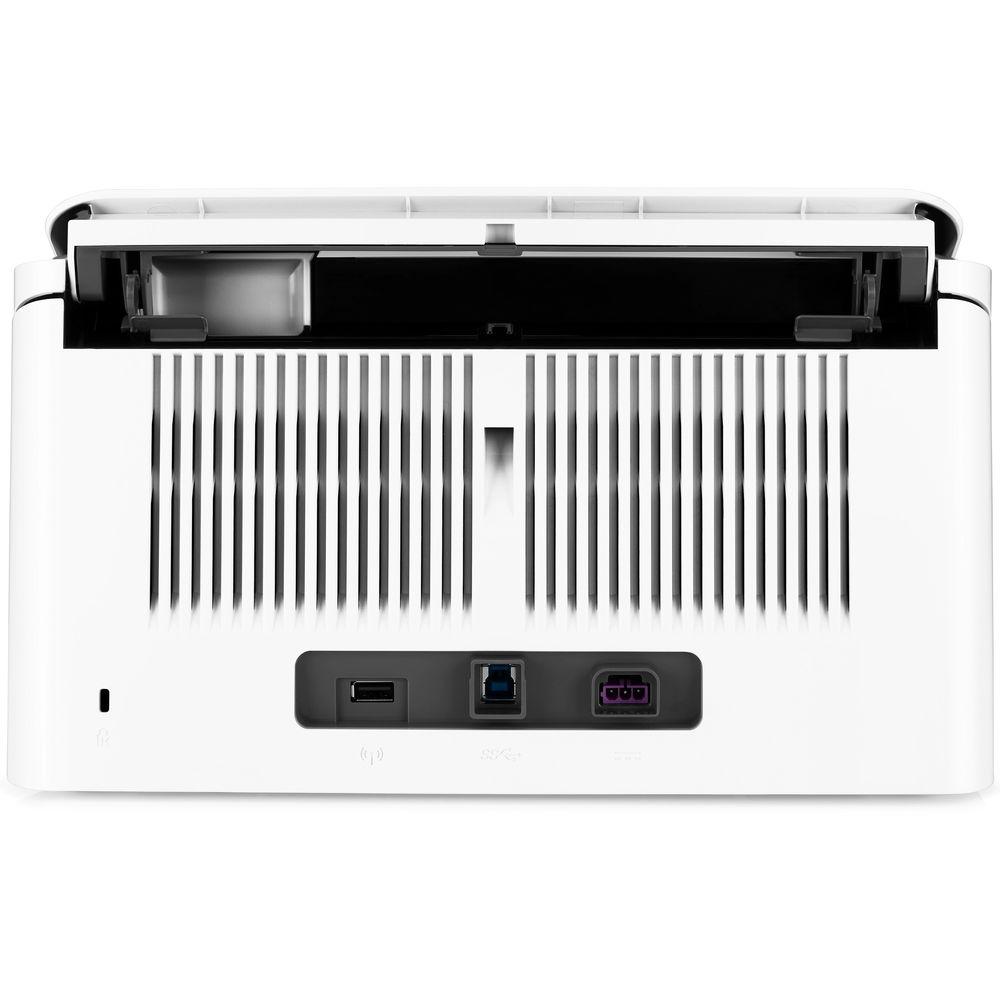

User Manual for HP Scanjet Pro 3000 s3 Sheet-Feed Scanner Click to enlarge the picture
Contents of the user manual for the HP Scanjet Pro 3000 s3 Sheet-Feed
- Product category: Flatbed & Document Scanners HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Flatbed & Document Scanners
 |
User manual for the HP Scanjet Pro 3000 s3 Sheet-Feed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Easily transform your paper documents into 600 dpi files with this Scanjet Pro 3000 s3 Sheet-Feed Scanner from HP. This simple but efficient ADF scanner is capable of digitizing pages at speeds of 35 ppm in single-sided mode and 70 ipm when set to automatic duplexing and at 300 dpi. Up to 50 sheets can be loaded at a time, with the unit accepting media from 2 x 2.9" to 8.5 x 122" in size. The Scanjet Pro 3000 offers both a USB 2.0 and a USB 3.0 slot for high-speed connectivity, and can be controlled with included software or via its simple three-button panel. It produces 24-bit color images and 8-bit grayscale files, supporting file formats such as PDF, JPEG, and TIFF, among others. Made to be durable, the scanner is rated to handle up to 3500 pages per day. - Scanner Features
- Auto-color detect, auto-crop, auto-exposure, auto orient, OCR, edge removal, background cleanup, remove hole, color drop out, straighten the page, scan-to-cloud, scan-to-email, PDF security, misfeed detection advance setting
- Included Software
-
- HP WIA scan driver
- HP TWAIN scan driver
- HP Scan
- HP Scanner Tools Utility
- Nuance PaperPort (Windows only)
- I.R.I.S Readiris
- I.R.I.S Cardiris (Windows only)
- EMC ISIS (Windows only)
UPC: 889894865434 In the Box HP Scanjet Pro 3000 s3 Sheet-Feed Scanner Power Adapter and Cord USB Cable 2 x Software CD Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Scanjet Pro 3000 s3 Sheet-Feed Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP ScanJet Pro 3000 s3 Specs | Maximum dpi Resolution | 600 dpi | | Optical Resolution | 600 dpi | | Duplex Speed | 70 ipm (Color) | | Simplex Speed | 35 ppm (Color) | | Maximum Document Width | 8.5" / 21.6 cm | | Maximum Document Length | 122" / 309.9 cm | | Color Depth | 24-Bit (External)
48-Bit (Internal) | | Grayscale Bit-Depth | 8-Bit (External) | | Duplex Scanning | Yes | | Single Pass Duplex | Yes | | Scan Modes | Color, Grayscale, Monochrome | | Document Feeding | ADF | | Life Expectancy | 3500 Sheets per Day | | Connectivity | USB 2.0, USB 3.0 | | Wireless Connectivity | None | | File Formats | BMP, JPEG, PDF, PNG, RTF, TIFF, TXT | | Paper Weight | 11 to 110 lb | | Operating System Compatibility | macOS/OS X, Windows | | Image Sensor | 1 x Contact Image Sensor (CIS) | | Control Panel | 3 Buttons | | Drivers | TWAIN, WIA, ISIS | | Processor Speed | 550 MHz | | Memory | 512 MB | | Maximum Sheet Capacity | 50 | | Automatic Image Corrections | Yes | | Environmental Compliance | ENERGY STAR, EPEAT Silver | | Operating Humidity | 15 to 80% | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Humidity | 0 to 90% | | Storage Temperature | -40 to 140°F / -40 to 60°C | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Dimensions | 13.5 x 12.2 x 12.6" / 34.3 x 31.0 x 32.0 cm | | Weight | 7.5 lb / 3.40 kg | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 15.5 x 11.75 x 9.6" |
