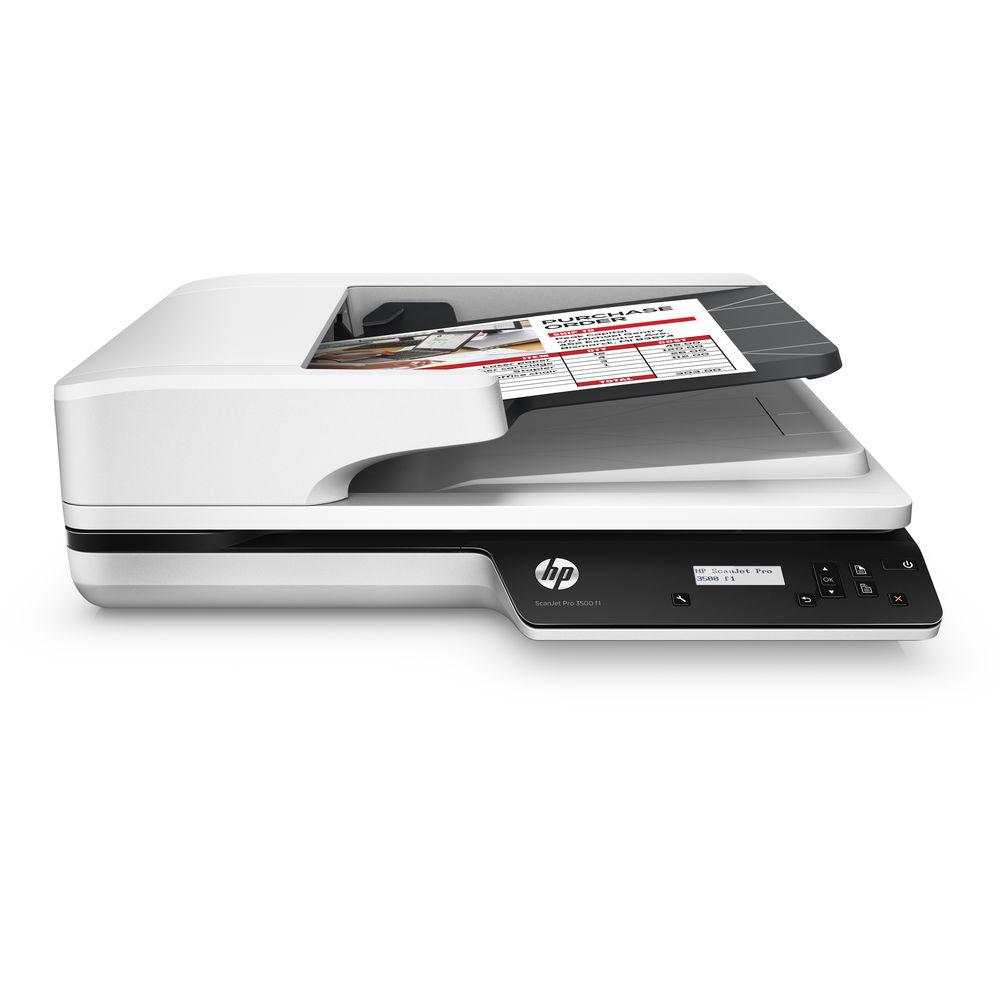

User Manual for HP Scanjet Pro 3500 f1 Document Scanner Click to enlarge the picture
Contents of the user manual for the HP Scanjet Pro 3500 f1 Document
- Product category: Flatbed & Document Scanners HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Flatbed & Document Scanners
 |
User manual for the HP Scanjet Pro 3500 f1 Document contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

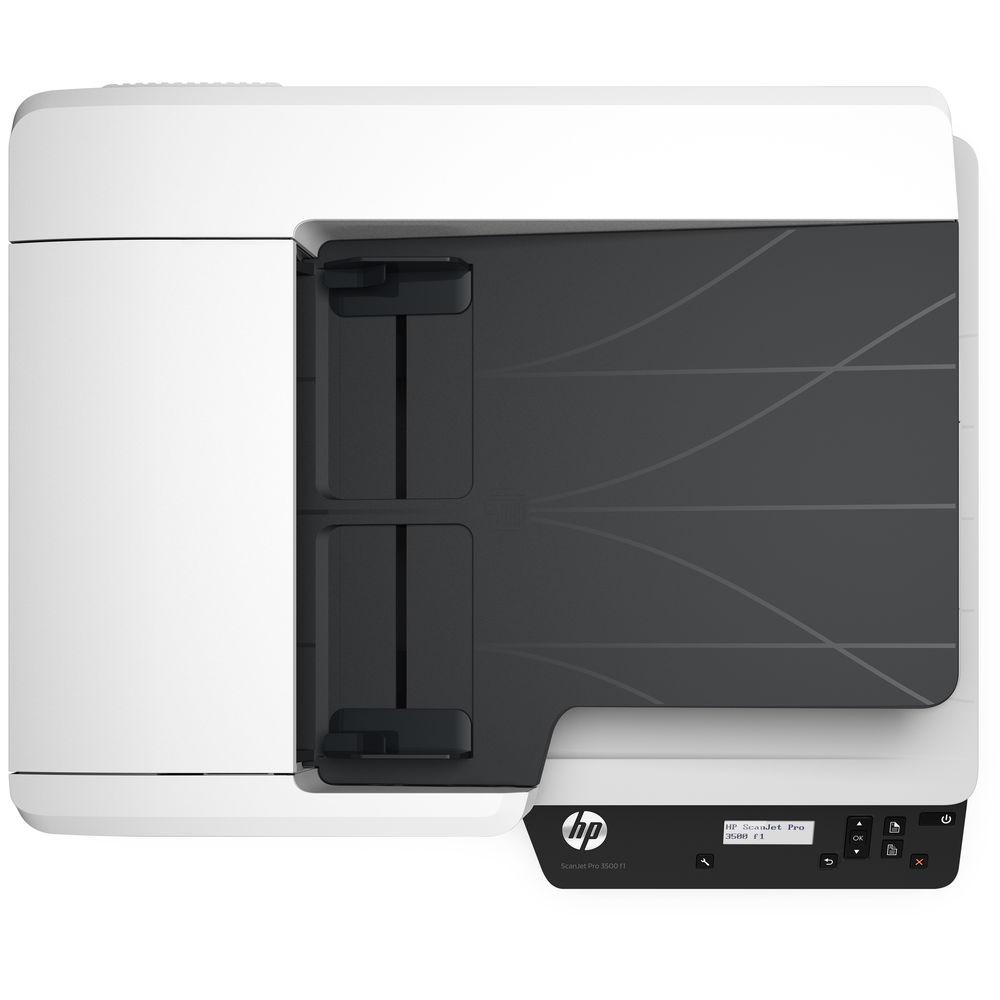

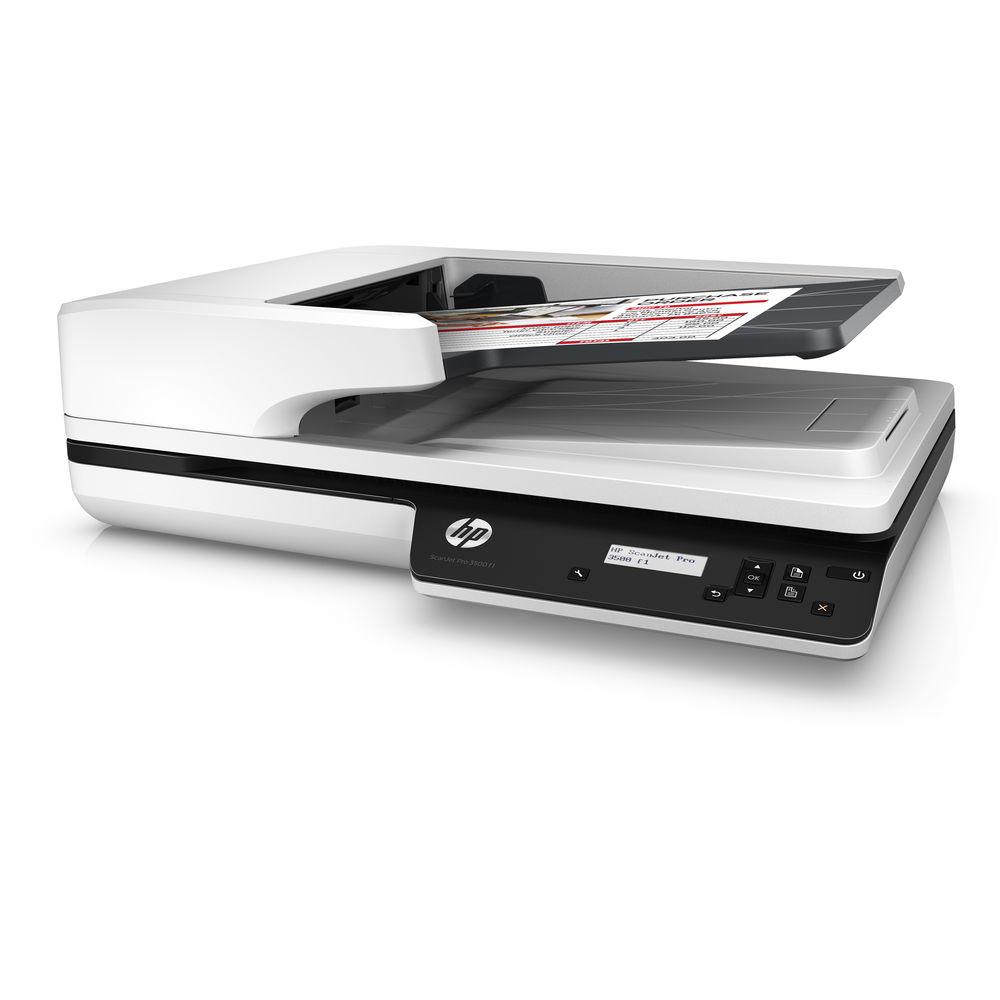

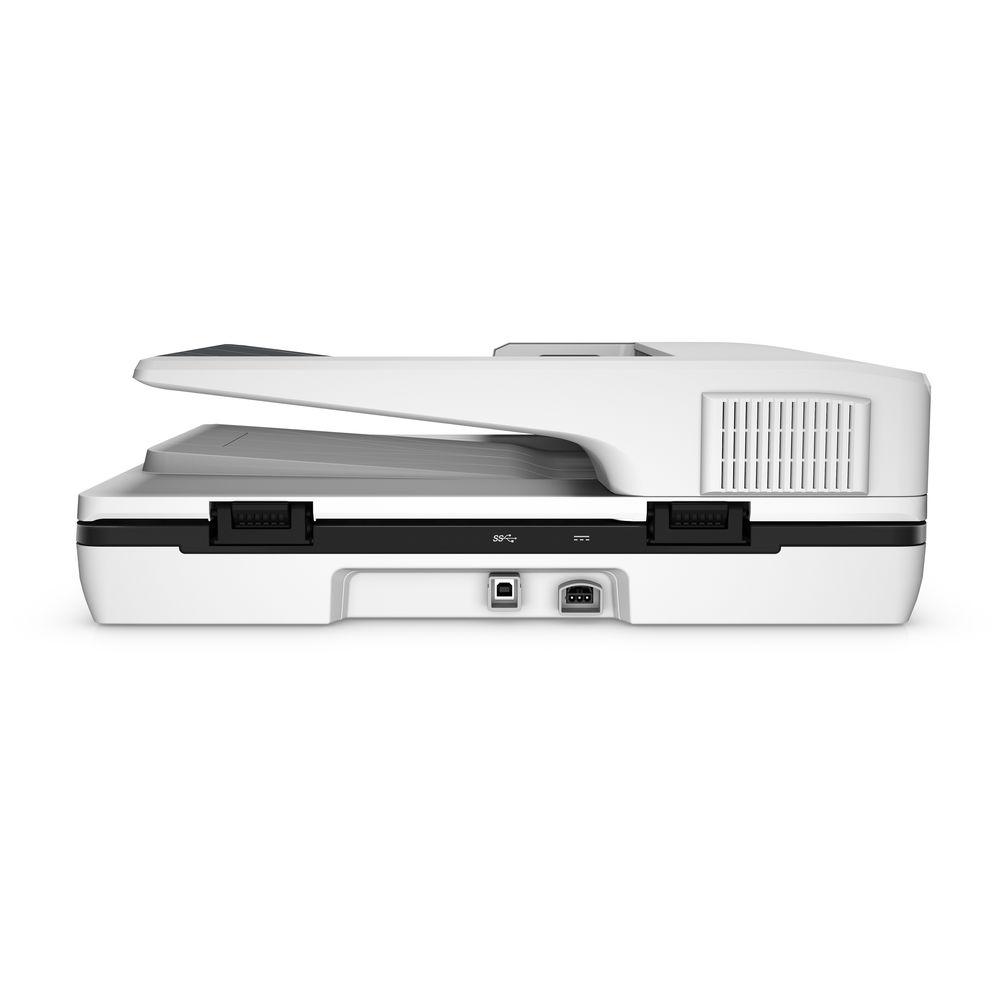

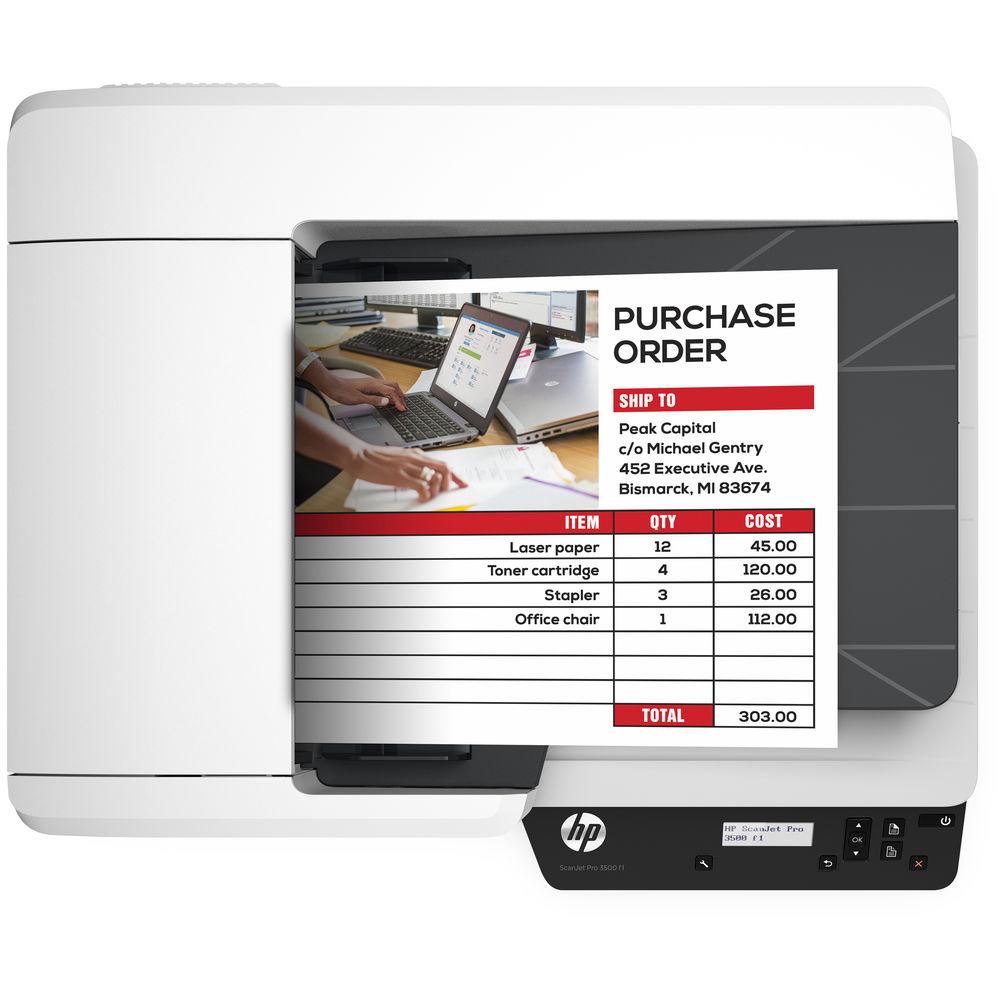

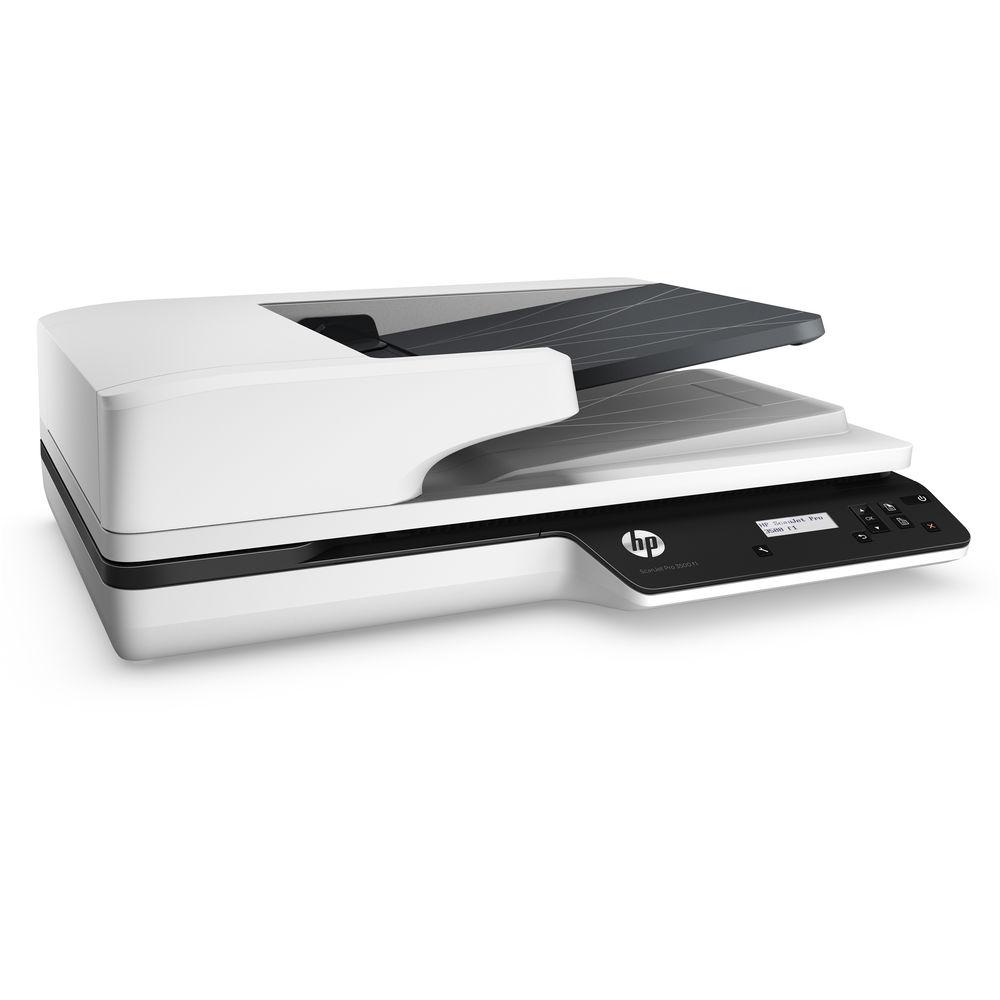

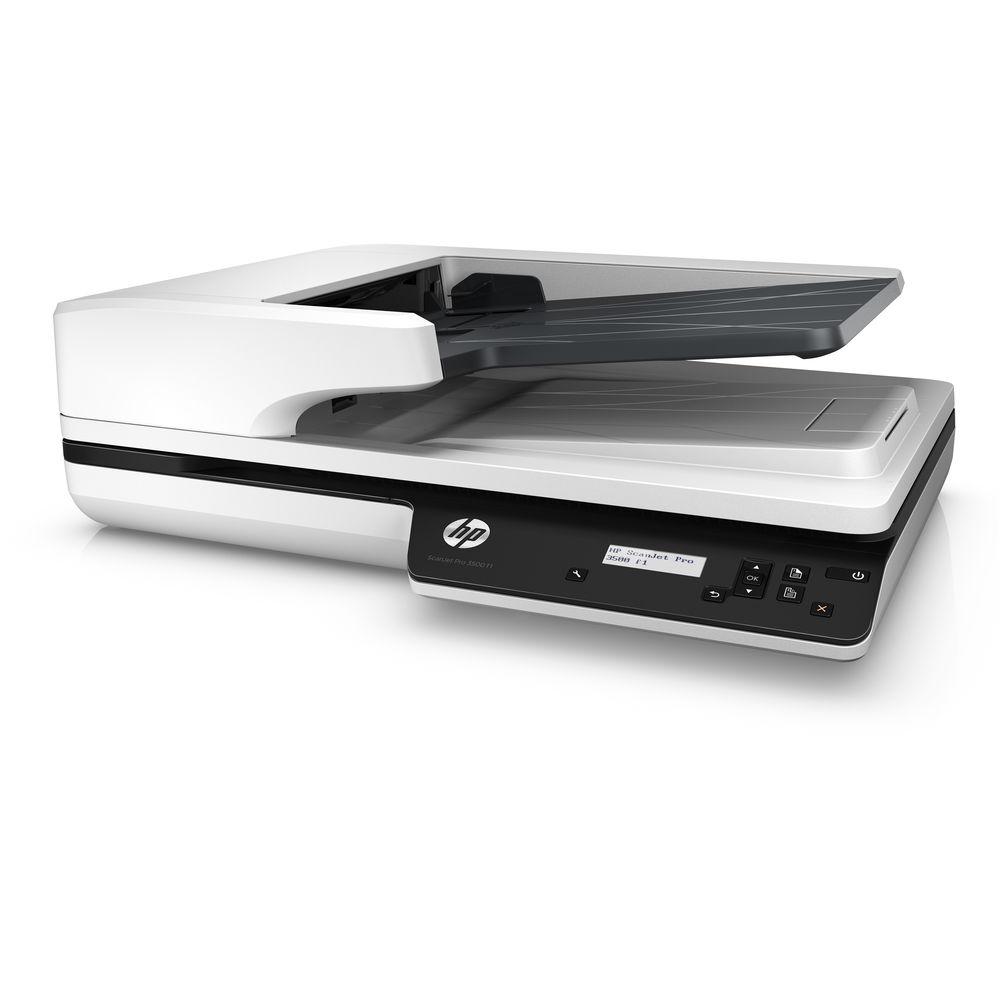

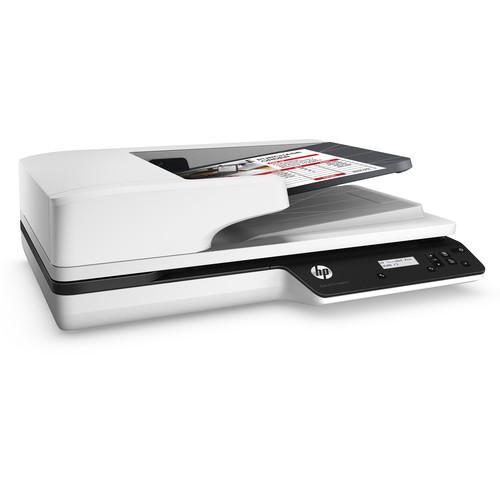

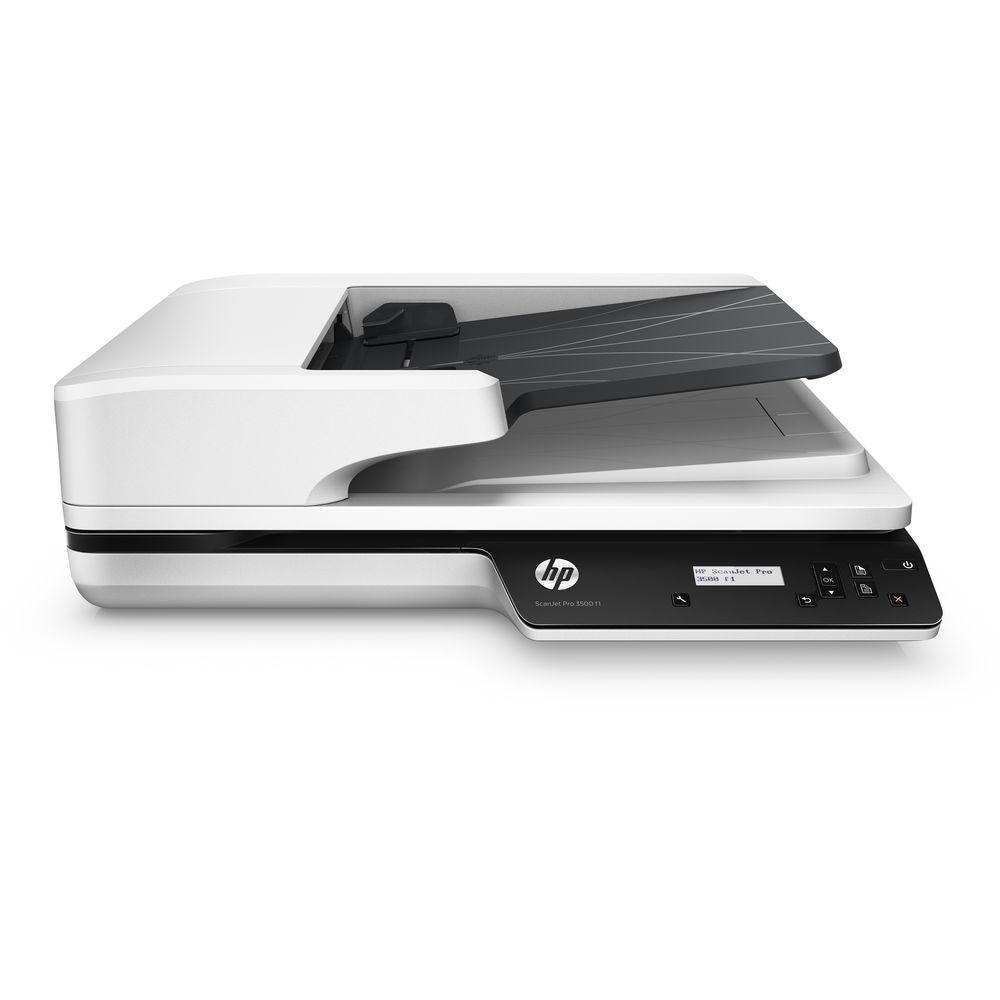

Product description When you need to digitize your workflow simply and reliably the Scanjet Pro 3500 f1 Document Scanner from HP is a great tool for the job. It scans documents using either an 8.5 x 11.7" flatbed or a versatile and speedy automatic document feeder. The flatbed offers an enhanced optical resolution of 1200 dpi while the ADF unit maintains a sharp 600 dpi for crisp, clear documents. Also, the ADF is able to work at speeds of up to 25 ppm, or 50 ipm in duplex mode, and handle long documents up to 8.5 x 122" in size.
The 50-sheet ADF is great for batch jobs and has options for duplexing as well as HP EveryPage technology with an ultrasonic sensor for detecting multi-feeds. Scanner status and settings are easily checked on the 2-line LCD screen and a daily duty cycle of 3,000 pages ensures minimal downtime. Additionally, it has a fast and simple USB 3.0 connection. - HP EveryPage and ultrasonic sensor ensure mixed media is fed and scanned properly
UPC: 888793138120 In the Box HP Scanjet Pro 3500 f1 Document Scanner Cushions USB Cable Power Adapter and Cords Bonus Pack Software CD Scan Software & Driver CD Limited 1-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Scanjet Pro 3500 f1 Document Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Scanjet Pro 3500 f1 Document Scanner can be downloaded in PDF format at the link stated below.
Technical parametersHP 3500 f1 Specs | Scanner Type | Flatbed, ADF | | | | Scan Technology | CMOS CIS (Contact Image Sensor) | | Optical Resolution | Flatbed: 1200 dpi
ADF: 600 dpi | | Hardware Resolution | Flatbed: 1200 x 1200 dpi
ADF: 600 x 600 dpi | | Output Resolution | 75, 150, 200, 240, 300, 400, 500, 600, 1200 dpi | | Color Depth | 24-bit | | Grayscale | 256 levels | | Scan File Format | PDF, JPEG, PNG, BMP, TIFF, TXT, RTF, Searchable PDF | | | | Scan Speed | 25 ppm / 50 ipm | | Scan Size | ADF: 4.1 x 5.8" / 10.5 x 14.8 cm to 8.5 x 122.0" / 21.6 x 310.0 cm
Flatbed: 1.0 x 1.0" / 2.5 x 2.5 cm to 8.5 x 11.7" / 21.6 x 29.7 cm | | Duplex Scanning | Yes | | Multi-Feed Detection | Yes | | Duty Cycle | Daily: 3,000 pages (ADF) | | | | Paper Handling | ADF
Flatbed | | Media Types | Paper (banner, inkjet, photo, plain), envelopes, labels, cards (greeting, index) | | Media Weight | ADF: 12-32 lb / 45-120 gsm | | Media Sizes | Letter, legal, executive, A4, A5, A6, B5, B5 (JIS) | | Paper Capacity | ADF: 50 sheets | | | | Interface | USB 3.0 | | Processor | 550 MHz | | Memory | 512 MB | | Compatible Operating Systems | Windows 10, 8.1, 8, 7
Mac OS X 10.9, 10.10 | | Drivers | TWAIN Certified Version 2.1 | | | | Light Source | LED | | Front Panel Controls | 2-line LCD
5 buttons (Simplex/Duplex, Power, Cancel, Back, Tools/Maintenance) | | Power Requirements | 90-264 VAC, 50/60 Hz | | Power Consumption | Ready: 4.51 W
Sleep: 1.40 W
Auto-Off/Off: 0.22 W | | Acoustics | Power Emissions: 5.8 B(A) | | Operating Conditions | Temperature: 50 to 95°F / 10 to 35°C
Humidity: 15 to 80%, relative non-condensing | | Storage Conditions | Temperature: -40 to 140°F / -40 to 60°C
Humidity: 0 to 90%, relative non-condensing | | Certifications | ENERGY STAR certified
EPEAT Silver | | Electromagnetic Emission Certifications | Class B Emissions; CISPR 22:2008 (International); European Union EMC Directive 2004/108/EC, EN 55022:2010 (CE mark); China GB9254-2008 (CCC); Taiwan CNS13438:2006 (BSMI); USA CFR47 Part 15, Subpart B (FCC); ICES-003:2012 Issue 5 (Canada); Australia C-tick (includes New Zealand); KN 22 and Korea KCC; EAC EMC Certificate; Ukraine EMC approval; EN 61000-3-2:2014 (harmonics); EN 61000-3-3:2013 (flicker); Immunity CISPR 24:2010, EN 50024:2010 | | Safety Approvals | IEC 60950-1:2005 +A1 and all applicable amendments; CSA/UL 60950-1, 2nd edition (2007); EN 60950-1:2006 +A11 +A1 +A12+A2; EAC safety; Canada cUL CoC; China CCC; European Union CE; Kenya PVOC; Kuwait TER; Nigeria SON; Saudi Arabia SASO; South Africa NRCS; Taiwan BSMI; Ukraine safety approval | | Dimensions | 18.1 x 15.2 x 5.7" / 46.0 x 38.7 x 14.5 cm | | Weight | 12.3 lb / 5.6 kg | | | | Package Weight | 17.5 lb | | Box Dimensions (LxWxH) | 22.7 x 19.5 x 9.7" |
