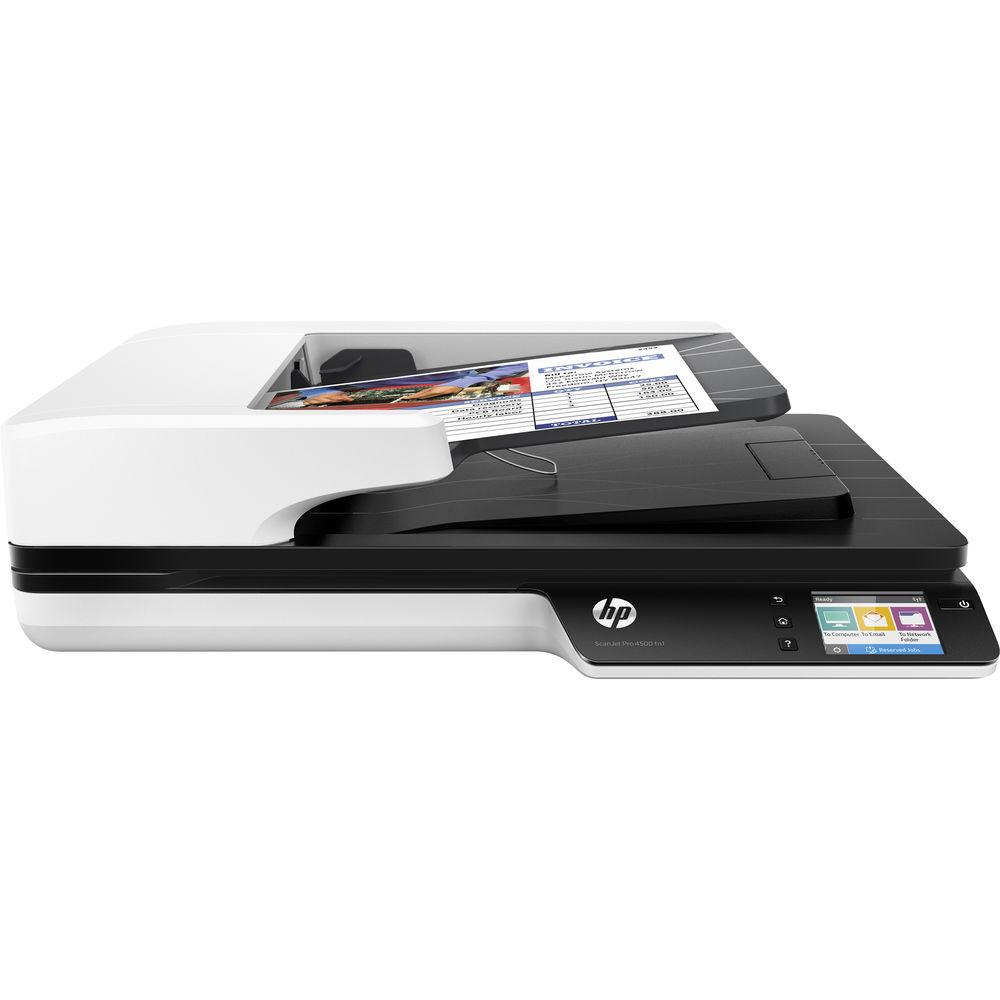

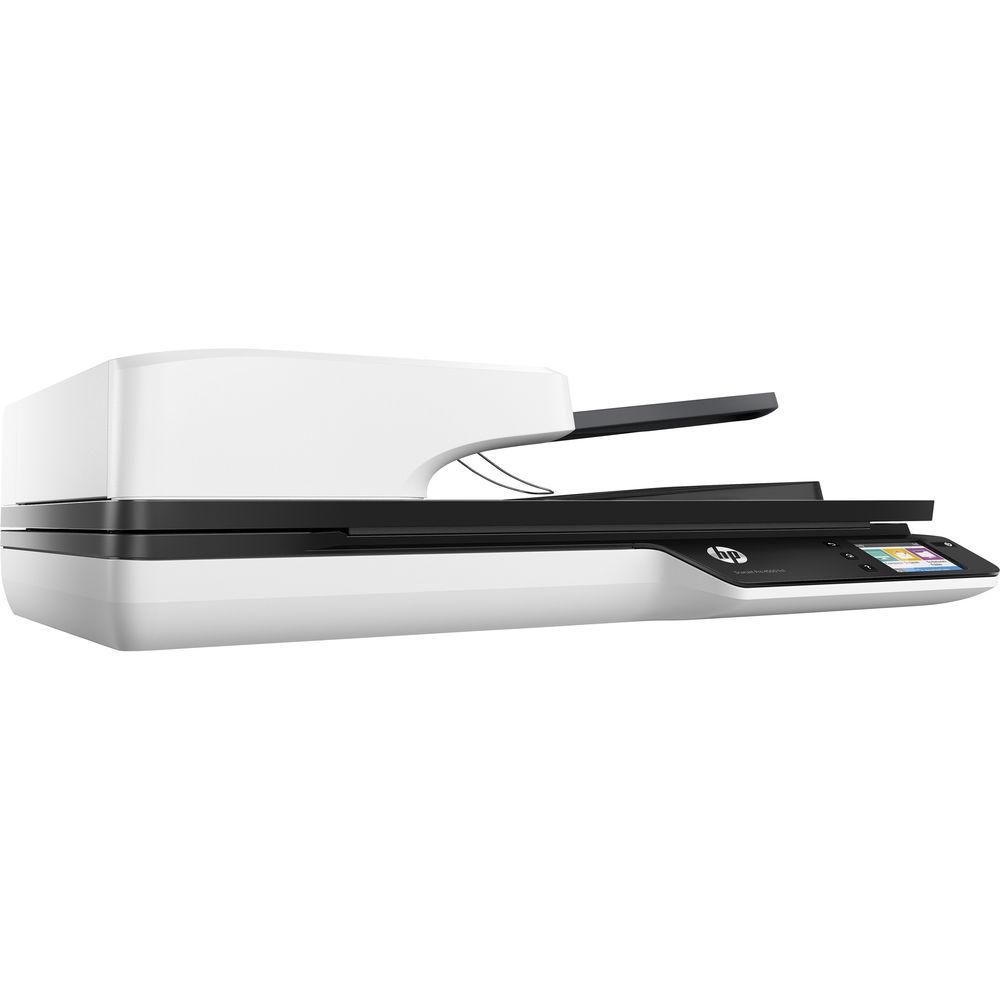

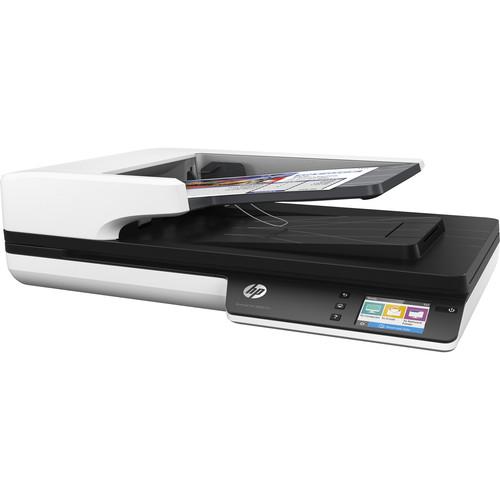

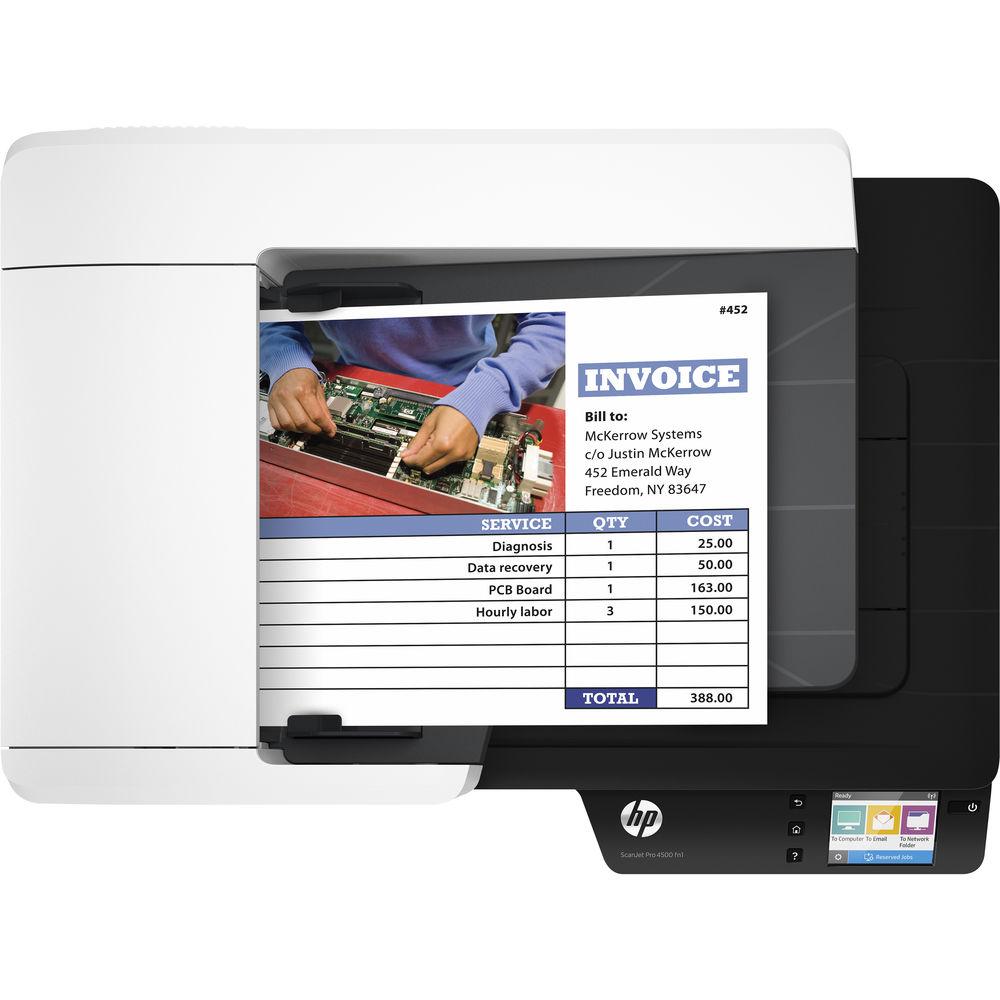

User Manual for HP Scanjet Pro 4500 fn1 Network Scanner Click to enlarge the picture
Contents of the user manual for the HP Scanjet Pro 4500 fn1 Network
- Product category: Flatbed & Document Scanners HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Flatbed & Document Scanners
 |
User manual for the HP Scanjet Pro 4500 fn1 Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Digitize your file collection and send the images to your computer, network, or mobile devices with the Scanjet Pro 4500 fn1 Network Scanner from HP. Robust and able to handle up to 4,000 pages each day, this unit can easily turn a paper-based workflow into an entirely digital operation. The 4500 fn1 also creates sharp, detailed images with an optical resolution of 1200 dpi on the flatbed or 600 dpi with the ADF. This setup allows users to handle a lot of pages quickly via the ADF at up to 30 ppm, or 60 ipm with one-pass duplexing and multi-feed detection, as well as odd-shaped or large documents with the legal-size flatbed. Additionally, the 50-sheet ADF offers a long document mode which can handle banners up to 8.5 x 122" in size.
For simple, easy to handle digital sending, the 4500 fn1 features a 2.8" color touchscreen on the front panel. Also, with built-in Ethernet and Wi-Fi connectivity, users will be able to quickly set the scanner up on a home network or connect directly from a mobile device. For a more direct connection, USB 3.0 offers excellent speed. - HP EveryPage and ultrasonic sensor ensure mixed media is fed and scanned properly
- Scan directly to mobile devices with HP JetAdvantage Capture app
- Send scans through secure networks and to mobile devices via Wi-Fi Direct
- Scan directly into applications with Kofax VRS Pro, TWAIN, and ISIS
- Capture text using HP Scan and I.R.I.S. Readiris Pro OCR software
UPC: 889894218971 In the Box HP Scanjet Pro 4500 fn1 Network Scanner Cushions USB Cable Power Adapter and Cords Bonus Pack Software CD Scan Software & Driver CD Limited 1-Year Warranty Guides & Manuals dwbetbvtsswccu More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Scanjet Pro 4500 fn1 Network Scanner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Scanjet Pro 4500 fn1 Network Scanner can be downloaded in PDF format at the link stated below.
Technical parametersHP 4500 fn1 Specs | Scanner Type | Flatbed, ADF | | | | Scan Technology | CMOS CIS (Contact Image Sensor) | | Optical Resolution | Flatbed: 1200 x 1200 dpi
ADF: 600 x 600 dpi | | Hardware Resolution | Flatbed: 1200 x 1200 dpi
ADF: 600 x 600 dpi | | Output Resolution | 75, 150, 200, 240, 300, 400, 500, 600, 1200 dpi | | Color Depth | 24-bit | | Grayscale | 256 levels | | Scan File Format | PDF, JPEG, PNG, BMP, TIFF, TXT, RTF, Searchable PDF | | | | Scan Speed | Up to 30 ppm / 60 ipm | | Scan Size | ADF: 4.1 x 5.8" / 10.5 x 14.8 cm to 8.5 x 122.0" / 21.6 x 310.0 cm
Flatbed: 1.0 x 1.0" / 2.5 x 2.5 cm to 8.5 x 14.0" / 21.6 x 35.6 cm | | Duplex Scanning | Yes, one-pass | | Multi-Feed Detection | Yes | | Duty Cycle | Daily: 4,000 pages (ADF), 100 pages (flatbed) | | Scanner Features | Blank page removal, auto orientation, auto color detect, auto crop, auto exposure, hole removal, straighten content, erase edges, clean up background, auto threshold, color drop out, OCR | | | | Paper Handling | ADF
Flatbed | | Media Types | Paper (banner, inkjet, photo plain), envelopes, labels, cards (greeting, index) | | Media Weight | ADF: 12-32 lb / 45-120 gsm | | Media Sizes | Letter, legal, executive, A4, A5, A6, B5, B5 (JIS) | | Paper Capacity | ADF: 50 sheets | | | | Interface | USB 3.0
Ethernet 10/100/1000Base-TX
Wi-Fi 802.11b/g/n | | Processor | 550 MHz | | Memory | 1 GB | | Digital Sending Features | Scan to email, PC, network | | Compatible Operating Systems | Windows 7 or later
Mac OS X 10.11 El Capitan | | Drivers | TWAIN Certified Version 2.1 | | Security Management | Password-protected network embedded web server | | | | Light Source | LED | | Front Panel Controls | 2.8" / 7.1 cm touchscreen
Buttons (Back, Home, Help) | | Power Requirements | 100-240 VAC | | Power Consumption | Ready: 6.11 W
Sleep: 1.35 W
Auto-Off/Off: 0.05 W | | Acoustics | Power Emissions: 6.3 B(A) | | Operating Conditions | Temperature: 50 to 95°F / 10 to 35°C
Humidity: 15 to 80%, relative non-condensing | | Storage Conditions | Temperature: -40 to 140°F / -40 to 60°C
Humidity: 0 to 90%, relative non-condensing | | Certifications | ENERGY STAR certified
EPEAT Silver | | Electromagnetic Emission Certifications | Class B Emissions; CISPR 22:2008 (International); European Union EMC Directive 2004/108/EC, EN 55022:2010 (CE mark); China GB9254-2008 (CCC); Taiwan CNS13438:2006 (BSMI); USA CFR47 Part 15, Subpart B (FCC); ICES-003:2012 Issue 5 (Canada); Australia C-tick (includes New Zealand); KN 22 and Korea KCC; EAC EMC Certificate; Ukraine EMC approval; EN 61000-3-2:2014 (harmonics); EN 61000-3-3:2013 (flicker); Immunity CISPR 24:2010, EN 50024:2010 | | Safety Approvals | IEC 60950-1:2005 +A1 and all applicable amendments; CSA/UL 60950-1, 2nd edition (2007); EN 60950-1:2006 +A11 +A1 +A12+A2; EAC safety; Canada cUL CoC; China CCC; European Union CE; Kenya PVOC; Kuwait TER; Nigeria SON; Saudi Arabia SASO; South Africa NRCS; Taiwan BSMI; Ukraine safety approval | | Dimensions | 20.5 x 15.2 x 5.7" / 52.0 x 38.7 x 14.5 cm | | Weight | 13.2 lb / 5.98 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 25.7 x 19.2 x 9.7" |
