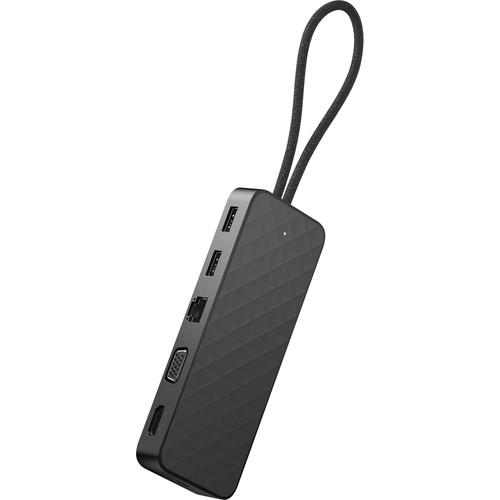

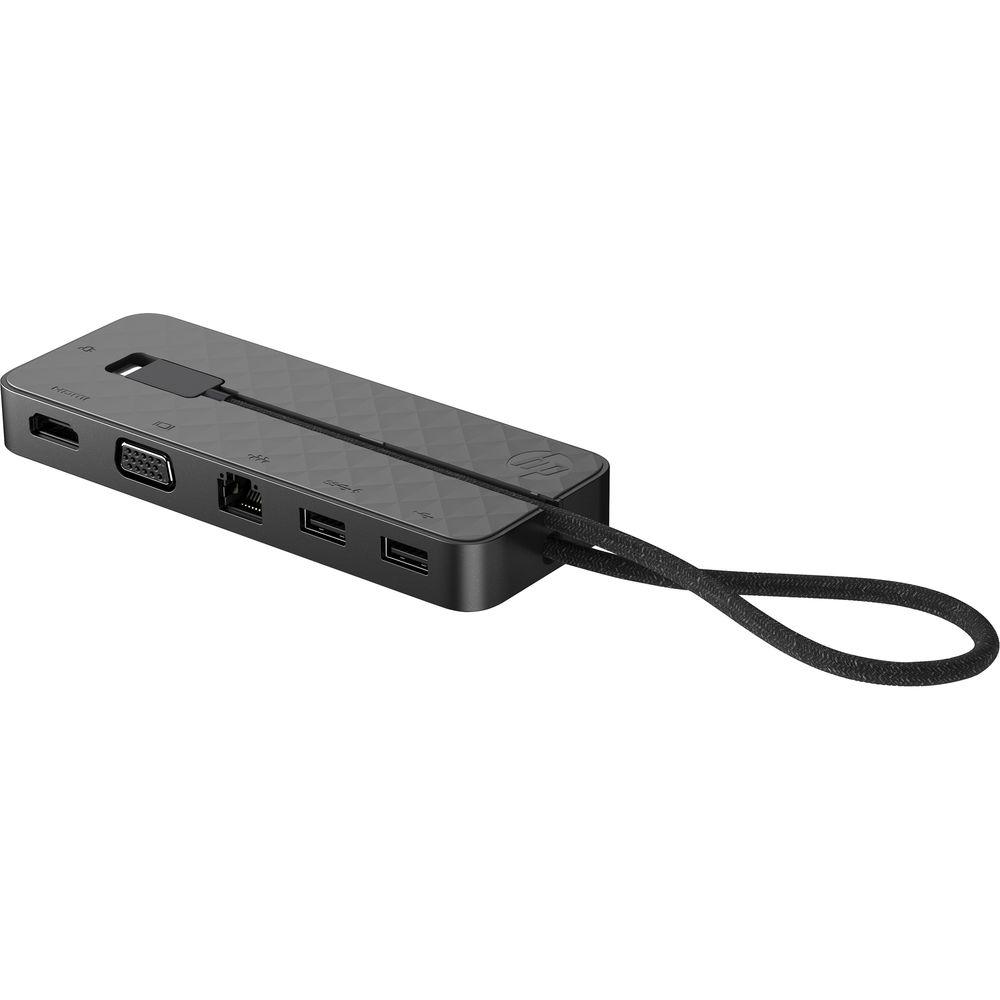

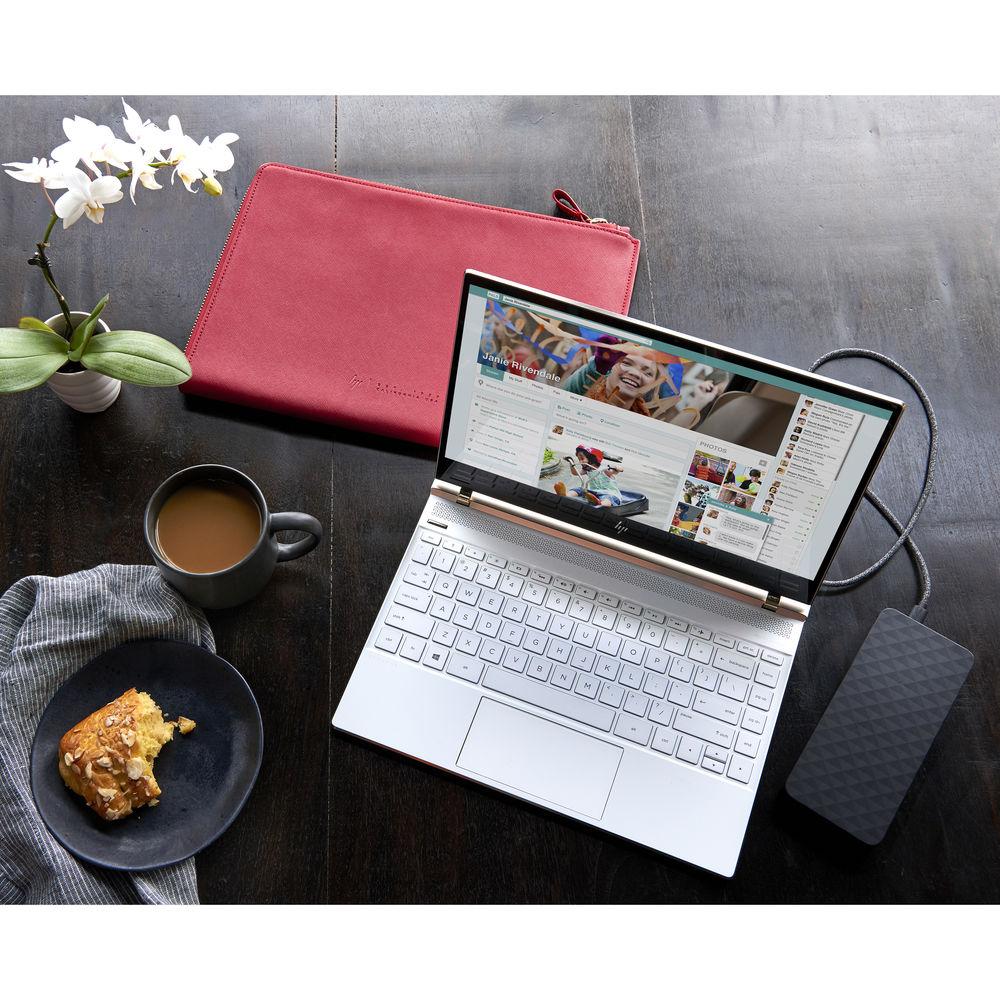

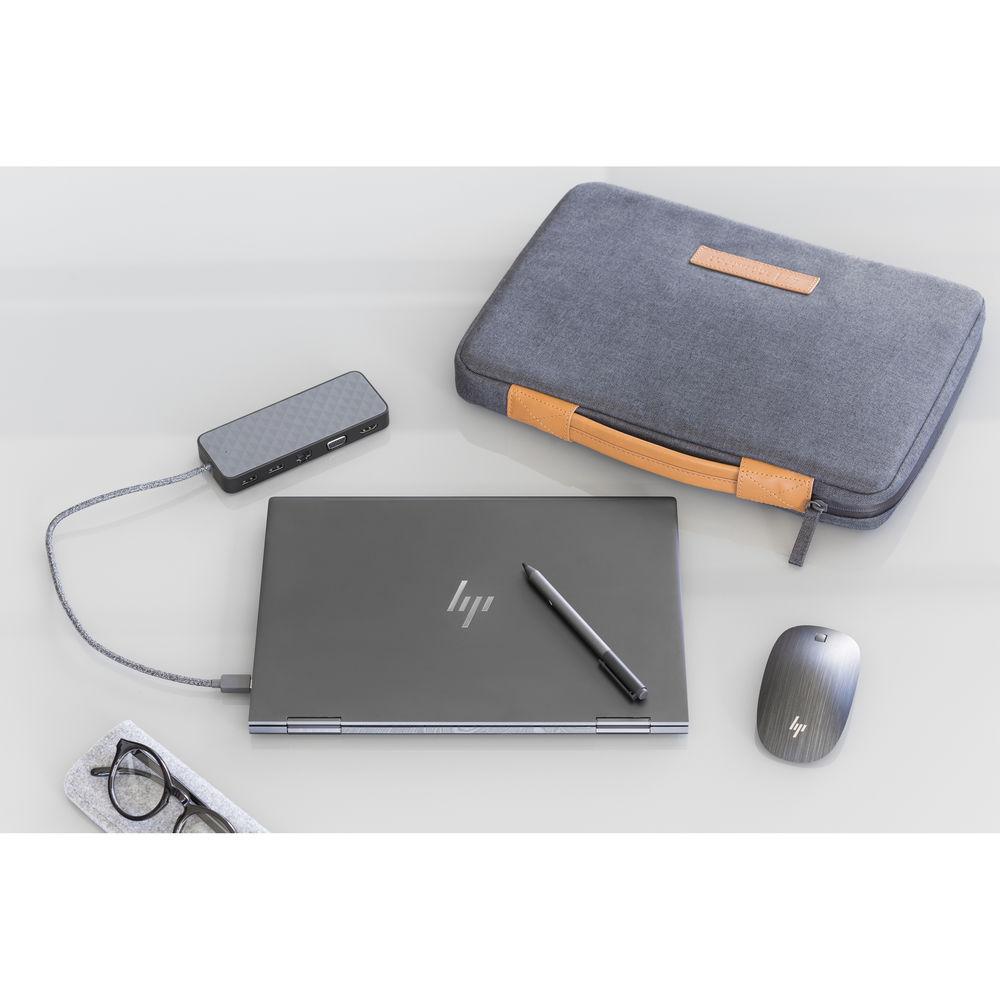

Product description Compatible with select HP desktop and laptop systems, the Spectre USB Type-C Travel Dock from HP adds USB 3.1 Gen 1 Type-A, USB 2.0 Type-A, HDMI 1.4, VGA, and Gigabit Ethernet connectivity to systems equipped with Thunderbolt 3 or USB 3.1 Gen 1 Type-C that also support DisplayPort 1.2, sleep and charge, and are powered using an AC adapter of 65W or less. Your host system's power adapter connects to this dock using its USB Type-C input, which only supports compatible USB Type-C power adapters and will not transfer data.
In addition to providing data transfer speeds of up to 5 Gb/s, the USB 3.1 Gen 1 Type-A port provides up to 5V / 0.9A of power, while the USB 2.0 Type-A port provides data transfer speeds up to 480 Mb/s and 5V / 0.5A of power. Both USB ports are compatible with previous generation devices. While there is one HDMI 1.4 port and one VGA port, dual monitors are not supported and only one video output may be used at a time. Supported resolutions include 4096 x 2160 at 30 Hz and 1920 x 1080 at 60 Hz, and there is also support for HDCP 1.4 and HDCP 2.2. The Gigabit Ethernet port is compatible with 10/100/1000 Mb/s networks and supports Wake on LAN from S3/S4/S5 states.
HP's Spectre USB Type-C Travel Dock connects to your host system using an integrated 15.71" USB Type-C cable that supports DP Alt mode with Power Deliver 3.0 and provides power up to 20V / 3A. Protection is provided by a limited 1-year warranty. General Features - Stay Productive with Full Connectivity

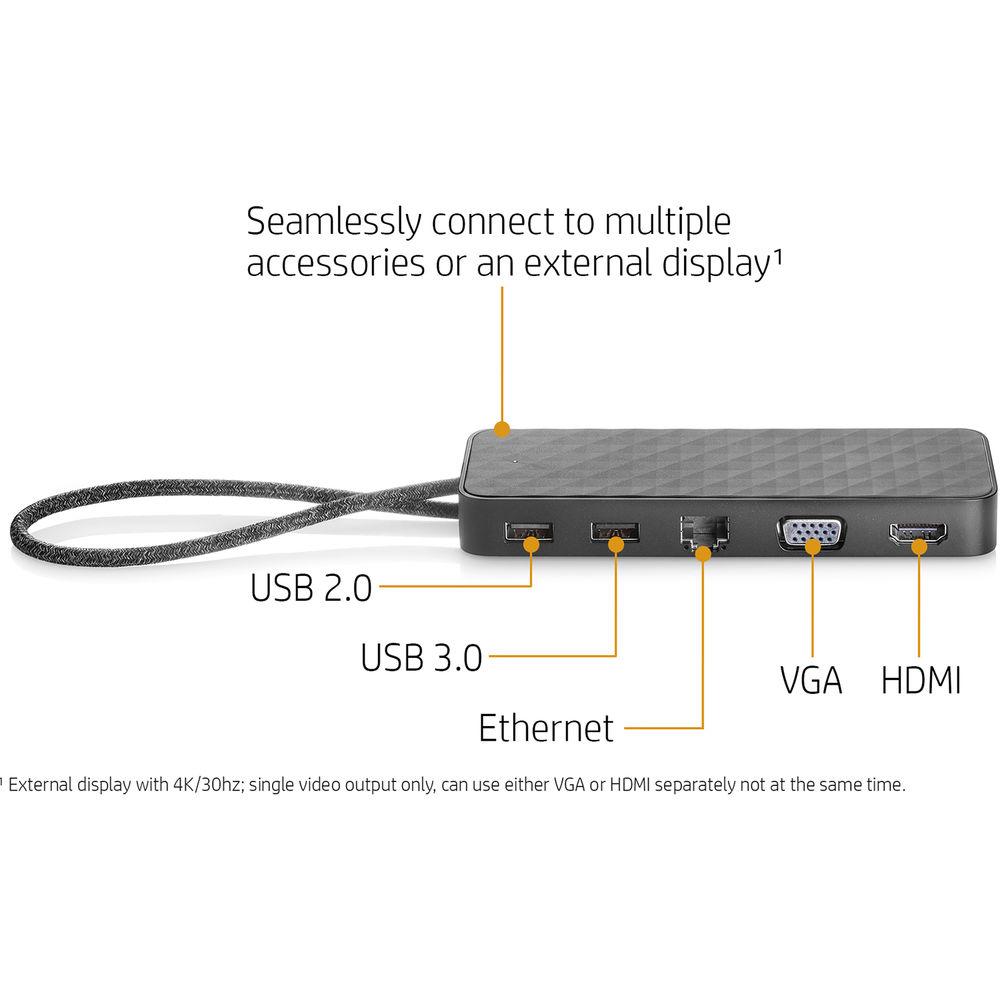

- VGA, HDMI 1.4, Gigabit Ethernet, USB 2.0 Type-A, and USB 3.1 Gen 1 Type-A ports let you seamlessly connect to multiple accessories or one external display.
- More Cable, More Freedom

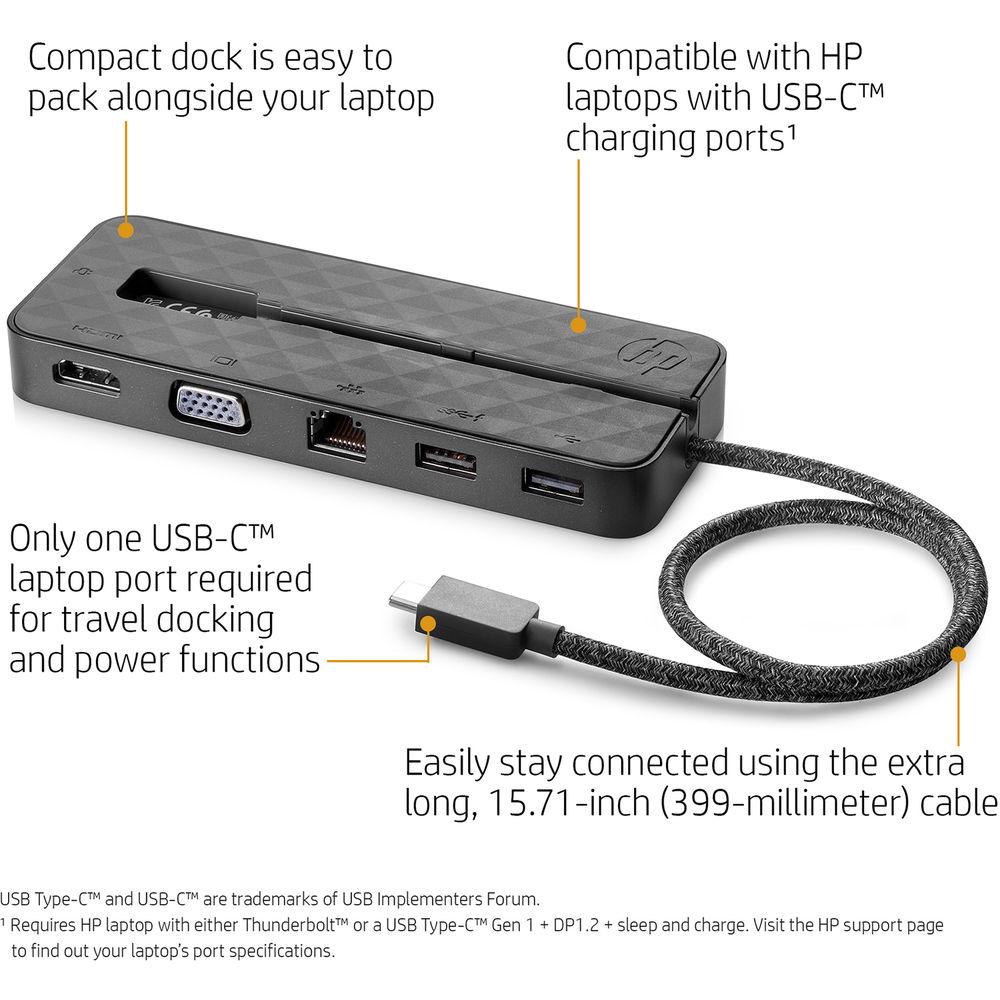

- Stay connected to your USB accessories without worrying about space thanks to a long, 15.71" USB Type-C cable.
- Travel Light
- At only 0.29 pounds, this dock is slightly larger than a cell phone, making it easy to pack alongside your laptop.
Compatible Systems - HP All-in-One Home Desktops
- HP ENVY All-in-One Home Desktops
- HP Pavilion All-in-One Home Desktops
- HP Pavilion Gaming Desktops
- HP Pavilion Home Desktops
- HP ENVY x360 Home Notebooks
- HP Pavilion Gaming Home Notebooks
- HP Pavilion Home Notebooks
- HP Pavilion x360 Home Notebooks
- HP Spectre Home Notebooks
- HP Spectre x2 Home Notebooks
- HP Spectre x360 Home Notebooks
UPC: 191628927630 In the Box HP Spectre USB Type-C Travel Dock Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Spectre USB Type-C Travel Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Spectre USB-C Travel Dock Specs | | | USB | 1 x USB 3.1 Gen 1 Type-A (0.9 A)
1 x USB 2.0 Type-A (0.5 A)
1 x USB (Charging Only) Type-C | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI 1.4 (Female)
1 x VGA (Female) | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 1 | | Maximum Resolution Supported | 4096 x 2160 at 30 Hz (Single Display)
1920 x 1080 at 60 Hz (Single Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows | | UASP Support | No | | | | Cable Length | 15.71" / 39.9 cm | | Lock Slot | No | | Dimensions | 5.7 x 2.2 x 0.7" / 14.48 x 5.59 x 1.78 cm | | Weight | 0.3 lb / 0.1 kg | | | | Package Weight | 0.555 lb | | Box Dimensions (LxWxH) | 9.75 x 4.5 x 1.4" |
