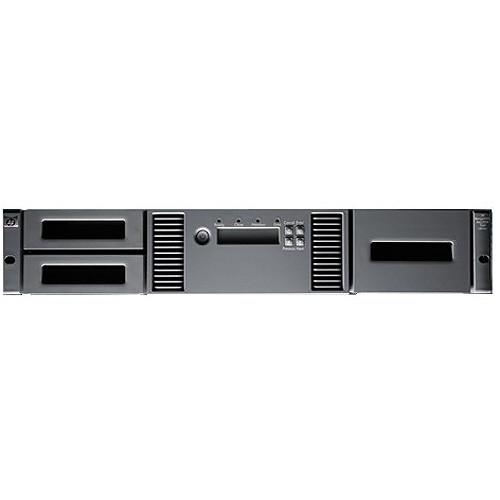

User Manual for HP StoreEver MSL2024 SAS Tape Library with LTO-6 Ultrium 6250 Tape Drive Click to enlarge the picture
Contents of the user manual for the HP StoreEver MSL2024 SAS Tape Library
- Product category: Archiving Drives HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Archiving Drives
|
User manual for the HP StoreEver MSL2024 SAS Tape Library contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Designed for the storage requirements of businesses needing unattended backup, disaster recovery, or archiving capabilities, the StoreEver MSL2024 Tape Library from HP offers several choices of storage capacities and technologies, including LTO-7, LTO-6, LTO-5, or LTO-4 Ultrium tape drives. Web-based remote management allows the tape library to be managed from across the room or across the globe, while the tape media both in and out of the library may be managed with a standard bar code reader, configurable mail slots, and dual 12-slot removable magazines. If a tape were lost or stolen, important business data may be protected from unauthorized access with AES 256-bit encryption.
The StoreEver MSL2024 uses a Mini-SAS connector and a SAS drive interface. It is compatible with LTO-7 Ultrium 15000, LTO-6 Ultrium 6250, LTO-5 3280, LTO-5 3000, LTO-4 Ultrium 1840, and LTO-4 Ultrium 1760 drive technology. It will support one drive when using Ultrium 1840 or 3280 and up to two drives when using Ultrium 1760, 3000, 6250, or 15000. When using 2.5:1 compression, up to 360TB can be stored using an LTO-7 cartridge and up to 150TB with an LTO-6. Using 2:1 compression, up to 72TB can be stored with an LTO-5 tape cartridge and up to 38.4TB with an LTO-4. Native storage capacities include up to 60TB using LTO-6, 36TB with LTO-5, and 19.2TB with LTO-4. Data transfer rates can be as high as 2.16TB per hour using two Ultrium 15000, 1.15TB per hour using two 6250, 504GB per hour using one 3280, 1TB per hour using two 3000, 432GB per hour using one 1840, and 576GB per hour using two 1760.
HP's StoreEver MSL2024 has a Mean Swap Between Failure (MSBF) rating of 2 million robot load/unload cycles and a Mean Time Between Failures (MTBF) of 100,000 hours, which is based on 1 million MSBF. It is also equipped with a 10/100 Mbps Fast Ethernet port, a USB port, a 2U rackmount form factor, and a 168W power supply that operates using 100-240 VAC at 50-60 Hz and 2.5A. Included is an LTO-6 Ultrium 6250 6 Gb/s SAS tape drive, a 6' US power cord, an 8.2' PDU power cord, an Ethernet cable, and rack mount hardware. It is protected by a limited 1-year parts warranty. - Storage density up to 350TB (capacity based upon 2.5:1 compression using LTO-7 tape cartridges)
- Web-based remote management
- Integrated bar code reader
- Tool-free tape drive upgrades
- Leverage tape drives in an MSL2024 for investment protection
- Removable magazines with user-configurable mail slots
- AES 256-bit embedded hardware encryption with compression
- OS and software compatibility testing
UPC: 889296101888 In the Box HP StoreEver MSL2024 SAS Tape Library with LTO-6 Ultrium 6250 Tape Drive 6.00' / 1.83m US Power Cord (C13, 10A) 8.2' / 2.5m PDU Power Cord (C13/C14, 10A) RJ-45 Ethernet Cable Rack Mount Hardware Limited 1-Year Parts Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP StoreEver MSL2024 SAS Tape Library with LTO-6 Ultrium 6250 Tape Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP C0H20SB Specs | | | Number of Tape Slots | 24 | | Supported Tape Types | LTO-4, LTO-5, LTO-6, LTO-7 | | Supported Compression Rates | 2.5:1, 2:1 | | Total Storage Capacity | 19.2 to 150 TB | | | | Number of Tape Drives Supported | 2 | | Data Transfer Rate | 600 MB/s | | Encryption | 256-Bit AES | | Barcode Reader | No | | Connectivity | 1 x SFF-8088 (SAS 6 Gb/s)
1 x RJ45 (Fast Ethernet)
1 x USB Type-A (USB (Unspecified Version)) | | | | Power Consumption | 168 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 13,000' / 3962 m | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Storage Humidity | 20 to 90% | | Storage Altitude | 35,000' / 10,668 m | | | | Form Factor | Rackmount 2RU | | Mean Swap Between Failures (MSBF) | 2,000,000 | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Status Monitoring | LED Indicator | | Dimensions | 3.4 x 18.9 x 31.7" / 8.6 x 48.0 x 80.5 cm | | Weight | 32.9 lb / 14.9 kg |
