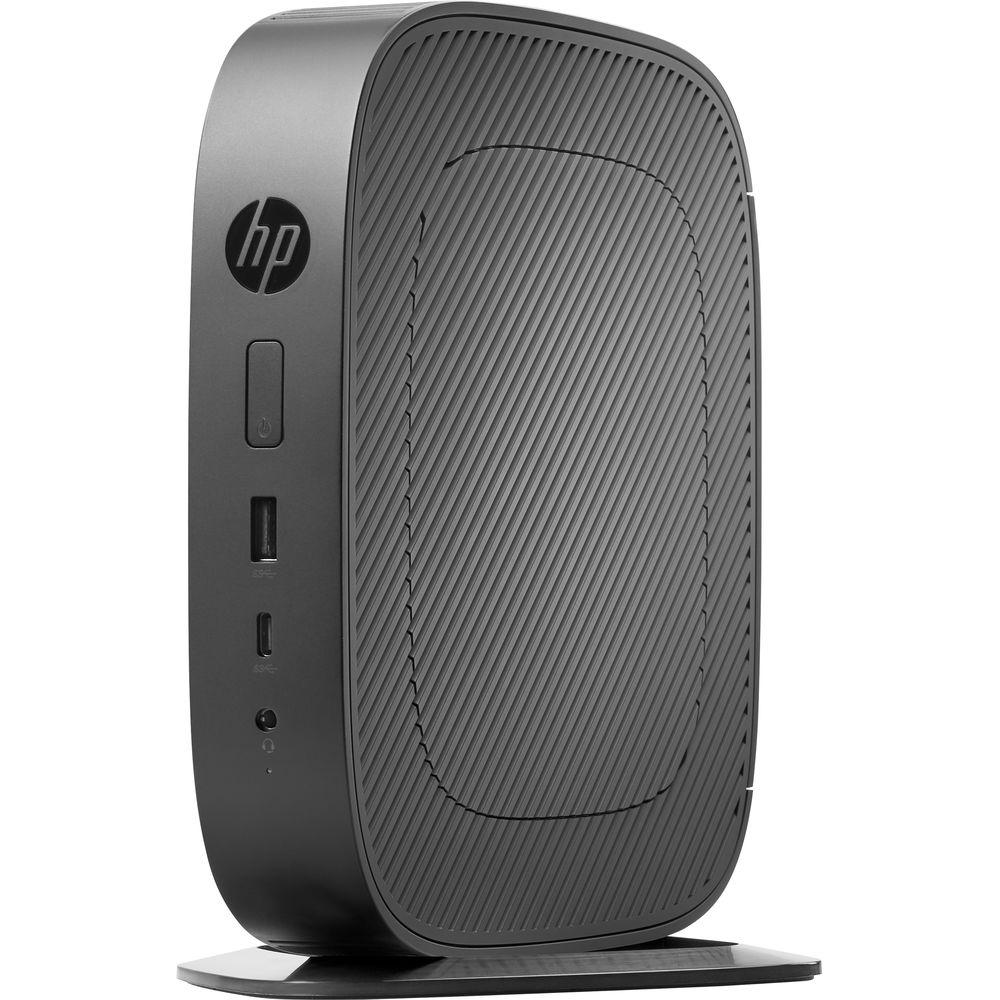

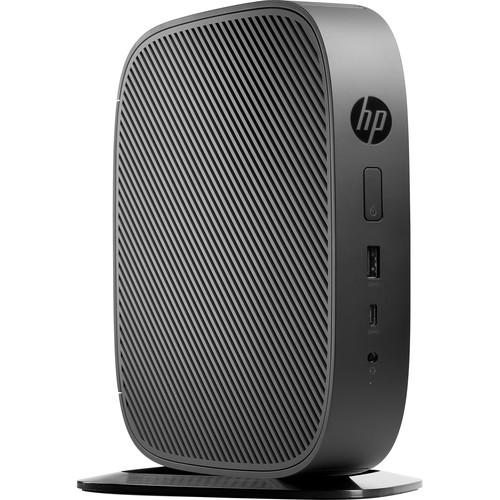

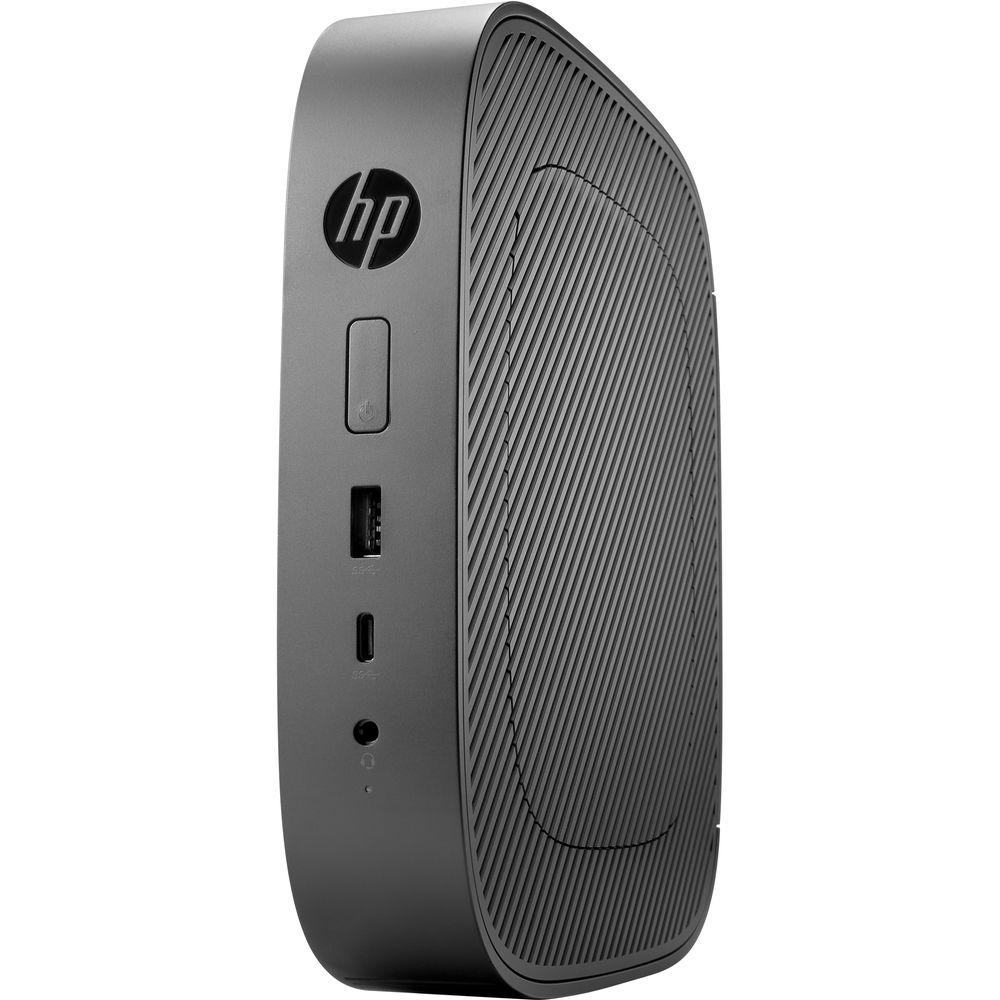

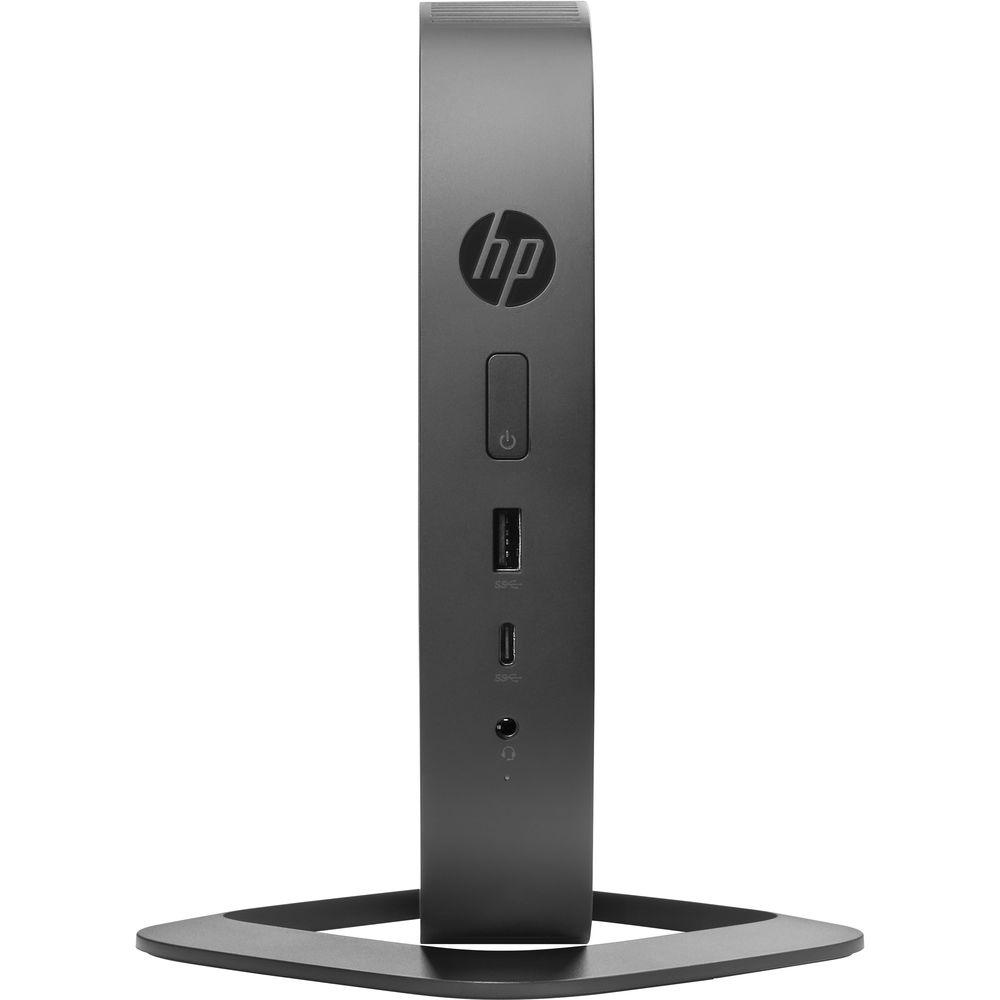

User Manual for HP t530 Thin Client Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP t530 Thin Client Desktop Computer
- Product category: Terminal & Thin Clients HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Terminal & Thin Clients
 |
User manual for the HP t530 Thin Client Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Use the full computing power coming from your networked servers with the t530 Thin Client from HP. The HP t530 is built around an AMD GX-215JC SoC, 4GB of DDR4 memory, 32GB of MLC flash memory, and a Gigabit Ethernet port to utilize the computing resources of a server or cloud. The thin client comes preinstalled with a Windows Embedded Standard 7E operating system for accessing a virtualized environment, created from server-based software from VMware, Citrix, or Microsoft, to handle higher processing and graphics rendering workloads. Additionally, the Windows operating system has been made available through downgrade rights from Windows Embedded 8 Standard.

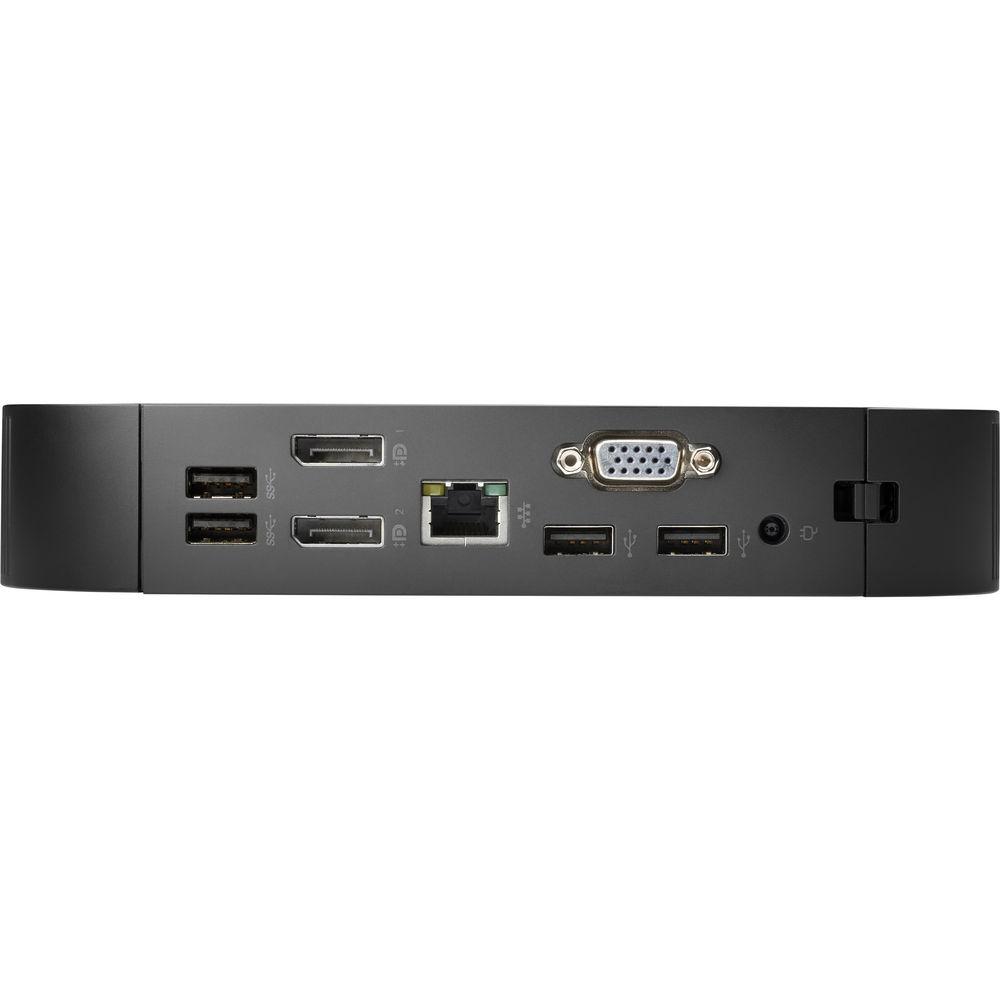

The AMD GX-215JC System-on-Chip features two cores that operate between 1.5 and 2.0 GHz frequencies and can deliver 4K visuals via an integrated Radeon R2E graphics chipset. To access local accessories, the T530 features one USB 3.0 type-C port, three USB 3.0 ports, and two USB 2.0 ports. Other notable features include a pair of DisplayPort outputs, a headphone jack, and a built-in speaker to complete the multimedia experience. UPC: 191628102334 In the Box HP t530 Thin Client Desktop Computer 45W Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP t530 Thin Client Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP t530 Thin Client Specs | Operating System | Windows Embedded Standard 7E (32-Bit) | | | | CPU | 1.5 GHz AMD GX-215JJ Dual-Core | | Maximum Boost Speed | 2.0 GHz | | Memory Type | 1866 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 16 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Integrated | | GPU | AMD Radeon R2 E | | | | Total Drive Bays | None | | Total Installed Capacity | 32 GB | | Solid State Storage | 1 x 32 GB Integrated eMMC | | PCI Expansion | None | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 2.0)
3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 2 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | NFC | No | | | | Security | Kensington Lock Slot, Infineon TPM Software Professional Package | | Dimensions | 1.4 x 7.9 x 7.9" / 3.6 x 20.1 x 20.1 cm | | Weight | 2.1 lb / 1 kg |
