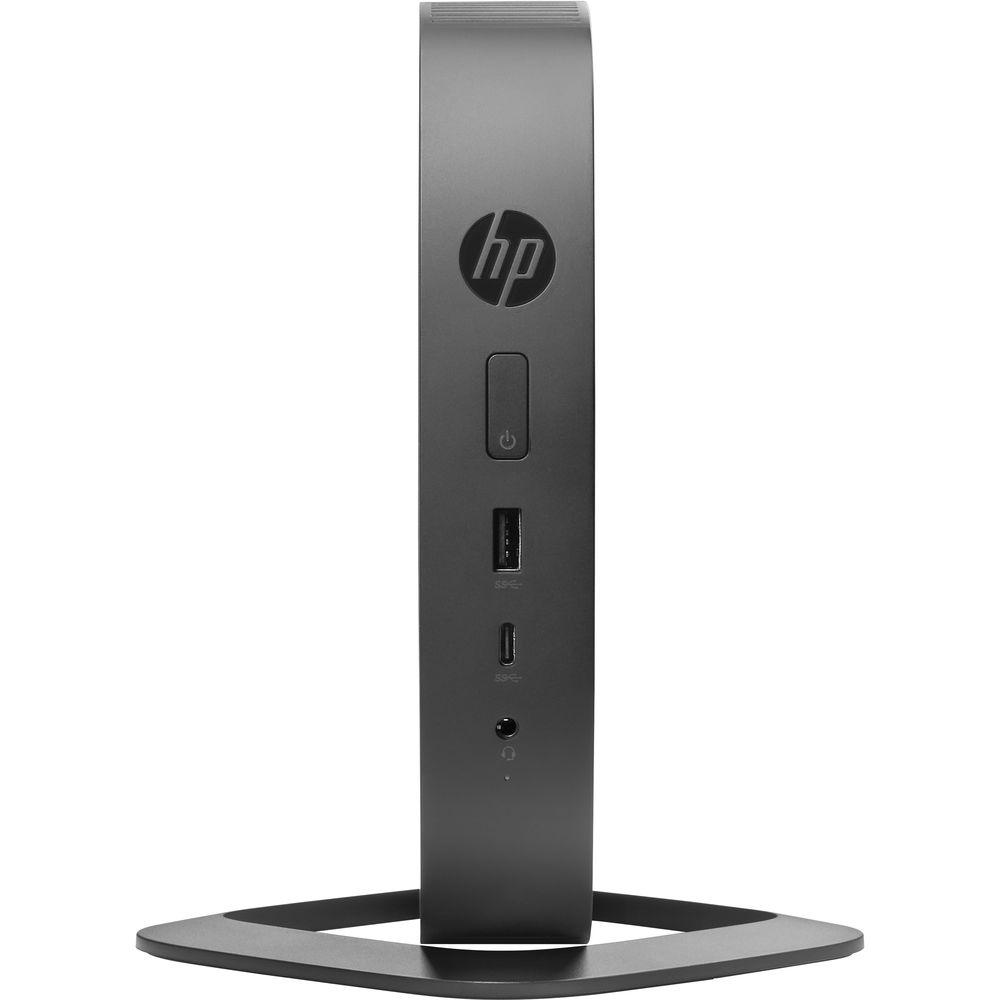

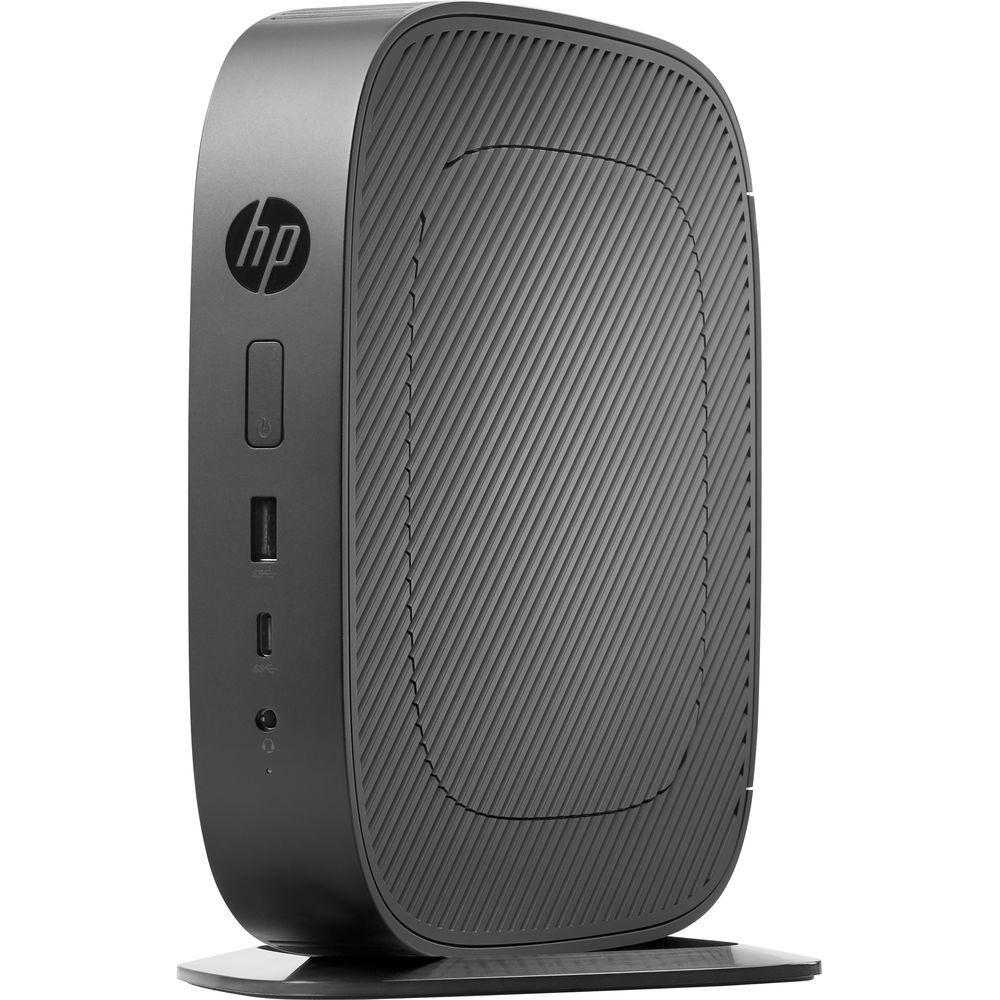

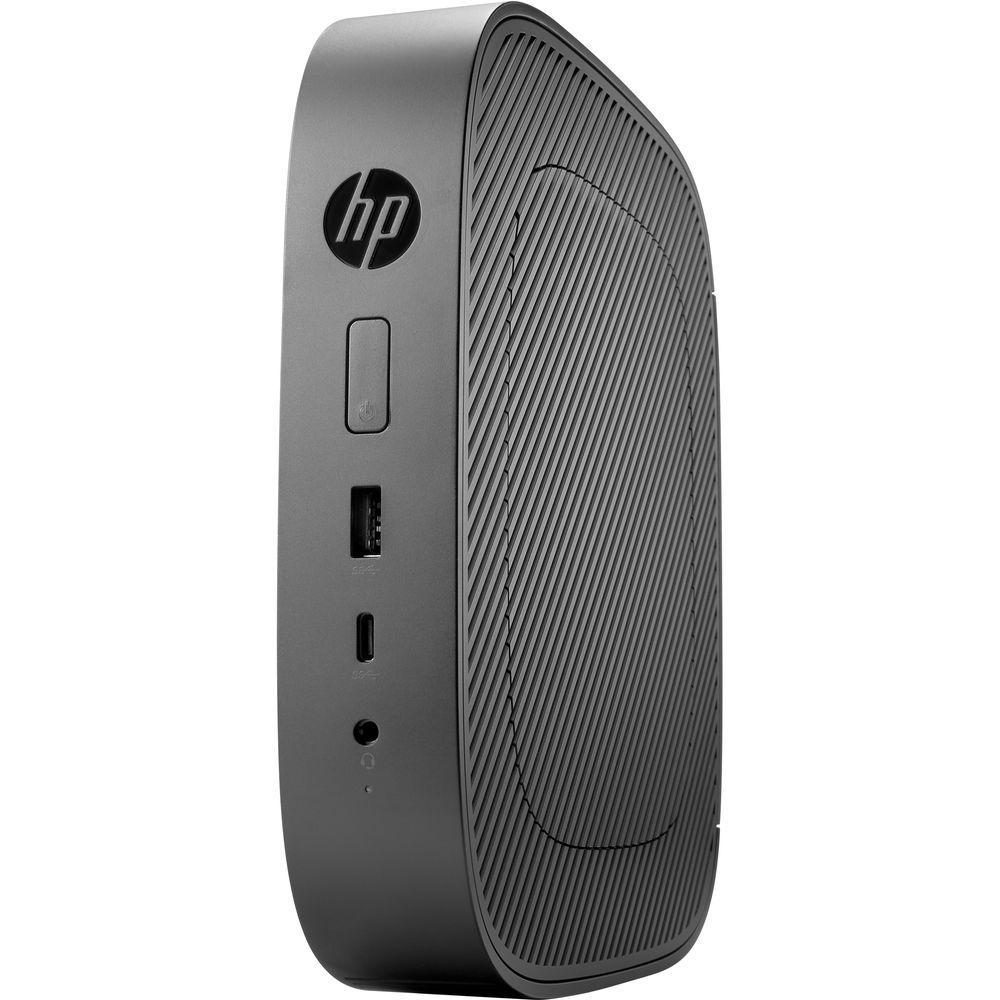

User Manual for HP t530 Thin Client Desktop Computer Click to enlarge the picture
Contents of the user manual for the HP t530 Thin Client Desktop Computer
- Product category: Terminal & Thin Clients HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Terminal & Thin Clients
 |
User manual for the HP t530 Thin Client Desktop Computer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The HP t530 Thin Client Desktop Computer is built around an AMD GX-215JC SoC, 4GB of 1866 MHz DDR4 memory, 32GB of M.2 flash memory, and the Windows 10 IoT Enterprise operating system to fully function as an independent desktop system or utilize the computing resources of a server or cloud. With Windows 10 IoT Enterprise a Gigabit Ethernet port, and Wi-Fi 5 (802.11ac) with Bluetooth 4.2, the system can access a virtualized environment, created from server-based software from VMware, Citrix, or Microsoft, to handle higher processing and graphics rendering workloads. Windows 10 IoT Enterprise provides the same features as Windows 10 Enterprise, which delivers networking manageability and security to this HP thin client, making it suitable for environments such as retail, manufacturing, healthcare, and other industries.

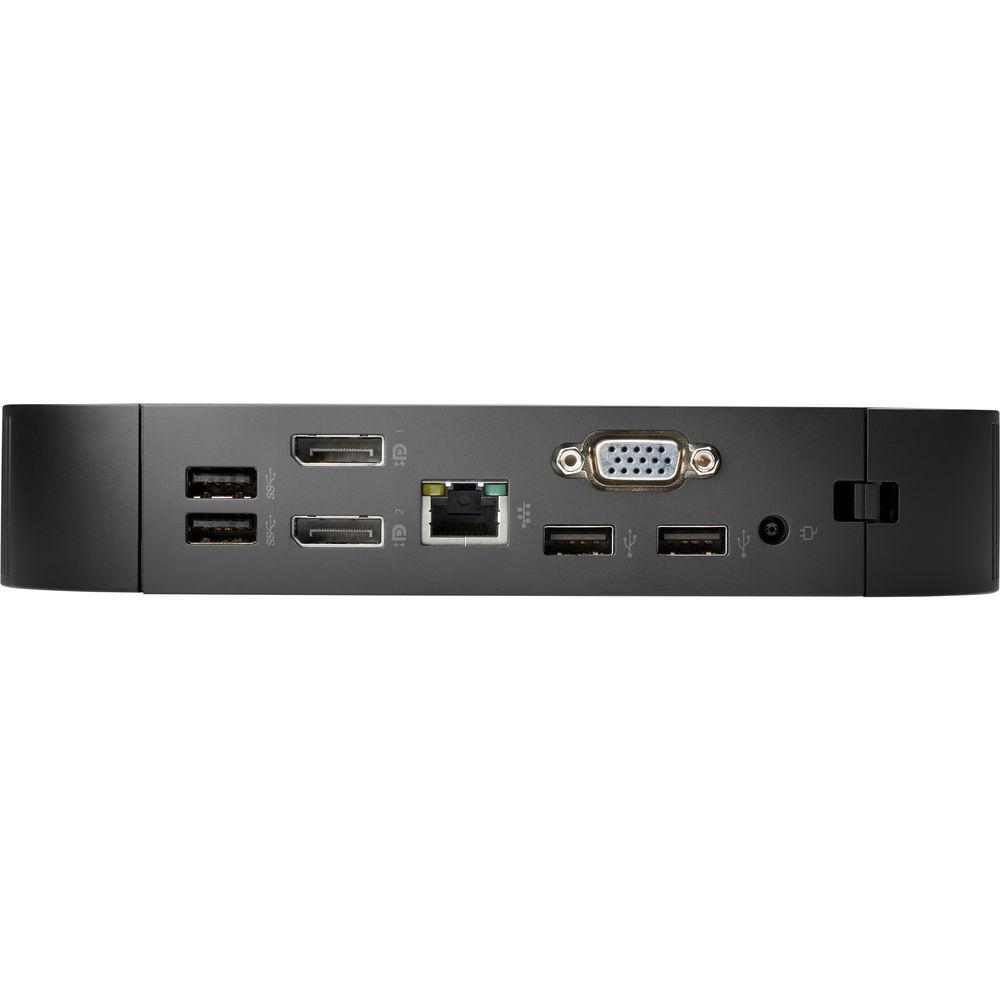

The AMD GX-215JC System-on-Chip features two cores that operate at 1.5 GHz and can deliver 4K visuals via an integrated Radeon R2E graphics chipset. To access local peripherals, the t530 features one USB 3.1 Gen 1 Type-C port, three USB 3.1 Gen 1 Type-A ports, and two USB 2.0 Type-A ports. Other notable features include a pair of DisplayPort 1.2 outputs, a headphone jack, and a built-in speaker to complete the multimedia experience. General Features - Elevate Your Office Space
- The HP t530 has raised the stakes for thin client design. Get the features you need in a modern, compact device. And with quiet, solid-state operation and multiple deployment options, it fits into any workspace.
- Handle Cloud Computing Workloads with Ease
- Tackle your computing demands with AMD thin client technology. Whether doing offloaded processing or graphics rendering, you'll get a PC-like experience in the cloud.
- Future Proof Your Office
- HP's t530 is a thin client built for today and tomorrow. Packed with flash storage, memory, and connectivity options, along with multiple ports including USB Type-C to support both old and new peripherals, your transition into the future will be smooth.
UPC: 191628171576 In the Box HP t530 Thin Client Desktop Computer 45W Power Adapter Limited 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP t530 Thin Client Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP t530 Thin Client Specs | Operating System | Windows 10 IoT Enterprise (64-Bit) | | | | CPU | 1.5 GHz AMD GX-215JC Dual-Core | | Memory Type | 1866 MHz DDR4 | | Total Installed Memory | 4 GB | | Memory Configuration | 1 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 16 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Integrated | | GPU | AMD Radeon R2 E | | | | Total Drive Bays | None | | Total Installed Capacity | 32 GB | | Solid State Storage | 1 x 32 GB M.2 | | PCI Expansion | None | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 2 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.2 | | NFC | No | | | | Security | Kensington Lock Slot, Infineon TPM Software Professional Package | | Power Supply | 45 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Operating Temperature | 55 to 104°F / 12 to 40°C | | Operating Humidity | 20 to 80% | | Dimensions | 7.9 x 7.9 x 1.4" / 20.07 x 20.07 x 3.56 cm | | Weight | 2.1 lb / 1 kg |
