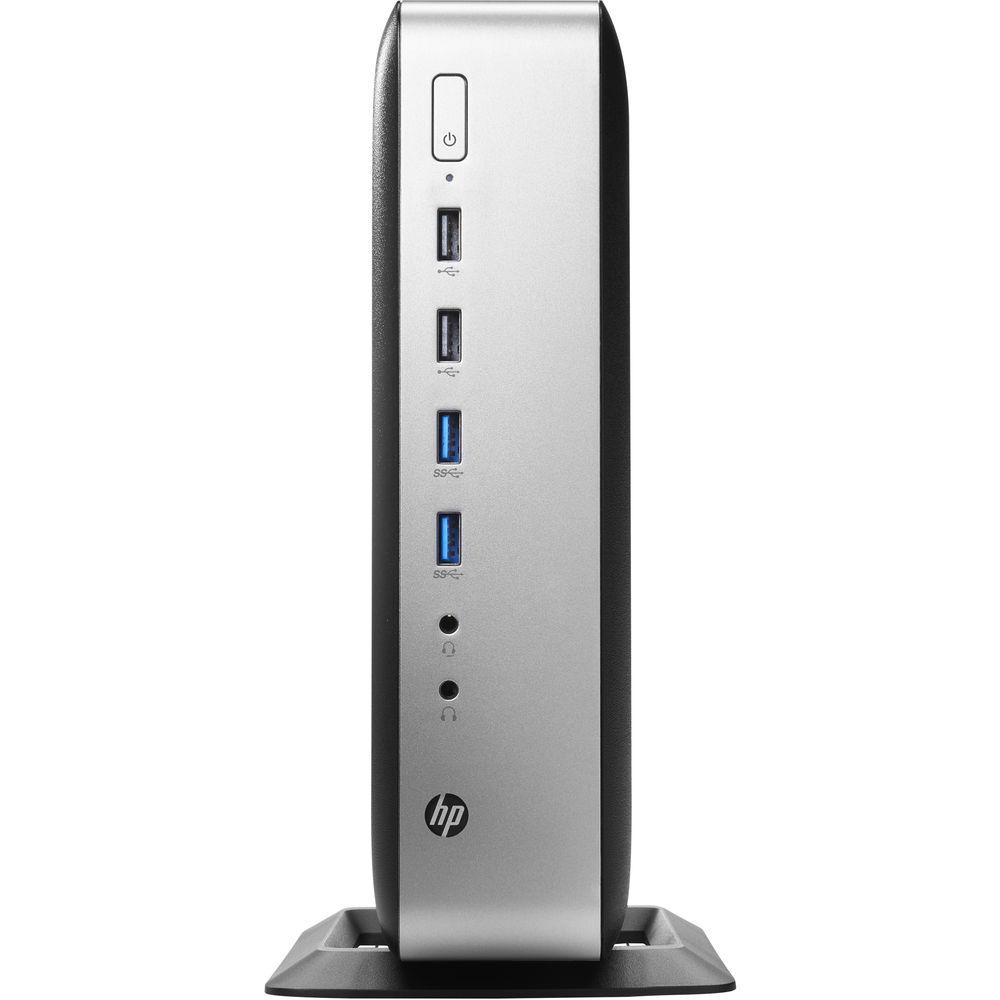

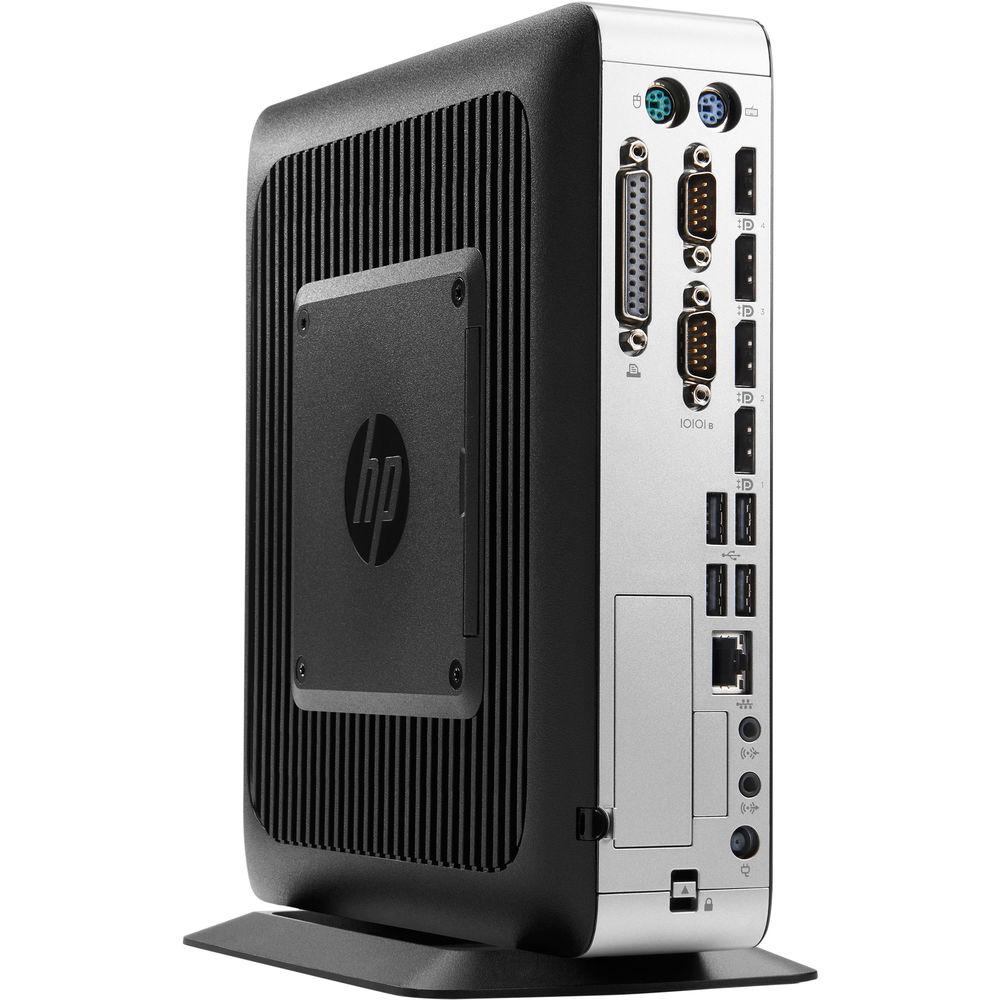

Product description The t730 Thin Client Desktop Computer from HP is designed to be deployed in demanding environments right out of the box. It is powered by a 2.7 GHz AMD RX-427BB Quad-Core processor and contains 8GB of 1600 MHz DDR3L RAM to help ensure uninterrupted performance and smooth multitasking. If more processing power is needed, the CPU can be boosted up to 3.6 GHz and the RAM can be upgraded to 16GB.
For storage of your files, 32GB of MLC flash memory offers quick access to your data. While flash storage may not have the large capacity of a traditional hard drive, it contains no moving parts and is more resistant to damage from bumps and drops. Flash storage also receives less wear and tear as it does not come into contact with read and write heads.

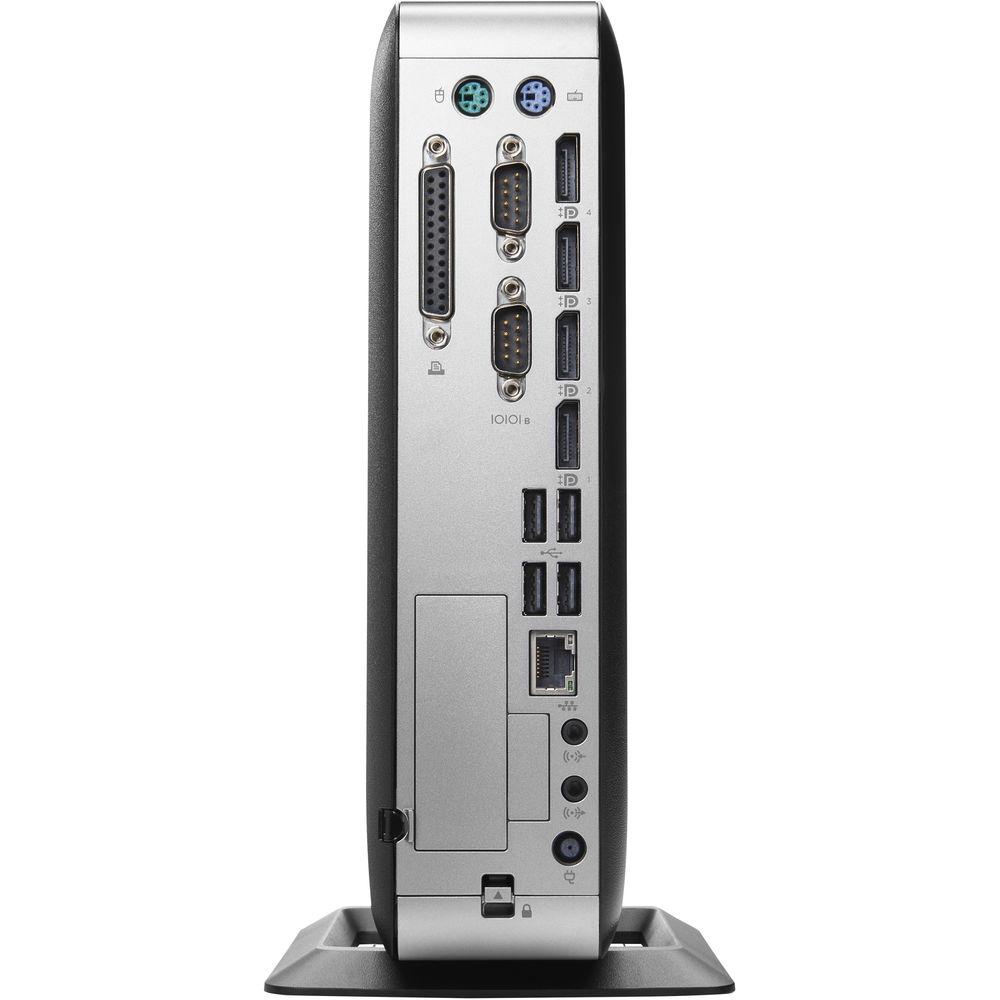

For those who wish to expand their t730, the system features two USB 3.0 Type-A ports, six USB 2.0 Type-A ports, two PS/2 ports, two serial ports, and one parallel port. A dedicated AMD FirePro W2100 graphics card has 2GB of DDR3 RAM and delivers a sharp, clear picture and supports a wide range of monitors using its two DisplayPort 1.2 outputs at resolutions up to 3840 x 2160. For connecting to the Internet, this Thin Client includes an integrated Gigabit Ethernet controller.
The HP t730 Thin Client uses an included 85W power supply that runs on 100-240 VAC at 50-60 Hz and is ENERGY STAR certified. Also included is a USB keyboard and a USB mouse and the installed operating system is Windows Embedded Standard 7P (64-bit). General Features - Premium Performer
- Harness the power of AMD's quad-core APU with Turbo Core technology that can throttle CPU action and kick it up to 3.6 GHz to run full VDI and local applications and render video to four displays.
- Expand Your View with Six Displays
- Create an efficient multi-monitor workspace with DisplayPort 1.2 connections for up to six UHD/4K displays when using both the integrated and dedicated video outputs.
- Integrated Software
- Streamline deployments, enhance the user experience, and enable smooth device management with HP's thin client software: HP Device Manager, HP Velocity, and HP Easy Shell.
- Plan Ahead with Expansive I/O Connections
- Support your business now and in the future with serial, parallel, PS/2, and USB ports, plus a half-height PCI Express x16 (x8) expansion slot.
- HP Device Manager
- Make it easy to deploy, manage, and maintain your install base with HP Device Manager.
- Protocols
- Microsoft RFX/RDP, Citrix ICA/HDX, and VMware Horizon RDP/PCoIP.
UPC: 889894527776 In the Box HP t730 Thin Client Desktop Computer USB Keyboard and Mouse 85W Power Adapter Limited 3-Year Warranty More from Manufacturer txutafycxact Table of Contents
|
Upload User Manual
Have you got an user manual for the HP t730 Thin Client Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP P5V92UT#ABA Specs | | | CPU | 2.7 GHz AMD RX-427BB Quad-Core | | Maximum Boost Speed | 3.6 GHz | | Memory Type | 1600 MHz DDR3L | | Total Installed Memory | 8 GB | | Memory Configuration | 2 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 16 GB | | Memory Slot Type | 204-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Dedicated | | GPU | AMD FirePro W2100 with 2 GB DDR3 VRAM | | | | Total Drive Bays | None | | Total Installed Capacity | 32 GB | | PCI Expansion | 1 x PCIe x8 (x16 Mechanical) | | Optical Drive | None | | | | Ports | 2 x DE-9/DB-9 (Serial)
2 x PS/2
2 x USB Type-A (USB 3.1 Gen 1)
6 x USB Type-A (USB 2.0) | | Display | 6 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | None | | Bluetooth | None | | | | Security | Accepts 3rd Party Security Lock Devices | | Dimensions | 8.7 x 9.4 x 2.6" / 22.1 x 23.9 x 6.6 cm | | Weight | 2.3 lb / 1 kg |
