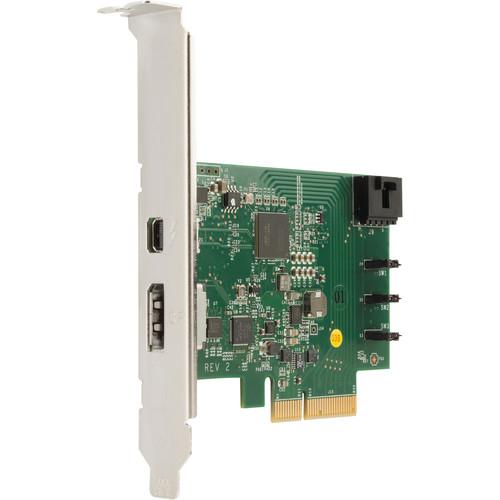

User Manual for HP Thunderbolt-2 PCIe 1-Port I O Card Click to enlarge the picture
Contents of the user manual for the HP Thunderbolt-2 PCIe 1-Port I O
- Product category: Controller Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Controller Cards
|
User manual for the HP Thunderbolt-2 PCIe 1-Port I O contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Add high-speed Thunderbolt 2 connectivity to your HP Z series workstation with the HP Thunderbolt-2 PCIe 1-Port I/O Card. This PCIe card supports bi-directional Thunderbolt 2 speeds up to 20 Gb/s, and supports daisy-chaining of up to 6 Thunderbolt devices. The HP Thunderbolt-2 PCIe 1-Port I/O Card is compatible with the HP Z820, Z620, Z420, and Z230 workstations, and supports a wide range of Thunderbolt and Thunderbolt 2 peripherals without requiring a cable adapter. This PCIe card has a DisplayPort input for outputting video with its simultaneous Thunderbolt connection. - High-speed, dual-protocol I/O that delivers fast-performance with 20 Gb/s bi-directional, dual-channel transfer speeds. Low latency and enhanced time synchronization supports accurate audio and video creation, playback, and editing.
- Support data and video with PCIe and DisplayPort on a single card with a single cable connection. Enjoy high productivity by daisy-chaining up to six devices. A DisplayPort input is required to enable downstream DisplayPort devices on the Thunderbolt daisy chain.
- The HP Thunderbolt-2 PCIe 1-Port I/O Card is a Certified System Solution with compatible workstation platforms and select graphics cards only, which includes Nvidia K2000, K4000, and K5000.
UPC: 888182788790 In the Box HP Thunderbolt-2 PCIe 1-Port I/O Card Full Height Bracket Half Height Bracket DisplayPort to DisplayPort Cable 2 x Internal Header Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Thunderbolt-2 PCIe 1-Port I O Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP F3F43AT Specs | Transfer Rate | Up to 20 Gb/s (20,000 Mb/s) | | External Connectors | 1x Thunderbolt 2 20-Pin
1x DisplayPort In (for Thunderbolt video output) | | Internal Connectors | 1x 5-Pin header | | Host Interface | PCI Ecpress (PCIe) | | Form Factor | Plug-in card | | Operating System Requirements | Windows 7 Professional (64-bit), 8.1 (64-bit) | | Hardware Requirements | Intel i5 series or higher processor
128 MB RAM
1 GB Hard Drive
Available PCIe slot | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 10.0 x 8.1 x 2.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
