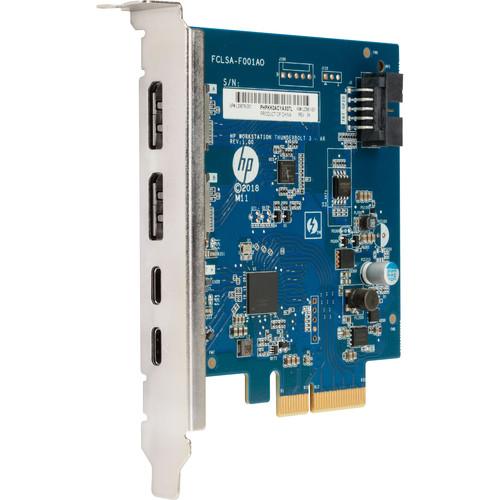

Product description Enable fast backups, editing, and file sharing from external peripherals such as hard drives, digital cameras, and video cameras, plus reduce the time needed to complete key tasks on select HP workstations using the Thunderbolt 3 PCIe 2-Port I/O Card from HP. Compatible with HP's Z8 G4, Z6 G4, and Z4 G4 Tower Workstations, Thunderbolt 3 uses the reversible USB Type-C connector and offers bi-directional transfer speeds of up to 40 Gb/s when used with compatible devices. Thunderbolt 3 also transmits data and 15W of power via 10 Gb/s USB 3.1 Gen 2. Thunderbolt 3 supports both data (PCIe) and video (DisplayPort) using one cable connection that can daisy-chain up to six devices together.
Aside from Thunderbolt 3 and USB Type-C connectivity, this card offers two DisplayPort inputs for connecting displays. It is also compatible with NVIDIA Quadro P5000, Quadro 4000, Quadro 2000, and AMD WX7100 graphics cards. HP's Thunderbolt 3 PCIe Card does have specific PCIe slot requirements for proper operations. When used with the Z8 G4, it must be installed in slot 1, while the Z6 G4 requires slot 6 and the Z4 G4 requires slot 4. If you have 20 Gb/s Thunderbolt 2 or 10 Gb/s Thunderbolt devices, those may be used with an adapter.
HP's Thunderbolt 3 PCIe 2-Port I/O Card requires Windows 10 Pro (64-bit). Included are two DisplayPort cables and general-purpose input/output cables. Protection is provided by either a limited 1-year warranty, or the remainder of the HP-supported product in which it is installed, plus 24/7 tech support, which is available by phone and in online forums. Key Features - Up to 40 Gb/s, dual-channel data transfers (maximum speed requires DisplayPort and PCIe aggregation).
- Data and video on single cable with support for USB, PCI Express, and DisplayPort.
- Daisy-chain up to six devices.
- Compatible with existing DisplayPort devices.
- Low latency with accurate time synchronization.
- Uses native PCIe and DisplayPort protocol software drivers.
- Up to 15W of power over USB Type-C for bus-powered devices.
- Requires a DisplayPort input to enable downstream DisplayPort devices on the Thunderbolt 3 daisy chain.
- Compatible graphics cards include the NVIDIA Quadro P2000, P4000, P5000, and AMD WX7100.
General Features - Performance
- Get a high-speed, dual-protocol I/O with up to 40 Gb/s transfer speeds, which is nearly 8x greater 5 Gb/s USB 3.1 Gen 1. This card supports accurate audio and video creation, playback, and editing with low latency and enhanced time synchronization.
- Flexible Simplicity
- Support data and video with PCIe and DisplayPort on a single card with a single cable connection. Enjoy increased productivity by daisy-chaining up to six devices together.
- Backward Compatibility
- Use this card with a wide range of devices that support 40 Gb/s Thunderbolt 3, 20 Gb/s Thunderbolt 2, and 10 Gb/s Thunderbolt.
UPC: 192545159586 In the Box HP Thunderbolt 3 PCIe 2-Port I/O Card 2 x DisplayPort Cables General Purpose Input/Output Cables 24/7 Tech Support via Phone or Online Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Thunderbolt 3 PCIe 2-Port I O Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 3UU05AA Specs | Compatibility | HP Z8 G4 (PCIe Slot 1)
HP Z6 G4 (PCIe Slot 6)
HP Z4 G4 (PCIe Slot 4) | | Data Transfer Rate | Supports up to 40 Gb/s | | Devices Supported | Thunderbolt 3, Thunderbolt 2, and Thunderbolt certified devices for Windows | | Bus Type | PCIe Card, full-height PCIe slots | | Ports | 2 x Thunderbolt 3 / USB Type-C outputs (rear)
2 x DisplayPort inputs (rear) | | Internal Connectors | One 2x5-pin header connector | | System Requirements | Genuine Windows 10 Professional 64-bit, available dedicated PCH PCIe slot | | Operating Temperature | 50 to 131°F / 10 to 55°C | | Storage Temperature | -22 to 140°F / -30 to 60°C | | Relative Humidity | 20 to 80% | | Compliances | FCC Part 15B, cULus 60950, CE Mark EN55022B (1995)/EN55024-1998 STD, Taiwan BSMI CNS13438, and Korea MIC | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 5.0" |
