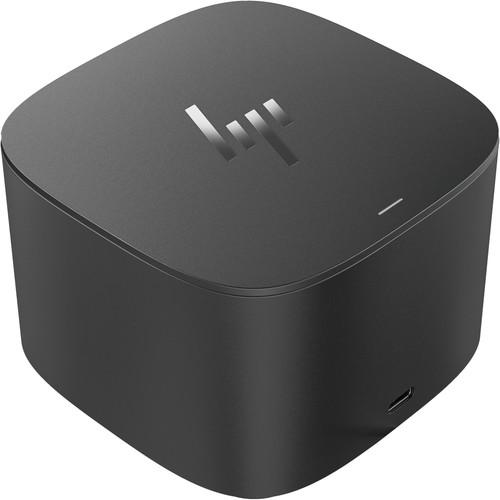

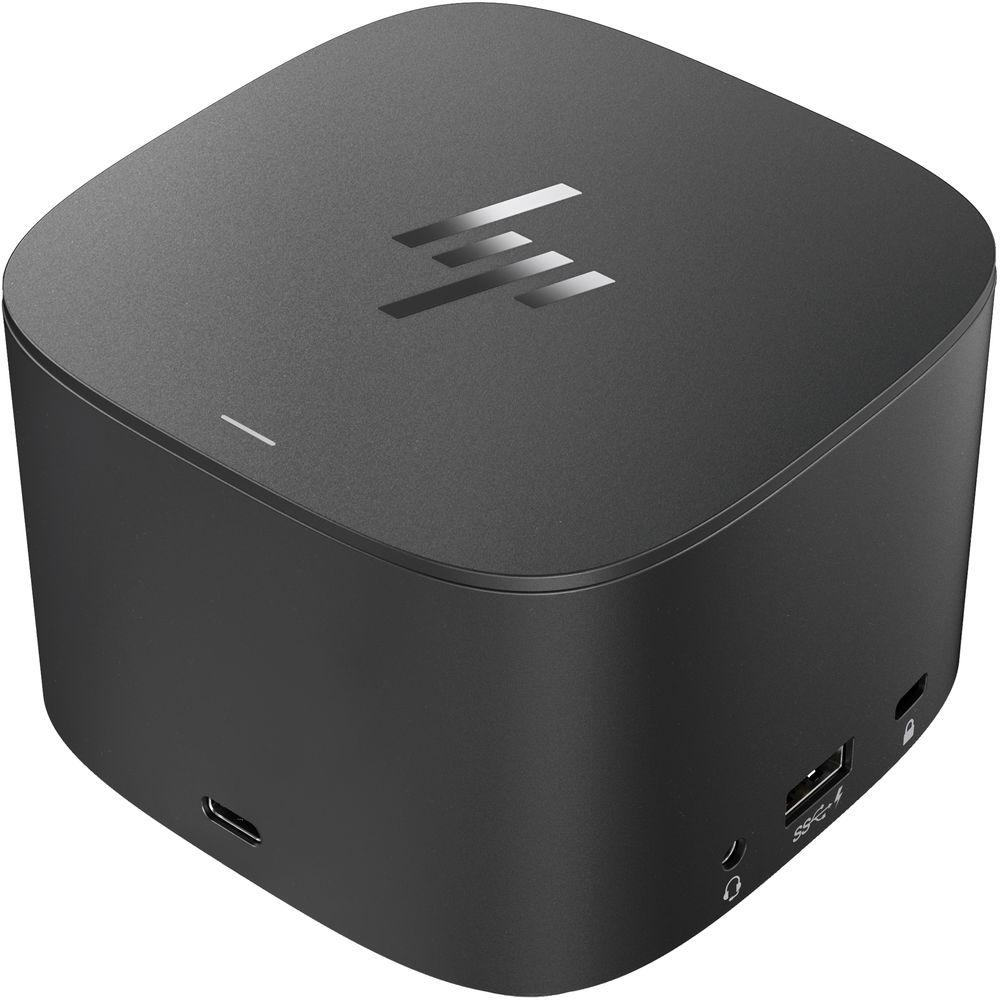

Product description The Thunderbolt Dock G2 from HP brings Thunderbolt 3, USB Type-C, USB 3.0 Type-A, DisplayPort, and VGA to HP and non-HP Thunderbolt and USB Type-C notebooks. It also supports USB Type-C notebook charging up to 100W and is compatible with select HP systems.
HP's Thunderbolt Dock G2 is equipped with two USB Type-C ports, both of which support data and power up to 15W, and one of which also supports DisplayPort video output. There is also one Thunderbolt 3 port, which delivers bi-directional transfers speeds of up to 40 Gb/s and supports USB 3.1 (USB 3.1 Gen 2) at up to 10 Gb/s and dual-bandwidth DisplayPort 1.2. Additional peripherals can be connected using the three USB 3.0 Type-A ports, one of which is powered, while additional video can be output using the two DisplayPort and one VGA port. The Thunderbolt 3, USB Type-C with DisplayPort, and two DisplayPort video outputs can support up to four simultaneous displays and resolutions up to 5120 x 2880 at 60 Hz. If you need to connect speakers, a mic, or a headset, there is a 3.5mm audio combo jack.
System power is provided using an included 120W AC adapter. Power Delivery 3.0 is also supported and outputs 5V/5A, 9V/5A, 12V/5A, 15V/5A, and 20V/5A to compatible devices. - Command Your Workspace from One USB Type-C Connection
- Connect a single USB Type-C cable to your notebook to access data, video, and charging with a dock that supports both HP and non-HP Thunderbolt 3 and USB Type-C notebooks.
- Small Footprint
- Reclaim your work area with this space-saving centerpiece that helps create a clean desk.
- Manage Your Enterprise Fleet
- Help IT easily secure and remotely manage a wide range of HP notebooks and the dock with advanced network manageability features built into the dock, including Wake on LAN and MAC Address Pass-Through in all power states and PXE Boot.
- Maximize Your Multitasking
- See the colors and details of your projects with a fast connection to dual external 4K displays.
- Lock It Down
- Secure the base dock to a desk, table, or your notebook through the lock slot with an optional HP lock.
- Compatibility
- Compatible with HP Elite x2 1012 G1, HP Elite x2 1012 G2, HP Pro x2 612 G2, HP EliteBook Folio G1, HP EliteBook x360 1030 G2, HP EliteBook x360 1020 G2, HP EliteBook 1040 G4, HP EliteBook 800 G5, HP EliteBook 700 G5, HP ProBook 600 G4, HP ProBook 400 G5, ZBook 14u G5, and ZBook 15u G5.
In the Box HP Thunderbolt Dock G2 (120W) 120W AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Thunderbolt Dock G2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Thunderbolt Dock G2 Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
2 x USB 3.1 Gen 1 Type-C (15 W)
3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 3 x Thunderbolt 3 | | Ethernet | None | | FireWire | None | | Display | 1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x Proprietary Type-C Female | | | | Number of Displays Supported | 4 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | UASP Support | No | | | | Operating Temperature | 32 to 95°F / 0 to 35°C (Recommended) | | Operating Humidity | 10 to 90% (Recommended) | | Operating Altitude | 49.21 to 9999' / 15 to 3048 m | | | | Cable Length | 2.3' / 0.7 m | | LED Indicator | Activity, Connection | | Lock Slot | Yes, Kensington | | Dimensions | 3.9 x 3.9 x 2.7" / 99.06 x 99.06 x 68.58 mm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 3.675 lb | | Box Dimensions (LxWxH) | 9.6 x 6.75 x 5.9" |
