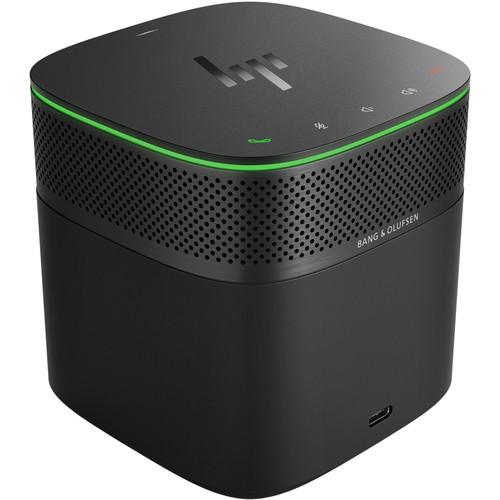

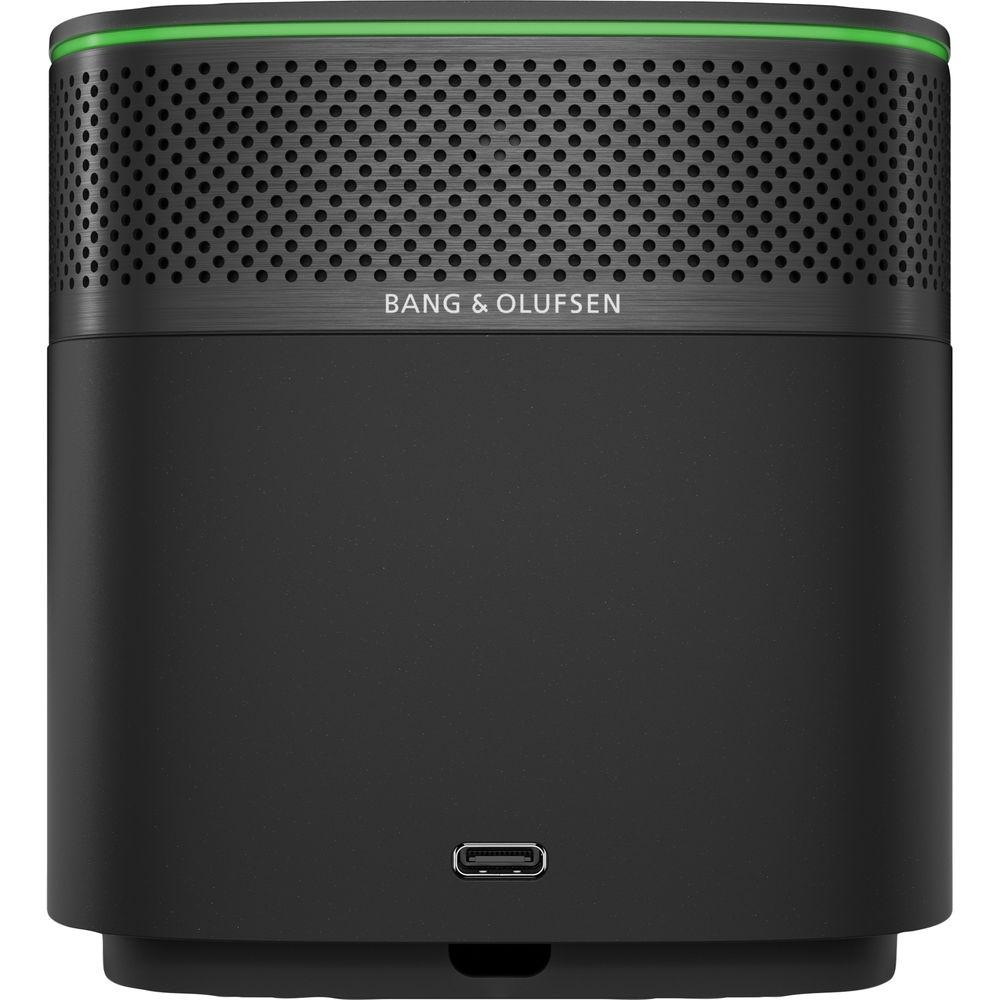

Product description Designed for workspace flexibility and network manageability, the Thunderbolt Dock G2 with Audio Module from HP delivers device connectivity and audio conferencing solutions by pairing HP's Thunderbolt Dock G2 with their Thunderbolt Dock Audio Module. The audio module allows users to take calls without a headset and delivers clarity through stereo sound with dual 2W side-firing speakers, two omni-directional microphones, and built-in HP noise cancellation. LEDs confirm when your call is connected and slight vibrations on the top panel's buttons confirm successful interaction with call controls.
The dock itself delivers Thunderbolt 3, USB Type-C, USB 3.0 Type-A, DisplayPort, VGA, Gigabit Ethernet, and 3.5mm audio to HP and non-HP Thunderbolt and USB Type-C notebooks. It also supports USB Type-C notebook charging up to 100W and is compatible with systems running Windows 10 and 7, macOS, and Google Chrome.

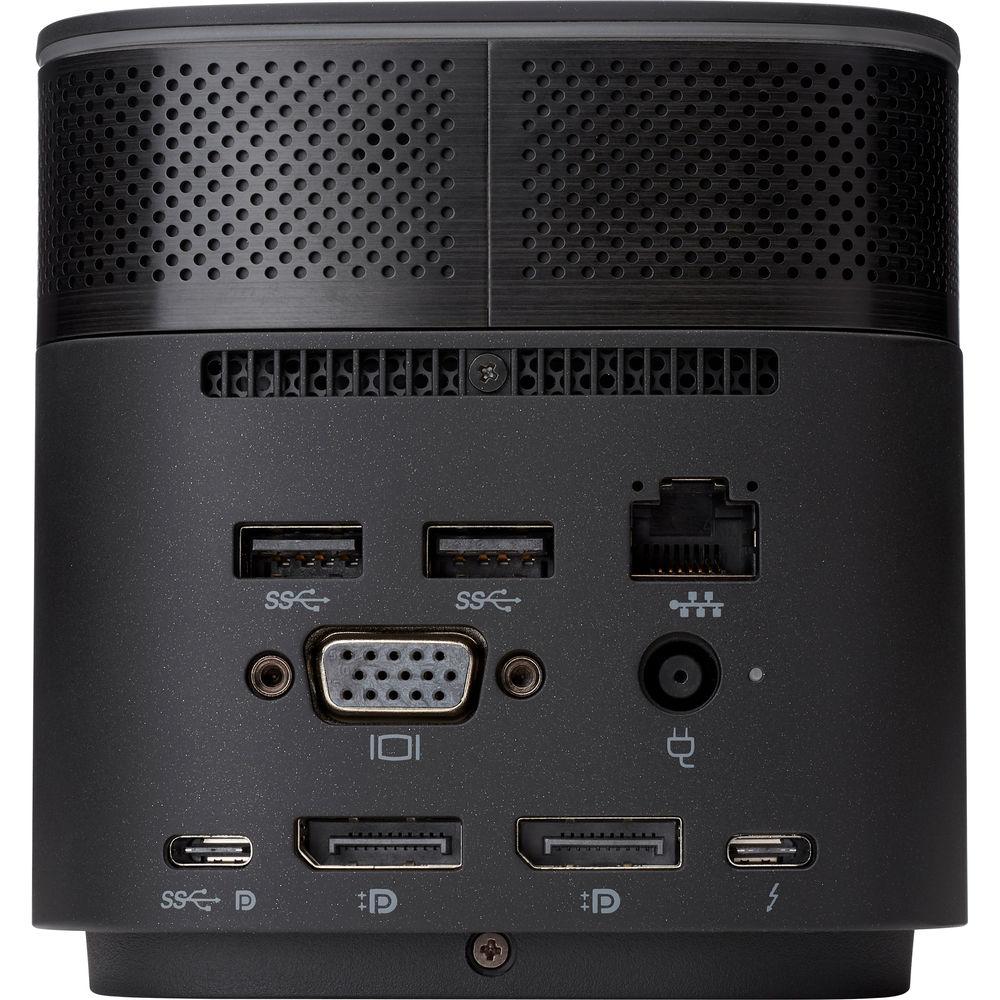

HP's Thunderbolt Dock G2 is equipped with two USB Type-C ports, both of which support data and power up to 15W, and one of which also supports DisplayPort video output. There is also one Thunderbolt 3 port, which delivers bi-directional transfers speeds of up to 40 Gb/s and supports USB 3.1 (USB 3.1 Gen 2) at up to 10 Gb/s and dual-bandwidth DisplayPort 1.2. Additional peripherals can be connected using the three USB 3.0 Type-A ports, one of which is powered, while additional video can be output using the two DisplayPort and one VGA port. The Thunderbolt 3, USB Type-C with DisplayPort, and two DisplayPort video outputs can support up to four simultaneous displays and resolutions up to 5120 x 2880 at 60 Hz. If you need to connect speakers, a mic, or a headset, there is a 3.5mm audio combo jack, and network connectivity is achieved using the Gigabit Ethernet port.
System power is provided using an included 120W AC adapter. Power Delivery 3.0 is also supported and outputs 5V/5A, 9V/5A, 12V/5A, 15V/5A, and 20V/5A to compatible devices. Protection is provided by a limited 1-year warranty. General Features - Command Your Workspace from One USB Type-C Connection
- Connect a single USB Type-C cable to your notebook to access Gigabit Ethernet, data, video, and charging with a dock that supports both HP and non-HP Thunderbolt 3 and USB Type-C notebooks.
- Small Footprint
- Reclaim your work area with this space-saving centerpiece that helps create a clean desk.
- Manage Your Enterprise Fleet
- Help IT easily secure and remotely manage a wide range of HP notebooks and the dock with advanced network manageability features built into the dock, including Wake on LAN and MAC Address Pass-Through in all power states and PXE Boot.
- Maximize Your Multitasking
- See the colors and details of your projects with a fast connection to dual external 4K displays.
- Lock It Down
- Secure the base dock to a desk, table, or your notebook through the lock slot with an optional HP lock.
- Now Hear This
- Take calls without a headset with the included Audio Module that attaches vertically to the dock with no cabling.
UPC: 192545619011 In the Box HP Thunderbolt Dock G2 with Audio Module 120W AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Thunderbolt Dock G2 with Audio Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Thunderbolt Dock G2 Specs | | | USB | 2 x USB 3.1 Gen 1 Type-C
3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Male | | Connection Type | Detachable Cable | | | | Number of Displays Supported | 4 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display)
4096 x 2160 at 60 Hz (Dual Display)
3840 x 2160 at 60 Hz (Dual Display)
2560 x 1600 at 60 Hz
2560 x 1440 at 60 Hz
1920 x 1200 at 60 Hz (Triple Display) | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Compatibility | HP Elite x2 1012 G1
HP Elite x2 1012 G2
HP Pro x2 612 G2
HP EliteBook Folio G1
HP EliteBook Folio x360 1020 G2
HP EliteBook x360 1030 G2
HP EliteBook 1040 G4
HP EliteBook 700 G5
HP EliteBook 800 G5
HP ProBook 600 G4
HP ProBook 400 G5
HP ZBook 14u G5
HP ZBook 15u G5 | | Operating System Support | ChromeOS, Windows, macOS/OS X | | UASP Support | No | | | | Number of Speakers | 2 | | Number of Microphones | 2 | | | | Power Source | AC Adapter | | Power Port | Barrel Connector (Unspecified Diameter) | | Maximum Power Consumption | 120 W (AC Adapter) | | DC Input Power | 19.7 VDC at 6.1 A | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Operating Altitude | -50 to 10,000' / -15.24 to 3048 m | | | | LED Indicator | Activity, Power | | Lock Slot | Yes | | Dimensions | 3.9 x 3.9 x 4.5" / 9.91 x 9.91 x 11.43 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 4.005 lb | | Box Dimensions (LxWxH) | 9.65 x 6.75 x 5.85" |
