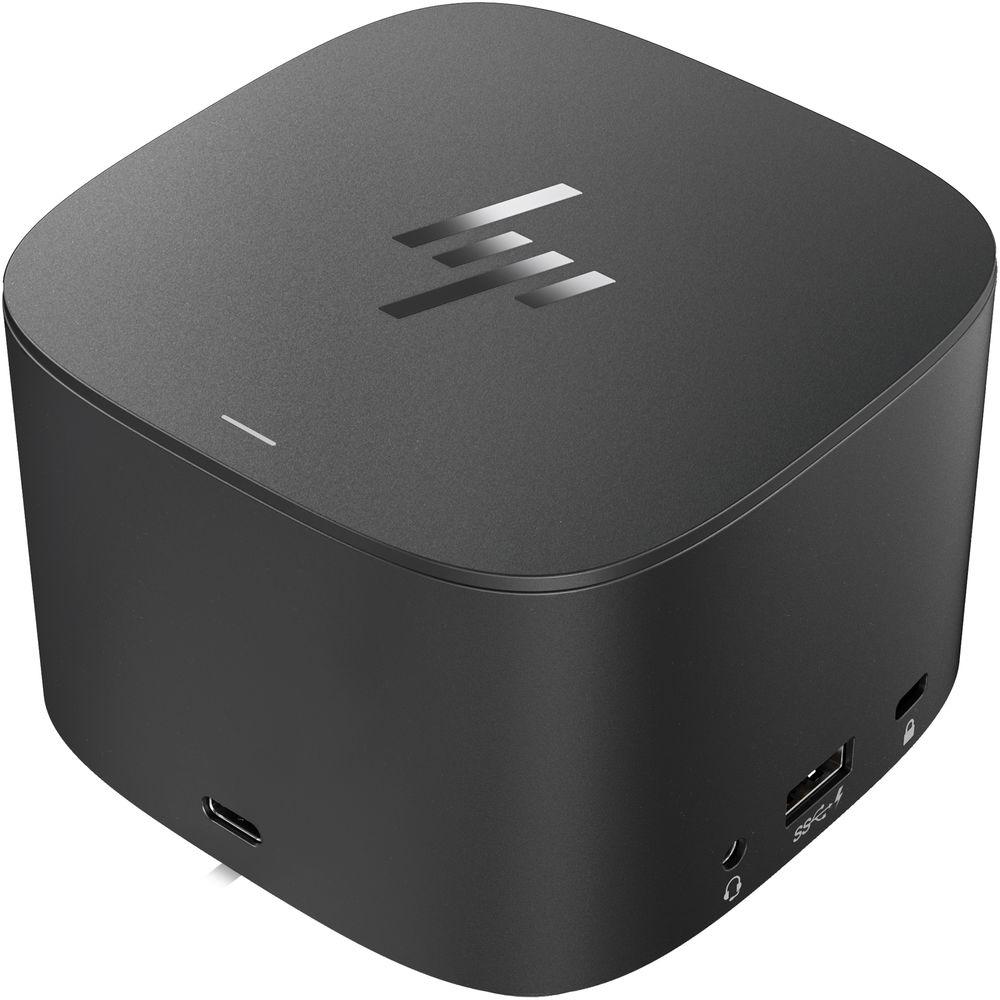

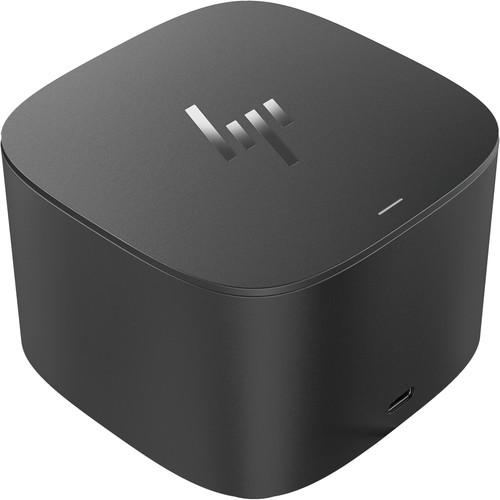

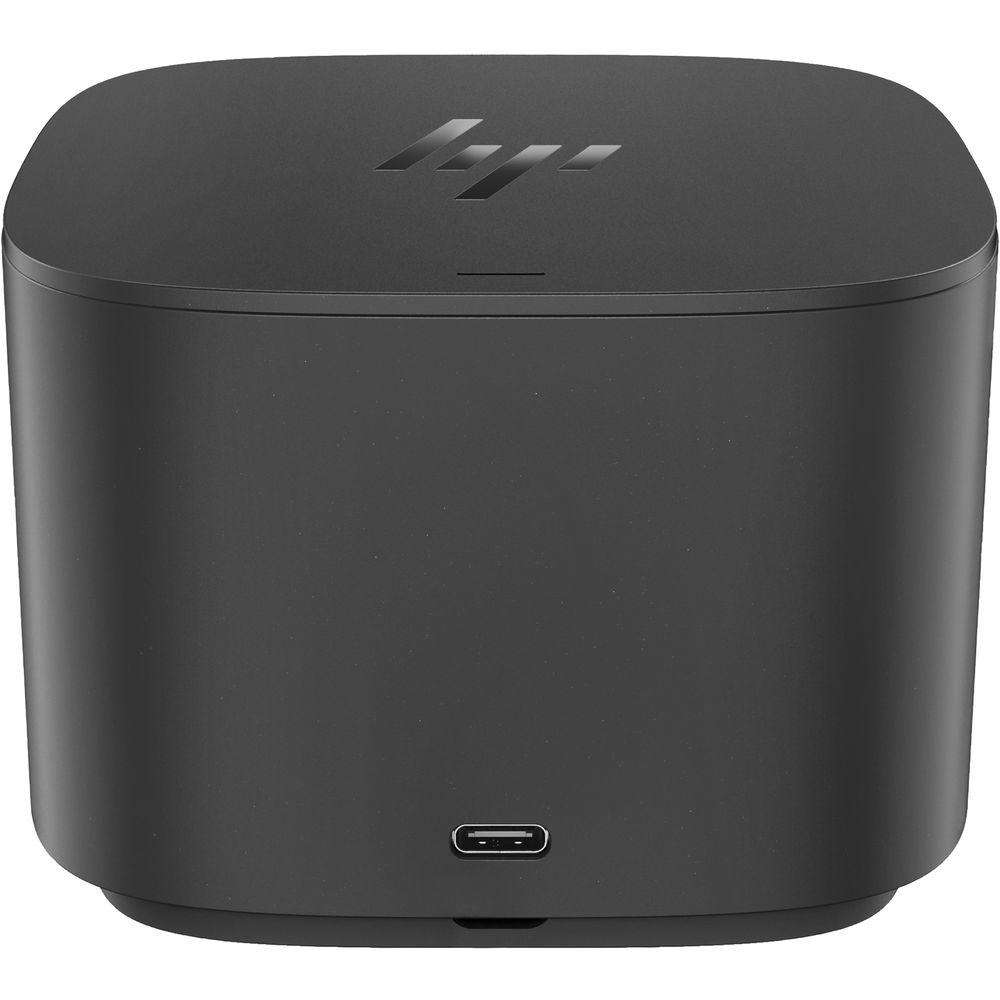

Product description Built with an integrated combo cable that provides power and Thunderbolt 3 connectivity to your host system, the Thunderbolt Dock G2 from HP brings Thunderbolt 3, USB Type-C, USB 3.0 Type-A, DisplayPort, VGA, Gigabit Ethernet, and 3.5mm audio to HP and non-HP Thunderbolt and USB Type-C notebooks. It is compatible with systems running Windows 10 and 7, macOS, and Google Chrome.
HP's Thunderbolt Dock G2 is equipped with two USB Type-C ports, both of which support data and power up to 15W, and one of which also supports DisplayPort video output. There is also one Thunderbolt 3 port, which delivers bi-directional transfers speeds of up to 40 Gb/s and supports USB 3.1 (USB 3.1 Gen 2) at up to 10 Gb/s and dual-bandwidth DisplayPort 1.2. Additional peripherals can be connected using the three USB 3.0 Type-A ports, one of which is powered, while additional video can be output using the two DisplayPort and one VGA outputs. The Thunderbolt 3, USB Type-C with DisplayPort, and two DisplayPort video outputs can support up to four simultaneous displays and resolutions up to 5120 x 2880 at 60 Hz. If you need to connect speakers, a mic, or a headset, there is a 3.5mm audio combo jack, and network connectivity is achieved using the Gigabit Ethernet port.
Thanks to the integrated 2.7' combo cable, system power is provided over an AC pass through cable with a barrel connection up to 230W. Power Delivery 3.0 is also supported and outputs 5V/5A, 9V/5A, 12V/5A, 15V/5A, and 20V/5A to compatible devices.
Please note that this product requires a 230W AC adapter. General Features - Command Your Workspace from One USB Type-C Connection
- Connect a single USB Type-C cable to your notebook to access Gigabit Ethernet, data, video, and charging with a dock that supports both HP and non-HP Thunderbolt 3 and USB Type-C notebooks.
- Small Footprint
- Reclaim your work area with this space-saving centerpiece that helps create a clean desk.
- Manage Your Enterprise Fleet
- Help IT easily secure and remotely manage a wide range of HP notebooks and the dock with advanced network manageability features built into the dock, including Wake on LAN and MAC Address Pass-Through in all power states and PXE Boot.
- Maximize Your Multitasking
- See the colors and details of your projects with a fast connection to dual external 4K displays.
- Lock It Down
- Secure the base dock to a desk, table, or your notebook through the lock slot with an optional HP lock.
- Now Hear This

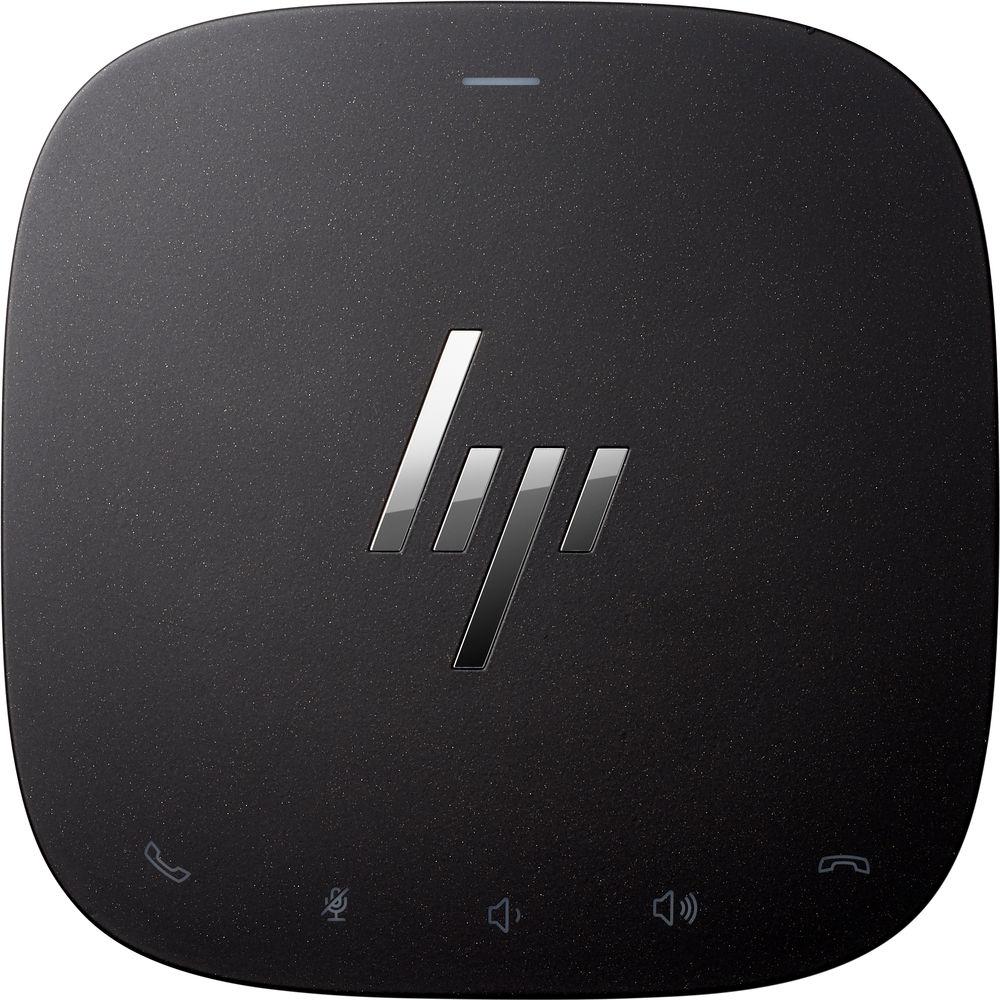

- Take calls without a headset with HP's Thunderbolt dock with an audio conferencing solution. The optional HP Thunderbolt Dock Audio Module attaches vertically to the dock with no cabling.
UPC: 192545619233 In the Box HP Thunderbolt Dock G2 with Combo Cable (Smart Buy) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Thunderbolt Dock G2 with Combo Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Thunderbolt Dock G2 Specs | | | USB | 2 x USB 3.1 Gen 1 Type-C
3 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 1 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x Thunderbolt 3 Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 4 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Quad Display)
4096 x 2160 at 60 Hz
3840 x 2160 at 60 Hz
2560 x 1600 at 60 Hz
2560 x 1440 at 60 Hz
1920 x 1200 at 60 Hz | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Compatibility | HP Elite x2 1012 G1
HP Elite x2 1012 G2
HP Elite x2 1013 G3
HP EliteBook 700 G5
HP EliteBook 745 G5
HP EliteBook 755 G5
HP EliteBook 800 G5
HP EliteBook 830 G5
HP EliteBook 840 G5
HP EliteBook 850 G5
HP EliteBook 1040 G4
HP EliteBook 1050 G1
HP EliteBook Folio G1
HP EliteBook x360 1020 G2
HP EliteBook x360 1030 G2
HP ProBook 400 G5
HP ProBook 470 G5
HP ProBook 600 G4
HP ProBook 640 G4
HP ProBook 645 G4
HP ProBook 650 G4
HP ProBook x360 440 G1
HP Pro x2 612 G2
HP ZBook 14u G5
HP ZBook 15u G5
HP ZBook Studio G3
HP ZBook Studio G4
HP ZBook x2 G4 Detachable | | Operating System Support | ChromeOS, Windows, macOS/OS X | | UASP Support | No | | | | Power Source | AC Adapter | | Power Port | Barrel Connector (Unspecified Diameter) | | DC Input Power | 19.7 VDC at 11.8 A | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Operating Altitude | -50 to 10,000' / -15.24 to 3048 m | | | | Cable Length | 2.3' / 0.7 m | | LED Indicator | Power | | Lock Slot | Yes, Kensington | | Dimensions | 3.9 x 3.9 x 2.7" / 9.91 x 9.91 x 6.86 cm | | Weight | 1.8 lb / 0.8 kg | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 9.6 x 6.8 x 5.8" |
