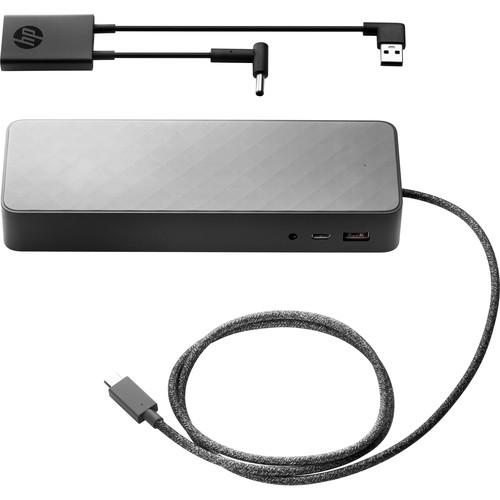

User Manual for HP USB 3.0 Type-C Universal Dock with 4.5mm and USB Dock Adapter Click to enlarge the picture
Contents of the user manual for the HP USB 3.0 Type-C Universal Dock
- Product category: Docking Stations & Port Replicators HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Docking Stations & Port Replicators
|
User manual for the HP USB 3.0 Type-C Universal Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Compatible with select HP Elite x2, EliteBook, Pro x2, ProBook, ZBook, and ZBook Studio systems, the USB 3.0 Type-C Universal Dock from HP provides your notebook or tablet with access to a complete desktop experience with USB Type-C or 4.5mm barrel charging, as well as connections for your network, dual UHD 4K displays (3840 x 2160 at 60 Hz) or one 5K display (5120 x 2880 at 60 Hz), and accessories - all with one cable connection.
This dock connects to your host system using its integrated USB 3.0 Type-C cable (USB 3.1 Gen 1) and is equipped with one powered USB 3.0 Type-A port, one USB Type-C port (data/power), a 3.5mm headphone/microphone jack, two DisplayPorts, a Gigabit Ethernet port, and three USB 2.0 Type-A ports. If your system doesn't have USB Type-C, then attach the dock's integrated USB Type-C cable to the included 4.5mm and USB Dock Adapter, which has one powered USB Type-C input, and then connect its USB 3.0 Type-A connector and 4.5mm barrel connector to your host system, which will allow you to utilize all of the dock's connectivity. USB Power Delivery is supported at 5V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, and 20V/3A.
HP's USB 3.0 Type-C Universal Dock is compatible with Windows 7 and above, Windows 10 S, and Chrome. Included is a 90W AC adapter and an AC power cord. It is protected by a limited 1-year warranty. General Features - Expansion for All the Ways You Work
- Connect to your accessories with one USB 3.0 Type-A charging port, three USB 2.0 Type-A ports, and one USB Type-C charging/data port. Drive dual 4K displays or one 5K display from two DisplayPort outputs, and use RJ45 for Gigabit Ethernet and network manageability.
- Enterprise-Class Network Manageability
- Support network manageability of your device and the dock with PXE boot support, Wake on LAN, MAC Address Pass-Through, and WLAN/LAN switching.
- Universal Docking
- Designed for compatibility with USB Type-C, dock almost any notebook or tablet using the integrated USB Type-C cable or the included HP 4.5mm and USB Dock Adapter.
- Avoid Downtime with Pass-Through Power
- Avoid downtime with up to 60W of power to power and charge your connected notebook or tablet through the powered USB Type-C port, or select notebooks through the optional HP 4.5mm and USB Dock Adapter.
- Click or Call Support
- Get the reassurance of a limited one-year warranty.
UPC: 192018040366 In the Box HP USB 3.0 Type-C Universal Dock with 4.5mm and USB Dock Adapter 90W AC Adapter AC Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP USB 3.0 Type-C Universal Dock with 4.5mm and USB Dock Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP USB-C Universal Dock Specs | | | USB | 1 x USB 3.1 Gen 1 Type-C
1 x USB 3.1 Gen 1 Type-A
3 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | None | | | | System Connection | 1 x USB 3.1 Gen 1 Type-C Male
1 x USB 3.1 Gen 1 Type-A Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display)
3840 x 2160 at 60 Hz (Dual Display) | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Compatibility | HP Elite x2 1012 G1
HP Elite x2 1012 G2
HP Elite x2 1012 G3
HP EliteBook 725 G3
HP EliteBook 725 G4
HP EliteBook 735 G5
HP EliteBook 745 G4
HP EliteBook 745 G5
HP EliteBook 755 G3
HP EliteBook 755 G4
HP EliteBook 755 G5
HP EliteBook 820 G4
HP EliteBook 830 G5
HP EliteBook 840 G3
HP EliteBook 840 G4
HP EliteBook 840 G5
HP EliteBook 850 G3
HP EliteBook 850 G4
HP EliteBook 850 G5
HP EliteBook 1031 G1
HP EliteBook 1040 G3
HP EliteBook 1040 G4
HP EliteBook Folio G1
HP EliteBook x360 1020 G2
HP EliteBook x360 1030 G2
HP Pro x2 612 G2
HP ProBook 430 G3
HP ProBook 430 G4
HP ProBook 430 G5
HP ProBook 440 G3
HP ProBook 440 G4
HP ProBook 440 G5
HP ProBook 450 G3
HP ProBook 450 G4
HP ProBook 450 G5
HP ProBook 455 G3
HP ProBook 455 G4
HP ProBook 470 G3
HP ProBook 470 G4
HP ProBook 470 G5
HP ProBook 640 G2
HP ProBook 640 G3
HP ProBook 640 G4
HP ProBook 645 G3
HP ProBook 645 G4
HP ProBook 650 G2
HP ProBook 650 G3
HP ProBook 650 G4
HP ProBook 655 G2
HP ProBook 655 G3
HP ProBook x360 11 G1 EE
HP ProBook x360 11 G2 EE
HP ZBook 14u G5
HP ZBook 15u G3
HP ZBook 15u G5
HP ZBook Studio G3
HP ZBook Studio G4
HP ZBook x2 G4 Detachable | | Operating System Support | Windows | | UASP Support | No | | | | Power Source | AC Adapter | | Power Port | Barrel Connector (Unspecified Diameter) | | Maximum Power Consumption | 88 W (AC Adapter) | | DC Input Power | 19.5 VDC | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 5 to 90% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Storage Humidity | 5 to 95% | | Storage Altitude | 0 to 30,000' / 0.00 to 9144 m | | | | Lock Slot | Yes, Kensington | | Dimensions | 7.9 x 2.8 x 1.1" / 200.66 x 71.12 x 27.94 mm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 11.6 x 6.7 x 4.5" |
