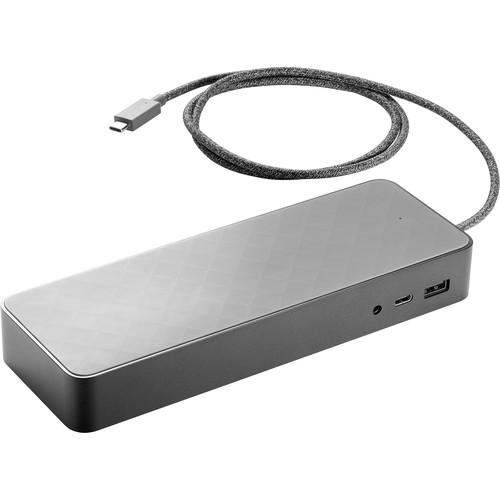

User Manual for HP USB Type-C Universal Dock Click to enlarge the picture
Contents of the user manual for the HP USB Type-C Universal Dock
- Product category: Docking Stations & Port Replicators HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Docking Stations & Port Replicators
|
User manual for the HP USB Type-C Universal Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Connect a variety of USB 3.1 Gen 1 Type-C, Type-A, DisplayPort, Gigabit Ethernet, and audio peripherals using the non-flash USB Type-C Universal Dock from HP. This dock contains connects to your host system using an integrated USB Type-C cable and is equipped with one USB 3.1 Gen 1 Type-A charging port, one USB 3.1 Gen 1 Type-C data/charging port, three USB 2.0 Type-A ports, and one combo audio jack. Network connectivity is achieved using a Gigabit Ethernet port and two DisplayPorts support either one 5K display at resolutions up to 5120 x 2880 @ 60 Hz, or dial 4K displays at resolutions up to 3840 x 2160 at 60 Hz. To help prevent this dock from being stolen, there is also an integrated Kensington lock slot. Included is an AC power cord, a 60W AC adapter, and a USB Type-C to USB Type-A adapter. - Expansion for All the Ways You Work
- Connect to your accessories with one USB 3.1 Gen 1 Type-A charging port, three USB 2.0 Type-A ports, and one USB 3.1 Gen 1 Type-C charging/data port. Drive Dual 4K displays or one 5K display from two DisplayPort ports. Use RJ45 for Gigabit Ethernet and network manageability.
- Enterprise-Class Network Manageability
- Support network manageability of your device and the dock with PXE boot support, Wake on LAN, MAC address passthrough, and LAN/WLAN switching.
- Universal Compatibility
- Use one dock for all your devices with support for multi-generation HP notebooks and tablets. Connect to the dock through the included USB Type-C cable or the included USB Type-C to USB Type-A adapter.
- Give Your Platform a Power Boost
- Avoid downtime with up to 60W of power to charge and power your connected notebook or tablet through the powered USB Type-C port or select notebooks through the optional HP 4.5mm and USB Dock Adapter.
UPC: 192018565968 In the Box HP USB Type-C Universal Dock (Non-Flash) USB Type-C to USB Type-A Adapter 60W AC Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP USB Type-C Universal Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP USB-C Universal Dock Specs | | | USB | 1 x USB 3.1 Gen 1 Type-A
3 x USB 2.0 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 2 x DisplayPort (Female) | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x USB (Unspecified Type) Type-C Male | | Connection Type | Integrated Cable | | | | Number of Displays Supported | 2 | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Compatibility | HP EliteBook 725, 745, 755, 820, 840, 850 G3/G4, 1020 and 1030 G1, 1040 G2/3/4, x360 1020/1030 G2, Folio G1, and Revolve 810 G3
HP ProBook 430, 440, 450, 455, 470 G3/4/5, 640, 645, 650, and 655 G2/3, and X360 G1
HP Chromebook 11 G4/5, 13, 14 G4 and x360
HP Elite x2 1011 G1 and 1012 G1/G2
HP Pro 608 G1 and x2 612 G2
HP ZBook 14, 14u G2, 15 G2/3/4, 15u G2/G3/G4, 17 G3/4, and Studio G3/G4 Mobile Workstation | | UASP Support | No | | | | Power Source | Bus Powered | | Power Port | USB Type-C | | Maximum Power Consumption | 60 W (Bus Power) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
