User Manual for HP V194 18.5" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the HP V194 18.5" 16:9 LCD Monitor
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP V194 18.5" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

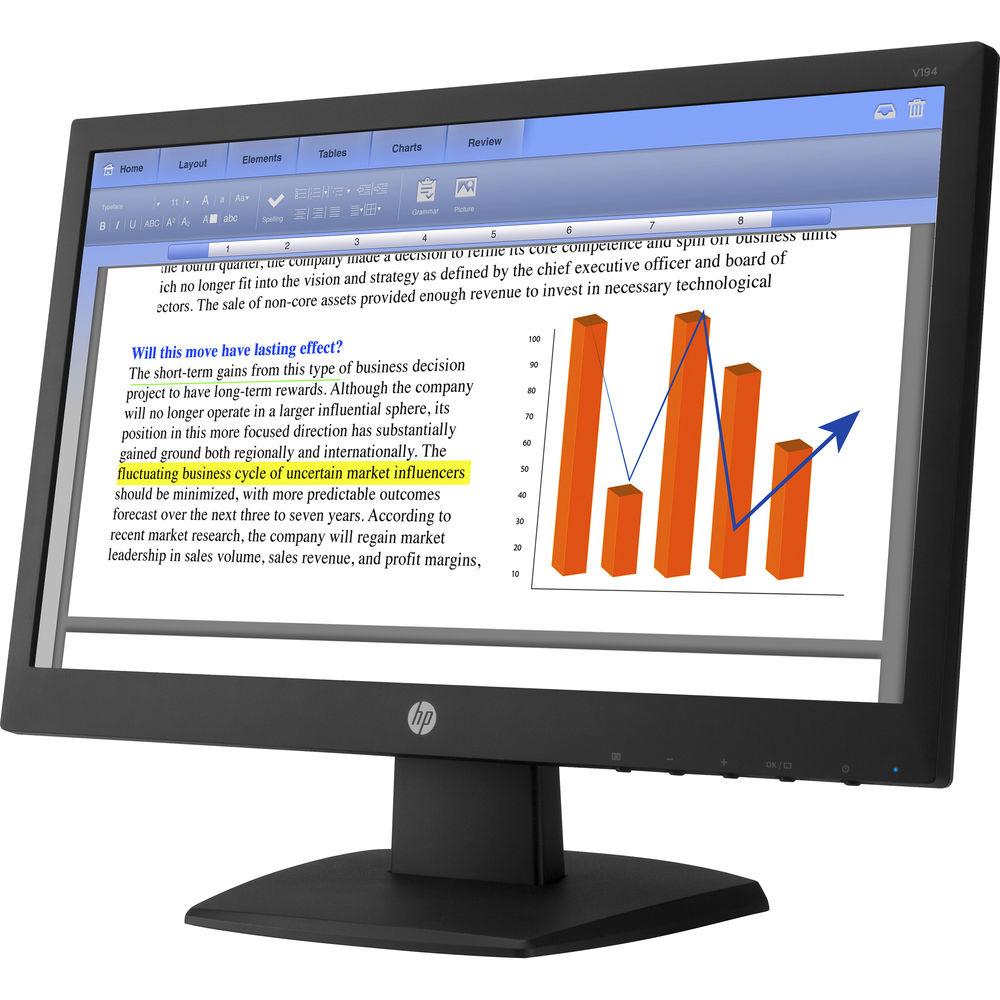

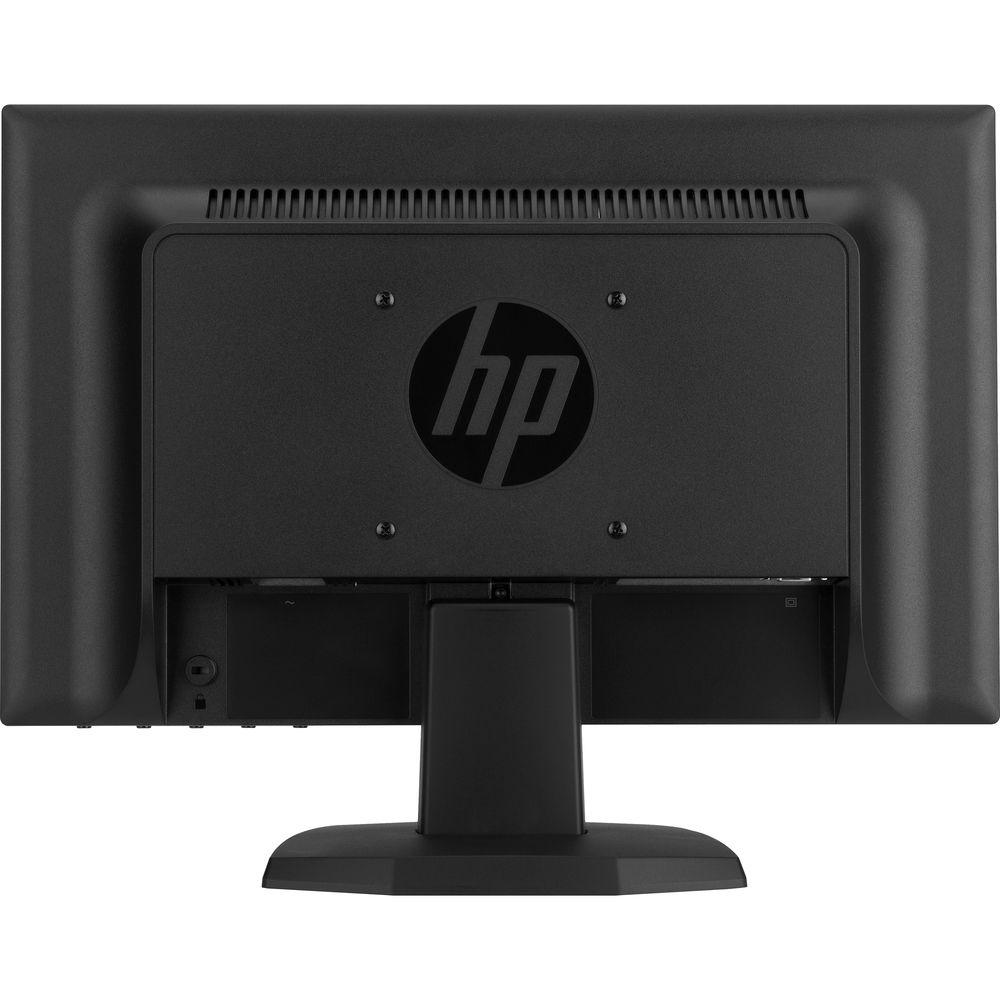

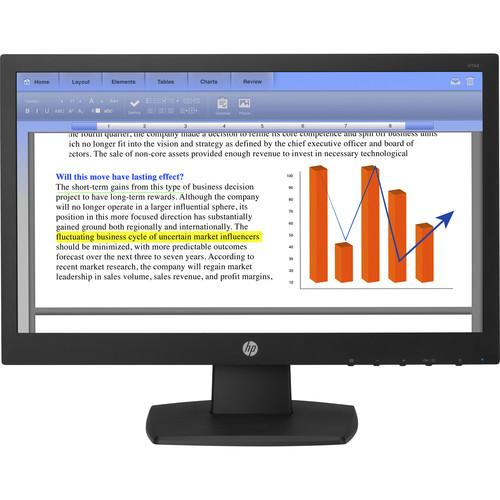

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The V194 18.5” 16:9 LCD Monitor from HP provides quality presentation features in a sleek, thin-profile monitor with a compact screen size. You can attach it to your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind the display for an integrated, affordable workspace that’s suitable for small spaces. - General
-
- Crisp, clear views of documents and e-mail with a 1366 x 768 resolution
- 5M:1 dynamic contrast ratio
- 5 ms response time
- 18.5” diagonal screen
- Quick and easy connection to your devices with a VGA input
- Attaches to your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind the display for an integrated, affordable workspace that’s suitable for small spaces
- Environment-friendly design
- Reduces power consumption with an energy-efficient design that is ENERGY STAR certified and EPEAT Silver registered
- Includes mercury-free display backlights and arsenic-free display glass
- Customizable positioning with adjustable tilt settings and viewing angles
- Display
-
- Anti-glare
- Plug-and-play
- User programmable
- Language selection
- On-screen controls
- LED backlight
In the Box HP V194 18.5" 16:9 LCD Monitor AC Power Cord VGA Cable Limited 1-Year Warranty Quick Specs PDF 319.1kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP V194 18.5" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP V194 Specs | | | Size | 18.5" | | Screen Area | 16.1 x 9.1" / 41 x 23 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1366 x 768 | | Aspect Ratio | 16:9 | | Maximum Brightness | 200 cd/m2 | | Contrast Ratio | 600:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 90°
Vertical: 65° | | Dot Pitch | 0.3 x 0.3 mm | | | | Power Consumption | 17 W (Maximum)
0.5 W (Standby)
15 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 45 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Certifications | ENERGY STAR, EPEAT Silver, as per Manufacturer | | | | Tilt Adjustment | -5 to 22° | | Lock Slot | Yes | | Dimensions (W x H x D) | 17.4 x 6.6 x 13.8" / 44.1 x 16.8 x 35.0 mm (With Stand)
17.4 x 10.9 x 1.8" / 44.1 x 27.8 x 4.5 mm (Without Stand) | | Weight | 5.7 lb / 2.6 kg |
