User Manual for HP Xeon Gold 6154 3.0 GHz 18-Core LGA 3647 Processor for Z8 G4 Workstation Click to enlarge the picture
Contents of the user manual for the HP Xeon Gold 6154 3.0 GHz
- Product category: CPU Processors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP CPU Processors
|
User manual for the HP Xeon Gold 6154 3.0 GHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

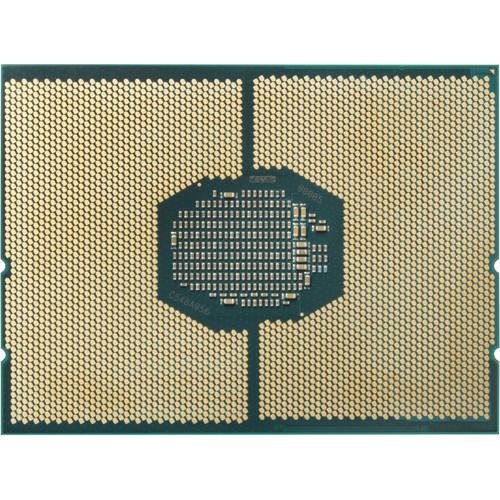

Product description Designed for HP's Z8 G4 Series Workstation, the Xeon Gold 6154 3.0 GHz 18-Core LGA 3647 Processor from HP has a base clock speed of 3.0 GHz and comes with features such as Intel Turbo Boost 2.0 and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0 technology, the maximum turbo frequency this processor can achieve is 3.7 GHz.
Additionally, this processor features 18 cores with 36 threads in an LGA 3647 socket and has 24.75MB of L3 cache memory. Having 18 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 36 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core.
This 14nm semiconductor processor supports up to 768GB of DDR4-2666 RAM, PCIe 3.0, AES New Instructions, AVX, AVX2, and AVX-512 Instruction Set Extensions. There is no integrated graphics controller, so users will need to purchase a compatible dedicated graphics card of their choice. Included is a heat sink and protection is provided by a limited 3-year warranty. UPC: 192545130981 In the Box HP Xeon Gold 6154 3.0 GHz 18-Core LGA 3647 Processor for Z8 G4 Workstation Heat Sink Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Xeon Gold 6154 3.0 GHz 18-Core LGA 3647 Processor for Z8 G4 Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Xeon Gold 6154 Specs | | | CPU Model | Intel Xeon Gold 6154 | | CPU Socket | LGA 3647 | | Manufacturing Process | 14 nm | | Maximum CPU Configuration | S4S | | Maximum Number of PCIe Lanes | 48 (Revision 3.0) | | Unlocked | No | | | | Number of Cores | 18 | | Number of Threads | 36 | | Base Clock Speed | 3.0 GHz | | Maximum Boost Speed | 3.7 GHz | | L3 Cache | 24.75 MB | | | | Maximum Capacity | 768 GB | | Memory Support | DDR4 2666 MHz | | ECC Memory | Yes | | Channel Architecture | Hexa Channel | | | | Thermal Design Power (TDP) | 200 W | | | | AES Support | Yes | | Extension | AVX, AVX 2.0, AVX-512, SSE 4.1/4.2 | | Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) | | | | Optane Memory Support | No | | vPro Support | Yes | | Performance Technologies | Hyper-Threading, SpeedStep, TSX-NI, Turbo Boost 2.0 | | Security Technologies | Execute Disable Bit, MBE (Mode-Based Execute) Control, Trusted Execution Technology |
