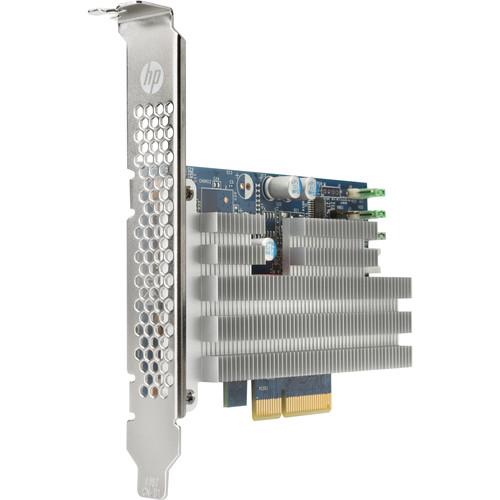

User Manual for HP Z Turbo Drive G2 512GB TLC PCIe SED SSD Click to enlarge the picture
Contents of the user manual for the HP Z Turbo Drive G2 512GB
- Product category: Internal Drives HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Internal Drives
|
User manual for the HP Z Turbo Drive G2 512GB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More The Z Turbo Drive G2 512GB TLC PCIe SED SSD (Z2 MB) from HP is compatible with HP Z workstations including Z240, Z440, Z640 and Z840. It also supports storage configurations as a boot device and as a data device. The SSD also can be configured with other storage components including SATA and SAS drives and controllers.The SSD is also supported by our current offering of operating systems, including Linux and may require a separate driver, depending on the OS. It supports BIOS version 1.53 and requires a BIOS update for older systems. The SSD can be configured with both SATA and SAS hard drives and with multiple Z Turbo drives per system.
Note: NVMe devices require a driver for proper detection and operation. Microsoft Windows 8 and higher have a built-in NVMe driver. For Windows 7, HP recommends the Microsoft hotfix (KB2990941 and KB3087873) which provides an NVMe driver. In addition, the Samsung NVMe driver, version 1.4.7.6, can be used with specific Samsung M.2 devices. Also note that the new NVMe driver will not support the original HP Z Turbo Drive, which requires an AHCI driver. - Supported in HP Performance Advisor (includes wear gauge)
- Supports OPAL 2 hardware encryption
UPC: 190780300220 Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z Turbo Drive G2 512GB TLC PCIe SED SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP G2 Specs | | | Capacity | 512 GB | | Interface | PCI Express 3.0 x4 electrical, x4 physical | | Protocol | PCIe | | Form Factor | M.2 in native slot on motherboard | | Controller | NVMe | | Endurance | 300 TBW (TB written) | | Reliability (MTBF) | 1.5M hours | | NAND Type | 3D TLC | | Sequential Read | 3200 MB/s | | Sequential Write | 1700 MB/s | | Random Read | 330K IOPS | | Random Write | 300K IOPS | | RAID Support | Windows RAID with Boot Configuration: Limited support for RAID 1
Windows RAID with Data Configuration: Support for RAID 0, 1
Linux RAID with Boot Configuration: Functional for RAID 0, 1
Linux RAID with Data Configuration: Functional for RAID 0, 1, 5, 10 | | Self-Encrypting Drive | OPAL 2 | | | | System Requirements | Operating System
Microsoft Windows 7/64-bit, Microsoft Windows 8.1/64-bit, Microsoft Windows 10/64-bit, RHEL 6, 7
SUSE 11, 12
Ubuntu 14.04
Not supported for 32-bit Microsoft Windows Operating Systems. | | Environmental Requirements | Operating Temperature: 32 to 158° F / 0 to 70°C | | Approved PCIe Slots | Recommended Slot Order for Z840
1. Slot 1
2. Slot 6
3. Slot 3 (Requires 2nd CPU)
4. Slot 4 (Requires 2nd CPU)
Z640: Slot 4, Slot 5, and Slot 3 (in order of preference)
Z440: Slot 4, Slot 5, and Slot 3 (in order of preference)
Z240 - Native Motherboard slot first, then available PCIe Gen3 slot (either #1 or #4) | | Dimensions (WxHxD) | Not specified by the manufacturer | | Weight | Not specified by the manufacturer |
