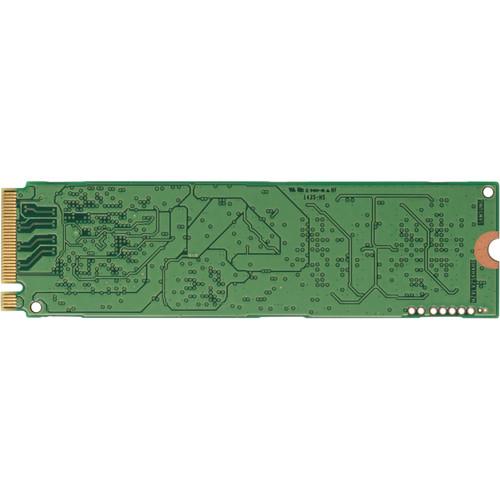

User Manual for HP Z Turbo Drive Quad Pro SSD Module Click to enlarge the picture
Contents of the user manual for the HP Z Turbo Drive Quad Pro
- Product category: Internal Drives HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Internal Drives
|
User manual for the HP Z Turbo Drive Quad Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More The 256GB Z Turbo Drive Quad Pro SSD Module from HP enables up to four M.2 PCIe SSD modules to be connected to one PCIe Gen3 x16 slot. This M.2 form factor device uses PCIe Gen3 x4 which enables sequential performance levels greater than 2GB/s for each module. The devices can be set up with RAID for additional performance and redundancy using software RAID.
The Z Turbo Drive Quad Pro is supported on desktop platforms of HP Z Workstations, including Z440, Z640, and Z840. It will support storage configurations as a boot device and as a data device. It also can be configured with other storage components including SATA and SAS drives and controllers. - Supports up to four PCIe M.2 SSD modules (NVMe) in one card, PCIe Gen3 x16 slot required
- Equipped with power loss protection circuitry that employs a bank of super caps to provide the power to fully finish data storage operations in the event of a power loss condition
- Active cooling solution ensures that the M.2 SSD modules will not throttle to low performance levels due to overheating
- Support for single and double sided PCIe M.2 SSDs, up to 110mm in length
- M.2 SSD modules on the card can be used as a boot device, and the other devices can be used as data storage
- Additional storage devices such as HDDs, SATA SSDs, can be used in combination with the Z Turbo Drive Quad Pro
- Multiple Z Turbo Drive Quad Pro cards can be installed into Z Workstations
- Card with 3 or 4 M.2 SSD modules requires a PCIe Gen3 x16 slot
- Card with only two M.2 SSD modules can be used in a PCIe Gen3 x8 slot
UPC: 889296922551 In the Box HP Z Turbo Drive Quad Pro SSD Module (256GB) Limited 1-Year Warranty Data Sheet PDF 660.9kbxqbbyctvrddqaawvrb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z Turbo Drive Quad Pro SSD Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP N2N00AA Specs | | | Interface | PCIe 3.0 x4 | | Maximum Read Speed | 2150 MB/s (128 KB Files) | | Maximum Write Speed | 1260 MB/s (1 MB Files) | | Random Read Speed | 300,000 IOPS (4 KB Files) | | Random Write Speed | 100,000 IOPS (4 KB Files) | | | | Drive Type | SSD | | Form Factor | M.2 | | | | Flash Memory Type | Multi-Level Cell (MLC) | | | | Endurance (Total Bytes Written) | 292 TB | | | | Operating Temperature | 50 to 131°F / 10 to 55°C | | Storage Temperature | 86 to 140°F / 30 to 60°C | | Storage Humidity | 5 to 90% | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 9.0 x 8.5 x 1.0" |
