User Manual for HP Z VR Backpack G1 Dock Click to enlarge the picture
Contents of the user manual for the HP Z VR Backpack G1 Dock
- Product category: Docking Stations & Port Replicators HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Docking Stations & Port Replicators
 |
User manual for the HP Z VR Backpack G1 Dock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

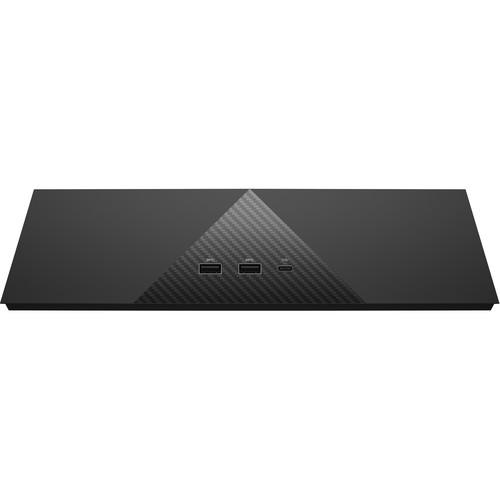

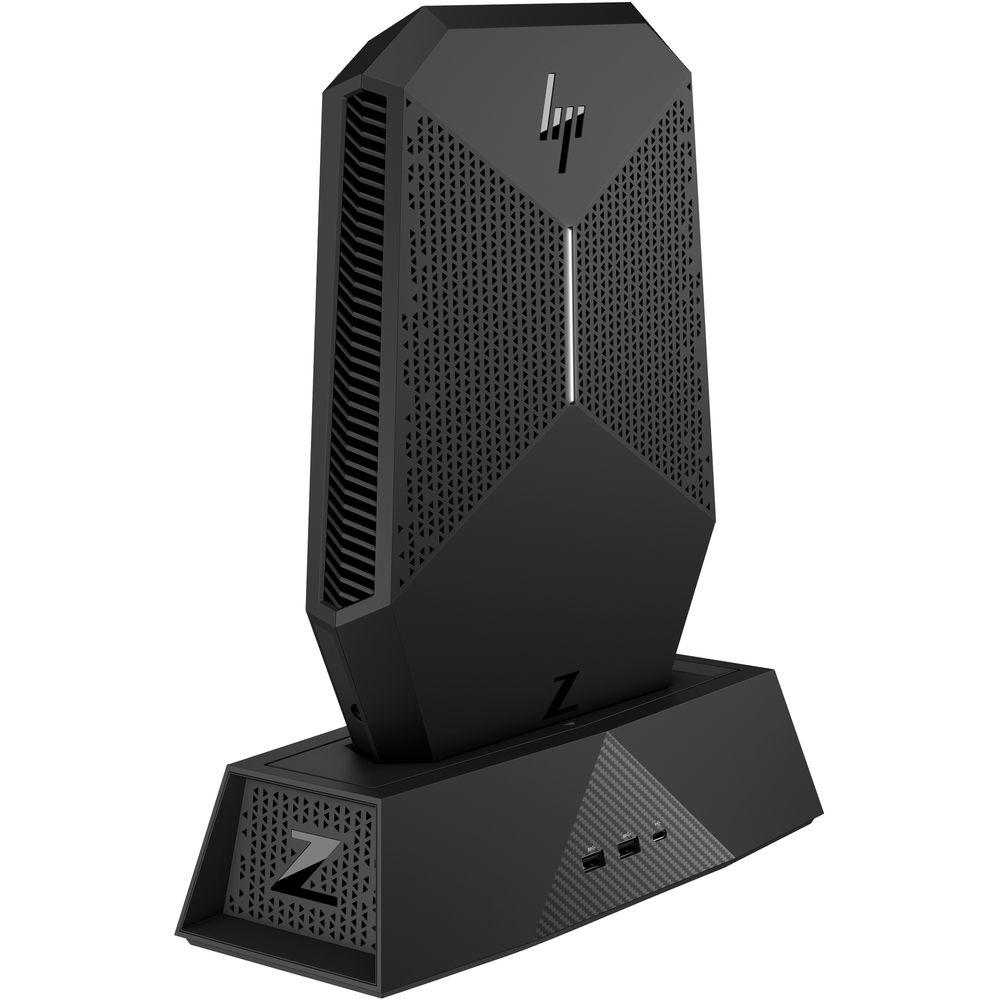

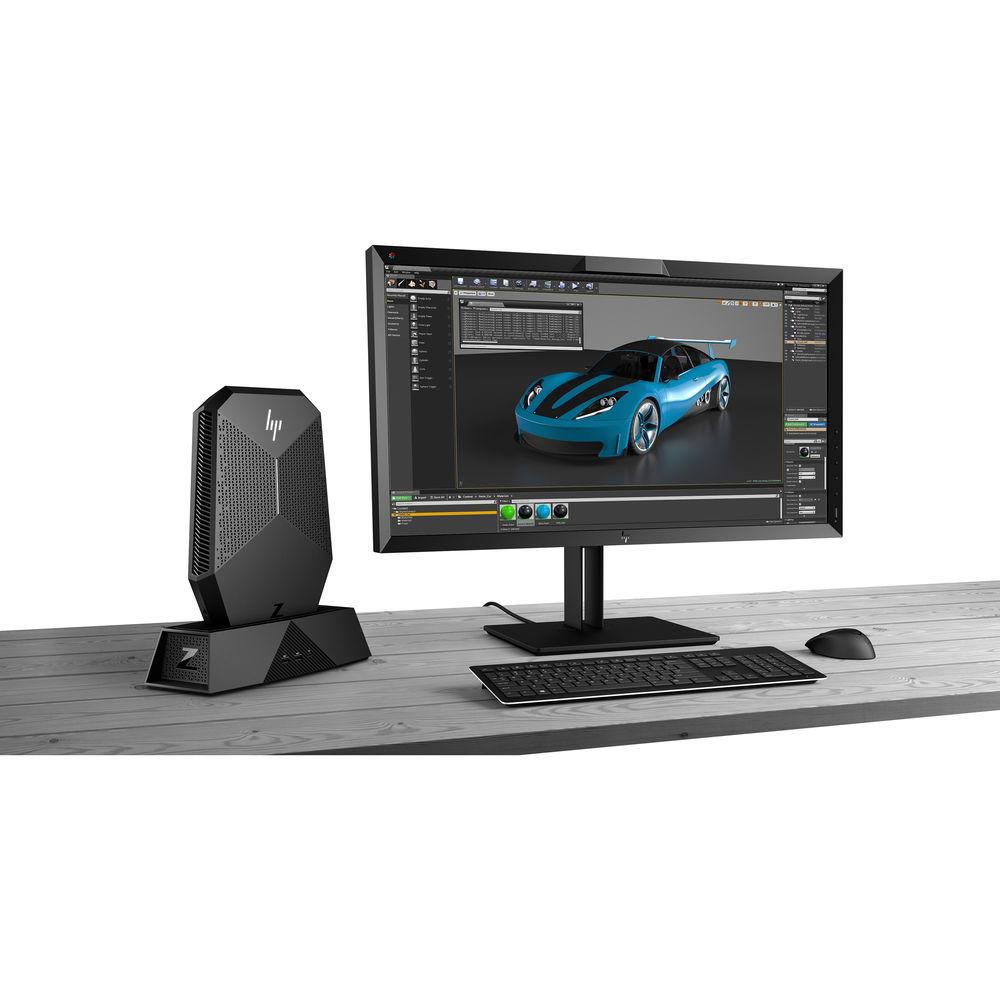

Product description Move seamlessly between the dual form factors of HP's Z VR Backpack G1, which include the mobile VR experience and high-powered desktop solution, using the Z VR Backpack G1 Dock from HP. Once your Z VR Backpack is docked, not only will it charge, but you'll also have access to one 10 Gb/s USB 3.1 Type-C port (USB 3.1 Gen 2), five 5 Gb/s USB 3.0 Type-A ports (USB 3.1 Gen 1), one DisplayPort 1.3, one HDMI 2.0 port, and one Gigabit Ethernet port. All of these ports will allow you to connect standard devices, high-speed peripherals, a wired Gigabit Ethernet network, and dual 4K displays. When combined with the Z VR Backpack G1 Dock, there are a total of nine USB Type-A ports, as well as support for four simultaneous 4K displays, thanks to the the Backpack's one mini DisplayPort 1.3 and one HDMI 2.0 port.
HP's Z VR Backpack G1 Dock is equipped with a status LED that communicates the status of the Z VR Backpack G1. A white light means it is turned on, a blinking white light means it is in standby mode, and a yellow light means it is charging. Included is a 330W Smart AC adapter, a power cord, a limited 1-year parts and labor worldwide warranty, and 24/7 phone & online support. General Features - Expand Your View
- Pause the action and dock your system to review your project on dual 4k displays while retaining your Z VR Backpack G1's video port connection to the head-mounted display.
- Keep Your Workspace at the Ready
- Station your USB devices for immediate access by connecting them to any of the dock's five USB 3.0 Type-A (USB 3.1 Gen 1) ports, which give you a combined total of nine USB ports on your HP Z VR Backpack G1 and the dock.
- Jack into Your Wired Network
- Get secure enterprise access to your projects and remote management features through your wired Gigabit LAN network connection from the dock's RJ45 port.
- World-Class Support
- Rest easy with a limited one-year parts and labor warranty, valid worldwide, and 24/7 phone and online forum support.
UPC: 192018833555 In the Box HP Z VR Backpack G1 Dock 330W Smart AC Adapter AC Power Cable 24/7 Phone & Online Support Limited 1-Year Parts & Labor Warranty (Worldwide) Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z VR Backpack G1 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z VR Backpack G1 Dock Specs | | | USB | 1 x USB 3.1 Gen 2 Type-C
5 x USB 3.1 Gen 1 Type-A | | Thunderbolt | None | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI 2.0
1 x DisplayPort 1.3 | | Audio | None | | Memory Card Slots | None | | | | System Connection | 1 x Proprietary Female | | | | Number of Displays Supported | 2 | | Data Transfer Rate | 5 Gb/s USB 3.0/USB 3.1 Gen 1 | | Operating System Support | Windows | | UASP Support | No | | | | Power Source | AC Adapter | | Maximum Power Consumption | 330 W (AC Adapter) | | Total Current Output | 34 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 19.5 VDC | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Operating Altitude | -50 to 10,000' / -15.24 to 3048 m | | Storage Temperature | 4 to 140°F / -15 to 60°C | | Storage Humidity | 0 to 95% | | Storage Altitude | -50 to 40,000' / -15.24 to 12,192 m | | | | LED Indicator | Power | | Lock Slot | Yes | | Dimensions | 13.1 x 9.3 x 2.4" / 33.27 x 23.62 x 6.1 cm | | Weight | 5.7 lb / 2.6 kg |
