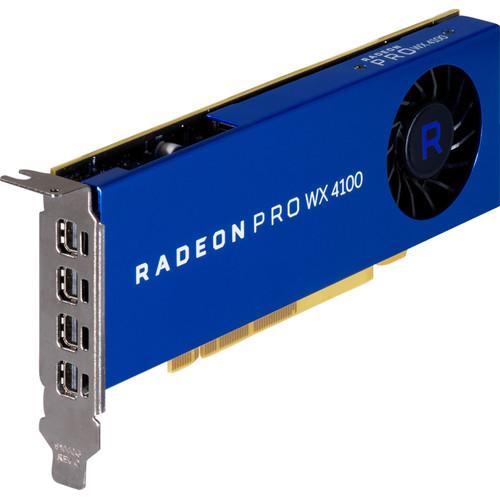

User Manual for HP Z0B15AT Radeon Pro WX 4100 Graphics Card Click to enlarge the picture
Contents of the user manual for the HP Z0B15AT Radeon Pro WX 4100
- Product category: Graphic Display Cards HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Graphic Display Cards
|
User manual for the HP Z0B15AT Radeon Pro WX 4100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description Power efficient and compact, the HP Radeon Pro WX 4100 is a low-profile professional AMD workstation graphics card. This HP version of the WX 4100 is designed to upgrade HP workstations for more powerful graphics processing. The card features 1024 stream processors coupled to 4GB of GDDR5 VRAM with a 96 GB/s memory interface for 2.4 TFLOPS of single-precision computation performance, all packed inside a half-height, half-length form factor. This speed coupled with the card's small size ensures that smaller workstations can take advantage of APIs such as OpenCL, OpenGL, and Vulkan to render high-resolution graphics and process computationally intensive video effects. The output panel of this card contains four Mini DisplayPort 1.4 outputs. With the included Mini DisplayPort to DisplayPort adapters, all four of the ports can be attached to standard DisplayPort hardware. With the processing power available inside the WX 4100 card, a single 5K (5120x2880) display, or four DCI or UHD 4K displays can be driven without requiring secondary cards or MST hubs. To keep this card cool, a blower-style cooler is implemented. By using a radial fan, this system forces air over the components and exhausts it out through the front of the card. This compact cooling solution is ideal for configurations involving tight spacing between components, crucial in small form factor enclosures. - 10-Bit Color
- Native support for 10-bits per color channel assists color-critical tasks such as photo editing and video color-correction by providing a larger visible gamut. 10-bit images require a monitor that supports a 10-bit input.
- DirectGMA and SDI Support
- Reduces CPU bandwidth and latency bottlenecks, and optimizes communication between GPUs within a system and third party devices like SDI I/O cards. DirectGMA bypasses any need to traverse the host's main memory, reducing CPU utilization, avoiding redundant bus transfers, and resulting in high throughput, low latency data transfers.
- Encoding/Decoding Hardware
- With specially programmed hardware, the GPU can encode and decode H.265 video files for decreased render times and smoother playback of highly compressed video.
- PowerTune
- Power management technology which provides direct control over GPU power usage. PowerTune dynamically adjusts clock speed to operate within the power parameters set by the user.
- ZeroCore Power Technology
- Shuts down the GPU when not in use to greatly reduce power usage while the card is idle.
UPC: 190780612538 In the Box HP Z0B15AT Radeon Pro WX 4100 Graphics Card 4 x Mini DisplayPort to DisplayPort Adapters Small Form-Factor Bracket Limited 3-Year Warranty (or the remainder of the warranty of the HP product in which it is installed) Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z0B15AT Radeon Pro WX 4100 Graphics Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Radeon Pro WX 4100 Specs | GPU | AMD Radeon Pro WX 4100:
Stream Processors: 1024
Node Size: 14 nm
Architecture: Polaris (Graphics Core Next (GCN) 4th generation) | | Interface | PCI Express 3.0 x16 | | Memory | Interface Width: 128-bit
Interface: GDDR5
Bandwidth: 96 GB/s
Configuration: 4 GB | | Floating Point | Single Precision Performance: 2.4 TFLOPS
Double Precision Performance: Not specified | | Outputs | 4 x Mini DisplayPort | | Maximum Resolution | DisplayPort: 5120 x 2880 | | APIs | OpenGL: 4.5
OpenCL: 2.0
Vulkan: 1.0
DirectX: 12 | | Form Factor | Width: Single-slot
Length: 6.6" / 168 mm
Half-height, Half-length | | Power Consumption | 50 W (typical) | | Compliance | FCC, CE, C-Tick, BSMI, KCC, UL, VCCI, RoHS, WEEE | | System Requirements | Power Supply: Not specified
PCI Slots: 1 x PCI Express 3.0 x16
RAM: Not specified
OS: Microsoft Windows 7/10, Linux | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 9.9 x 8.2 x 2.5" |
