User Manual for HP Z2 G4 Mini Workstation Click to enlarge the picture
Contents of the user manual for the HP Z2 G4 Mini Workstation
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
 |
User manual for the HP Z2 G4 Mini Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

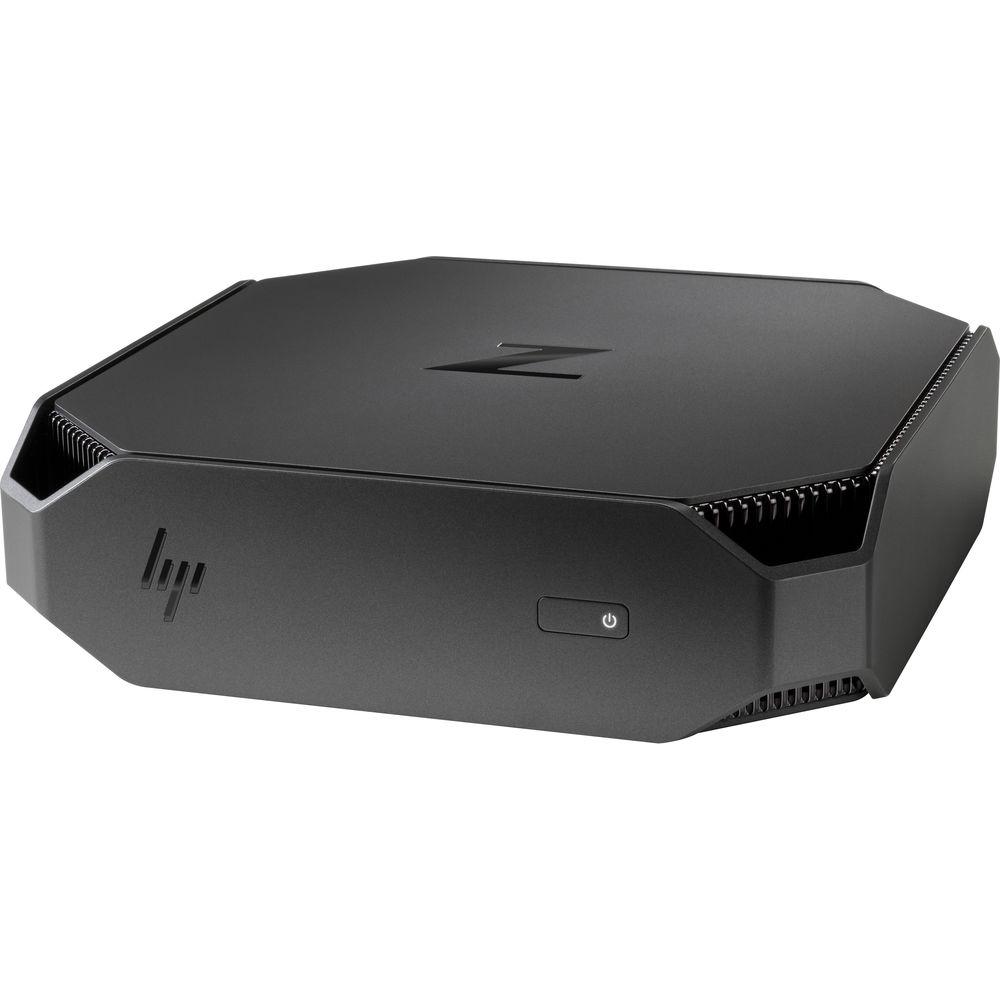

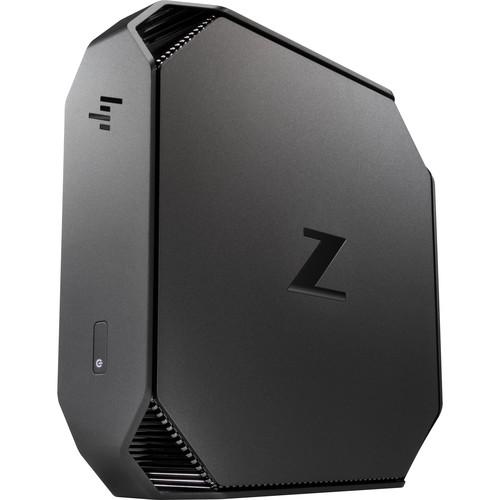

Product description Whether undertaking graphics-intensive designs in 2D or 3D CAD, or running multiple applications at once, the Z2 G4 Mini Workstation from HP delivers next-level performance for architects, creative professionals, education labs, and more. It has the ability to support single- and multi-threaded software, and is certified for Bentley MicroStation, AutoDesk AutoCAD, GRAPHISOFT ARCHICAD, Vectorworks, Autodesk Revit, and SolidWorks, along with Adobe titles including InDesign, Photoshop, Illustrator, Lightroom, and XD. With flexible configuration and deployment options, it is a solid choice for modern workspaces and at 2.28" high, it is 1/4 the size of the Z2 Small Form Factor system. Using the separately sold VESA mounting sleeve, the Z2 G4 Mini can be secured under your desk or behind your monitor, and can also be mounted in racks for virtualized installations.
The system is powered by a 3.2 GHz Intel Core i7-8700 Six-Core processor that will allow you to run multiple applications simultaneously and can be boosted up to 4.6 GHz. The 8GB of 2666 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 1 x 8GB, there are two 260-pin SO-DIMM memory slots that will allow the RAM to be upgraded to 32GB, using a 16GB chip in each of the two slots.
For storage of your files, If you want to add external storage drives or other peripherals, the Z2 Mini G4 features one 10 Gb/s USB 3.1 Gen 2 Type-C port and four USB 3.1 Gen 1 Type-A ports, with one of the Type-A ports doubling as a charging port. The integrated Intel UHD Graphics 630 chipset delivers a sharp, clear picture, and features two DisplayPort 1.2 outputs which support a maximum resolution of 4096 x 2160 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Conexant CX20632 5.1 audio codec outputs high definition audio and delivers higher fidelity than standard audio controllers.
The Z2 Mini G4 Workstation includes a USB keyboard, a USB mouse, and a power cord. It runs using a 135W external 3-pin slim power supply that is 88% efficient and operates using 100-240 VAC at 47-63 Hz. The installed operating system is Windows 10 Pro (64-bit).
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. General Features - Architects
- Designed for those who shape the world around us, the Z2 Mini G4 delivers advanced performance for 2D drafting and 3D design workflows. Create realistic models and get real-time interactivity with detailed 3D structures.
- Creative Pros
- Speed up your creative process with a powerful device for 2D design workflows. Get lag-free performance when working in multiple layers and performing complex tasks. Plus, you have plenty of space to organize and store your large high-resolution files.
- Higher Education

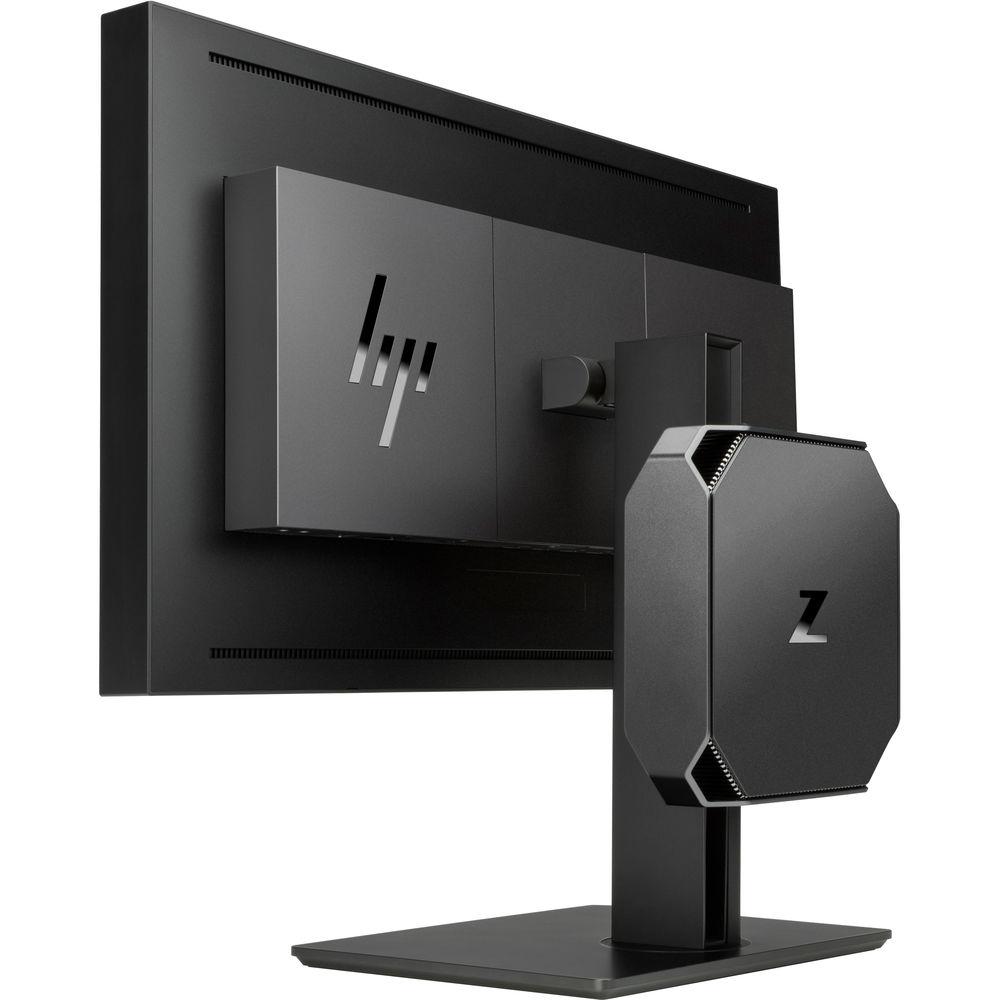

- Bring real-world capabilities to your education labs with workstation-class power and certification for popular professional applications. Protect your investment while saving space by using the VESA mounting sleeve with security features.
- A Quiet Workstation
- HP's engineers have designed the thermals to optimize airflow for efficient, quiet performance during heavy workloads.
- Secure and Manageable
- Get powerful protection from evolving malware threats with HP's self-healing, hardware-enforced security solutions. Plus, easily manage multiple devices with HP Manageability Integration Kit.
- Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses an integrated Intel I219-LM PCIe Gigabit controller for internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 9560, which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using 2.4 or 5 GHz wireless technologies. The wireless module is installed in a M.2 2230 slot, which uses a PCIe 3.0 x1 interface.
- Bluetooth 5.0
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 5.0 technology.
- 1 x USB 3.1 Gen 2 Type-C | 4 x USB 3.1 Gen 1 Type-A
- The Z2 Mini G4 features one 10 Gb/s USB 3.1 Gen 2 Type-C ports and four USB 3.1 Gen 1 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. These fast speeds mean you can spend less time waiting and more time focusing on the task at hand.
- Up to 32GB RAM
- Two 260-pin SO-DIMM slots support up to 32GB of non-ECC Unbuffered 2666 MHz DDR4 memory.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 193015391222 In the Box HP Z2 G4 Mini Workstation USB Keyboard & Mouse 135W External 3-Pin Slim Power Supply Power Cord Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z2 G4 Mini Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z2 Mini Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel C246 | | CPU | 3.2 GHz Intel Core i7-8700 6-Core | | Maximum Boost Speed | 4.6 GHz | | L3 Cache | 12 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 630 | | | | Total Drive Bays | 1 x 2.5" (Internal) | | Solid State Storage | 1 x 256 GB M.2 PCIe | | Optical Drive | None | | | | Ports | 4 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 2 | | Display | 2 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 5.0 | | | | Keyboard | Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Power Supply | 135 W | | Dimensions | 8.5 x 2.3 x 8.5" / 21.6 x 5.8 x 21.6 cm | | Weight | 4.5 lb / 2 kg | | | | Package Weight | 9.36 lb | | Box Dimensions (LxWxH) | 19.6 x 11.7 x 6.7" |
