Product description

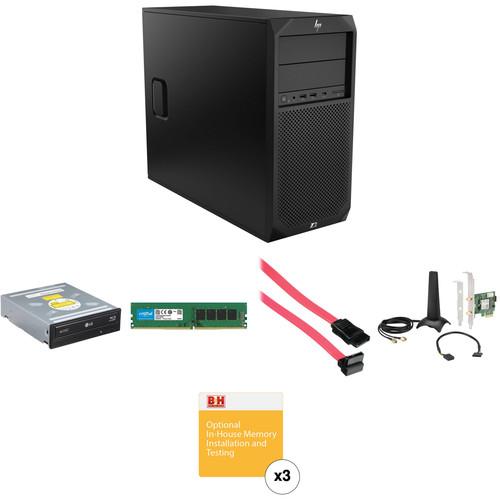

• HP Z2 G4 Tower Workstation Designed for BIM workloads and 3D CAD modeling and rendering, the Z2 G4 Tower Workstation from HP delivers server-grade power in the form factor of a desktop tower with plenty of room in the chassis for system expansion. Built for architects, product developers, and education labs, the Z2 G4 Tower is certified for Adobe, Avid, SolidWorks, Creo, Solid Edge, Bentley MicroStation, GRAPHISOFT ARCHICAD, Autodesk AutoCAD, Autodesk Revit, Autodesk Inventor, and Vectorworks.

  The system is powered by a 3.2 GHz Intel Core i7-8700 Six-Core processor that will allow you to run multiple applications simultaneously and can be boosted up to 4.6 GHz. The 16GB of 2666 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 2 x 8GB, there are four 288-pin DIMM memory slots that will allow the RAM to be upgraded to 64GB, using a 16GB chip in each of the four slots.

  For storage of your files, a 512GB Z Turbo Drive PCIe M.2 SSD offers quick access to your data. For additional internal storage, there are two empty internal 3.5" drive bays, two external half-height 5.25" drive bays, and an M.2 slot for a PCIe SSD. If you want to add external storage drives or other peripherals, the Z2 G4 features six 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port, plus two USB 2.0 Type-A ports. The dedicated NVIDIA Quadro P2000 graphics card has 5GB of GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to connect multiple external displays using its four DisplayPort 1.4 outputs at resolutions up to 5120 x 2880 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Conexant CX20632 5.1 HDA codec outputs high definition audio and delivers higher fidelity than standard audio controllers.

  The Z2 G4 Tower Workstation includes a USB keyboard, a USB mouse, and a power cord. It runs using a 500W power supply that is 90% efficient and operates using 90-269 VAC at 47-66 Hz. The installed operating system is Windows 10 Pro (64-bit).

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  General Features

  Architects
  • Optimized for BIM and 3D CAD design, users can easily manipulate 3D shapes and render near-photographic models in real time.
  Product Developers
  • Accelerate your 3D modeling design cycles with full, unthrottled performance. Get advanced rendering capabilities for quicker design visualization.
  Higher Education
  • Bring real-world capabilities to your education labs with workstation-class power and certification for popular professional applications. Plus, rigorous testing means less downtime.
  Performance
  • With up to 60% more graphics power and 13% smaller than last generation, the Z2 G4 Tower is equipped to handle heavy workloads.
  Built to Expand
  • This expandable entry workstation is designed to grow with you to meet your ever-changing workload requirements.
  Secure and Manageable
  • Get powerful protection from evolving malware threats with HP's self-healing, hardware-enforced security solutions. Plus, easily manage multiple devices with HP Manageability Integration Kit.
  9.5mm Slim DVD Writer
  • The 9.5mm Slim DVD Writer lets you read from and write to a variety of optical CD and DVD media.
  Gigabit Ethernet
  • The system uses an integrated Intel I219-LM PCIe Gigabit controller for internet access when connected to a router, modem, or network switch. If you'd like to install a Wi-Fi/Bluetooth adapter, this is an empty M.2 2230 slot, which uses a PCIe 3.0 x1 interface.
  6 x USB 3.0 Type-A | 2 x USB 2.0 Type-A
  • The Z2 G4 Tower features six 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port, and two USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. These fast speeds mean you can spend less time waiting and more time focusing on the task at hand. Two of the USB 3.0 ports are in the front and four are in the rear, while both USB 2.0 ports are in the rear.
  Up to 64GB RAM
  • Four 288-pin DIMM slots support up to 64GB of ECC or non-ECC unbuffered 2666 MHz DDR4 memory.
  Expansion Bays
  • Expand or upgrade your system's drive bays with two internal 3.5" bays, two external 5.25" bays, and two M.2 2280 slots that use a PCIe 3.0 x4 interface.
  PCIe Slots
  • Expand your system's components using one PCIe 3.0 x16/16 slot, one PCIe 3.0 x4/x16 slot, and two PCIe 3.0 x1/x4 slots. All PCIe slots are full-height and full-length.

  Windows 10

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 193015584020
• LG WH16NS40 16x Internal Super Multi Blue Blu-ray Disc Rewriter (OEM Version) The LG Electronics WH16NS40 16x Internal Super Multi Blue Blu-ray Disc Rewriter supports a wide variety of optical media. In addition to writing data to DVD and Blu-ray discs at a speed of 16x, it also supports CD burning, and can write and read large-format quad-, triple-, and double-layer BD-R discs. This Blu-ray burner also supports the playback of 3D Blu-ray discs when used with optional 3D media, 3D glasses, and a 3D display. Built-in 4MB buffer under-run prevention helps to keep disc writing errors to a minimum.
  Multi-Blue Compatibility
  • LG Super Multi Blue optical drives can read and write four types of disc formats in one convenient package. The four disc types are DVD+R/RW, DVD-R/RW, DVD-RAM and Blu-ray Disc. This gives you the option of choosing the best media for your tasks.
  BDXL
  • The BDXL format supports high-capacity Blu-ray discs (up to 128GB write-once discs) for users that need to store a large amount of data.
  Serial ATA Technology
  • Serial ATA is a 1.5 Gb/s replacement for the Parallel ATA physical storage interface used to connect storage devices, such as hard disks and DVD and CD writers to the PC motherboard. Serial ATA is scalable, enables design of smaller PCs, and allows future enhancements to the computing platform.
  M-DISC Technology
  • When used with optional M-DISC optical media, M-DISC technology provides a long-term storage solution that retains data much longer than standard media.
  UPC: 058231310238
• Crucial 16GB DDR4 2666 MHz UDIMM Memory Module With this 16GB DDR4 2666 MHz UDIMM Memory Module from Crucial, you can give your computer a significant performance boost, especially if you're replacing DDR3 memory. If you're upgrading from DDR3 modules, you'll enjoy an approximately 30% boost to speed and bandwidth. Even energy efficiency has been improved over DDR3 memory, with this module utilizing only 1.2V.

  Even if you're not jumping from DDR3 to DDR4, the simple act of adding more RAM can make your system run smoother. More RAM means that the operating system can run side-by-side with more open programs simultaneously. It can also give you the ability to run more demanding applications. UPC: 649528780096
• Pearstone 18" 7-pin Internal Straight to 90-Degree Serial ATA Cable (Red) The 18" red Pearstone 7-pin Internal Straight to 90-Degree Serial ATA Cable features Serial ATA connectors for internal PC storage connections. Depending upon the peripherals used, you can get data transfer rates up to 6 Gbps. A 90-degree angled connector positions the cable in a way that produces less bend, and allows the cable to line up straight. This translates to reduced cable bend and fatigue for long-term durability.
  • Designed for internal PC storage connections
  • Achieve data transfer rates up to 6 Gbps
  • Angled connector positions the cable in a way that produces less bend and keeps the cable lined up straight; this reduces cable bend and fatigue
  UPC: 847628562547
• HP Intel 8265 802.11 a/b/g/n/ac Wi-Fi and Bluetooth PCIe Adapter Expand the wireless capabilities of your compatible HP Workstations with the Intel 8265 802.11 a/b/g/n/ac Wi-Fi and Bluetooth PCIe Adapter. This adapter plugs into an HP Z4, Z6, or Z8 G4 Workstation internally via an available PCIe slot. It provides your workstation with support for 802.11 a/b/g/n/ac Wi-Fi protocols, as well as Dual-Mode Bluetooth 4.2.

  This adapter can provide wireless data transfer speeds of up to 867 Mb/s to your workstation and supports MU-MIMO routers. Faster speeds can help to reduce dropped connections, network congestion, and provide smoother streaming of high-resolution video content.
  MU-MIMO Support
  • If your HP Workstation is connected to an MU-MIMO router or access point, adding this adapter will allow your workstation to take advantage of this functionality.
  Dual-Mode Bluetooth
  • Turn your compatible workstation into a Bluetooth Smart Ready Hub and peripheral.
  Deploy Alongside Intel Management and Security
  • This card is compatible with the hardware-based security and manageability features that are built into Intel Core vPro processors and chipsets. Supporting remote management with this type of card can help reduce costs and improve security and ROI.
  UPC: 190781769330
• 3 x Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

• Z2 G4 Tower Workstation dttadtyc
• USB Keyboard & Mouse
• Power Cord
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)
• For 24/7 Customer Service, Please Call 1-800-334-5144

• LG - WH16NS40 16x Internal Super Multi Blue Blu-ray Disc Rewriter (OEM Version)

• Crucial - 16GB DDR4 2666 MHz UDIMM Memory Module

• Pearstone - 18" 7-pin Internal Straight to 90-Degree Serial ATA Cable (Red)

• Intel 8265 802.11 a/b/g/n/ac Wi-Fi and Bluetooth PCIe Adapter

• 3 x B&H Photo Video - In-house Memory Installation & Testing Service

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z2 G4 Tower Workstation

  Operating System

  Windows 10 Pro (64-Bit)

  Chipset	Intel C246
  CPU Socket	LGA 1151
  CPU	3.2 GHz Intel Core i7-8700 6-Core
  Maximum Boost Speed	4.6 GHz
  L3 Cache	12 MB
  Memory Type	2666 MHz DDR4
  Total Installed Memory	16 GB
  Memory Configuration	2 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	64 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	2
  Graphics Type	Dedicated
  GPU	NVIDIA Quadro P2000 with 5 GB GDDR5 VRAM

  Total Drive Bays	2 x 3.5" (Internal) 2 x 5.25" (External)
  SSD Slots	1 x M.2 22110 PCIe (Available) 1 x M.2 22110 PCIe (In Use)
  Total Installed Capacity	512 GB
  Solid State Storage	1 x 512 GB M.2 NVMe PCIe
  PCI Expansion	1 x PCIe Gen 3 x16 (x16 Mechanical) 1 x PCIe Gen 3 x4 (x16 Mechanical) 2 x PCIe Gen 3 x1 (x4 Mechanical) 1 x M.2 2230 (E-Key)
  Optical Drive	Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Ports	6 x USB Type-A (USB 3.1 Gen 1) 2 x USB Type-A (USB 2.0)
  Display	4 x DisplayPort 1.4
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output
  Built-In Speakers	1

  Ethernet	1 x RJ45 (Gigabit)

  Keyboard	Full-Size Keyboard with Number Pad
  Pointing Device	USB Mouse

  Security	Kensington Lock Slot, Infineon TPM Software Professional Package
  Power Supply	500 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 6 A
  Operating Temperature	40 to 95°F / 4 to 35°C
  Operating Humidity	10 to 85%
  Dimensions	17.1 x 14 x 6.7" / 43.43 x 35.56 x 17.02 cm
  Weight	18 lb / 8.2 kg

  Box Dimensions (LxWxH)	23.0 x 19.5 x 11.0"

• LG WH16NS40 16x Internal Super Multi Blue Blu-ray Disc Rewriter (OEM Version)

  Enclosure Type	Internal
  Interface	SATA I (1.5 Gb/s)
  Buffer Memory	4 MB
  Blu-Ray Access Time	180 ms
  Blu-Ray Read Speed	BD-R XL (TL, QL): 6x BD-R (LTH): 6x BD-ROM (SL): 12x BD-RE (SL): 8x BD-R (SL): 12x BD-RE (DL): 6x BD-R (DL): 8x BD-ROM (DL): 8x
  DVD Access Time	160 ms
  DVD Read Speed	DVD-ROM (SL): 16x DVD-RAM: 5x DVD-RW: 12x DVD-R (DL): 12x M-DISC: 12x DVD+R (DL): 12x DVD-R (SL): 16x DVD+RW (SL, DL): 12x DVD-ROM (DL): 12x DVD+R (SL): 16x
  CD Access Time	150 ms
  CD Read Speed	CD-RW: 40x CD-R: 48x 80mm CD: 11.5x CD-ROM: 48x
  RoHS Compliant	Yes, Per Manufacturer
  Dimensions (W x H x D)	5.7 x 6.5 x 1.6" / 14.6 x 16.5 x 4.1 cm
  Weight	1.65 lb / 0.75 kg

  Box Dimensions (LxWxH)	9.0 x 8.4 x 4.8"

• Crucial 16GB DDR4 2666 MHz UDIMM Memory Module

  Capacity	16 GB
  Kit Configuration	1 x 16 GB
  Speed	PC4-21300 (2666 MHz)
  Memory Type	DDR4
  DIMM Type	288-Pin DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL19
  Memory Rank	Dual Rank

  Box Dimensions (LxWxH)	6.4 x 1.7 x 0.6"

• Pearstone 18" 7-pin Internal Straight to 90-Degree Serial ATA Cable (Red)

  Cable Type	Serial ATA / SATA
  Connector 1	7-pin SATA female
  Connector 2	7-pin SATA female
  Length	18" (45.7 cm)
  Supported Transfer Speed	Up to 6 Gbps
  Standards Certification	UL, RoHS

  Box Dimensions (LxWxH)	4.5 x 4.0 x 0.4"

• HP Intel 8265 802.11 a/b/g/n/ac Wi-Fi and Bluetooth PCIe Adapter

  Compatibility	HP Z4, Z6, and Z8 G4 Workstations
  Connector Type	PCIe
  Wi-Fi Protocols	802.11 a/b/g/n/ac
  Max Transfer Rate	867 Mb/s

  Box Dimensions (LxWxH)	10.0 x 8.3 x 2.7"

• 3 x Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
