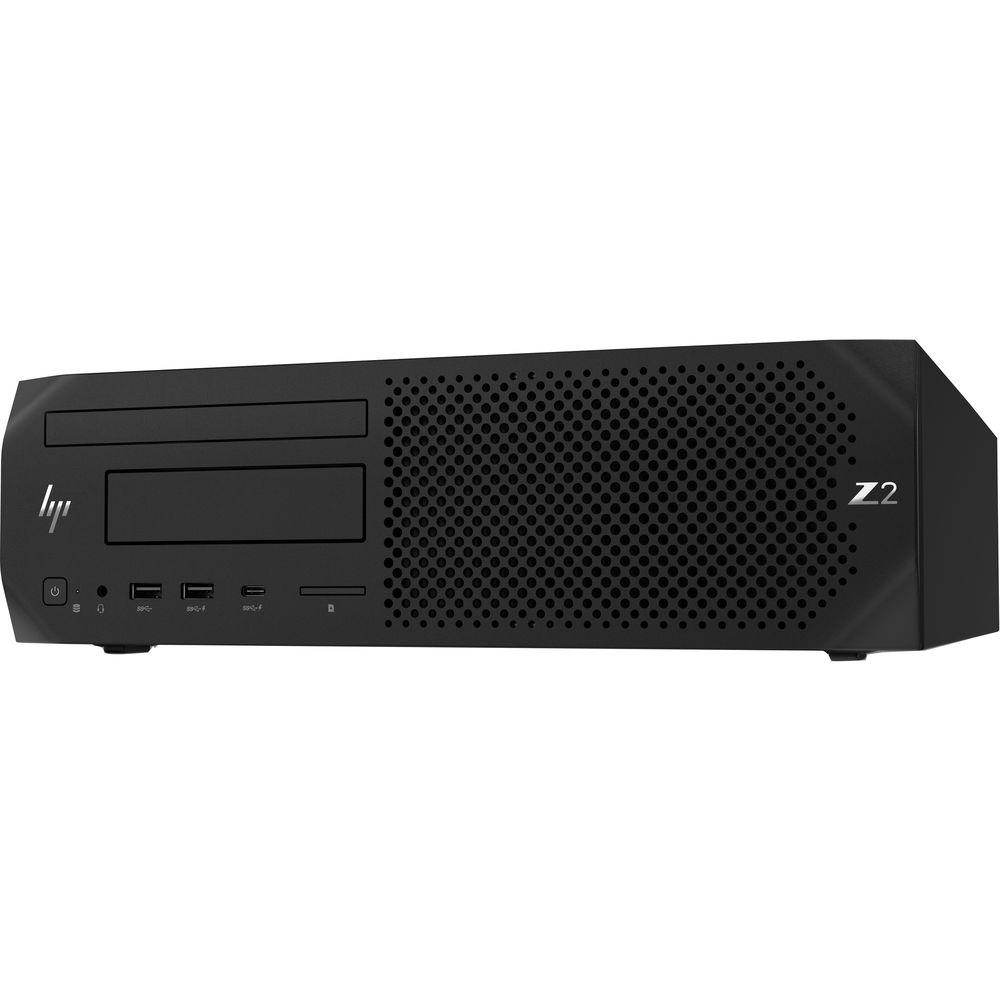

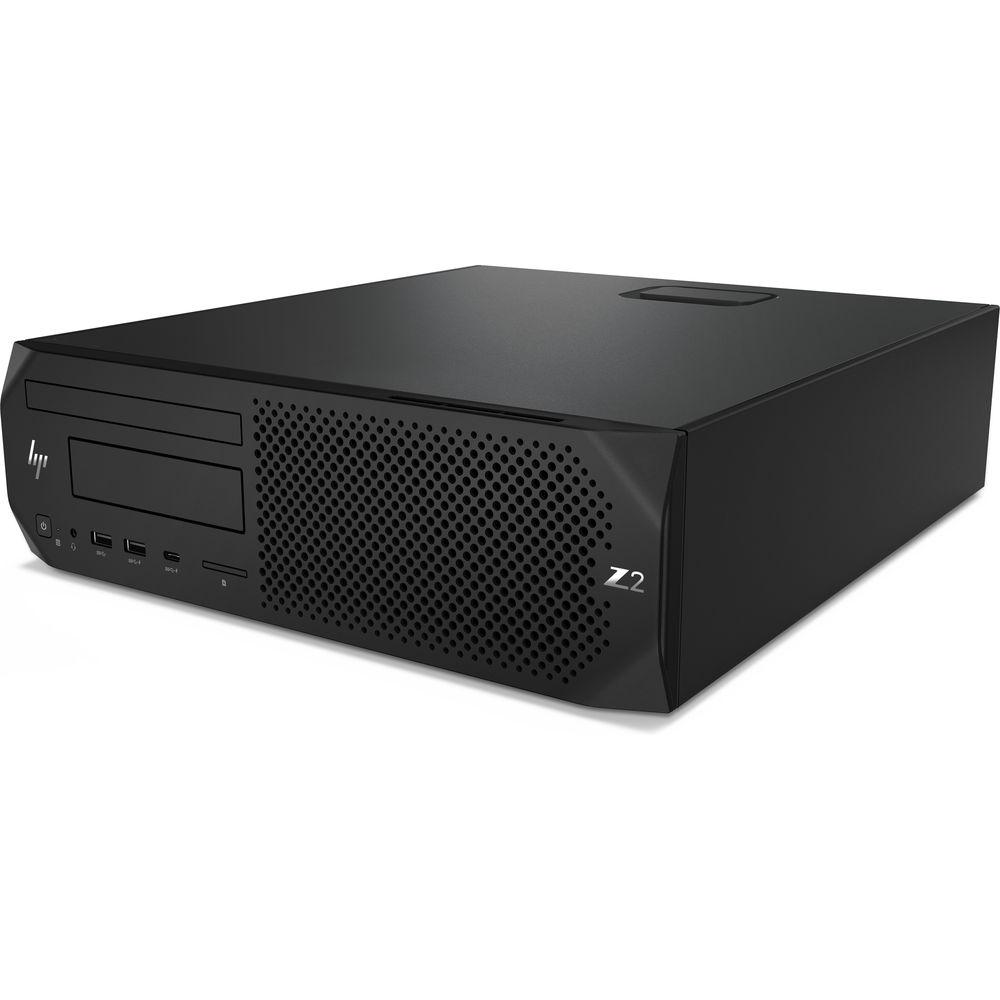

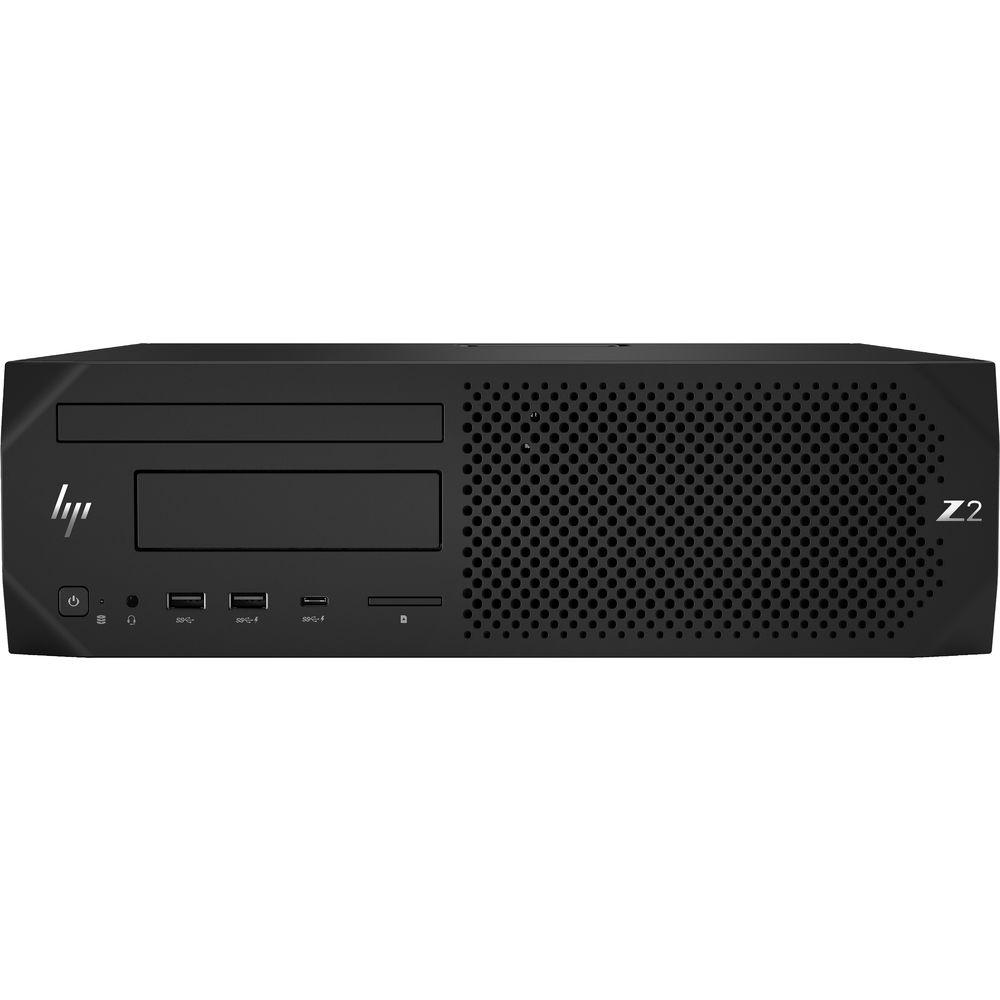

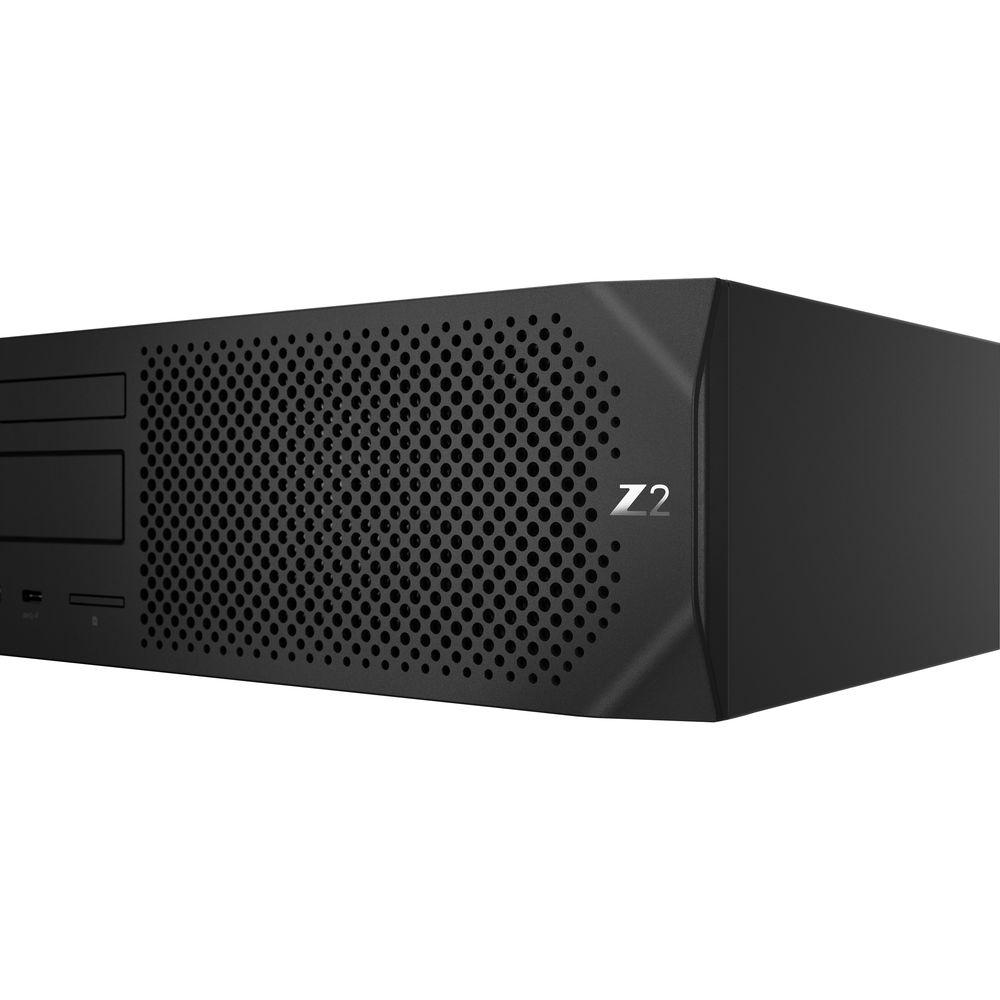

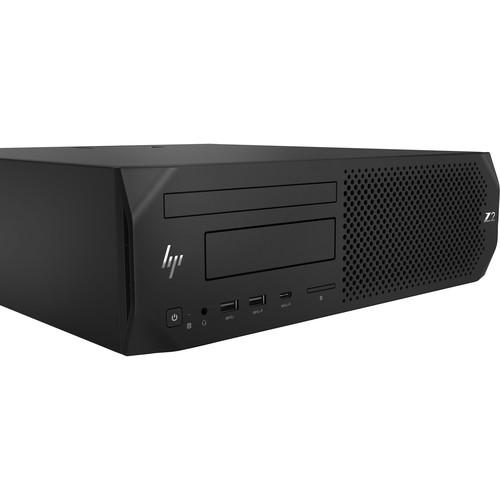

User Manual for HP Z2 G4 Small Form Factor Workstation Click to enlarge the picture
Contents of the user manual for the HP Z2 G4 Small Form Factor
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
 |
User manual for the HP Z2 G4 Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The Z2 G4 Small Form Factor Workstation from HP delivers next-level performance with a compact form factor that can handle single- and multi-threaded applications, including graphics-intensive 2D/3D CAD programs. Built for product designers rendering 3D models for project visualization, architects running 2D drafting and 3D design workflows, and OEM users undertaking mission-critical installations, such as healthcare and life sciences to command & control centers, the Z2 G4 is certified for SolidWorks, Creo, Solid Edge, AutoCAD, Bentley MicroStation, GRAPHISOFT ARCHICAD, Autodesk Revit, and Vectorworks.
The system is powered by a 3.6 GHz Intel Xeon E-2144G Quad-Core processor that will allow you to run multiple applications simultaneously and can be boosted up to 4.5 GHz. The 16GB of 2666 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 2 x 8GB, there are four 288-pin DIMM memory slots that will allow the RAM to be upgraded to 64GB, using a 16GB chip in each of the four slots.
For storage of your files, the 1TB 7200 rpm SATA 3.5" hard drive offers quick access to your data. For additional internal storage, there is an empty 2.5" SSD bay, a shared internal/external 3.5" bay, and two M.2 2280 slots for a PCIe SSD. If you want to add external storage drives or other peripherals, the Z2 G4 features six 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port, plus two USB 2.0 Type-A ports. The dedicated NVIDIA Quadro P1000 graphics card has 4GB of GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to connect multiple external displays using its four mini DisplayPort 1.4 outputs at resolutions up to 5120 x 2880 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Conexant CX20632 5.1 audio codec outputs high definition audio and delivers higher fidelity than standard audio controllers.
The Z2 G4 Small Form Factor Workstation includes a USB keyboard, a USB mouse, and a power cord. It runs using a 310W power supply that is 90% efficient and operates using 90-264 VAC at 47-63 Hz. The installed operating system is Windows 10 Pro for Workstations (64-bit). General Features - Product Designers
- Work effortlessly on complex parts and large assemblies with fast and reliable clock speeds. Easily render 3D models for project visualization.
- Architects
- High-frequency processors deliver advanced performance for your 2D drafting and 3D design workflows. Create realistic models and get real-time interactivity with detailed, 3D structures.
- Original Equipment Manufacturers
- The Z2 G4 SFF is a good choice for mission-critical installations, from healthcare and life-sciences to command & control centers. It can endure 24/7 operation, has a long product lifecycle with supported components, comes with a wide range of I/O ports for specialized & legacy equipment, a has a small footprint for embedded use cases.
- Performance
- Whether designing in 3D or running multiple applications, workstation-class components and software certifications optimize performance throughout your workflow.
- Customized for Your Needs
- Tailor your hardware to meet your unique requirements with over 1 million possible configurations.
- Secure and Manageable
- Get powerful protection from evolving malware threats with HP's self-healing, hardware-enforced security solutions. Plus, easily manage multiple devices with HP Manageability Integration Kit.
- 9.5mm Slim DVD Writer
- The 9.5mm Slim DVD Writer lets you read from and write to a variety of optical CD and DVD media.
- Gigabit Ethernet
- The system uses an integrated Intel I219-LM PCIe Gigabit controller for internet access when connected to a router, modem, or network switch. If you'd like to install a Wi-Fi/Bluetooth adapter, there is an empty M.2 2230 slot, which uses a PCIe 3.0 x1 interface.
- 6 x USB 3.0 Type-A | 2 x USB 2.0 Type-A
- The Z2 G4 SFF features six 5 Gb/s USB 3.0 Type-A ports, one of which doubles as a charging port, and two USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. These fast speeds mean you can spend less time waiting and more time focusing on the task at hand. Two of the USB 3.0 ports are in the front and four are in the rear, while both USB 2.0 ports are in the rear.
- Up to 64GB RAM
- Four 288-pin DIMM slots support up to 64GB of non-ECC unbuffered 2666 MHz DDR4 memory.
- Expansion Bays
- Expand or upgrade your system's internal storage with one internal 3.5" bay, one shared internal/external 3.5" bay, one 2.5" internal SSD bay, and two M.2 2280 slots that use a PCIe 3.0 x4 interface.
- PCIe Slots
- Expand your system's components using one PCIe 3.0 x16/16 slot, one PCIe 3.0 x4/x16 slot, and two PCIe 3.0 x1/x4 slots.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 193015585836 In the Box HP Z2 G4 Small Form Factor Workstation USB Keyboard & Mouse Power Cord Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 Guides & Manuals ztzevbba Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z2 G4 Small Form Factor Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Z2 G4 Small Form Factor Workstation can be downloaded in PDF format at the link stated below.
Technical parametersHP Small Form Factor G4 Specs | Operating System | Windows 10 Pro for Workstations (64-Bit) | | | | Chipset | Intel C246 | | CPU Socket | LGA 1151 | | CPU | 3.6 GHz Intel Xeon E-2144G Quad-Core | | Maximum Boost Speed | 4.5 GHz | | L3 Cache | 8 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 288-Pin DIMM | | Available Memory Slots | 2 | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P1000 with 4 GB GDDR5 VRAM | | | | Total Drive Bays | 1 x 2.5" (Internal)
1 x 3.5" (Internal)
1 x 3.5" (External) | | SSD Slots | 2 x M.2 2280 PCIe x4 (Available) | | Total Installed Capacity | 1 TB | | Hard Disk Storage | 1 x 1 TB 3.5" SATA (7200 rpm) | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical)
2 x PCIe Gen 3 x1 (x4 Mechanical)
1 x M.2 2230 (E-Key) x1 | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | | | Ports | 6 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Display | 4 x Mini DisplayPort 1.4 Output | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
1 x 1/8" / 3.5 mm Line Input
1 x 1/8" / 3.5 mm Line Output | | Built-In Speakers | 1 | | Media Card Slots | None | | | | Ethernet | 1 x RJ45 (Gigabit) | | | | Keyboard | USB Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Security | Kensington Lock Slot, Infineon TPM Software Professional Package | | Power Supply | 310 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 A | | Operating Temperature | 40 to 95°F / 4 to 35°C | | Operating Humidity | 10 to 85% | | Dimensions | 15 x 13.3 x 4" / 38.1 x 33.78 x 10.16 cm | | Weight | 13.8 lb / 6.3 kg | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 21.0 x 19.0 x 9.0" |
