User Manual for HP Z2 Mini G3 Desktop Workstation Click to enlarge the picture
Contents of the user manual for the HP Z2 Mini G3 Desktop Workstation
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
|
User manual for the HP Z2 Mini G3 Desktop Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

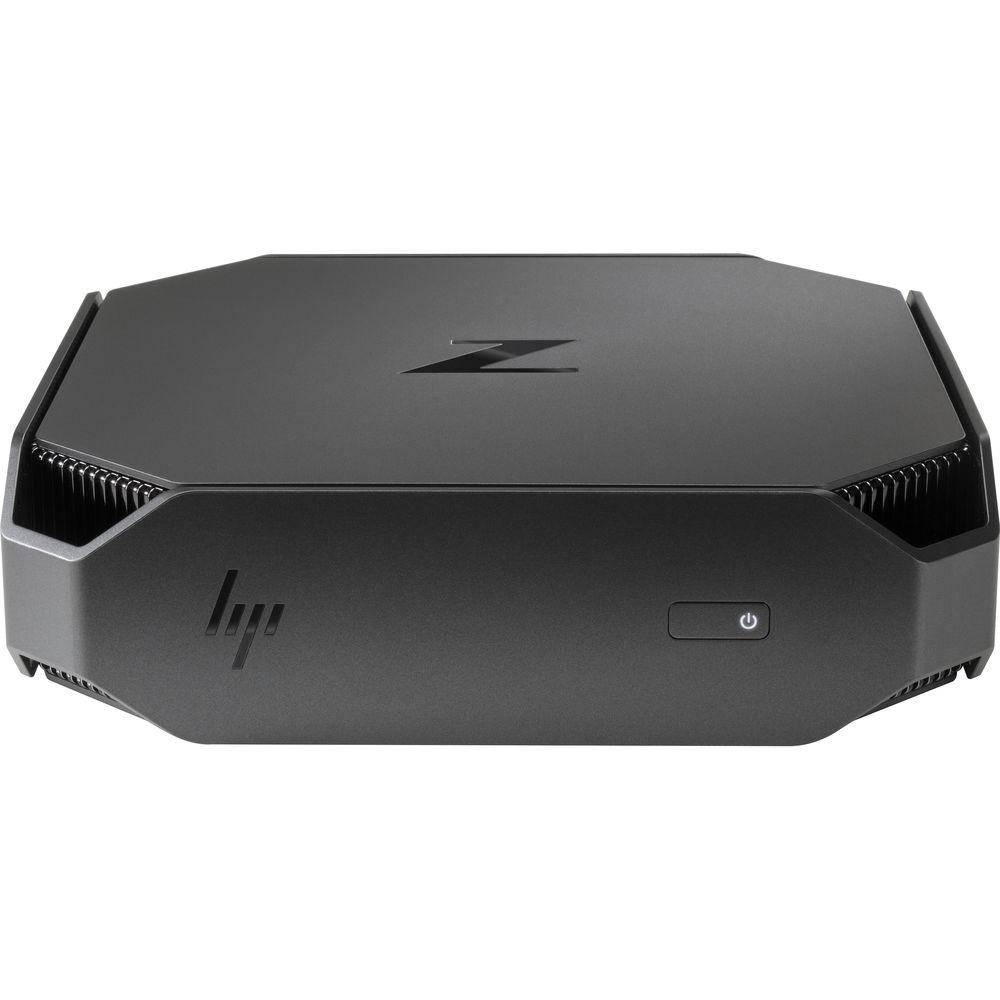

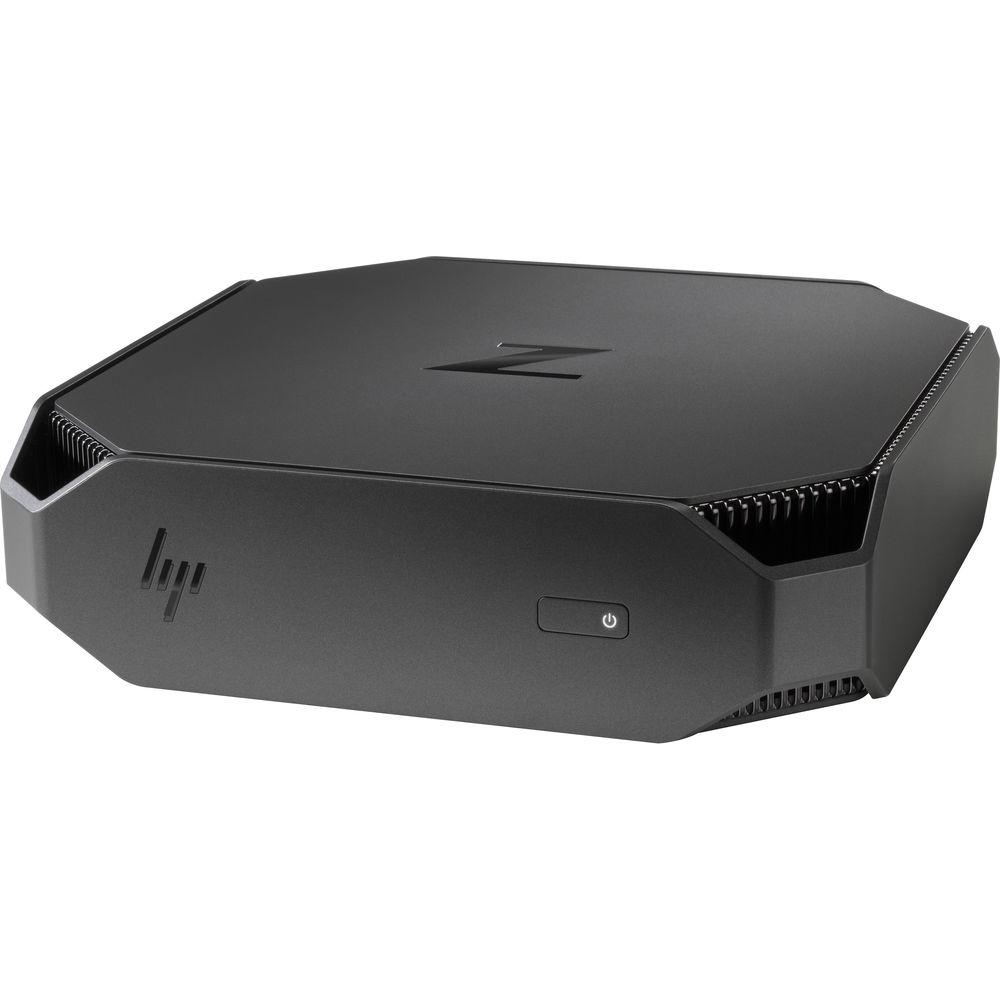

Product description Made by and for design professionals, such as CAD users, the Z2 Mini G3 Desktop Workstation from HP delivers power, performance, versatility, and reliability in a small and elegant design. At 2.28" high, it is 90% smaller than a traditional business-class tower. The Z2 Mini has been tested for 368,000 hours and is certified for popular CAD software titles.
The system is powered by a 3.3 GHz Intel Xeon E3-1225 v6 Quad-Core processor that will allow you to run multiple applications simultaneously and be boosted up to 3.7 GHz. The 32GB of 2400 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently used files and programs. While the current memory configuration is 2 x 16GB, there are two total 260-pin SO-DIMM memory slots that will allow the RAM to be upgraded to 32GB, using a 16GB chip in each of the two slots.

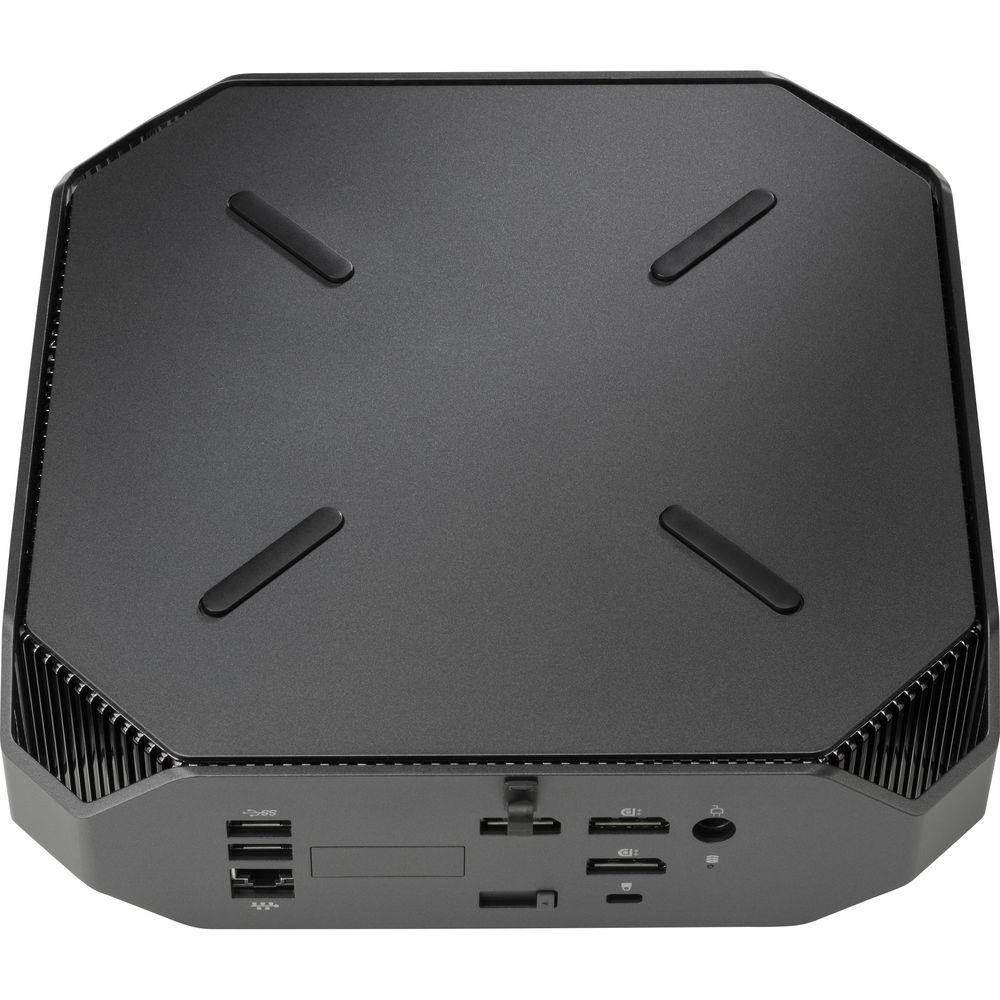

For storage of your files, a 512GB Z Turbo Drive G2 PCIe SSD offers quick access to your data, and there is also an empty 2.5" / 9.5mm SATA drive bay for a hard drive or SSD. If you want to add external storage drives or other peripherals, the Z2 Mini features two USB 3.0 Type-C and four USB 3.0 Type-A ports, with one of the Type-A ports doubling as a charging port. The dedicated NVIDIA Quadro M620 graphics card has 2GB of GDDR5 RAM, delivers a sharp, clear picture, and features four DisplayPort 1.2 outputs which support a maximum resolution of 4096 x 2160 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC221-VB audio controller outputs high definition audio and delivers higher fidelity than standard audio controllers.

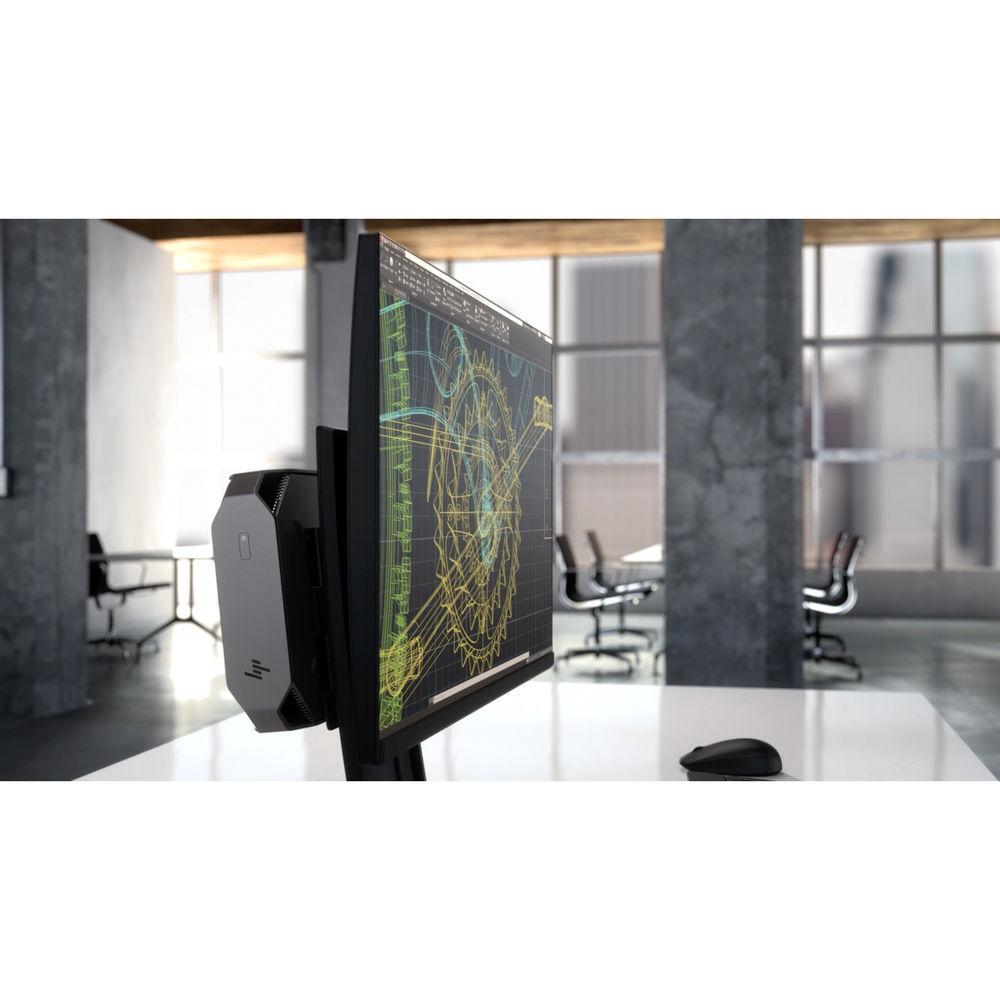

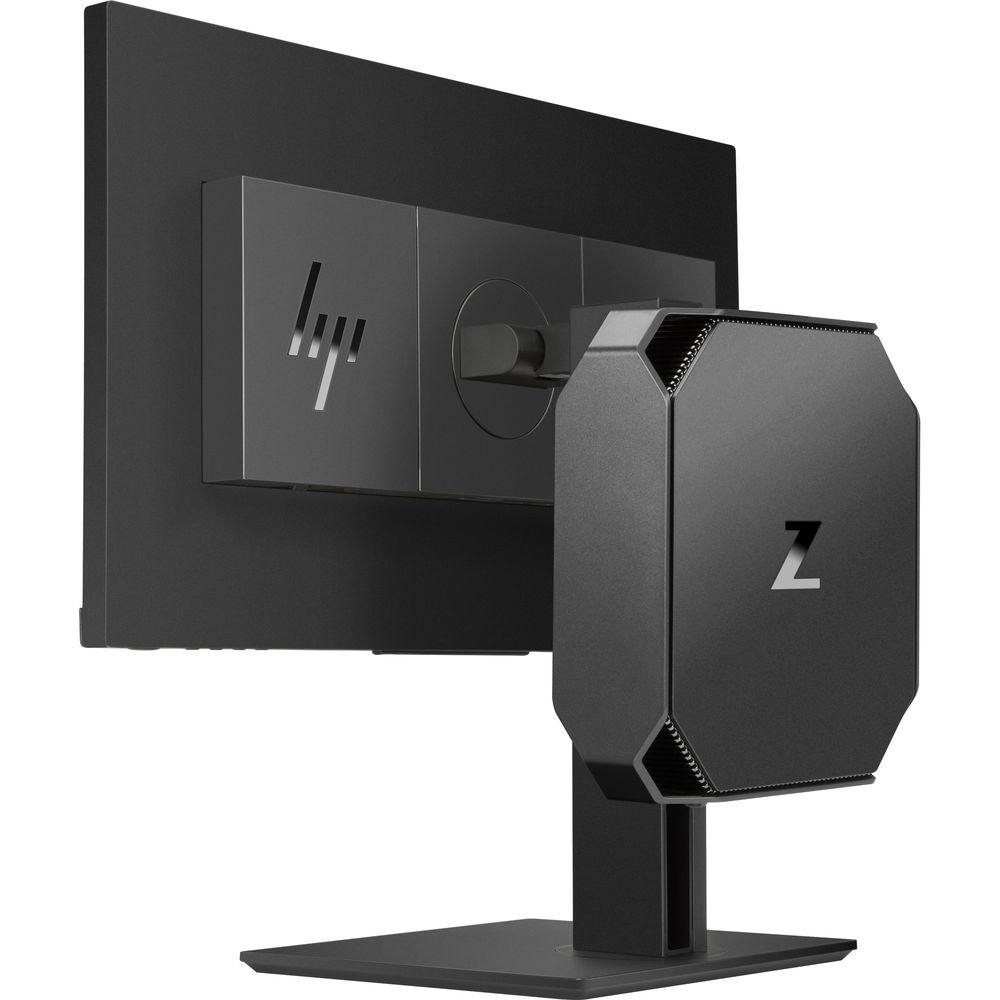

The Z2 Mini G3 Desktop Workstation can either be placed on a flat surface, mounted behind a display, or under a desk. It includes an HP USB Business Slim Keyboard, an HP USB Optical Mouse, and a power cord. It runs using a 200W external power supply that is 89% efficient and operates using 100-240 VAC at 50-60 Hz. The installed operating system is Windows 10 Pro for Workstations (64-bit).
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. General Features - Gigabit Ethernet & 802.11ac Wi-Fi
- The system uses an integrated Intel I219LM PCIe Gigabit controller for Internet access when connected to a router, modem, or network switch. It also features Intel Dual Band Wireless-AC 8265 which is compatible with 802.11a/b/g/n/ac Wi-Fi so that users may access network connectivity using 2.4 or 5 GHz wireless technologies at speeds up to 867 Mbps. The wireless module is installed in a 30mm M.2 slot, which uses a PCIe 3.0 x1 interface.
- Bluetooth 4.2
- Additional compatible peripherals, such as mice, keyboards, headsets, and more may be paired using Bluetooth 4.2 technology
- 2 x USB 3.0 Type-C | 4 x USB 3.0 Type-A
- The Z2 Mini features two USB 3.0 Type-C ports and four USB 3.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
- 4 x DisplayPort 1.2 Outputs

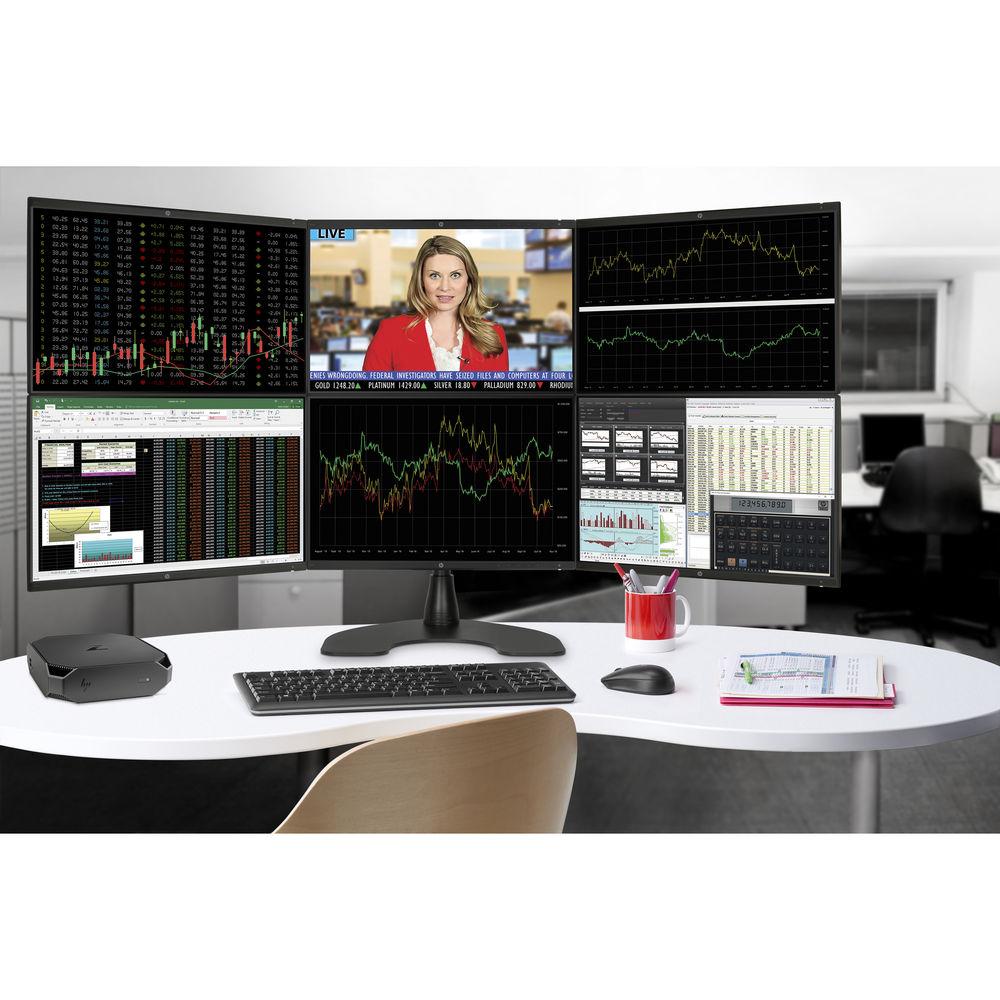

- The four DisplayPort 1.2 outputs are able to support a maximum resolution of up to 4096 x 2160 60 Hz. Up to six total displays are supported - four native displays are two additional with daisy chaining.
- Memory
- When using 2400 MHz ECC Unbuffered DDR4 RAM, 8GB (1 x 8GB), 16 (2 x 8GB), and 32GB (2 x 16GB) configurations are supported. When using 2400 MHz non-ECC Unbuffered DDR4 RAM, 4GB (1 x 4GB), 8GB (2 x 4GB), 8GB (1 x 8GB), 16GB (2 x 8GB), and 32GB (2 x 16GB) configurations are supported.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
In the Box HP Z2 Mini G3 Desktop Workstation HP USB Business Slim Keyboard HP USB Optical Mouse 200W External Power Supply Power Cord Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z2 Mini G3 Desktop Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z2 Mini Specs | Maximum Boost Speed | 3.7 GHz | L3 Cache | 8 MB | Total Installed Memory | 32 GB | Maximum Memory Capacity | 32 GB | Available Memory Slots | None | Memory Slot Type | 260-Pin SO-DIMM | Graphics Type | Dedicated | | Optical Drive | None | PCI Expansion | 1 x M.2 2230 (E-Key) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Operating System | Windows 10 Pro for Workstations (64-Bit) | | Package Weight | 10.19 lb | Box Dimensions (LxWxH) | 19.7 x 11.7 x 6.6" |
