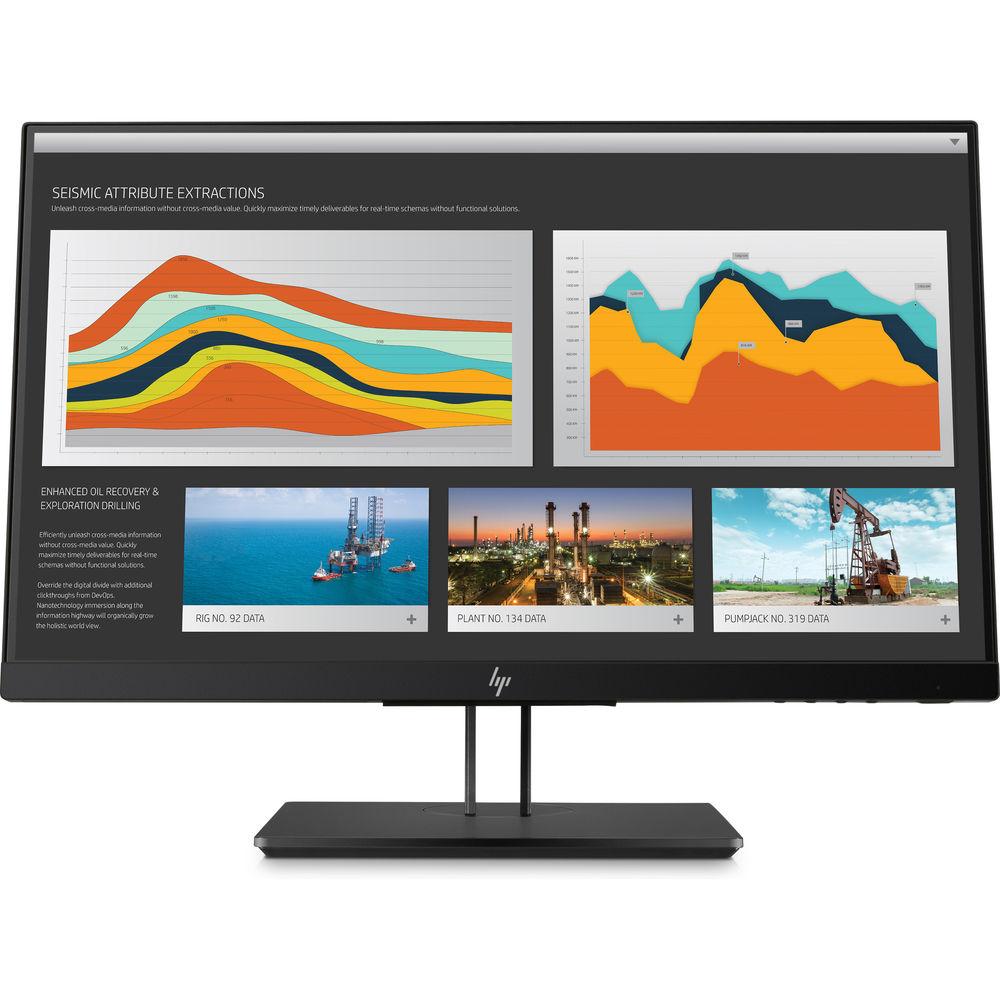

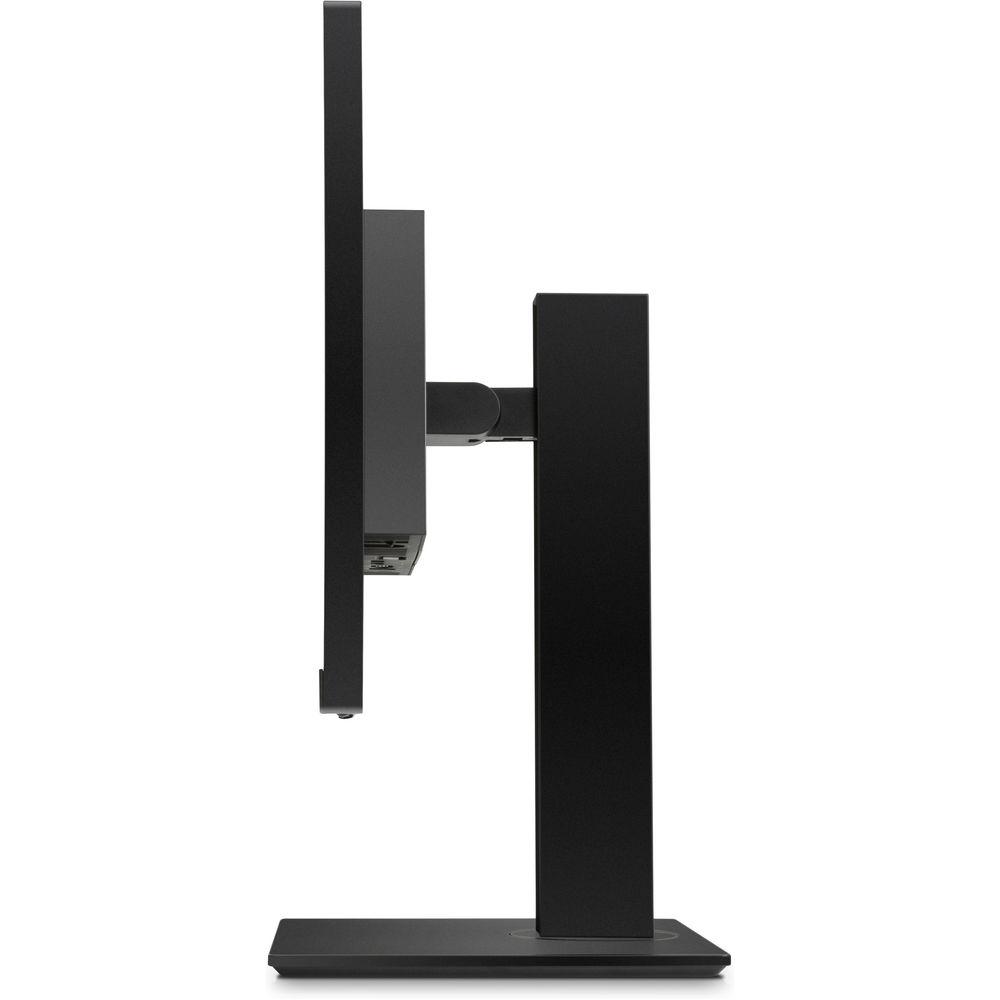

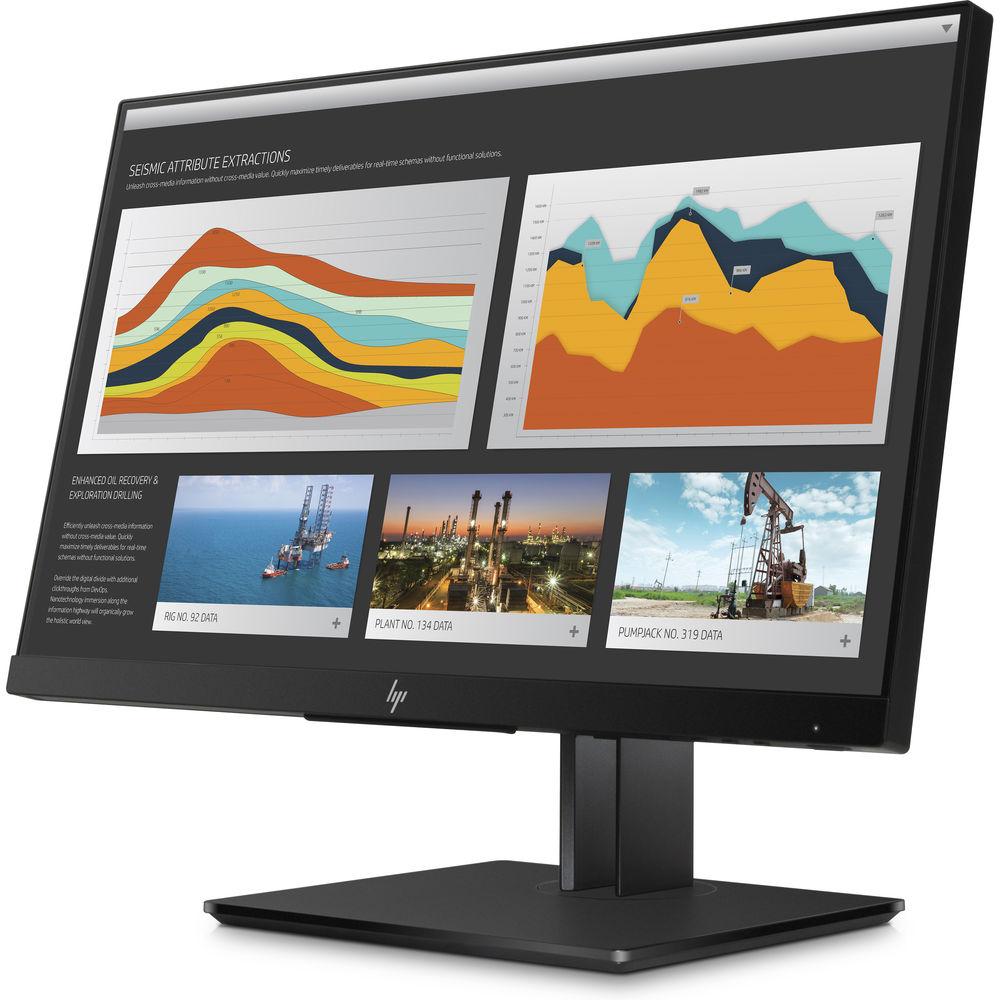

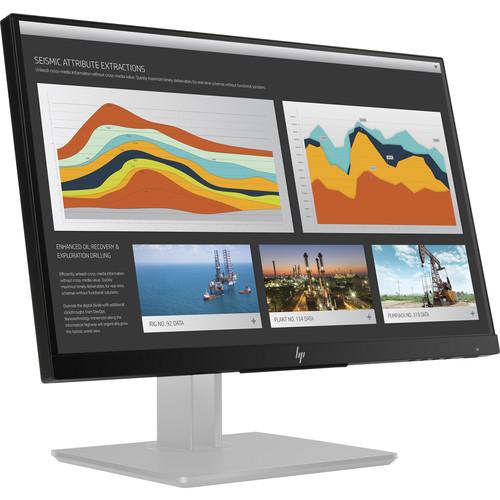

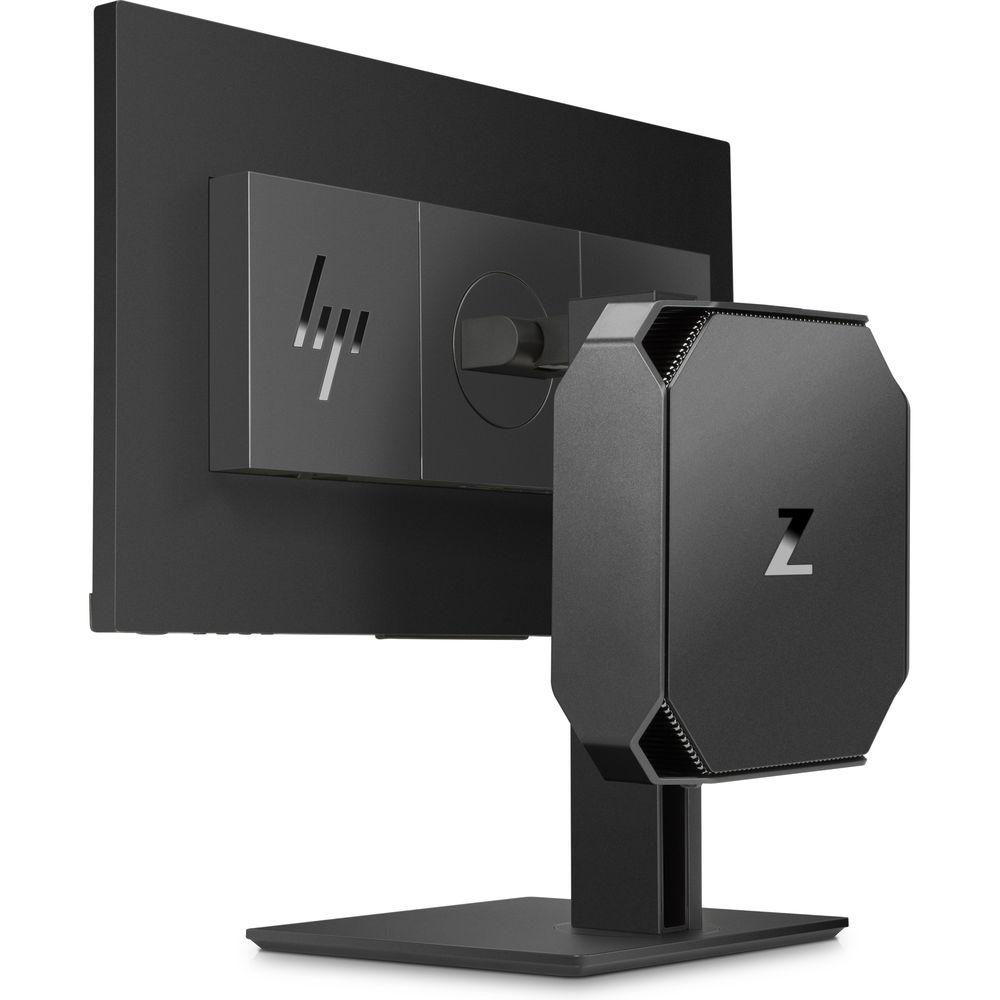

User Manual for HP Z22n G2 21.5" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Z22n G2 21.5" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z22n G2 21.5" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering up to 95% of the sRGB color space, the Z22n G2 21.5" 16:9 IPS Monitor from HP is designed for use with color critical applications such as graphic design, video editing, and more. Additionally, the micro-edge bezel offers an enhanced viewing experience with less distraction.
This HP monitor features a 1920 x 1080 resolution accompanied by a 1000:1 contrast ratio, a 250 cd/m² brightness rating, a 5 ms response time, and support for up to 16.7 million colors producing a crisp, clear picture with reduced ghosting and blur. Setup is simple as this HP monitor comes with HDMI, DisplayPort, and VGA inputs as well as a dedicated USB 3.0 hub to connect USB compatible peripherals directly to the monitor. -
- Plug-&-play compatible
- VESA Mounting: Yes (one set of standard 4-hole pattern, 100 mm)
- Security lock ready
- Detachable base
In the Box HP Z22n G2 21.5" 16:9 IPS Monitor (Head Only) AC Power Cord DisplayPort 1.2 Cable USB 3.0 Type-A to USB 3.0 Type-B Cable Limited 3-Year Warranty Quick Specs PDF 322kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z22n G2 21.5" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z22n G2 Specs | | | Size | 21.5" | | Screen Area | 18.74 x 10.54" / 47.60 x 26.77 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 84 kHz | | Vertical Frequency | 50 to 75 Hz | | Pixel Clock Frequency | 180 MHz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 95% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.24795 x 0.24795 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x VGA
2 x USB (USB 3.1 Gen 1) Output
1 x USB (USB 3.1 Gen 1) Input | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 30 W (Maximum)
0.5 W (Standby)
17 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0.00 to 16,404' / 0 to 5000 m | | Storage Altitude | 0.00 to 39,999' / 0 to 12,192 m | | Certifications | BSMI, CE, ENERGY STAR, EPEAT GOLD, FCC, RCM, TCO Certified, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 19.2 x 11.6 x 1.7" / 48.8 x 29.5 x 4.3 cm (Without Stand) | | Weight | 6.2 lb / 2.81 kg (Without Stand) |
