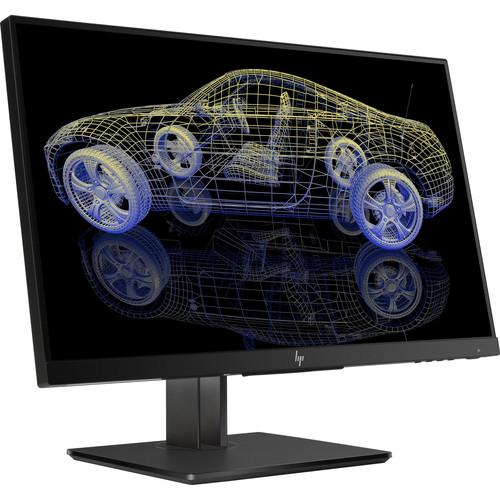

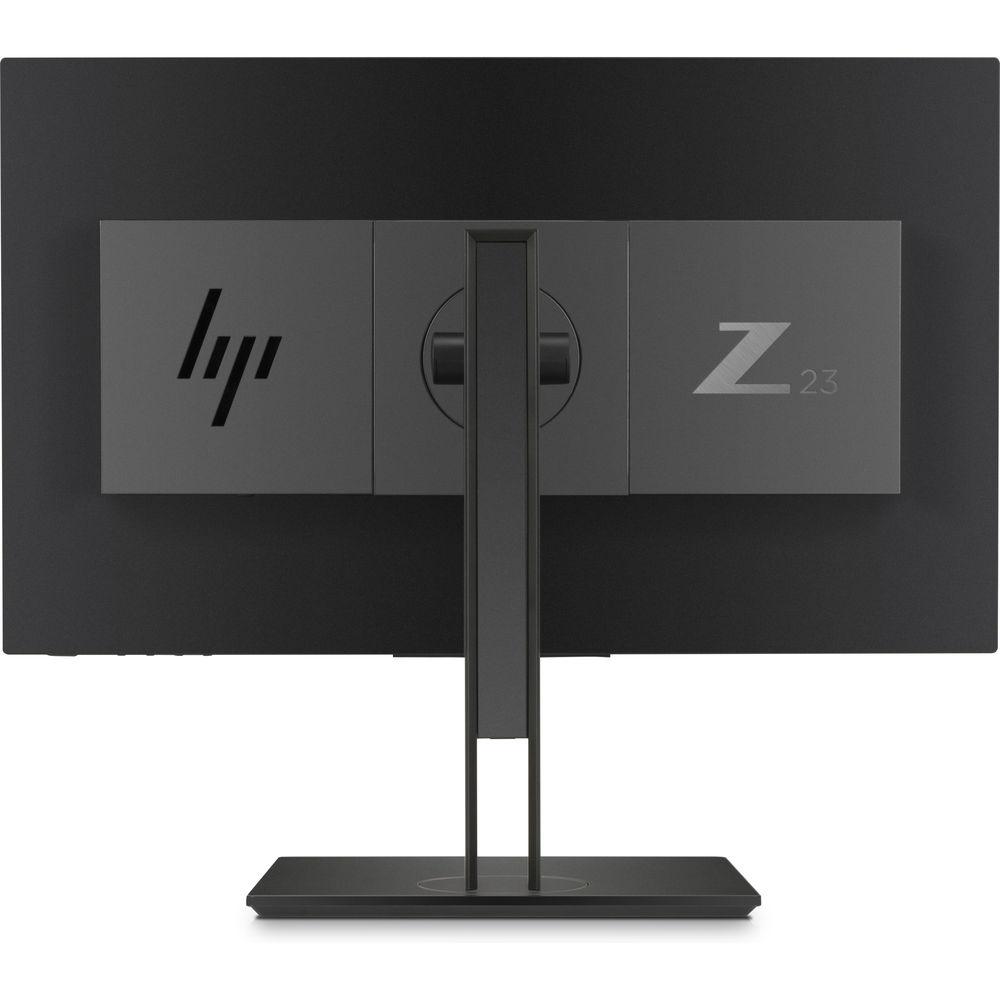

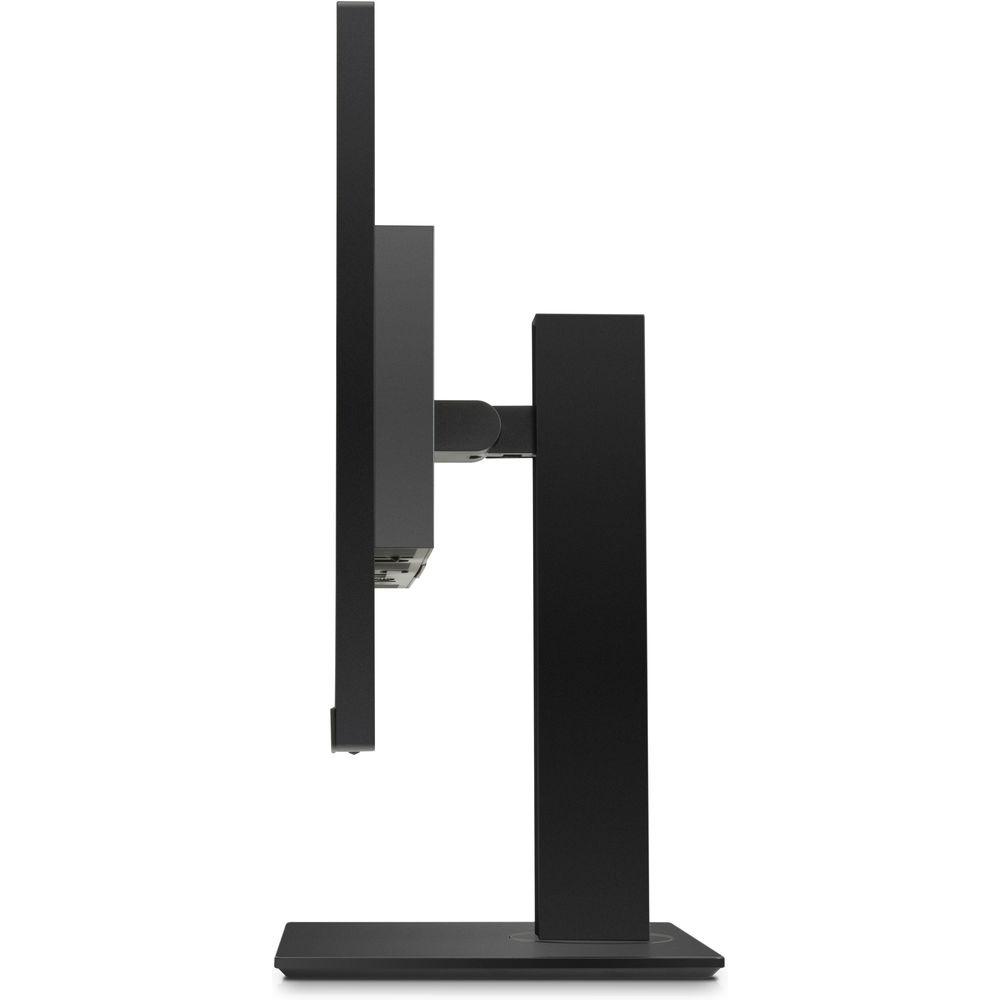

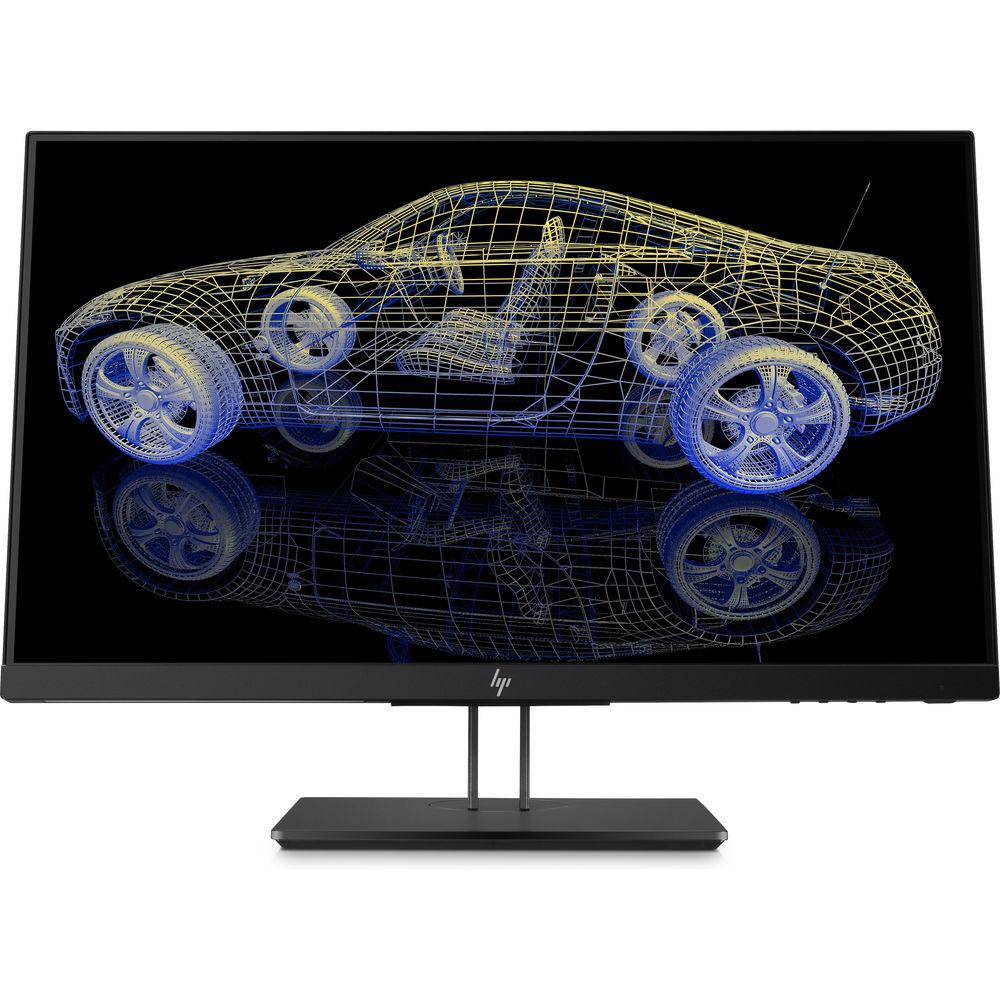

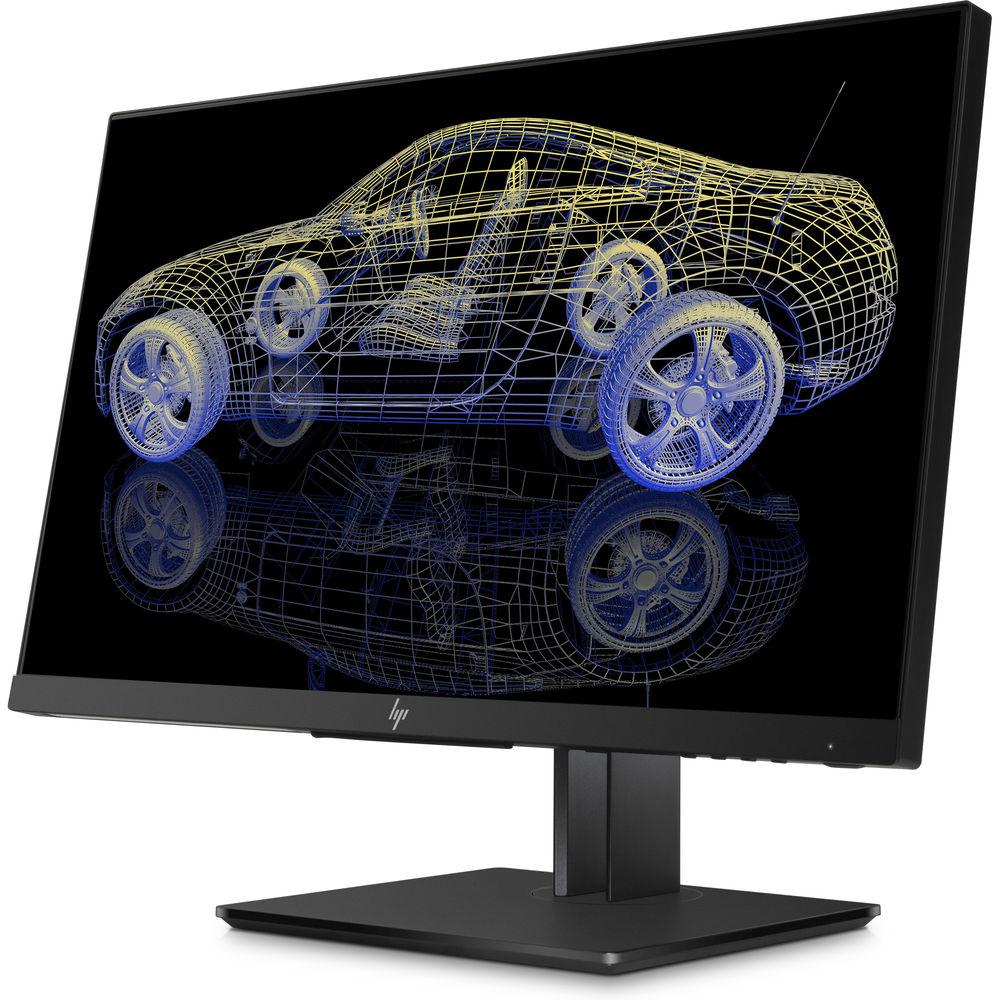

User Manual for HP Z23n G2 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Z23n G2 23" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z23n G2 23" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With micro-edge bezel, the Z23n G2 23" 16:9 IPS Monitor from HP offers an enhanced viewing experience without the distraction. Additionally, the reduced size bezel also makes this monitor conducive for multi-monitor setups.
When viewing this display by itself or in a multi-monitor configuration, viewers benefit from a Full HD 1920 x 1080 resolution, a 1000:1 static contrast ratio, a 250 cd/m² brightness rating, and a 5 ms response time to provide a clear picture with reduced ghosting. Setting up this IPS (In-Plane Switching) monitor is simple as it comes equipped with VGA, HDMI, and DisplayPort inputs as well as a built-in USB 3.0 hub to connect compatible peripherals directly to the monitor. Once configured, the Z23n G2 can be tilted, swiveled, pivoted, and the height can be adjusted to take advantage of the 178° horizontal and vertical viewing angles. -
- Multi-task without disruptions across multiple displays with a three-sided micro-edge bezel on each screen
- Get enhanced visuals from the 1920 x 1080 resolution, 16:9 aspect ratio, 23" diagonal IPS screen, and over 2 million pixels
- Consistent, accurate color between displays and from project to project is easy with factory color calibration from the very first time you power on
- Each HP Z Display is tested to help ensure it's a reliable, long-life visual solution, and it's backed up by the HP Zero Bright Dot Guarantee
- Connect easily with ports that include a three-port USB 3.0 hub and VGA, HDMI, and DisplayPort connections tested for use with legacy, current, and future HP Workstations
- Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently customize portrait or landscape views on multiple displays
- Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and helps deter theft by dimming a display that's disconnected without approval
- Reduce power consumption and help lower costs with an intelligent, energy-efficient, low-halogen display that is ENERGY STAR certified, TCO qualified, and EPEAT Gold registered with mercury-free display backlights and arsenic-free display glass
Additional Features - Anti-Glare
- In-Plane Switching
- Language Selection
- LED Backlights
- On-Screen Controls
- Pivot Rotation
- Plug-and-Play
- User Programmable
- Low Haze
In the Box HP Z23n G2 23" 16:9 IPS Monitor AC Power Cord USB Cable DisplayPort 1.2 Cable Limited 3-Year Warranty Quick Specs PDF 305kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z23n G2 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z Display Z23n G2 Specs | | | Size | 23" | | Screen Area | 20.04 x 11.27" / 50.90 x 28.63 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 84 kHz | | Vertical Frequency | 50 to 75 Hz | | Pixel Clock Frequency | 180 MHz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 94% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2652 x 0.2652 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x VGA
1 x USB Type-B (USB 3.1 Gen 1) Input
2 x USB Type-A (USB 3.1 Gen 1) Output | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 32 W (Maximum)
0.5 W (Standby)
18 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0 to 16,404' / 0.00 to 4999 m | | Storage Altitude | 0 to 40,000' / 0.00 to 12,192 m | | Certifications | BSMI, CE, ENERGY STAR, EPEAT GOLD, FCC, RCM, TCO Certified, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.5 x 18.0 x 8.1" / 52.1 x 45.7 x 20.6 cm (With Stand)
21.5 x 12.3 x 1.7" / 54.6 x 31.2 x 4.3 cm (Without Stand) | | Weight | 13 lb / 5.90 kg (With Stand)
7.3 lb / 3.31 kg (Without Stand) |
