Product description

• HP Z240 Series Small Form Factor Workstation The Z240 Series Small Form Factor Workstation from HP delivers powerful performance in a small form factor design and is geared towards professionals who require high reliability. With the capabilities to operate in immersive work environments and handle 24x7x365 workloads, the Z240 delivers processor and graphics technologies as well as scalability to match your business needs.

  This system is powered by a 3.9 GHz Intel Core i3-7100 Dual-Core processor which will allow you to run multiple applications simultaneously. The 8GB of 2400 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. While the current memory configuration is 1 x 8GB, there are four total memory slots that will allow the RAM to be upgraded to 64GB, using a 16GB module in each of the four memory slots.

  For storage of your files, a 1TB 7200 rpm SATA III 3.5" hard drive offers quick access to your data. If you want to add external storage drives or other peripherals, the Z240 SFF features eight USB 3.0 Type-A ports, two USB 2.0 Type-A ports, two PS/2 ports, and a serial port. For users who wish to add additional components or upgrade the existing drive bays, there is one 3.5" internal bay, one 2.5" internal drive bay, and one shared internal/external 3.5" bay. There are also four PCIe expansion slots and one M.2 slot that uses a PCIe Gen3 x4 connection. The integrated Intel HD Graphics 630 chipset delivers a sharp, clear picture, while allowing for video to be output at resolutions up to 2560 x 1600 using its three DisplayPort 1.2 outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC221-VB audio controller outputs high definition audio and delivers higher fidelity than standard audio controllers.

  The Z240 Series Small Form Factor Workstation includes a USB keyboard, a USB mouse, and a power cord. It operates using 90-264 VAC at 47-63 Hz. The installed operating system is Windows 10 Pro (64-Bit)

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  General Features

  Up to 64GB RAM
  • Four 288-pin DIMM slots support up to 64GB of ECC/non-ECC RAM at 2133 or 2400 MHz, depending on the installed CPU.
  Slim SuperMulti DVD-RW Drive
  • HP's Slim SuperMulti DVD-RW Drive has a height of 9.5mm and supports DVD±R, DVD±R DL, DVD±RW, DVD-ROM, CD-R, and CD-RW media. It supports CD read speeds up to 24x and DVD read speeds up to 8x.
  Gigabit Ethernet
  • The system uses an integrated Intel I219LM PCIe Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch.
  8 x USB 3.0 Type-A Ports & 2 x USB 2.0 Type-A Ports
  • The Z240 SFF features eight USB 3.0 Type-A ports and two USB 2.0 Type-A ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand.
  PCI Express Connectors
  • 1 PCIe Gen3 x16 slot
    1 PCIe Gen3 x1 slot/x1 connector
    1 PCIe Gen3 x1 slot/x1 connector
    1 PCIe Gen3 x4 slot/x16 connector
    1 M.2 slot (PCIe Gen 3.0 x4, devices up to 80 mm)
  Storage Controller
  • Integrated SATA (4 ports @ 6 Gb/s) with a RAID 0 (striped array) and a RAID 1 (mirrored array) is supported on Windows operating system only. It requires identical hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data configuration) is available for PCIe SSDs.
  3 x DisplayPort 1.2 Video Outputs
  • The three DisplayPort 1.2 outputs support resolutions up to 2560 x 1600. Using an adapter, DVI is supported up to 1920 x 1200 and VGA is also supported up to 2048 x 1536.

  Windows 10

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 192018118614
• Seagate 4TB Barracuda SATA III 3.5" Internal HDD Install the 4TB BarraCuda SATA III 3.5" Internal HDD from Seagate into nearly any computer with a 3.5" drive bay. This versatile, reliable storage solution features a 256MB cache memory buffer and supports SATA III connectivity while remaining backward compatible with SATA II and SATA I connections. Once installed, this Barracuda drive offers enhanced data transfer rates of up to 190 MB/s making it easy to transfer even large files to and from the drive quickly and efficiently. This BarraCuda drive also comes equipped with Self-Encrypting Drive (SED) security complete with an Instant Secure Erase function to clear data from the drive. UPC: 763649105252
• TP-Link TL-WN881ND Wireless-N300 PCI Express Adapter The TL-WN881ND Wireless-N300 PCI Express Adapter from TP-Link increases the speed and range of your network connection. With the integrated MIMO (multiple input, multiple output) antennas you can access your network from areas previously out of range. You no longer need to worry about walls and other obstructions as the advanced antennas provide a signal strong enough to penetrate most obstacles.

  Keep your piece of mind when accessing the Internet through your TL-WN881ND as you can take advantage of WPA / WPA2 encryption standards. These encryption standards provide some of the safest, strongest methods of securing your connection. The included resource CD and installation guide make setup and configuration easy.
  • Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming, and Internet calls.
  • MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance stability.
  • Easily setup a highly secured wireless link with QSS (Quick Security Setup)
  UPC: 845973050573
• Crucial 8GB DDR4 2400 MHz UDIMM Memory Module The 8GB DDR4 2400 MHz UDIMM Memory Module from Crucial is designed to help increase your desktop's multi-tasking capabilities with an additional 8GB of memory. This unbuffered, single ranked module uses just 1.2V of power and is compatible with systems featuring a 288-pin slot. Additionally, it runs at a 2400 MHz frequency (PC4-19200) with a CAS latency of 17.
  Faster Speed
  • Crucial DDR4 memory debuts at 2133 MT/s, which is 30% faster than DDR3 memory technology.
  Memory Bandwidth
  • Crucial DDR4 increases the memory bandwidth by over 30% that of standard DDR3, so your system can handle more data at once. It also supports a four-channel design.
  Energy Efficient
  • This memory module uses 20% less voltage than DDR3 technology, operating at 1.2V compared to 1.5V for standard DDR3 server memory. Combined with the additional power-saving features inherent in DDR4 memory architecture, Crucial DDR4 memory is able to deliver up to 40% power savings compared to standard DDR3 technology.
  UPC: 649528776389
• Pearstone 18" 7-pin Internal Serial ATA Cable (Red) The 18" red Pearstone 18" 7-pin Internal Serial ATA Cable features Serial ATA connectors for internal PC storage connections. Depending upon the peripherals used, you can get data transfer rates up to 6 Gbps.
  • Designed for internal PC storage connections
  • Achieve data transfer rates up to 6 Gbps
  UPC: 847628562530
• 2 x Photo Video Computer Component Upgrade Installation Select Computer Component Upgrade Installation while purchasing your computer and will install computer components for you. The installation is done by a certified technician from the 's Computer Service Center. The technician will install your computer components in compliance with the original manufacturer's warranty. This will ensure that your computer and its components are still covered after installation. Note: This service does not include software installation.
  Certified Technician
  • The installation will be done by a certified technician. The technician will adhere to the original manufacturer's warranty to ensure that all computer components are installed safely and without voiding the warranty.
  Expert Testing
  • The technician will also test the computer to ensure all installed components are working correctly.

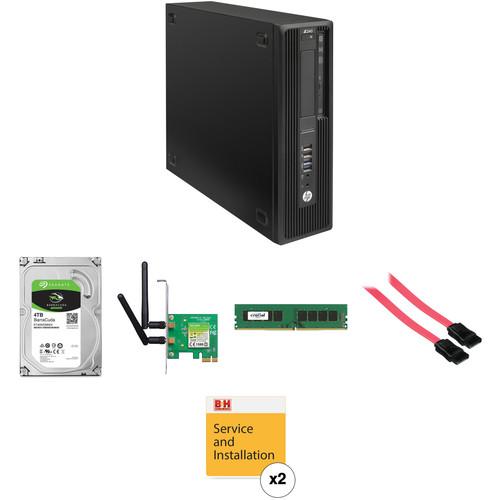

• Z240 Series Small Form Factor Workstation eeqeqecyatrcxs
• HP USB Business Slim Keyboard
• HP USB Optical Mouse
• Power Cord
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)
• For 24/7 Customer Service, Please Call 1-800-334-5144

• Seagate - 4TB Barracuda SATA III 3.5" Internal HDD eeqeqecyatrcxs

• TP-Link - TL-WN881ND Wireless-N300 PCI Express Adapter

• Crucial - 8GB DDR4 2400 MHz UDIMM Memory Module

• Pearstone - 18" 7-pin Internal Serial ATA Cable (Red)

• 2 x B&H Photo Video - Computer Component Upgrade Installation eeqeqecyatrcxs

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z240 Series Small Form Factor Workstation

  Operating System

  Windows 10 Pro (64-Bit)

  Chipset	Intel C236
  CPU	3.9 GHz Intel Core i3-7100 Dual-Core
  L3 Cache	3 MB
  Memory Type	2400 MHz DDR4
  Total Installed Memory	8 GB
  Memory Configuration	1 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	64 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	3
  ECC Memory	No
  Graphics Type	Integrated
  GPU	Intel HD Graphics 630

  Total Drive Bays	1 x 2.5" (Internal) 1 x 3.5" (External) 1 x 3.5" (Internal)
  Hard Disk Storage	1 x 1 TB 3.5" SATA (7200 rpm)
  PCI Expansion	1 x M.2 2230 (E-Key) 1 x PCIe Gen 3 x16 (x16 Mechanical) 1 x PCIe Gen 3 x4 (x16 Mechanical) 2 x PCIe Gen 3 x1 (x1 Mechanical)
  Optical Drive	Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Ports	8 x USB Type-A (USB 3.1 Gen 1) 2 x USB Type-A (USB 2.0) 2 x PS/2 1 x DE-9 (Serial)
  Display	3 x DisplayPort 1.2
  Audio	1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output
  Media Card Slots	None

  Ethernet	1 x RJ45 (Gigabit)
  Wi-Fi	None
  Bluetooth	None

  Keyboard	Full-Size Keyboard with Number Pad
  Pointing Device	USB Mouse

  Power Supply	240 W
  Dimensions	13.3 x 4 x 15" / 337.8 x 101.6 x 381 mm
  Weight	12.7 lb / 5.7 kg

  Box Dimensions (LxWxH)	24.0 x 20.0 x 11.5"

• Seagate 4TB Barracuda SATA III 3.5" Internal HDD

  Drive Capacity	4.0 TB
  Cache Memory	256 MB

  Interface	SATA III (6 Gb/s)
  Maximum Read Speed	190 MB/s

  Drive Type	HDD
  Form Factor	3.5"

  Heads	4
  Platters	2

  Load/Unload Cycles	300,000

  Power Draw	8.0 W (Active) 0.75 W (Standby) 5.4 W (Idle)

  Certifications	RoHS, as per Manufacturer
  Dimensions (W x H x D)	4.0 x 0.8 x 5.8" / 101.8 x 20.2 x 147.0 mm
  Weight	1.1 lb / 0.5 kg

  Box Dimensions (LxWxH)	7.8 x 6.0 x 2.4"

• TP-Link TL-WN881ND Wireless-N300 PCI Express Adapter

  Interface	PCI Express 2.0(x1)
  Standards	IEEE 802.11b/g/n CDMA/CA with ACK
  Frequency Range	2.4-2.4835GHz
  Data Rate	11n: 270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps 11g 54/48/36/24/18/12/9/6M (adaptive) 11b 11/5.5/2/1M (adaptive)
  Transmit Power	20dBm(MAX)
  Modulation Type	DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
  Receiver Sensitivity	270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@10% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
  Security	64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)

  Certifications	CE, FCC, WiFi
  System Requirements	Windows 7/Vista/XP/2000
  Power Requirements	Not specified by manufacturer
  Power Consumption	Not specified by manufacturer
  Dimensions (WxHxD)	5.2 x 4.8 x 0.9" / 133 x 121 x 22 mm
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	8.2 x 5.8 x 1.6"

• Crucial 8GB DDR4 2400 MHz UDIMM Memory Module

  Capacity	8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	288-Pin DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.7 x 1.8 x 0.9"

• Pearstone 18" 7-pin Internal Serial ATA Cable (Red)

  Cable Type	Serial ATA / SATA
  Connector 1	7-pin SATA female
  Connector 2	7-pin SATA female
  Length	18" (45.7 cm)
  Supported Transfer Speed	Up to 6 Gbps
  Standards Certification	UL, RoHS

  Box Dimensions (LxWxH)	7.0 x 4.0 x 0.8"

• 2 x Photo Video Computer Component Upgrade Installation

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
