User Manual for HP Z240 Series Small Form Factor Custom Workstation Click to enlarge the picture
Contents of the user manual for the HP Z240 Series Small Form Factor
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
|
User manual for the HP Z240 Series Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

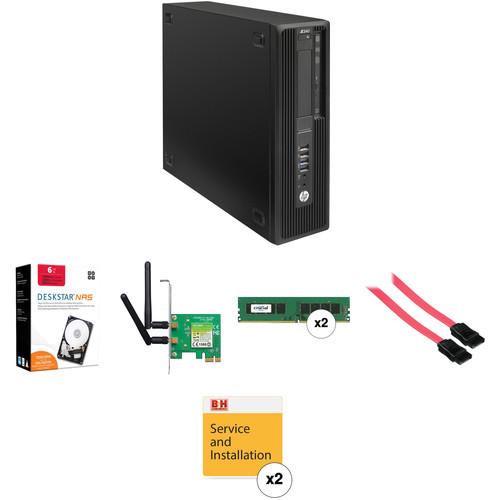

Product description This Custom Workstation combines the HP Z240 Series Small Form Factor Workstation with 32GB of 2400 MHz DDR4 RAM, a 6TB 7200 rpm SATA III 3.5" NAS hard drive, a Wireless-N300 PCI Express Adapter, an 18" / 7-pin SATA cable, and installation services. - TP-Link TL-WN881ND Wireless-N300 PCI Express Adapter The TL-WN881ND Wireless-N300 PCI Express Adapter from TP-Link increases the speed and range of your network connection. With the integrated MIMO (multiple input, multiple output) antennas you can access your network from areas previously out of range. You no longer need to worry about walls and other obstructions as the advanced antennas provide a signal strong enough to penetrate most obstacles.
Keep your piece of mind when accessing the Internet through your TL-WN881ND as you can take advantage of WPA / WPA2 encryption standards. These encryption standards provide some of the safest, strongest methods of securing your connection. The included resource CD and installation guide make setup and configuration easy. - Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming, and Internet calls.
- MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance stability.
- Easily setup a highly secured wireless link with QSS (Quick Security Setup)
UPC: 845973050573 - 2 x Crucial 8GB DDR4 2400 MHz UDIMM Memory Module The 8GB DDR4 2400 MHz UDIMM Memory Module from Crucial is designed to help increase your desktop's multi-tasking capabilities with an additional 8GB of memory. This unbuffered, single ranked module uses just 1.2V of power and is compatible with systems featuring a 288-pin slot. Additionally, it runs at a 2400 MHz frequency (PC4-19200) with a CAS latency of 17.
- Faster Speed
- Crucial DDR4 memory debuts at 2133 MT/s, which is 30% faster than DDR3 memory technology.
- Memory Bandwidth
- Crucial DDR4 increases the memory bandwidth by over 30% that of standard DDR3, so your system can handle more data at once. It also supports a four-channel design.
- Energy Efficient
- This memory module uses 20% less voltage than DDR3 technology, operating at 1.2V compared to 1.5V for standard DDR3 server memory. Combined with the additional power-saving features inherent in DDR4 memory architecture, Crucial DDR4 memory is able to deliver up to 40% power savings compared to standard DDR3 technology.
UPC: 649528776389 - Pearstone 18" 7-pin Internal Serial ATA Cable (Red) The 18" red Pearstone 18" 7-pin Internal Serial ATA Cable features Serial ATA connectors for internal PC storage connections. Depending upon the peripherals used, you can get data transfer rates up to 6 Gbps.
- Designed for internal PC storage connections
- Achieve data transfer rates up to 6 Gbps
UPC: 847628562530 - 2 x Photo Video Computer Component Upgrade Installation Select Computer Component Upgrade Installation while purchasing your computer and will install computer components for you. The installation is done by a certified technician from the 's Computer Service Center. The technician will install your computer components in compliance with the original manufacturer's warranty. This will ensure that your computer and its components are still covered after installation. Note: This service does not include software installation.
- Certified Technician
- The installation will be done by a certified technician. The technician will adhere to the original manufacturer's warranty to ensure that all computer components are installed safely and without voiding the warranty.
- Expert Testing
- The technician will also test the computer to ensure all installed components are working correctly.
In the Box - TP-Link - TL-WN881ND Wireless-N300 PCI Express Adapter
- 2 x Detachable Omni Directional Antenna
- Resource CD
- Quick Installation Guide
- 2 x Crucial - 8GB DDR4 2400 MHz UDIMM Memory Module
- Pearstone - 18" 7-pin Internal Serial ATA Cable (Red)
- 2 x B&H Photo Video - Computer Component Upgrade Installation
More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z240 Series Small Form Factor Custom Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TP-Link TL-WN881ND Wireless-N300 PCI Express Adapter
| | | Interface | PCI Express 2.0(x1) | | Standards | IEEE 802.11b/g/n
CDMA/CA with ACK | | Frequency Range | 2.4-2.4835GHz | | Data Rate | 11n:
270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g
54/48/36/24/18/12/9/6M (adaptive)
11b
11/5.5/2/1M (adaptive) | | Transmit Power | 20dBm(MAX) | | Modulation Type | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM | | Receiver Sensitivity | 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@10% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER | | Security | 64/128 bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) | | | | Certifications | CE, FCC, WiFi | | System Requirements | Windows 7/Vista/XP/2000 | | Power Requirements | Not specified by manufacturer | | Power Consumption | Not specified by manufacturer | | Dimensions (WxHxD) | 5.2 x 4.8 x 0.9" / 133 x 121 x 22 mm | | Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 8.2 x 5.8 x 1.6" | - 2 x Crucial 8GB DDR4 2400 MHz UDIMM Memory Module
| Capacity | 8 GB | | Speed | PC4-19200 (2400 MHz) | | Memory Type | DDR4 | | DIMM Type | 288-Pin DIMM | | Buffered/Registered | No | | Error Correction (ECC) | Non-ECC | | Voltage | 1.2 V | | CAS Latency | CL17 | | Memory Rank | Single Rank | | | | Box Dimensions (LxWxH) | 6.7 x 1.8 x 0.9" | - Pearstone 18" 7-pin Internal Serial ATA Cable (Red)
| Cable Type | Serial ATA / SATA | | Connector 1 | 7-pin SATA female | | Connector 2 | 7-pin SATA female | | Length | 18" (45.7 cm) | | Supported Transfer Speed | Up to 6 Gbps | | Standards Certification | UL, RoHS | | | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 0.8" | - 2 x Photo Video Computer Component Upgrade Installation
| | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
