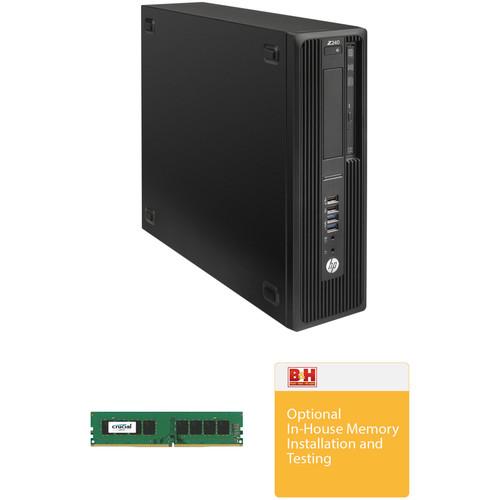

User Manual for HP Z240 Series Small Form Factor Turnkey Workstation with 16GB RAM

• Product category: PC Workstations HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP PC Workstations

Product description

• HP Z240 Series Small Form Factor Workstation (ENERGY STAR) The Z240 Series Small Form Factor Workstation (ENERGY STAR) from HP delivers powerful performance in a small form factor design and is geared towards professionals who require high reliability. With the capabilities to operate in immersive work environments and handle 24x7x365 workloads, the Z240 delivers processor and graphics technologies, as well as scalability to match your business needs.

  This system is powered by a 3.4 GHz Intel Core i7-6700 Quad-Core processor which will allow you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.0 GHz using Intel's Turbo Boost 2.0 technology. The 8GB of 2133 MHz RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. While the current memory configuration is 1 x 8GB, there are four total memory slots that will allow the RAM to be upgraded to 64GB, using a 16GB chip in each of the four memory slots.

  For long term storage of your files, a 1TB 7200 rpm hard drive offers quick access to your data. If you want to add external storage drives or other peripherals, the Z240 features 8 x USB 3.0 ports and 2 x USB 2.0 ports. For users who wish to add additional components or upgrade the existing drive bays, the Z240 has 1 x 3.5" internal bay, 1 x 2.5" internal drive bay, and one shared internal/external 3.5" bay. There are also a total of four PCIe expansion slots and one M.2 slot that uses a PCIe Gen3 x4 connection. The Intel HD Graphics 530 delivers a sharp, clear picture and features three DisplayPort outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated HD audio controller outputs high definition audio and delivers higher fidelity than standard audio controllers.

  The Z240 Series Small Form Factor Workstation includes a USB keyboard, a USB mouse, and a power cord. It operates using 90-264 VAC at 47-63 Hz. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license and media is included.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  HP Z240 L9K23UT

  Slim SuperMulti DVD-RW Drive
  • HP's Slim SuperMulti DVD-RW Drive has a height of 9.5mm and supports DVD±R, DVD±R DL, DVD±RW, DVD-RAM, CD-R, and CD-RW media. It supports CD read speeds up to 24x and DVD read speeds up to 8x
  Gigabit Ethernet
  • The system uses an integrated Intel I219LM PCIe Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch
  8 x USB 3.0 Ports & 2 x USB 2.0 Ports
  • The Z240 features 8 x USB 3.0 ports and 2 x USB 2.0 ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
  PCI Express Connectors
  • 1 x PCI Express Gen3 slot x16 mechanical / x16 electrical (Low Profile, half length)
    1 x PCI Express Gen3 slot x16 mechanical / x4 electrical (Low Profile, half length)
    2 x PCI Express Gen3 slot x1 mechanical / x1 electrical (Low Profile, half length)
    1 x M.2 slot (PCIe Gen3 x4)

    In the PCIe Gen3 slot (x16 electrical / x16 mechanical) slot, if it is not being used for a graphics card, only cards certified as After Market Options for this platform are supported. Additionally, the M.2 slot supports compatible devices up to 80mm
  Storage Controller
  • Integrated SATA (4 ports @ 6 Gb/s) with a RAID 0 (striped array) and a RAID 1 (mirrored array) is supported on Windows operating system only. It requires identical hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data configuration) is available for PCIe SSDs
  3 x DisplayPort Outputs
  • The three DisplayPort 1.2 outputs are able to support up to three simultaneous displays at resolutions up to 3840 x 2160 @ 60 Hz
  Compatible Displays
  • HP Z27s 27" UHD Display
    HP Z27q 27" IPS 5K Display
    HP Z24s 24" UHD IPS Display
    HP Z Display Z30i 30" IPS LED Backlit Monitor
    HP Z Display Z27i 27" IPS LED Backlit Monitor
    HP Z Display Z24i 24" IPS LED Backlit Monitor
    HP Z Display Z23i 23" IPS LED Backlit Monitor
    HP Z Display Z22i 21.5" IPS LED Backlit Monitor
    HP DreamColor Z24x Professional Display
    HP DreamColor Z27x Professional Display
  Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
  • This system is pre-installed with Windows 7 Professional (64-bit) software and also comes with a license and media for Windows 10 Professional (64-bit) software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data

  Windows 10 Pro (64-bit)

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
  UPC: 889894784018
• Crucial 8GB DDR4 2400 MHz UDIMM Memory Module The 8GB DDR4 2400 MHz UDIMM Memory Module from Crucial is designed to help increase your desktop's multi-tasking capabilities with an additional 8GB of memory. This unbuffered, single ranked module uses just 1.2V of power and is compatible with systems featuring a 288-pin slot. Additionally, it runs at a 2400 MHz frequency (PC4-19200) with a CAS latency of 17.
  Faster Speed
  • Crucial DDR4 memory debuts at 2133 MT/s, which is 30% faster than DDR3 memory technology.
  Memory Bandwidth
  • Crucial DDR4 increases the memory bandwidth by over 30% that of standard DDR3, so your system can handle more data at once. It also supports a four-channel design.
  Energy Efficient
  • This memory module uses 20% less voltage than DDR3 technology, operating at 1.2V compared to 1.5V for standard DDR3 server memory. Combined with the additional power-saving features inherent in DDR4 memory architecture, Crucial DDR4 memory is able to deliver up to 40% power savings compared to standard DDR3 technology.
  UPC: 649528776389
• Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

• Z240 Series Small Form Factor Workstation (ENERGY STAR) arybxszbxxstddaebtssyqedsqra
• USB Keyboard and Mouse
• Power Cord
• Windows 10 Pro (64-bit) License and Media
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)
• For 24/7 Customer Service, Please Call 1-800-334-5144

• Crucial - 8GB DDR4 2400 MHz UDIMM Memory Module

• B&H Photo Video - In-house Memory Installation & Testing Service

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z240 Series Small Form Factor Workstation (ENERGY STAR)

  Operating System

  Windows 7 Professional

  CPU Socket	LGA 1151
  Maximum Boost Speed	3.4 GHz
  L3 Cache	8 MB
  Total Installed Memory	8 GB
  Maximum Memory Capacity	64 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	3
  Graphics Type	Integrated

  PCI Expansion	1 x PCIe Gen 3 x16 (x16 Mechanical) 2 x PCIe Gen 3 x1 (x1 Mechanical) 1 x PCIe Gen 3 x4 (x16 Mechanical) 1 x PCIe v2 Minicard
  Optical Drive	8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Wi-Fi	None
  Bluetooth	None

  Box Dimensions (LxWxH)	20.5 x 19.5 x 8.9"

• Crucial 8GB DDR4 2400 MHz UDIMM Memory Module

  Capacity	8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	288-Pin DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.7 x 1.8 x 0.9"

• Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
