User Manual for HP Z240 Series Small Form Factor Workstation Click to enlarge the picture
Contents of the user manual for the HP Z240 Series Small Form Factor
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
|
User manual for the HP Z240 Series Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

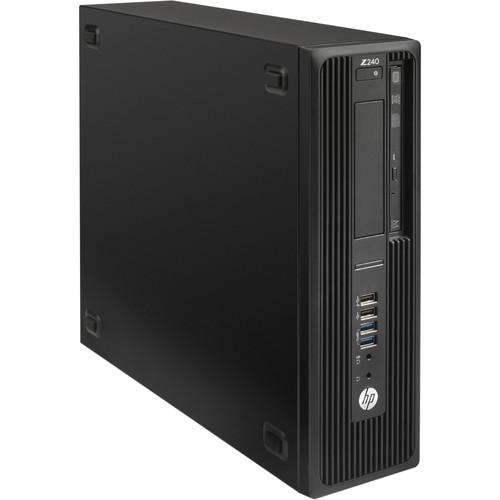

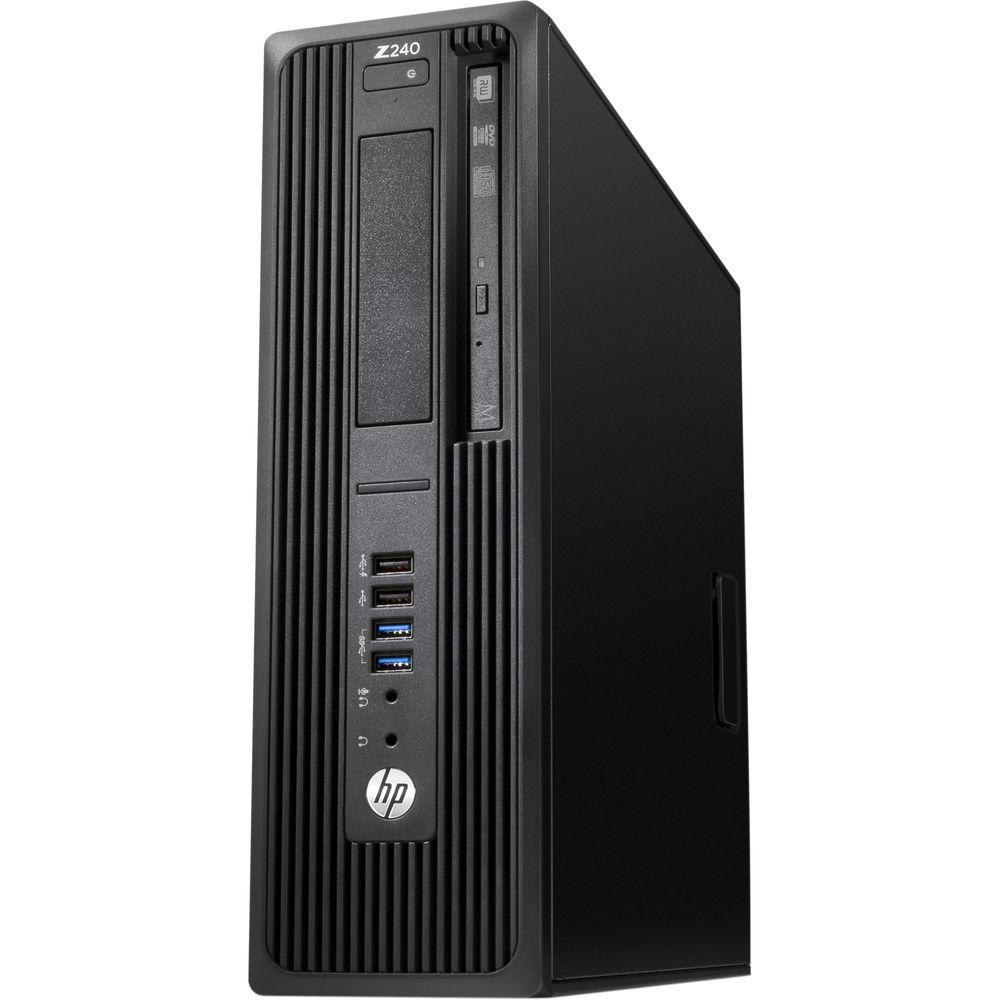

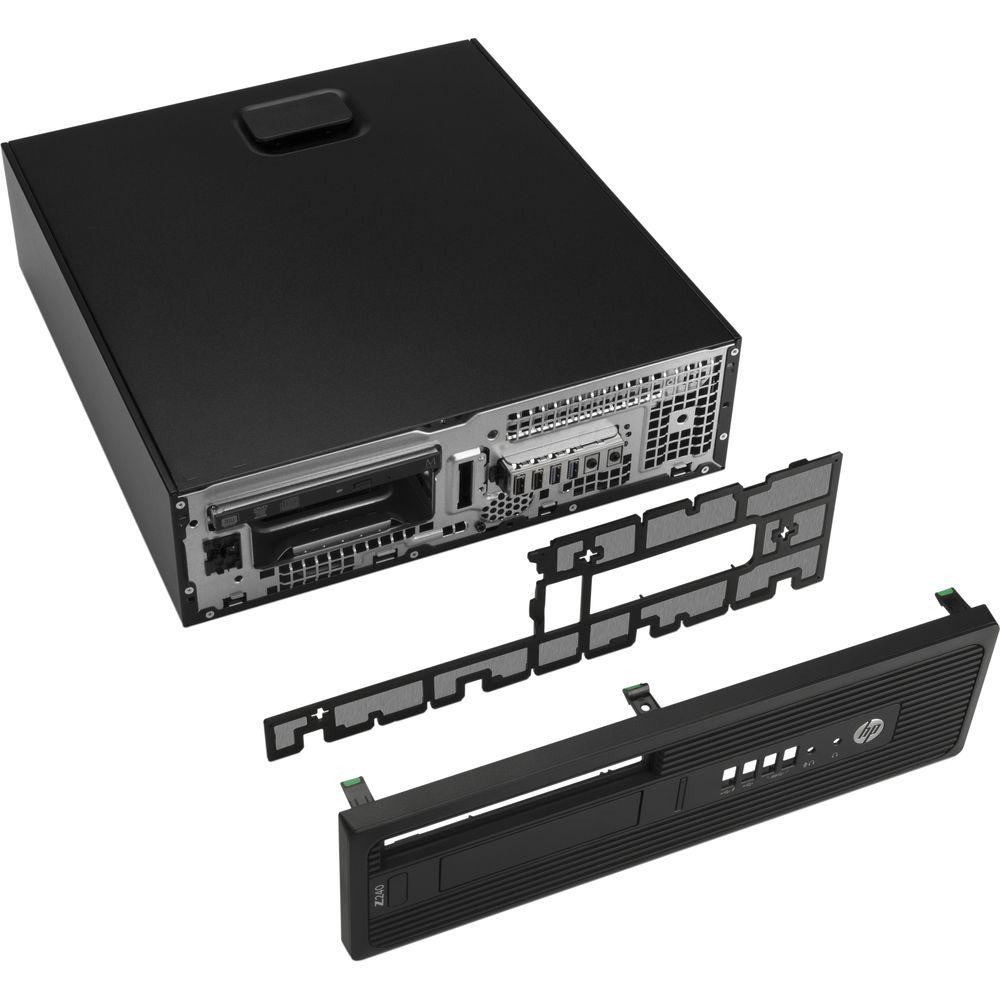

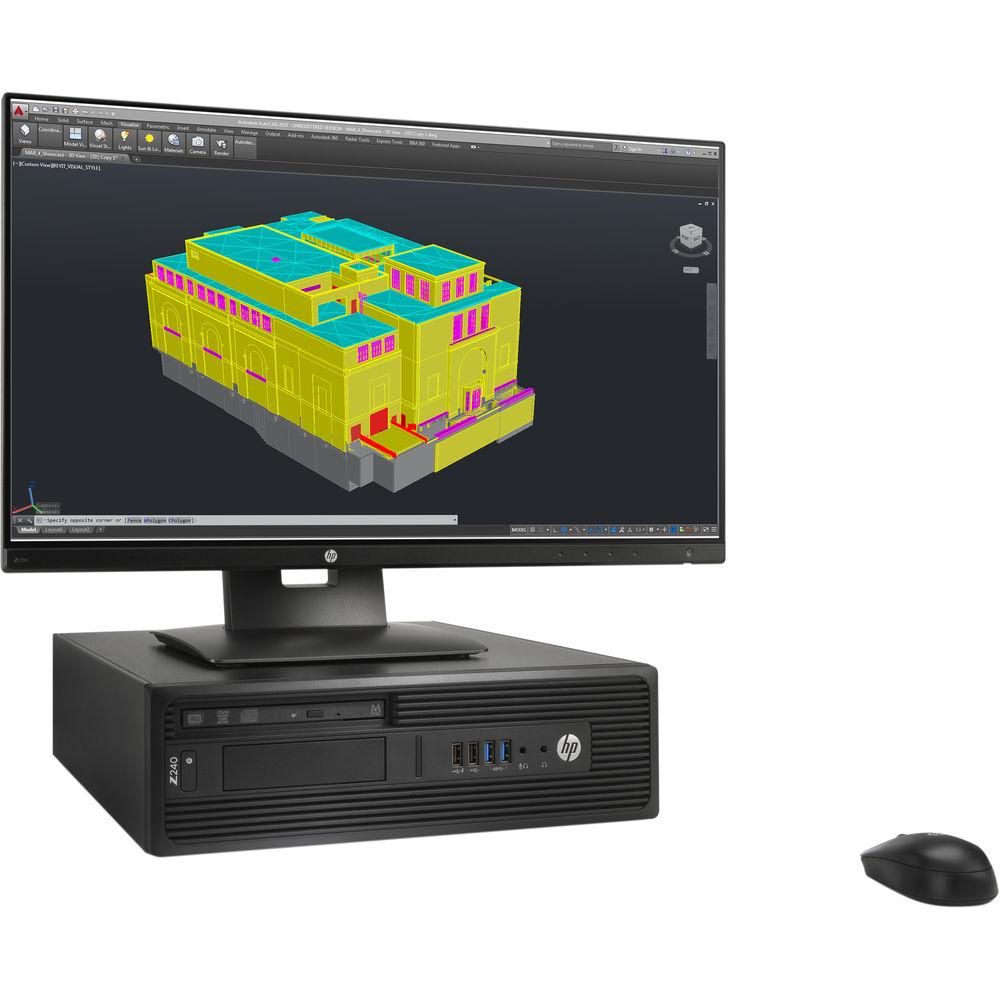

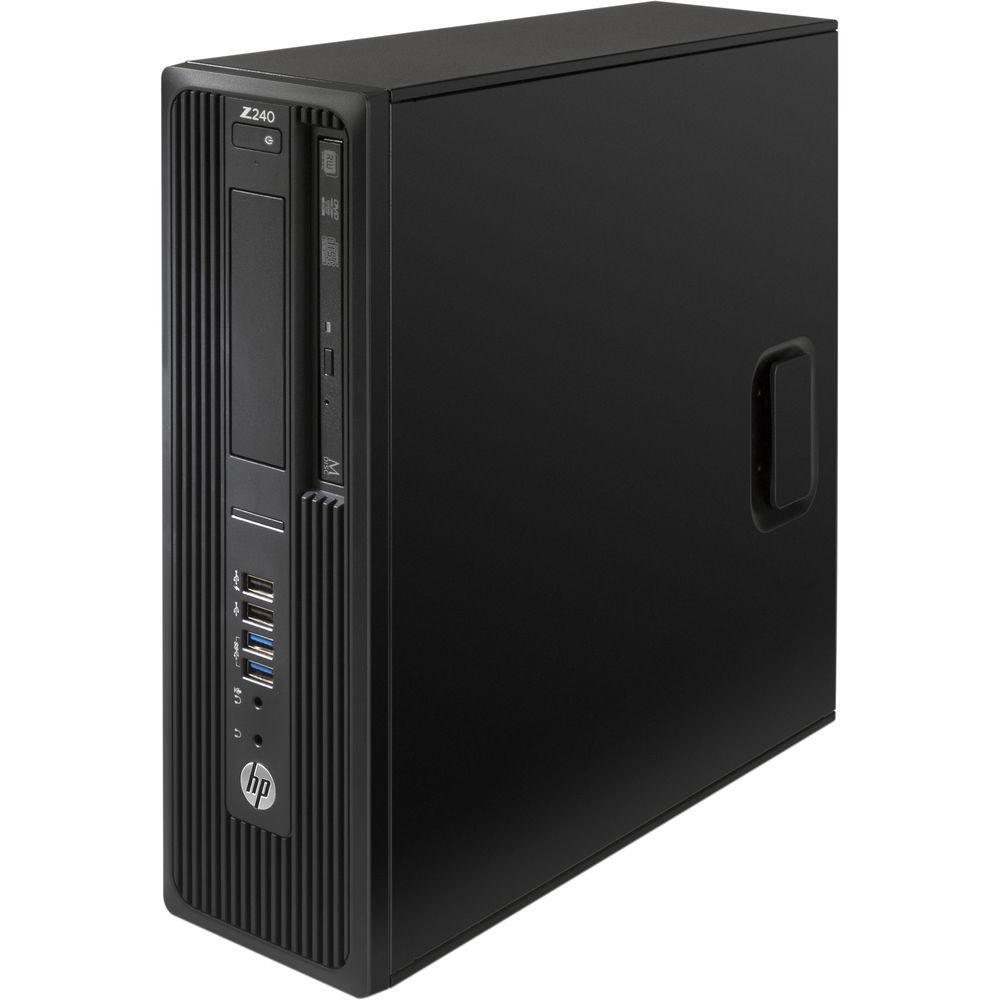

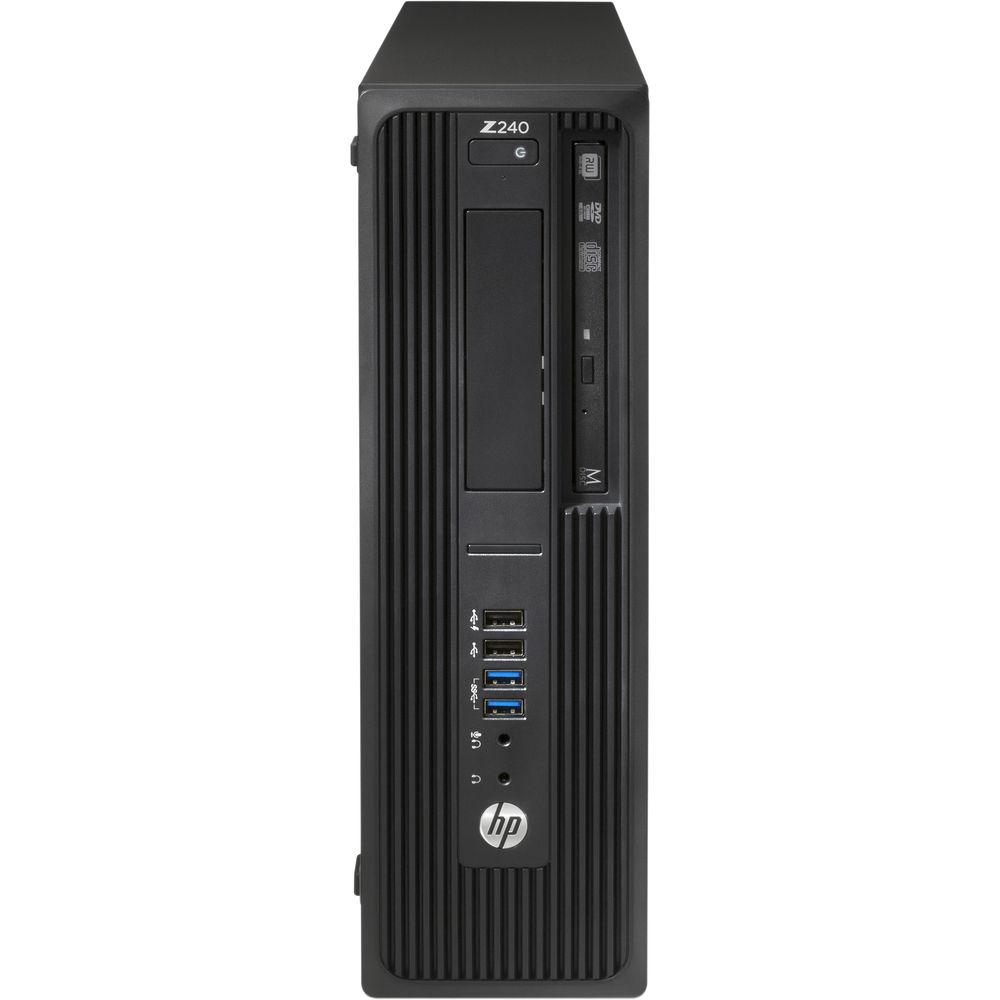

Product description The Z240 Series Small Form Factor Workstation (ENERGY STAR) from HP delivers powerful performance in a small form factor design and is geared towards professionals who require high reliability. With the capabilities to operate in immersive work environments and handle 24x7x365 workloads, the Z240 delivers processor and graphics technologies, as well as scalability to match your business needs.
This system is powered by a 3.4 GHz Intel Core i7-6700 Quad-Core processor which will allow you to run multiple applications simultaneously. If you need more power, the system can be overclocked to 4.0 GHz using Intel's Turbo Boost 2.0 technology. The 8GB of 2133 MHz RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. While the current memory configuration is 1 x 8GB, there are four total memory slots that will allow the RAM to be upgraded to 64GB, using a 16GB chip in each of the four memory slots.
For long term storage of your files, a 1TB 7200 rpm hard drive offers quick access to your data. If you want to add external storage drives or other peripherals, the Z240 features 8 x USB 3.0 ports and 2 x USB 2.0 ports. For users who wish to add additional components or upgrade the existing drive bays, the Z240 has 1 x 3.5" internal bay, 1 x 2.5" internal drive bay, and one shared internal/external 3.5" bay. There are also a total of four PCIe expansion slots and one M.2 slot that uses a PCIe Gen3 x4 connection. The Intel HD Graphics 530 delivers a sharp, clear picture and features three DisplayPort outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated HD audio controller outputs high definition audio and delivers higher fidelity than standard audio controllers.
The Z240 Series Small Form Factor Workstation includes a USB keyboard, a USB mouse, and a power cord. It operates using 90-264 VAC at 47-63 Hz. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license and media is included.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. HP Z240 L9K23UT - Slim SuperMulti DVD-RW Drive
- HP's Slim SuperMulti DVD-RW Drive has a height of 9.5mm and supports DVD±R, DVD±R DL, DVD±RW, DVD-RAM, CD-R, and CD-RW media. It supports CD read speeds up to 24x and DVD read speeds up to 8x
- Gigabit Ethernet
- The system uses an integrated Intel I219LM PCIe Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch
- 8 x USB 3.0 Ports & 2 x USB 2.0 Ports
- The Z240 features 8 x USB 3.0 ports and 2 x USB 2.0 ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
- PCI Express Connectors
- 1 x PCI Express Gen3 slot x16 mechanical / x16 electrical (Low Profile, half length)
1 x PCI Express Gen3 slot x16 mechanical / x4 electrical (Low Profile, half length) 2 x PCI Express Gen3 slot x1 mechanical / x1 electrical (Low Profile, half length) 1 x M.2 slot (PCIe Gen3 x4)
In the PCIe Gen3 slot (x16 electrical / x16 mechanical) slot, if it is not being used for a graphics card, only cards certified as After Market Options for this platform are supported. Additionally, the M.2 slot supports compatible devices up to 80mm - Storage Controller
- Integrated SATA (4 ports @ 6 Gb/s) with a RAID 0 (striped array) and a RAID 1 (mirrored array) is supported on Windows operating system only. It requires identical hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data configuration) is available for PCIe SSDs
- 3 x DisplayPort Outputs

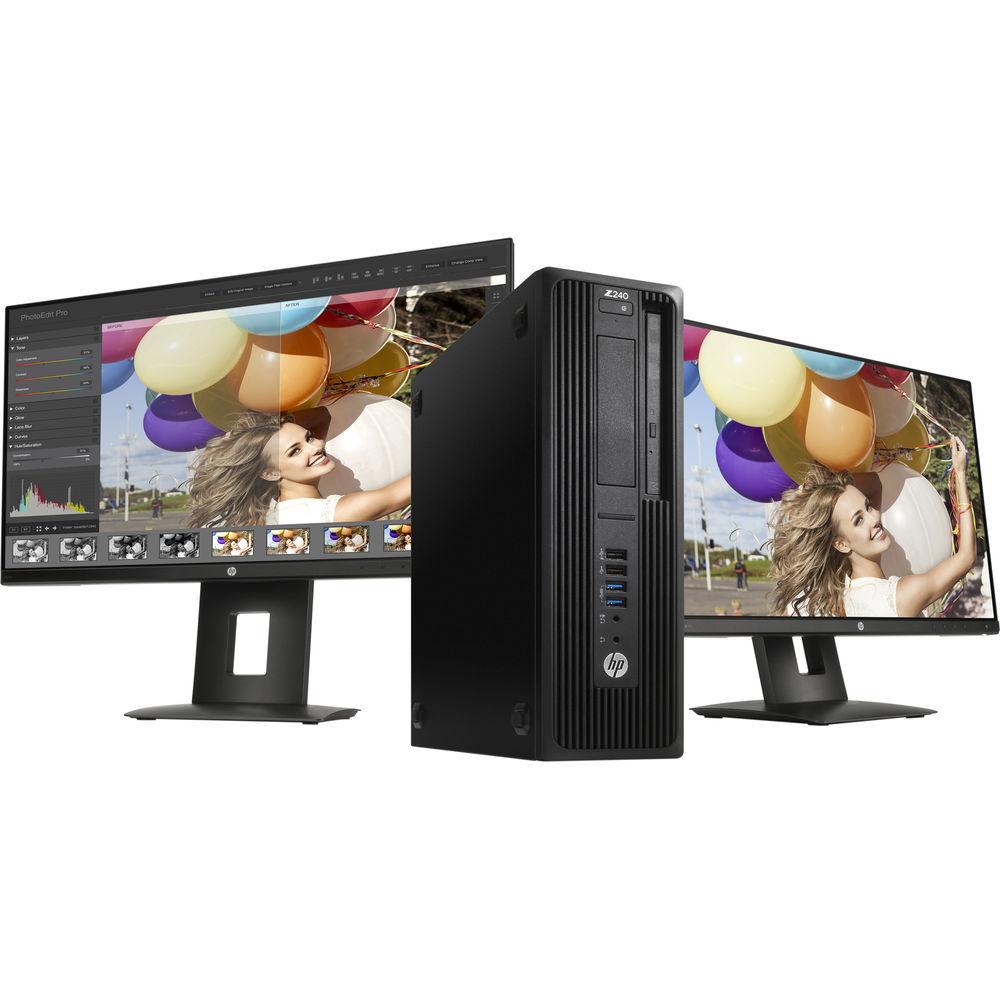

- The three DisplayPort 1.2 outputs are able to support up to three simultaneous displays at resolutions up to 3840 x 2160 @ 60 Hz
- Compatible Displays
- HP Z27s 27" UHD Display
HP Z27q 27" IPS 5K Display HP Z24s 24" UHD IPS Display HP Z Display Z30i 30" IPS LED Backlit Monitor HP Z Display Z27i 27" IPS LED Backlit Monitor HP Z Display Z24i 24" IPS LED Backlit Monitor HP Z Display Z23i 23" IPS LED Backlit Monitor HP Z Display Z22i 21.5" IPS LED Backlit Monitor HP DreamColor Z24x Professional Display HP DreamColor Z27x Professional Display - Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
- This system is pre-installed with Windows 7 Professional (64-bit) software and also comes with a license and media for Windows 10 Professional (64-bit) software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data
Windows 10 Pro (64-bit) - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications
UPC: 889894784018 In the Box HP Z240 Series Small Form Factor Workstation (ENERGY STAR) USB Keyboard and Mouse Power Cord Windows 10 Pro (64-bit) License and Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z240 Series Small Form Factor Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Z240 Series Small Form Factor Workstation can be downloaded in PDF format at the link stated below.
Technical parametersHP Z240 Specs Operating System | Windows 7 Professional | | CPU Socket | LGA 1151 | Maximum Boost Speed | 3.4 GHz | L3 Cache | 8 MB | Total Installed Memory | 8 GB | Maximum Memory Capacity | 64 GB | Memory Slot Type | 288-Pin DIMM | Available Memory Slots | 3 | Graphics Type | Integrated | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical) 2 x PCIe Gen 3 x1 (x1 Mechanical) 1 x PCIe Gen 3 x4 (x16 Mechanical) 1 x PCIe v2 Minicard | Optical Drive | 8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support | | Wi-Fi | None | Bluetooth | None | | Package Weight | 19.35 lb | Box Dimensions (LxWxH) | 20.5 x 19.5 x 8.9" |
