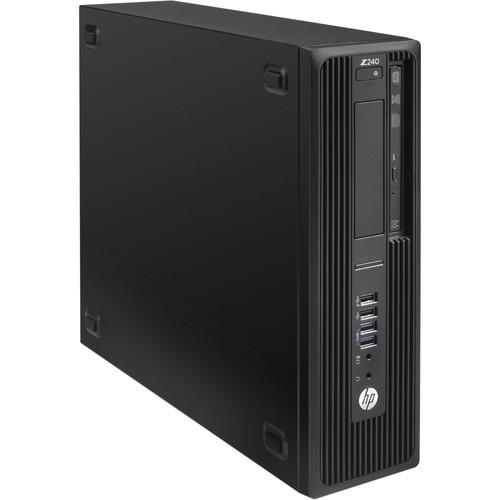

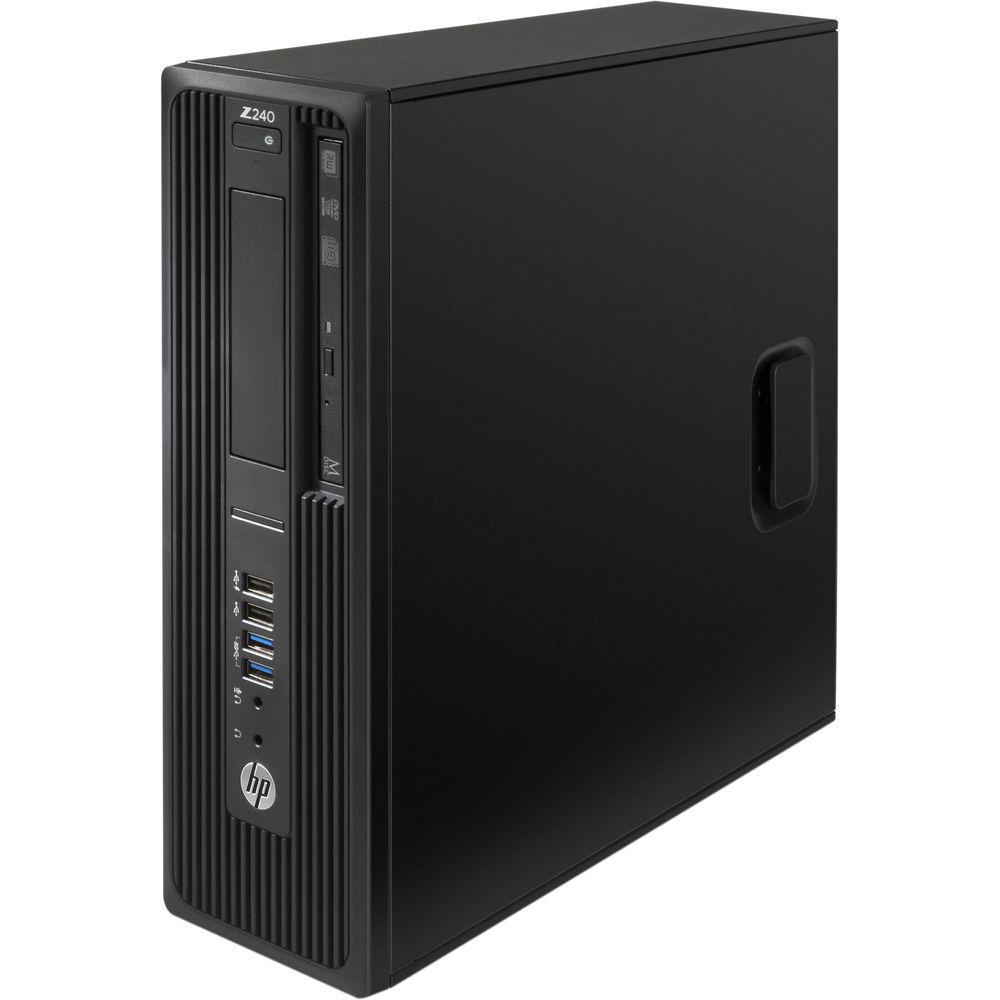

User Manual for HP Z240 Series Small Form Factor Workstation Click to enlarge the picture
Contents of the user manual for the HP Z240 Series Small Form Factor
- Product category: PC Workstations HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP PC Workstations
 |
User manual for the HP Z240 Series Small Form Factor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description The Z240 Series Small Form Factor Workstation from HP delivers powerful performance in a small form factor design and is geared towards professionals who require high reliability. With the capabilities to operate in immersive work environments and handle 24x7x365 workloads, the Z240 delivers processor and graphics technologies, as well as scalability to match your business needs.
This system is powered by a 3.5 GHz Intel Xeon E3-1245 v5 Quad-Core processor which will allow you to run multiple applications simultaneously and also features a burst speed of up to 3.9 GHz. The 8GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. While the current memory configuration is 1 x 8GB, there are four total memory slots that will allow the RAM to be upgraded to 64GB, using a 16GB chip in each of the four memory slots.
For storage of your files, this HP Z240 is equipped with a 256GB Z Turbo Drive PCIe SSD. While this SSD may not have the larger storage capacity of a traditional spinning hard drive, it contains no moving parts, which helps it to be more resistant against bumps, drops, and other kinds of damage. SSDs also receive less wear and tear than traditional hard drives, as there are no read and write heads. Additionally, as this SSD connects via PCIe as compared to SATA, it is able to operate with even greater data transfer speeds. It provides reads up to 1.08 GB/s and writes up to 800 MB/s.

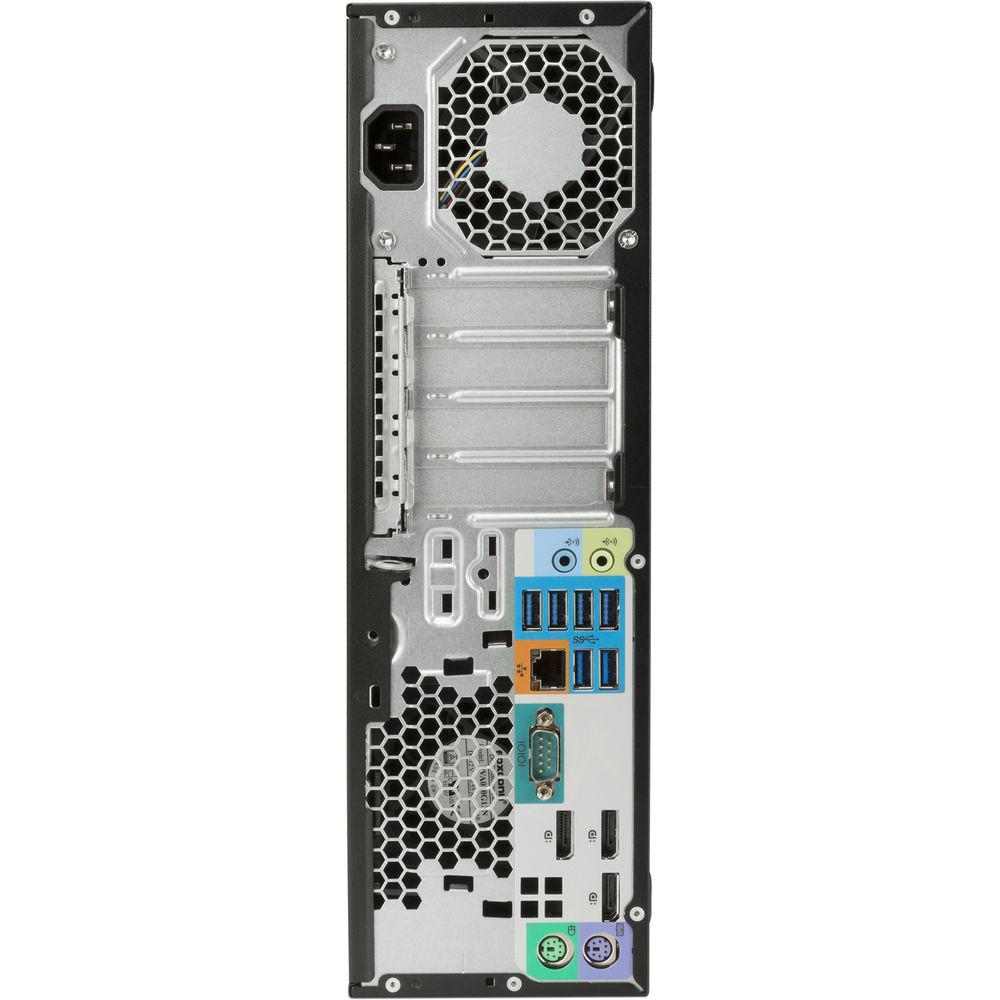

If you want to add external storage drives or other peripherals, the Z240 features 8 x USB 3.0 ports and 2 x USB 2.0 ports. For users who wish to add additional components or upgrade the existing drive bays, the Z240 has 1 x 3.5" internal bay, 1 x 2.5" internal drive bay, and one shared internal/external 3.5" bay. There are also a total of four PCIe expansion slots and one M.2 slot that uses a PCIe Gen3 x4 connection.
The integrated Intel HD Graphics P530 delivers a sharp, clear picture, and features three DisplayPort 1.2 video outputs. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC221-VB audio controller outputs high definition audio and delivers higher fidelity than standard audio controllers.
The Z240 Series Small Form Factor Workstation includes a USB keyboard, a USB mouse, and a power cord. It operates using 240W power supply that is 92% efficient and runs using 90-264 VAC at 47-63 Hz. While the installed operating system is Windows 7 Professional (64-bit), a Windows 10 Professional (64-bit) license and media is included.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. - Slim SuperMulti DVD Burner
- HP's 9.5mm Slim SuperMulti DVD Burner supports DVD-RAM, DVD±R, DVD±RW, DVD±R DL, CD-R, and CD-RW media. It also supports DVD read speeds up to 8x and CD read speeds up to 24x
- SD Card Reader
- The integrated SD card reader will allow users to access content stored on their SD memory cards
- Gigabit Ethernet
- The system uses an integrated Intel I219LM PCIe Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch
- 8 x USB 3.0 Ports & 2 x USB 2.0 Ports
- The Z240 features 8 x USB 3.0 ports and 2 x USB 2.0 ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. One of the USB 2.0 ports also doubles as a charging port. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
- PCI Express Connectors
- 1 x PCI Express Gen3 slot x16 mechanical / x16 electrical (Low Profile, half length)
1 x PCI Express Gen3 slot x16 mechanical / x4 electrical (Low Profile, half length)
2 x PCI Express Gen3 slot x1 mechanical / x1 electrical (Low Profile, half length)
1 x M.2 slot (PCIe Gen3 x4)
In the PCIe Gen3 slot (x16 electrical / x16 mechanical) slot, if it is not being used for a graphics card, only cards certified as After Market Options for this platform are supported. Additionally, the M.2 slot supports compatible devices up to 80mm - Storage Controller
- Integrated SATA (4 ports @ 6 Gb/s) with a RAID 0 (striped array) and a RAID 1 (mirrored array) is supported on Windows operating system only. It requires identical hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data configuration) is available for PCIe SSDs
- Compatible Displays
- All HP Z Displays and HP DreamColor Displays are supported
- Power Supply
- This system uses a 240W power supply that is 92% efficient with wide-ranging and active PFC
- Windows 7 Professional (64-bit) + Windows 10 Professional (64-bit) License
- This system is pre-installed with Windows 7 Professional (64-bit) software and also comes with a license and media for Windows 10 Professional (64-bit) software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data
In the Box HP Z240 Series Small Form Factor Workstation USB Keyboard and Mouse Power Cord Windows 10 Pro (64-bit) License and Media Restore & Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 Guides & Manuals rczwacqqdfxtsu More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z240 Series Small Form Factor Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Z240 Series Small Form Factor Workstation can be downloaded in PDF format at the link stated below.
Technical parametersHP Z240 Specs | | | Maximum Boost Speed | 3.9 GHz | | L3 Cache | 8 MB | | CPU Socket | LGA 1151 | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 64 GB | | Available Memory Slots | 3 | | Memory Slot Type | 288-Pin DIMM | | Graphics Type | Integrated | | | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical)
2 x PCIe Gen 3 x1 (x1 Mechanical) | | | | Wi-Fi | None | | Bluetooth | None | | | | Operating System | Windows 7 Professional (64-Bit) | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 20.0 x 19.0 x 9.0" |
