HP Z240 Series Tower Turnkey Workstation

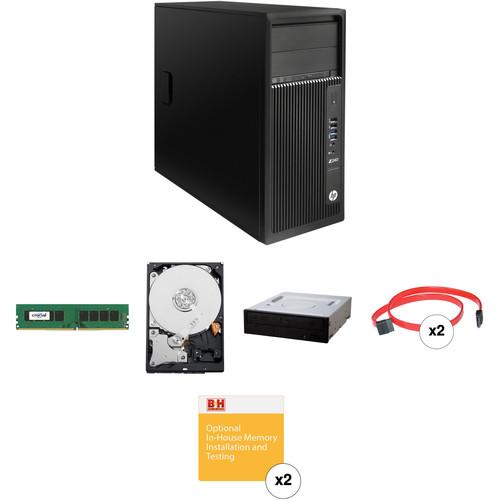

User Manual for HP Z240 Series Tower Turnkey Workstation with 16GB RAM, 4TB HDD, and Blu-ray Drive

• Product category: PC Workstations HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP PC Workstations

Product description

• Crucial 8GB DDR4 2400 MHz UDIMM Memory Module The 8GB DDR4 2400 MHz UDIMM Memory Module from Crucial is designed to help increase your desktop's multi-tasking capabilities with an additional 8GB of memory. This unbuffered, single ranked module uses just 1.2V of power and is compatible with systems featuring a 288-pin slot. Additionally, it runs at a 2400 MHz frequency (PC4-19200) with a CAS latency of 17.
  Faster Speed
  • Crucial DDR4 memory debuts at 2133 MT/s, which is 30% faster than DDR3 memory technology.
  Memory Bandwidth
  • Crucial DDR4 increases the memory bandwidth by over 30% that of standard DDR3, so your system can handle more data at once. It also supports a four-channel design.
  Energy Efficient
  • This memory module uses 20% less voltage than DDR3 technology, operating at 1.2V compared to 1.5V for standard DDR3 server memory. Combined with the additional power-saving features inherent in DDR4 memory architecture, Crucial DDR4 memory is able to deliver up to 40% power savings compared to standard DDR3 technology.
  UPC: 649528776389
• WD 4TB Desktop Everyday SATA III 3.5" Internal HDD Retail Kit Store and access up to 4TB of your files in a desktop computer, NAS device, or RAID array using the 4TB Desktop Everyday SATA III 3.5" Internal HDD Retail Kit from WD. 4TB will allow you to store movies, photos, music, documents, and much more. Compatible with computers running Windows and Mac OS, this hard drive connects to your system's 3.5" bay via the SATA III 6 Gb/s interface.

  In terms of speed, this drive operates using WD's IntelliPower rotational speed. This means that rpm speed of the drive depends on the operations being performed. If the drive is performing mostly sequential reads and writes, its speed will be increased as compared to if it were performing mostly random mode operations. This 4TB drive also features a 64MB cache to help ensure uninterrupted data transfers. Included with this hard drive are mounting screws.

  General Features

  NoTouch Ramp Load Technology
  • The recording head never touches the disk media, ensuring significantly less wear to the recording head and media as well as better drive protection in transit
  Low Power Consumption
  • Seeking algorithms and power management features help ensure low power consumption
  Tested for Compatibility
  • This drive is tested on hundreds of systems on a variety of platforms ensuring enhanced system compatibility
  Upgrading the Drive is Easy
  • Migrate your current system to your new WD drive using Acronis True Image WD Edition, available as a free download on the WD Support site. This software enables you to copy all your data to a new drive so you don't have to reinstall your operating system to get the benefits of a new drive
  UPC: 718037822587
• Pioneer BDR-209DBK 16x Blu-Ray/CD/DVD Writer The BDR-209DBK 16x Blu-Ray/CD/DVD Writer from Pioneer is an internal SATA drive that burns up to 16x on BD-R (25GB) media and 14x on BD-R Dual Layer (50GB) media. It is backwards compatible with DVD and CD media. The drive is also 3D capable. It allows you to watch standard and 3D Blu-ray disc titles and author HD Blu-ray disc content, while also delivering the ability for high capacity data storage*. You can store the equivalent of 10 single-layer DVDs with Blu-ray BD-R Dual-Layer (DL) discs. This drive features QuickPlay, which enables movie discs to be ready faster, a noise suppression design to minimize noise, an anti-dust design for increased durability, and the Precision Writing technology to minimize write errors. The drive supports buffer underrun protection on Blu-ray disc, DVD, and CD media. It also supports a wide range of blank media. It is also compatible with Mac Pro*. Note: *3D playback software required. Sold separately.
  **You have to remove the front part as with all the drives for the Mac's
  Faster Burning
  • This drive can burn up to 16x on BD-R media and up to 14x on BD-R DL discs.
  QuickPlay
  • This feature decreases the waiting time between inserting a disc and the disc being ready.
  Noise Suppression Design
  • The tray cushion and the top cover of the drive are designed to reduce disc rotation noise.
  Anti-Dust Design
  • The sound barrier design that suppresses noise inside the drive also works to keep dust outside the drive. This makes the drive dust resistant and prevents drive failure due to dust.
  Precision Writing
  • The chassis design maximizes disc stability and write quality by reducing warping at high speed caused by disc vibration, especially on the outer areas of the disc.
  UPC: 884938243308
• 2 x C2G 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18" The 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18" from CablesToGo allows you to connect Serial ATA devices to your motherboard or host controller. Angled connectors position the cable in a way that produces less bend, and are fortified to keep the cable lined up straight. So, you'll see reduced cable bend and fatigue and longer cable life!

  The SATA 3.0 interface offers blazing-fast data transfer rates of up to 6.0 Gbps! The cable is especially engineered to handle the differential signals in modern-day technology, while delivering greater throughput and less data packet loss. With the 7-pin, 1-device cable, you will receive higher data transmission rates, minimized crosstalk, and better signal integrity.

  What's more is that the cable reduces overheating and conserves internal space within the CPU, for simple movement when adding or removing hard drives, PCI cards or other adapters. Reduce clutter, increase airflow and maximize your potential data transfer rate with this useful accessory.
  • Allows you to connect Serial ATA devices to your motherboard or host controller.
  • Angled connectors position the cable in a way that produces less bend, and are fortified to keep the cable lined up straight. So, you'll see reduced cable bend and fatigue and longer cable life!
  • SATA 3.0 interface offers blazing-fast data transfer rates of up to 6.0 Gbps!
  • Especially engineered to handle the differential signals in modern-day technology, while delivering greater throughput and less data packet loss.
  • Receive higher data transmission rates, minimized crosstalk, and better signal integrity.
  • Reduces overheating.
  • Conserves internal space within the CPU, for simple movement when adding or removing hard drives, PCI cards or other adapters.
  • Reduce clutter, increase airflow and maximize your potential data transfer rate with this cable.
  UPC: 757120101819
• 2 x Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

• Crucial - 8GB DDR4 2400 MHz UDIMM Memory Module zvcratfquuxedraqyetyrwwddbeuz
• Limited Lifetime Warranty

• WD - 4TB Desktop Everyday SATA III 3.5" Internal HDD Retail Kit zvcratfquuxedraqyetyrwwddbeuz

• Pioneer - BDR-209DBK 16x Blu-Ray/CD/DVD Writer

• 2 x C2G - 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18"

• 2 x B&H Photo Video - In-house Memory Installation & Testing Service

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Crucial 8GB DDR4 2400 MHz UDIMM Memory Module

  Capacity	8 GB
  Speed	PC4-19200 (2400 MHz)
  Memory Type	DDR4
  DIMM Type	288-Pin DIMM
  Buffered/Registered	No
  Error Correction (ECC)	Non-ECC
  Voltage	1.2 V
  CAS Latency	CL17
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.7 x 1.8 x 0.9"

• WD 4TB Desktop Everyday SATA III 3.5" Internal HDD Retail Kit

  Drive Capacity	4.0 TB
  Cache Memory	64 MB

  Interface	SATA III (6 Gb/s)

  Drive Type	HDD
  Form Factor	3.5"

  Certifications	NRCAN, RoHS, as per Manufacturer
  Dimensions (W x H x D)	1.1 x 5.8 x 4.0" / 2.7 x 14.7 x 10.2 cm
  Weight	1.5 lb / 0.7 kg

  Box Dimensions (LxWxH)	7.6 x 5.1 x 2.5"

• Pioneer BDR-209DBK 16x Blu-Ray/CD/DVD Writer

  Enclosure Type	Internal
  Interface	SATA I (1.5 Gb/s)
  Buffer Memory	4 MB
  Blu-Ray Read Speed	BD-R (DL, LTH): 8x BD-ROM (SL): 12x BD-RE (SL): 10x BD-R (SL): 12x BD-ROM (DL): 8x
  DVD Read Speed	DVD-ROM (DL): 12x DVD-RW: 12x DVD+RW: 12x DVD-R (SL): 16x DVD+R (SL): 16x DVD-ROM (SL): 16x
  CD Read Speed	CD-R: 40x CD-ROM: 40x CD-RW: 24x
  Mounting Orientation	Horizontal, Vertical
  RoHS Compliant	Yes, Per Manufacturer
  Dimensions (W x H x D)	5.8 x 1.7 x 7.1" / 14.8 x 4.2 x 18.0 cm
  Weight	1.63 lb / 0.73 kg

  Box Dimensions (LxWxH)	9.8 x 8.6 x 3.1"

• 2 x C2G 7-pin 180- to 90-Degree 1-Device Serial ATA Cable - 18"

  Cable Type	SATA / Serial ATA
  Length	18" (45.7 cm)
  Weight	0.04 lb (0.02 kg)
  Supported Transfer Speed	Up to 6.0 Gbps
  Ideal Application	Handling differential signals in today's technology, while delivering greater throughput and less data packet loss

  Conductors	26 AWG tinned copper
  Gauge	Not specified by manufacturer
  Shielding	Thermoplastic Al. Mylar
  Dielectric (Insulation)	FM-PE+Skin
  Jacket	Standard rating
  Color	Red

  Connector 1	7-pin Serial ATA Female
  Connector 2	7-pin Serial ATA Female
  Shielding	Not specified by manufacturer
  Contacts	Phosphor bronze
  Body	Not specified by manufacturer
  Interface Required	SATA 3.0
  Standards Certification	UL

  Box Dimensions (LxWxH)	6.0 x 3.9 x 0.9"

• 2 x Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
