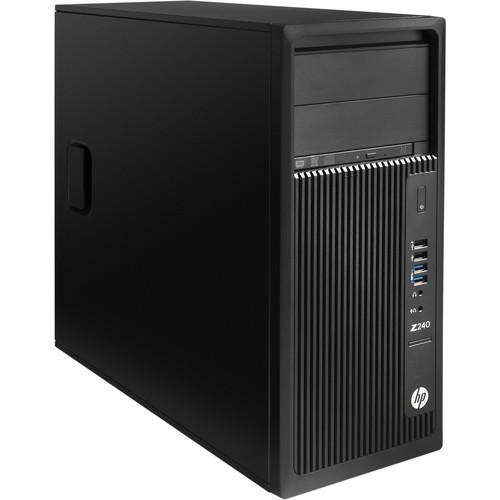

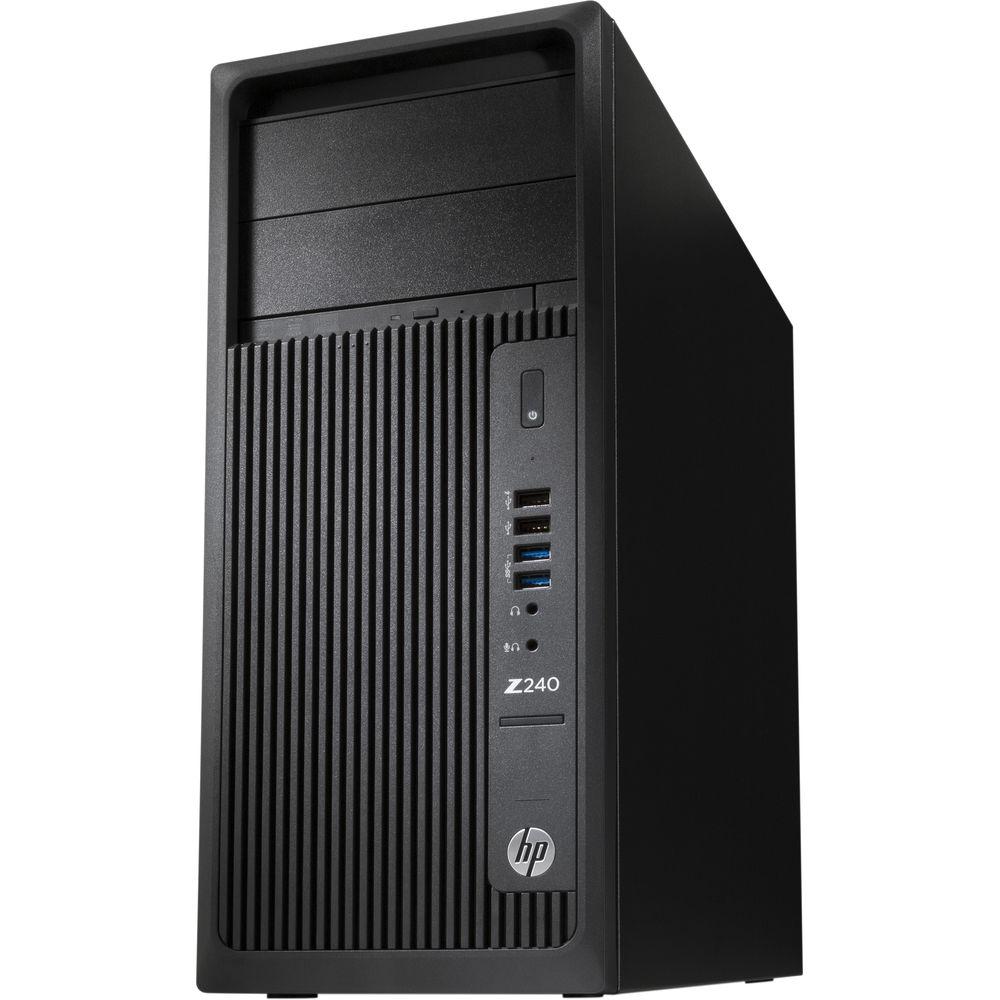

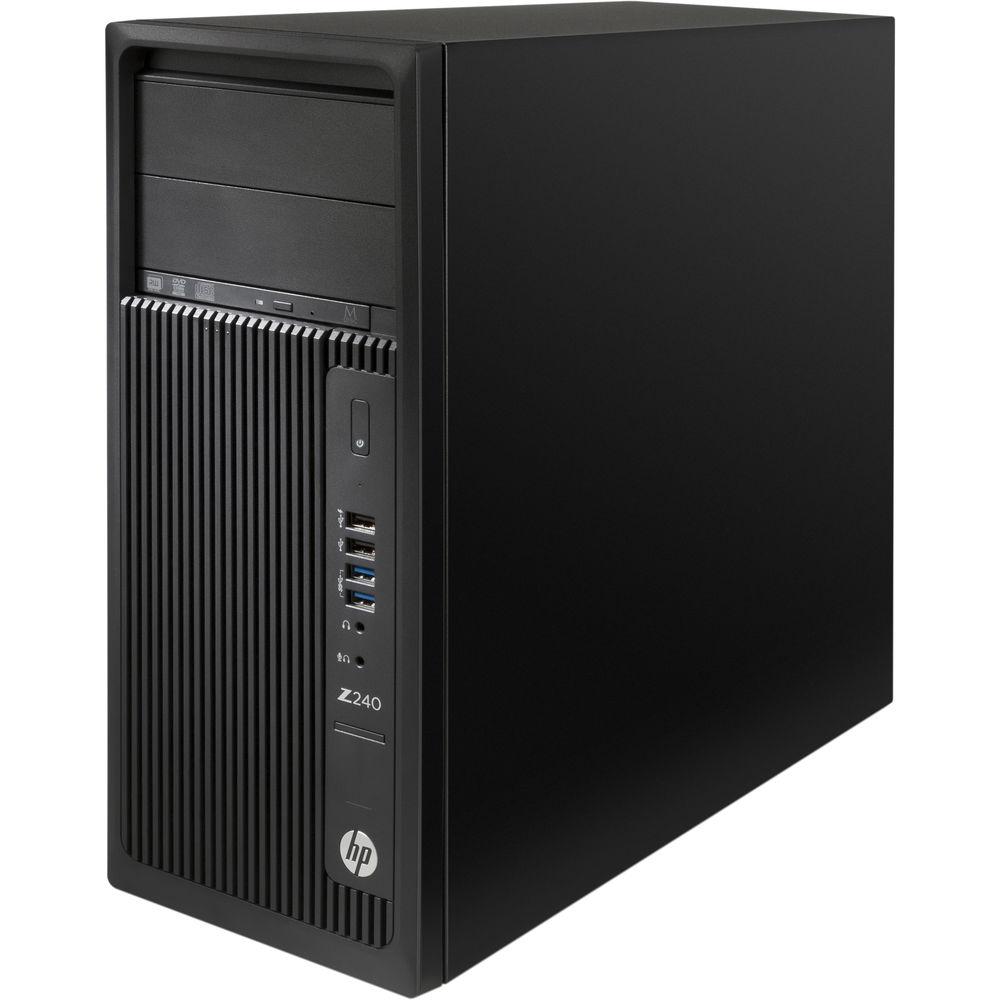

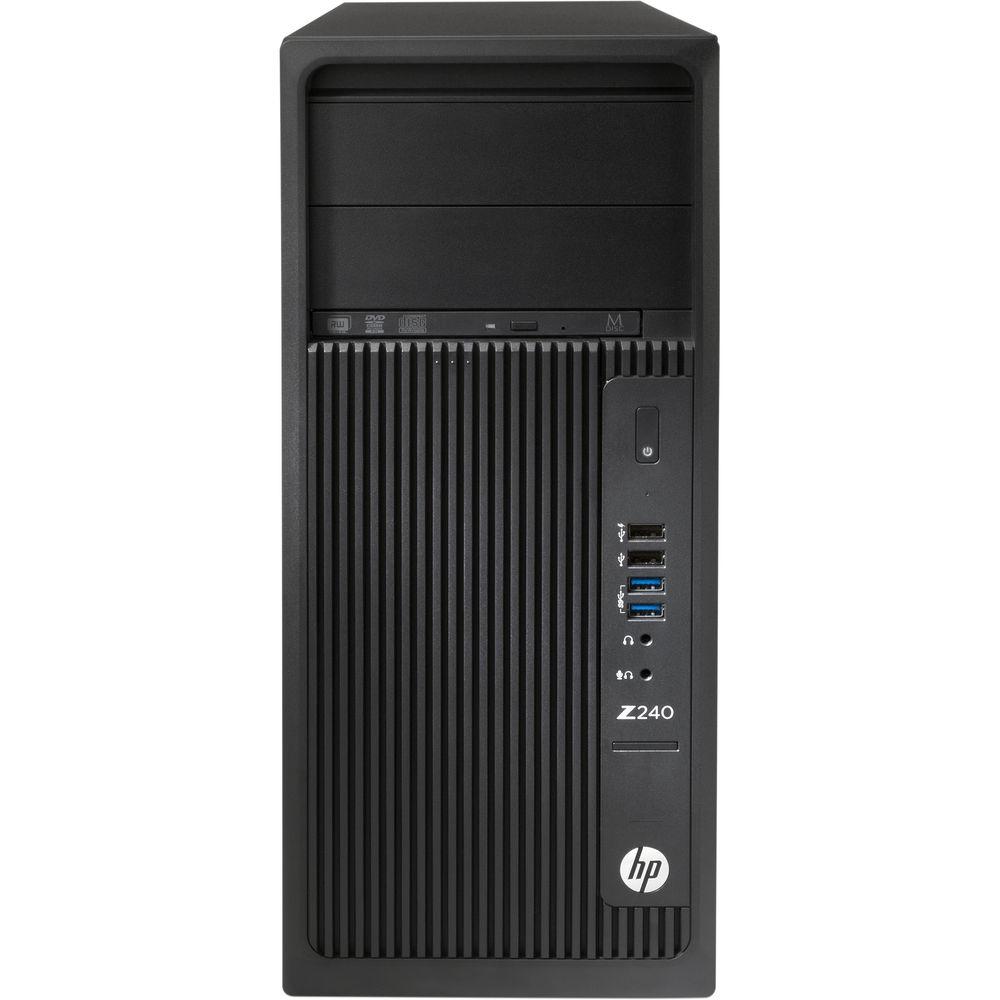

Product description The Z240 Series Tower Workstation from HP delivers powerful performance in a tower form factor and is designed for professionals who require high reliability. With the capabilities to operate in immersive work environments and handle 24x7x365 workloads, the Z240 delivers processor and graphics technologies, as well as scalability to meet your business needs, in a compact yet expandable tower.
This system is powered by a 3.4 GHz Intel Xeon E3-1230 v5 Quad-Core processor which will allow you to run multiple applications simultaneously. If you need more power, the CPU can be overclocked to 3.8 GHz using Intel's Turbo Boost 2.0 technology. The 8GB of 2133 MHz DDR4 RAM helps to ensure smooth multitasking and also allows the computer to quickly access frequently-used files and programs. While the current memory configuration is 1 x 8GB, there are four total 288-pin DIMM memory slots that will allow the RAM to be upgraded to 64GB, using one 16GB module in each of the four memory slots.

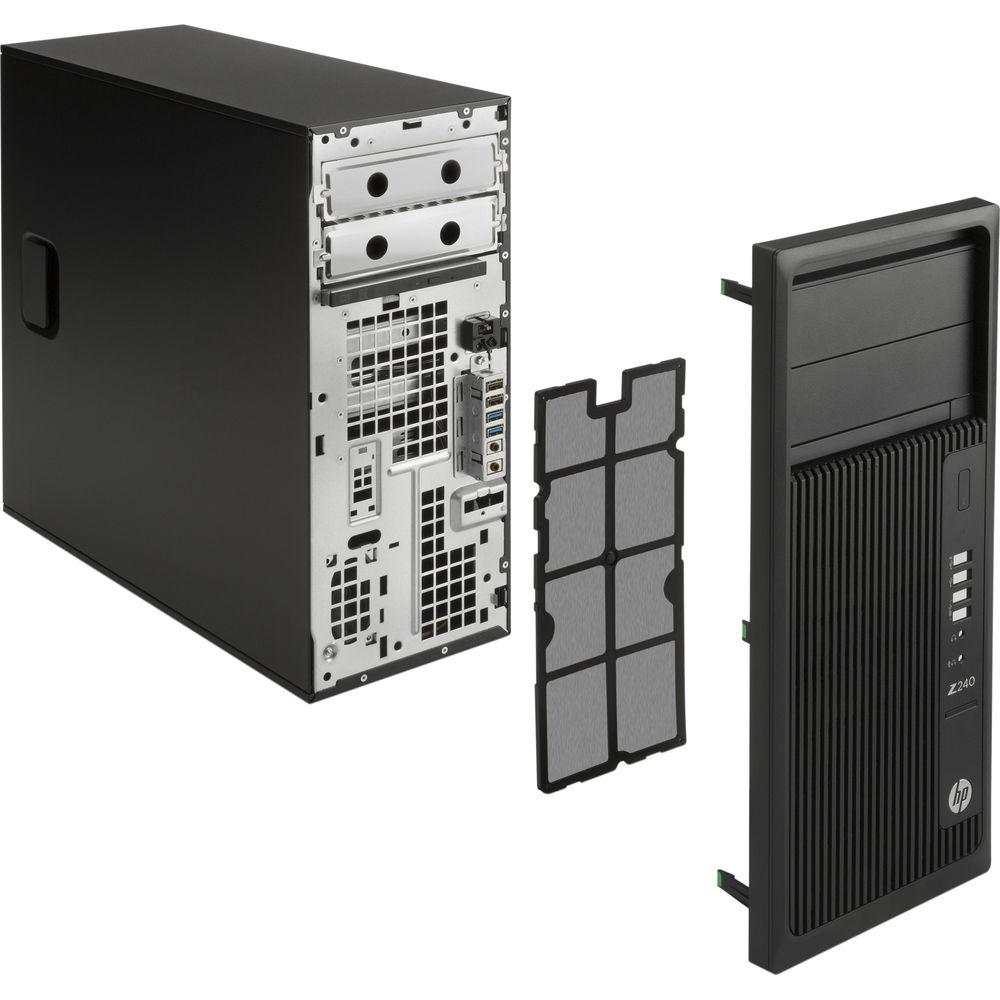

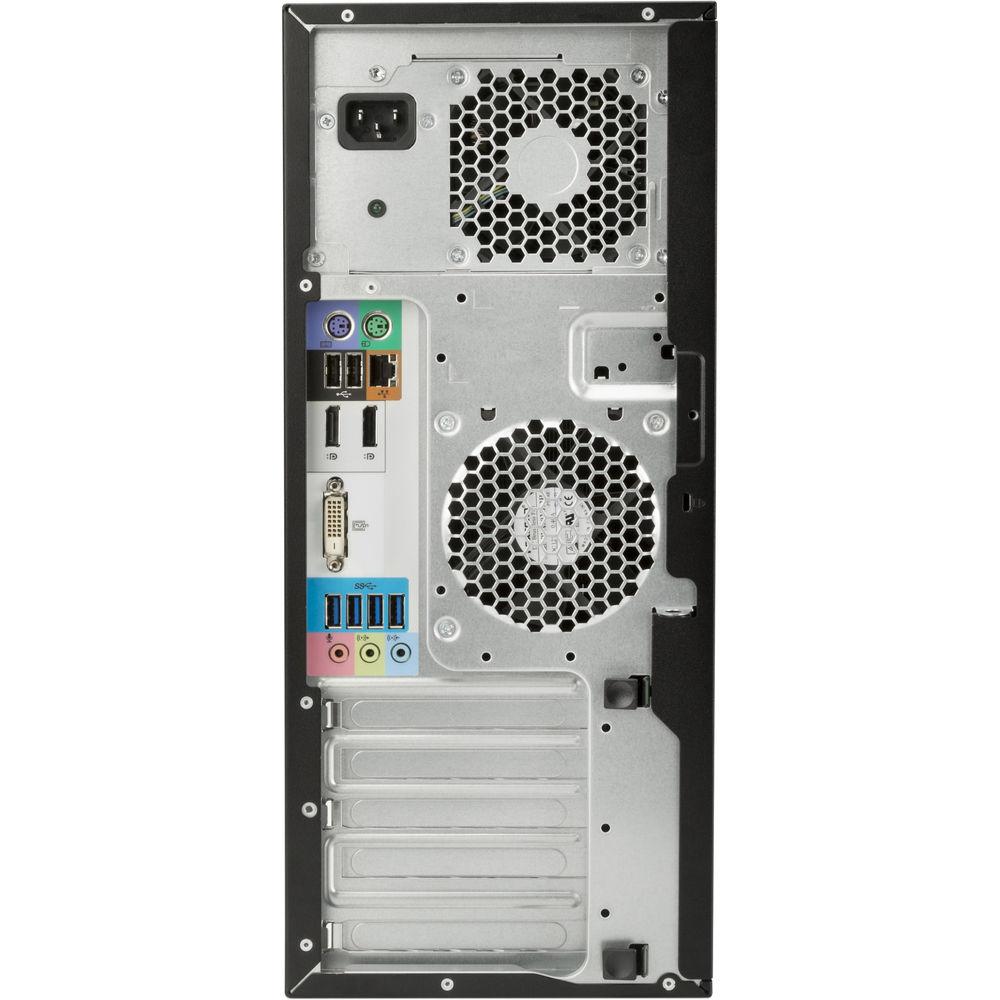

For long term storage of your files, a 1TB 7200 rpm SATA III 3.5" hard drive offers quick access to your data. If you want to add external storage drives or other peripherals, the Z240 features six USB 3.0 Type-A ports, four USB 2.0 Type-A ports (one of which doubles as a charging port), and two PS/2 ports. For users who wish to add additional components or upgrade the drive bays, the Z240 has a total of six expansion bays - two 5.25" half-height external bays, one 9.5mm slim optical drive bay, two 3.5" internal bays, and one 2.5" internal bay. The dedicated NVIDIA Quadro K420 graphics card has 2GB of DDR3 RAM and delivers a sharp, clear picture while allowing for multiple simultaneous displays to be used via its one DisplayPort 1.2 and one Dual-Link DVI-I video outputs, supporting resolutions up to 3840 x 2160 @ 60 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC221-VB audio codec outputs high definition audio and delivers higher fidelity than standard audio controllers.
The Z240 Series Tower Workstation includes a USB keyboard, a USB mouse, and a power cord. It operates at 90-269 VAC at 47-66 Hz. While the installed operating system is Windows 7 Professional (64-Bit), a Windows 10 Professional for Workstations (64-Bit) license is also included.
Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144. General Features - Slim SuperMulti DVD-RW Drive
- HP's Slim SuperMulti DVD-RW Drive has a height of 9.5mm and supports DVD±R, DVD±R DL, DVD±RW, DVD-RAM, CD-R, and CD-RW media. It supports CD read speeds up to 24x and DVD read speeds up to 8x
- Gigabit Ethernet
- The system uses an integrated Intel I219LM PCIe Gigabit Ethernet controller for Internet access when connected to a router, modem, or network switch
- 6 x USB 3.0 Type-A Ports & 4 x USB 2.0 Type-A Ports
- The Z240 features six USB 3.0 ports and four USB 2.0 ports that will allow you to connect external peripherals such as hard drives, printers, and memory card readers. At 5 Gb/s, USB 3.0 transfers data up to 10 times faster than USB 2.0, which operates at 480 Mb/s. USB 3.0's high-speed transfer rate helps to significantly reduce data transfer times, meaning you spend less time waiting and more time focusing on the task at hand
- PCI Express Connectors
- 1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x4 slot/x16 connector
1 x PCIe Gen3 x4 slot/x4 connector
1 x PCIe Gen3 x1 slot
1 x M.2 slot (PCIe Gen3 x4)
The PCIe Gen3 x16 slot is meant for HP qualified cards, configured or after market. HP does not provide warranty support for 3rd party cards. Additionally, the M.2 slot only supports compatible devices up to 110mm - Storage Controller
- Integrated SATA (4 ports @ 6 Gb/s) with a RAID 0 (striped array) and a RAID 1 (mirrored array) is supported on Windows operating systems only. It requires identical hard drives (speeds, capacity, interface). Integrated RAID 0, 1 (data configuration) is available for PCIe SSDs
- Energy Efficient Power Supply
- The 400W power supply is 92% efficient
- Compatible Displays
- All HP Z Displays and HP DreamColor Displays are supported
- Windows 7 Professional (64-Bit) + Windows 10 Pro for Workstations (64-Bit) License
- This system is pre-installed with Windows 7 Professional (64-Bit) software and also comes with a license and media for Windows 10 Professional for Workstations (64-Bit) software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data
In the Box HP Z240 Series Tower Workstation USB Keyboard and Mouse Power Cord Windows 10 Pro (64-Bit) License Restore/Recovery Media Limited 3-Year Warranty for Parts Limited 3-Year Warranty for Labor 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR) For 24/7 Customer Service, Please Call 1-800-334-5144 More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z240 Series Tower Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z240 Specs | | | Maximum Boost Speed | 3.8 GHz | | L3 Cache | 8 MB | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 64 GB | | Available Memory Slots | 3 | | Memory Slot Type | 288-Pin DIMM | | Graphics Type | Dedicated | | | | Optical Drive | Tray-Load SuperMulti DVD Burner with Dual Layer Support | | PCI Expansion | 1 x PCIe Gen 3 x16 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x16 Mechanical)
1 x PCIe Gen 3 x4 (x4 Mechanical)
1 x PCIe Gen 3 x1 (x1 Mechanical)
1 x M.2 2230 (E-Key) | | | | Wi-Fi | None | | Bluetooth | None | | | | Operating System | Windows 7 Professional (64-Bit) | | | | Package Weight | 27.2 lb | | Box Dimensions (LxWxH) | 23.3 x 19.7 x 11.6" |
