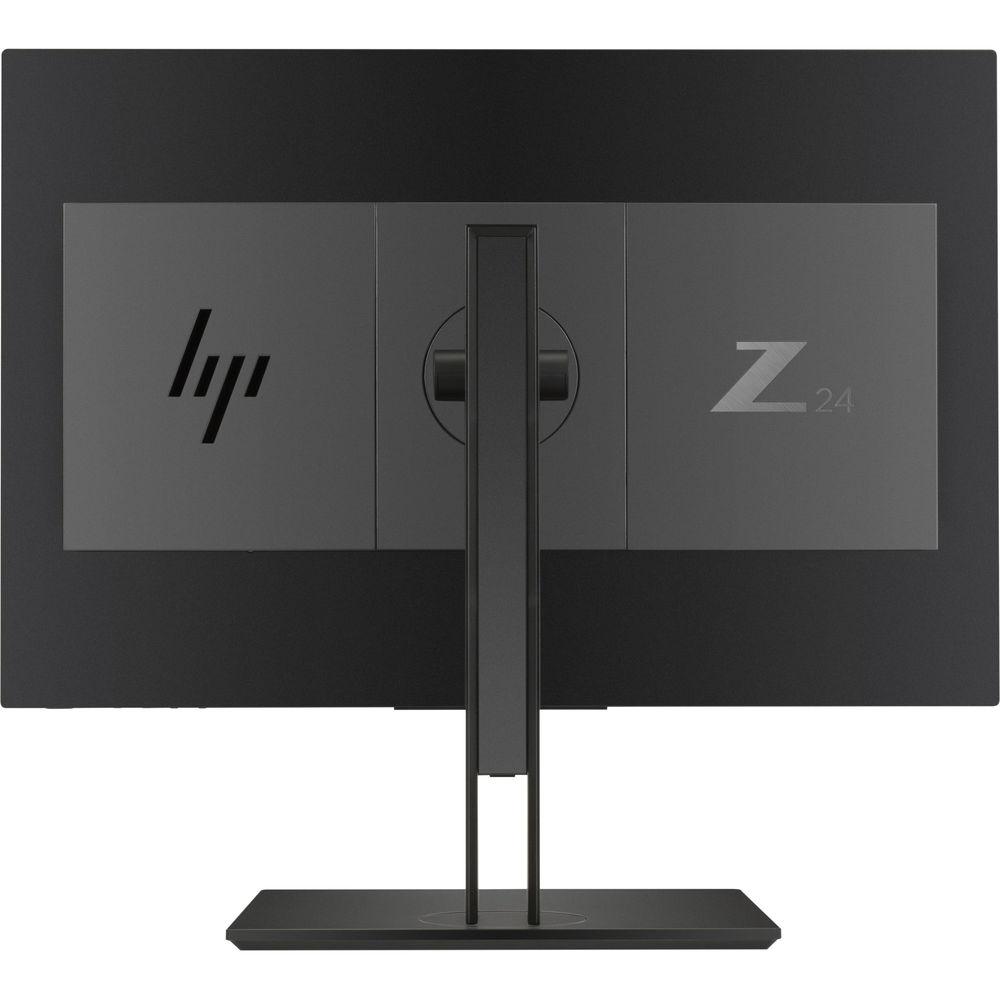

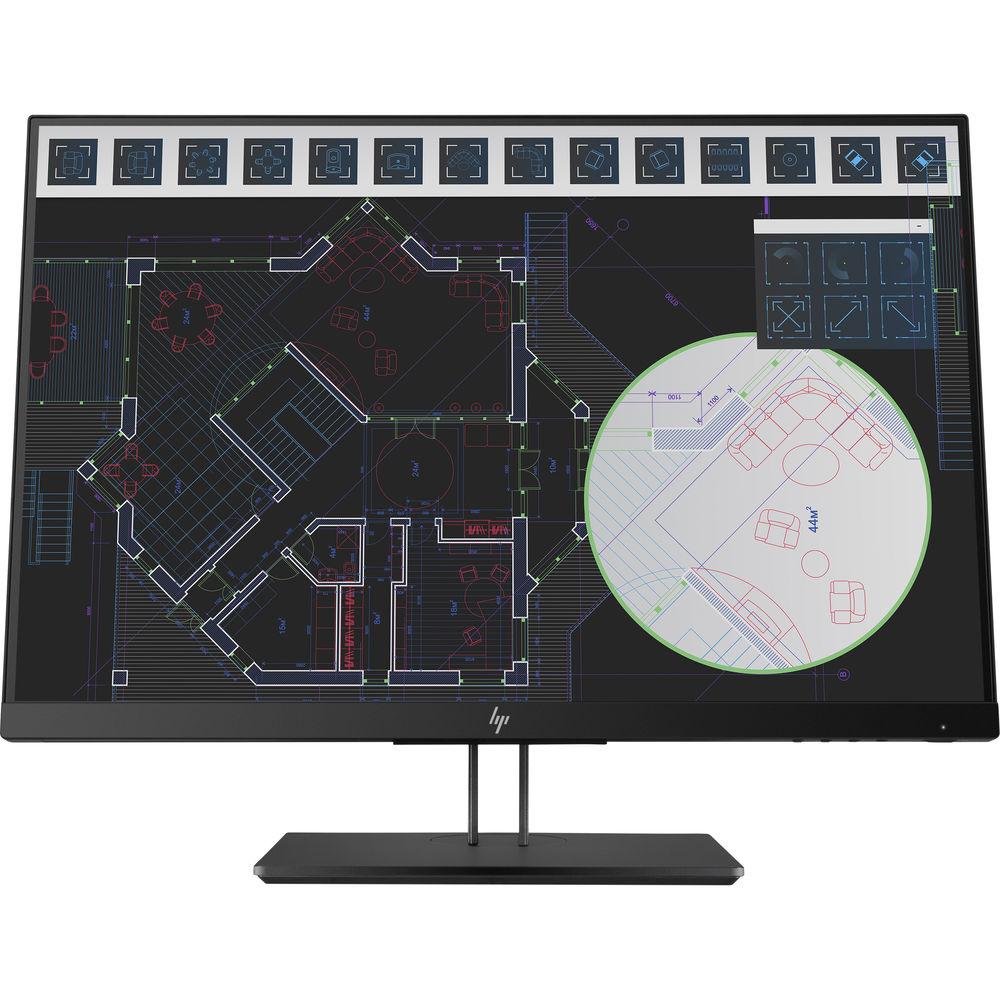

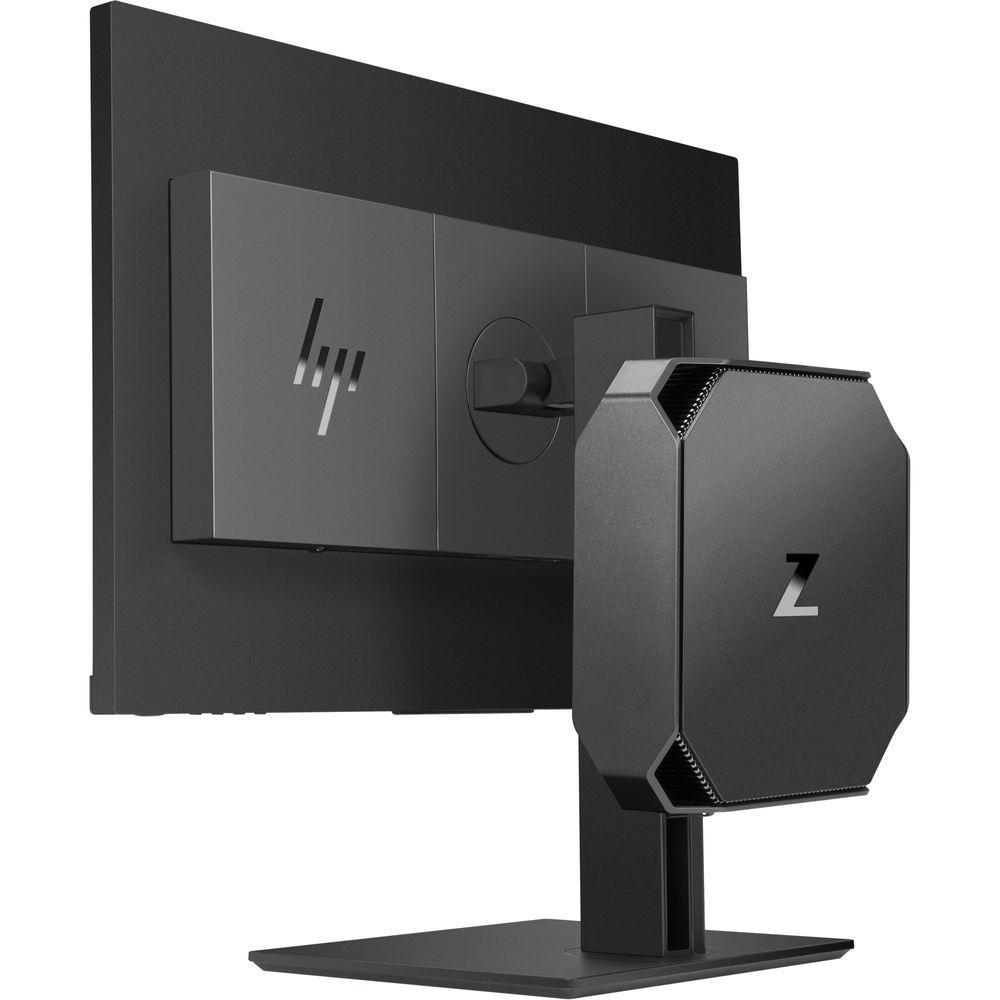

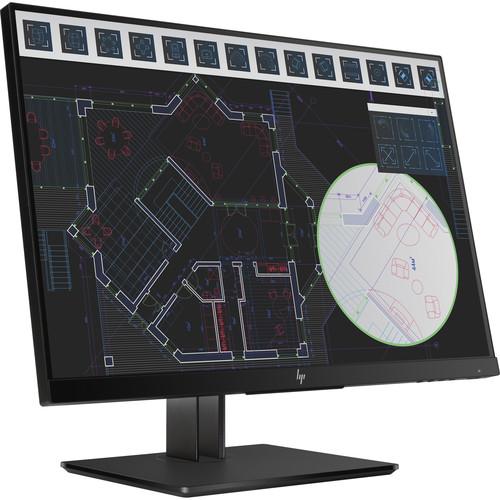

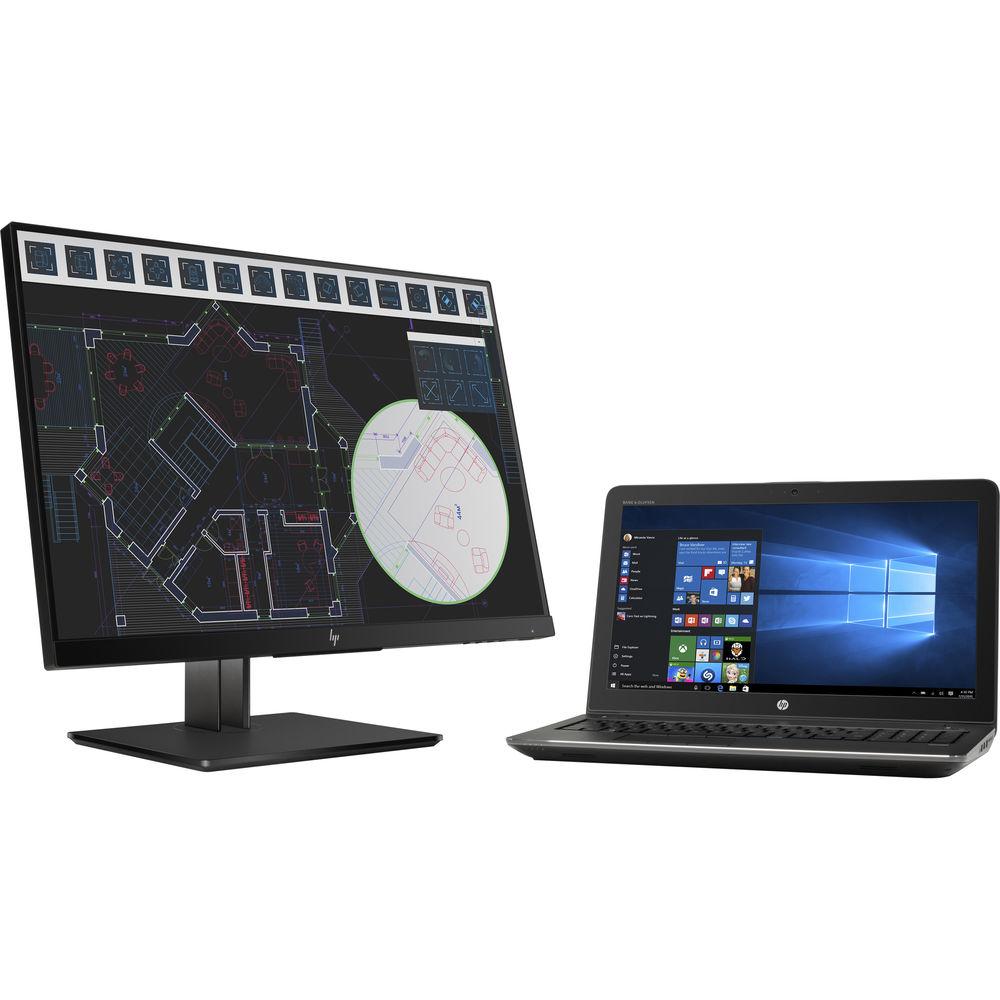

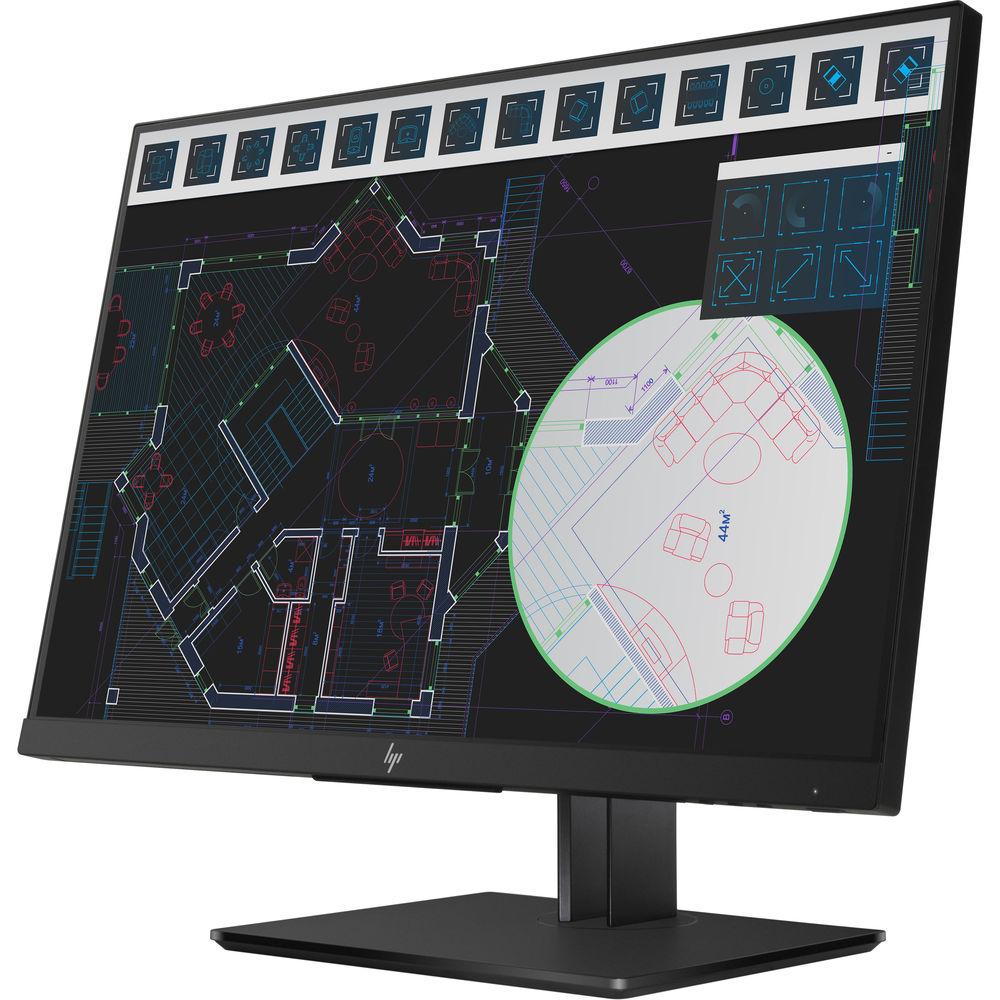

User Manual for HP Z24i G2 24" 16:10 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Z24i G2 24" 16:10 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z24i G2 24" 16:10 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Covering up to 99% of the sRGB color gamut, the Z24i G2 24" 16:10 IPS Monitor from HP can be used for a variety of tasks in which color accuracy is a must. In addition to enhanced color accuracy, this HP monitor also features a 6-bit (+2 FRC) color panel with support for up to 16.7 million colors.
Setup of the HP Z24i G2 display is simple as it comes equipped with DisplayPort, HDMI, and VGA inputs. Alongside the video inputs, you can connect USB compatible peripherals directly to the display's dual USB 3.0 Type-A ports. Once configured, this display features a 1920 x 1200 resolution IPS (In-Plane Switching) panel with 178° horizontal and vertical viewing angles. Viewers can also appreciate the 1000:1 contrast ratio and 5 ms response time for a sharper picture. Once installed, the Z24i G2 monitor can also be tilted, swiveled, pivoted into place, and the height can be adjusted for enhanced viewing comfort. -
- 4-way comfort adjustability
- Integrated quick release to attach display to a variety of VESA-compliant stands, brackets, arms, or wall mounts
- Built-in cable management system
- Security lock ready
- Zero bright dot guarantee
- On screen display controls
UPC: 190781475170 In the Box HP Z24i G2 24" 16:10 IPS Monitor AC Power Cable DisplayPort 1.2 Cable USB 3.0 Cable Limited 3-Year Warranty Quick Specs PDF 306.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z24i G2 24" 16:10 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP G2 Specs | | | Size | 24" | | Screen Area | 20.41 x 12.76" / 51.84 x 32.41 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 94 kHz | | Vertical Frequency | 60 to 75 Hz | | Pixel Clock Frequency | 190 MHz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.270 x 0.270 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x VGA
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-B (USB 3.1 Gen 1) Input | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 45 W (Maximum)
0.5 W (Standby)
20 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0.00 to 16,404' / 0 to 5000 m | | Storage Altitude | 0.00 to 39,999' / 0 to 12,192 m | | Certifications | BSMI, CE, ENERGY STAR, EPEAT GOLD, FCC, RCM, TCO Certified, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 180° (-45 to 45°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.9 x 19.8 x 8.4" / 53.1 x 50.3 x 21.3 cm (With Stand)
20.9 x 13.8 x 1.8" / 53.1 x 35.1 x 4.6 cm (Without Stand) | | Weight | 14.6 lb / 6.62 kg (With Stand)
8.2 lb / 3.72 kg (Without Stand) | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 24.5 x 16.25 x 10.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
