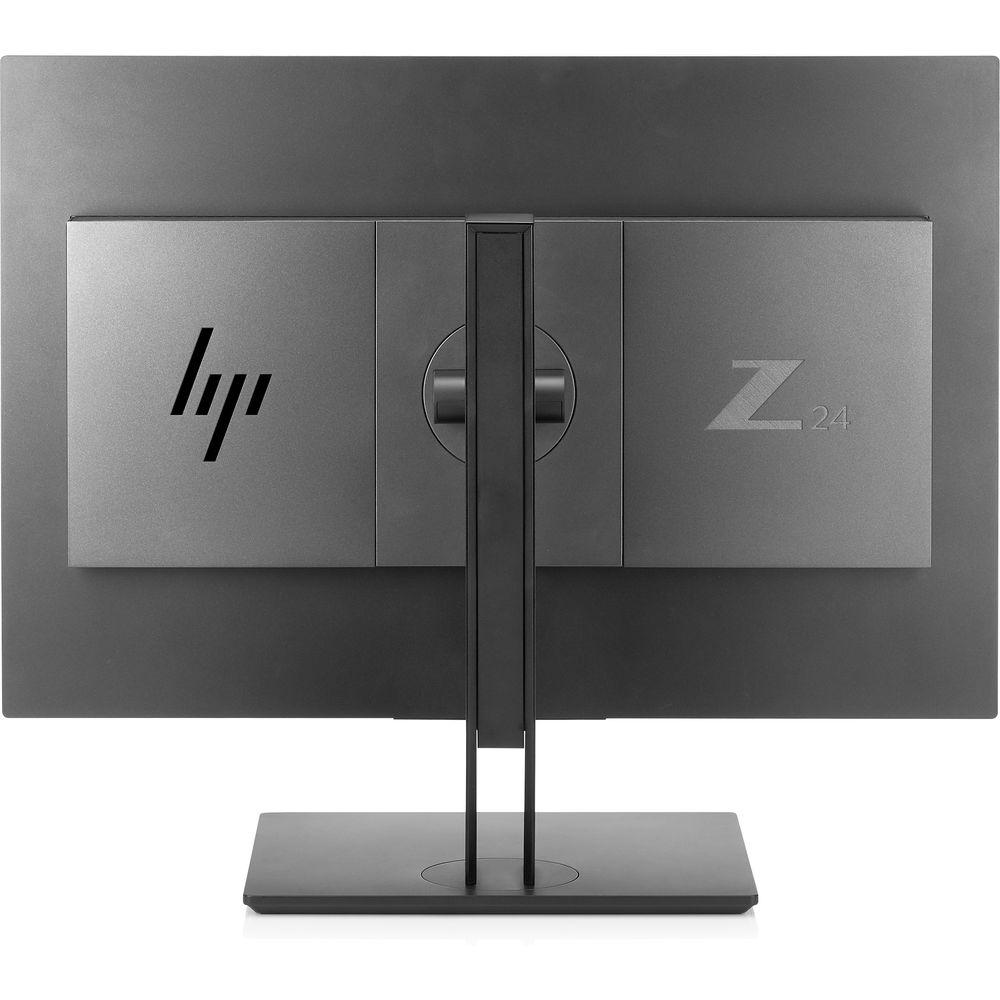

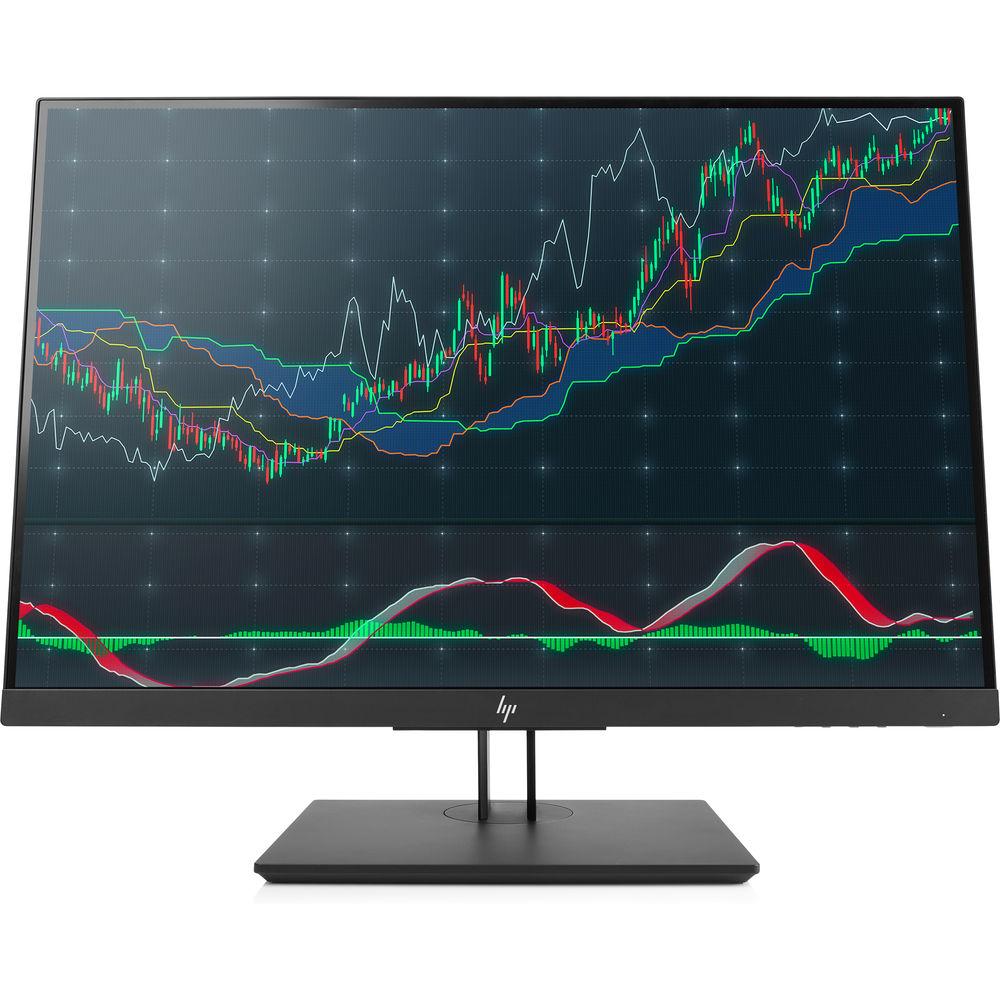

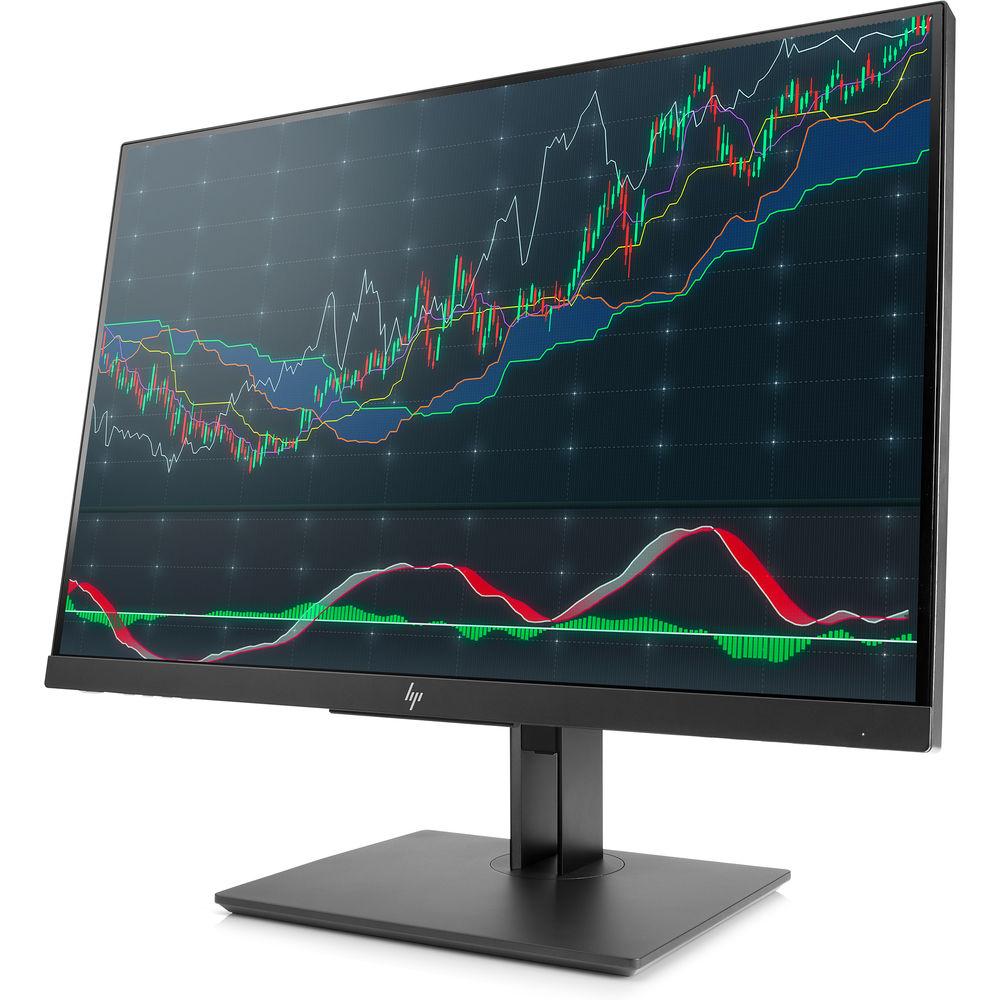

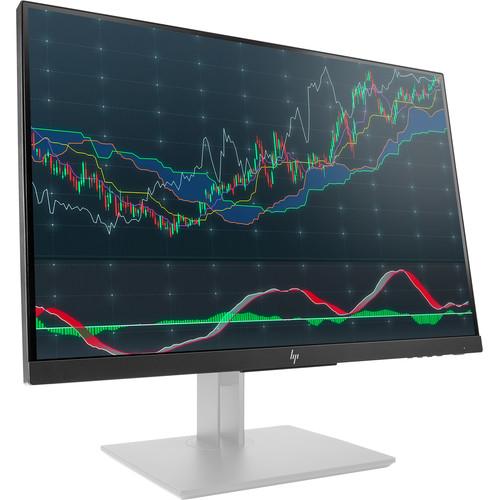

User Manual for HP Z24N G2 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Z24N G2 24" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z24N G2 24" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Watch videos, view photos, revise work documents, and more on Z24N G2 24" 16:9 IPS Monitor from HP. This IPS (In-Plane Switching) monitor features a Full HD 1920 x 1200 resolution display, a 300 cd/m² brightness rating, a 1000:1 contrast ratio, and a 6 ms response time to produce a clear picture with reduced ghosting and blur. Setup is simple as this HP display comes equipped with HDMI, DisplayPort, and DVI-D inputs along with the ability to daisy chain up to four displays. -
- Full HD 1920 x 1200 resolution
- Picture-in-picture & picture-by-picture viewing modes
- Reduced size bezels for a more intuitive viewing experience
- The IPS panel supports 178° horizontal and vertical viewing angles
- Low blue light functionality
- Factory calibrated
- Plug-and-play setup
- Zero Bright Dot Guarantee
In the Box HP Z24N G2 24" 16:9 IPS Monitor (Head Only) Power Cable DisplayPort 1.2 Cable USB 3.0 Type-C to USB Type-A Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z24N G2 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z Display Z24n G2 Specs | | | Size | 24" | | Screen Area | 20.41 x 12.76" / 51.84 x 32.40 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1200 | | Aspect Ratio | 16:10 | | Pixels Per Inch (ppi) | 94 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 27 to 94 kHz | | Vertical Frequency | 24 to 75 Hz | | Pixel Clock Frequency | 200 MHz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 6 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.270 x 0.270 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x DisplayPort 1.2 Output
1 x HDMI 1.4
1 x DVI-D
2 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-C (USB 3.1 Gen 1) Input
1 x USB Type-C (USB 3.1 Gen 1) Output
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 92 W (Maximum)
0.5 W (Eco)
40 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | USB Power Delivery | 15 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 92% | | Operating Altitude | 0.00 to 16,404' / 0 to 5000 m | | Storage Altitude | 0.00 to 39,999' / 0 to 12,192 m | | Certifications | BSMI, ENERGY STAR, EPEAT GOLD, FCC, RCM, TCO Certified, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.9 x 13.8 x 1.8" / 53.1 x 35.1 x 4.6 cm (Without Stand) | | Weight | 9.7 lb / 4.40 kg (Without Stand) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
