User Manual for HP Z24nf G2 23.8" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Z24nf G2 23.8" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z24nf G2 23.8" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

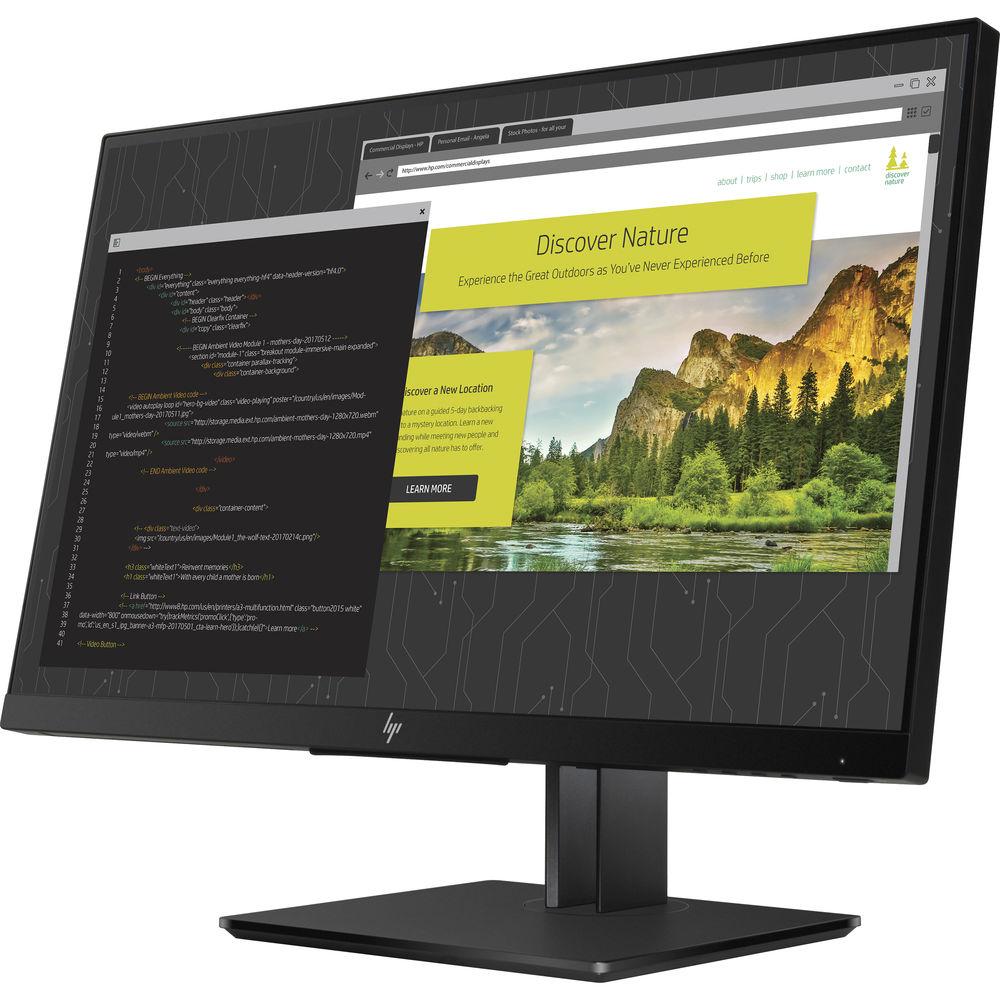

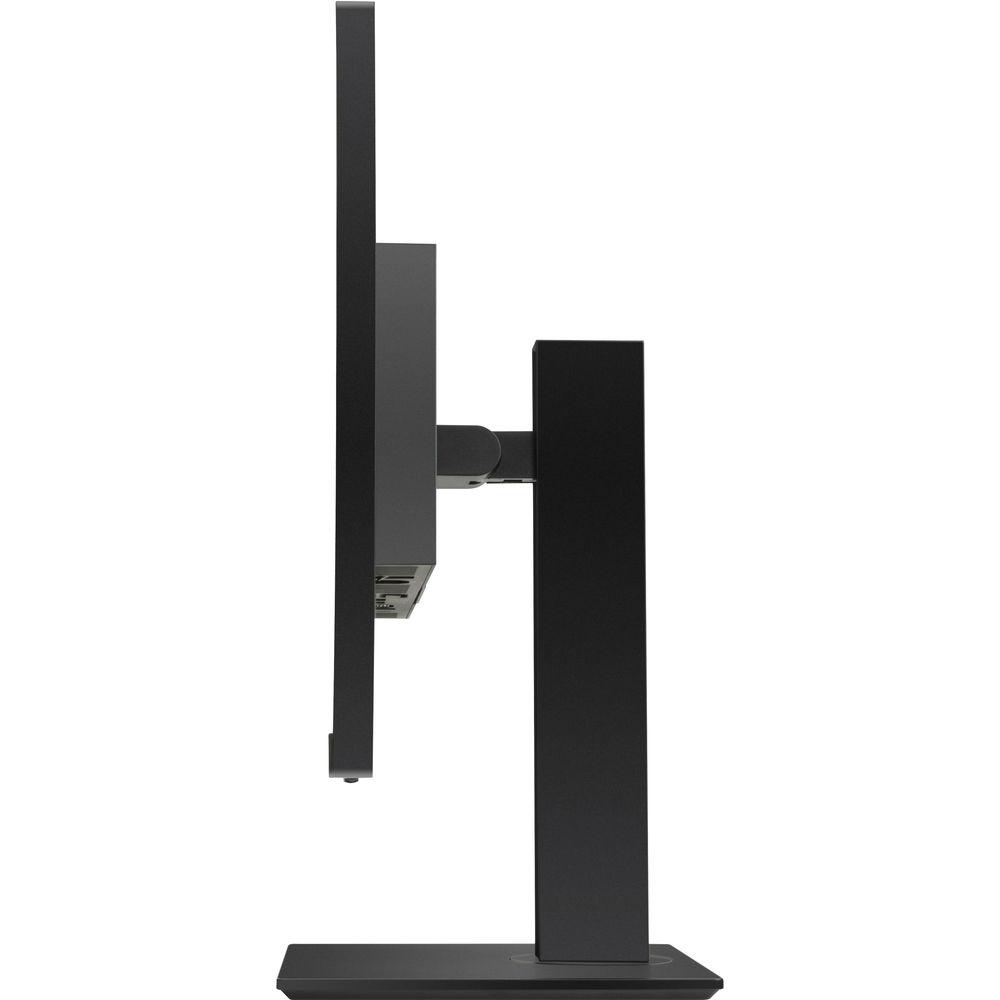

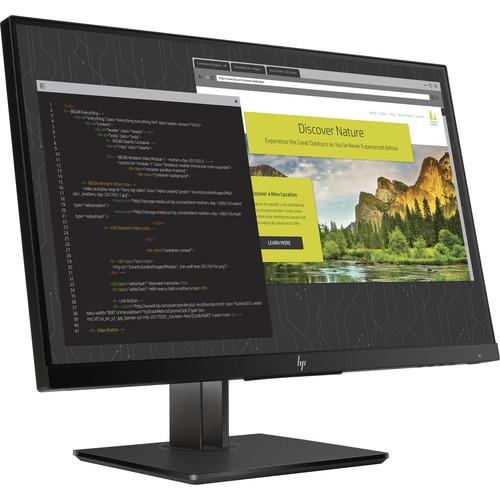

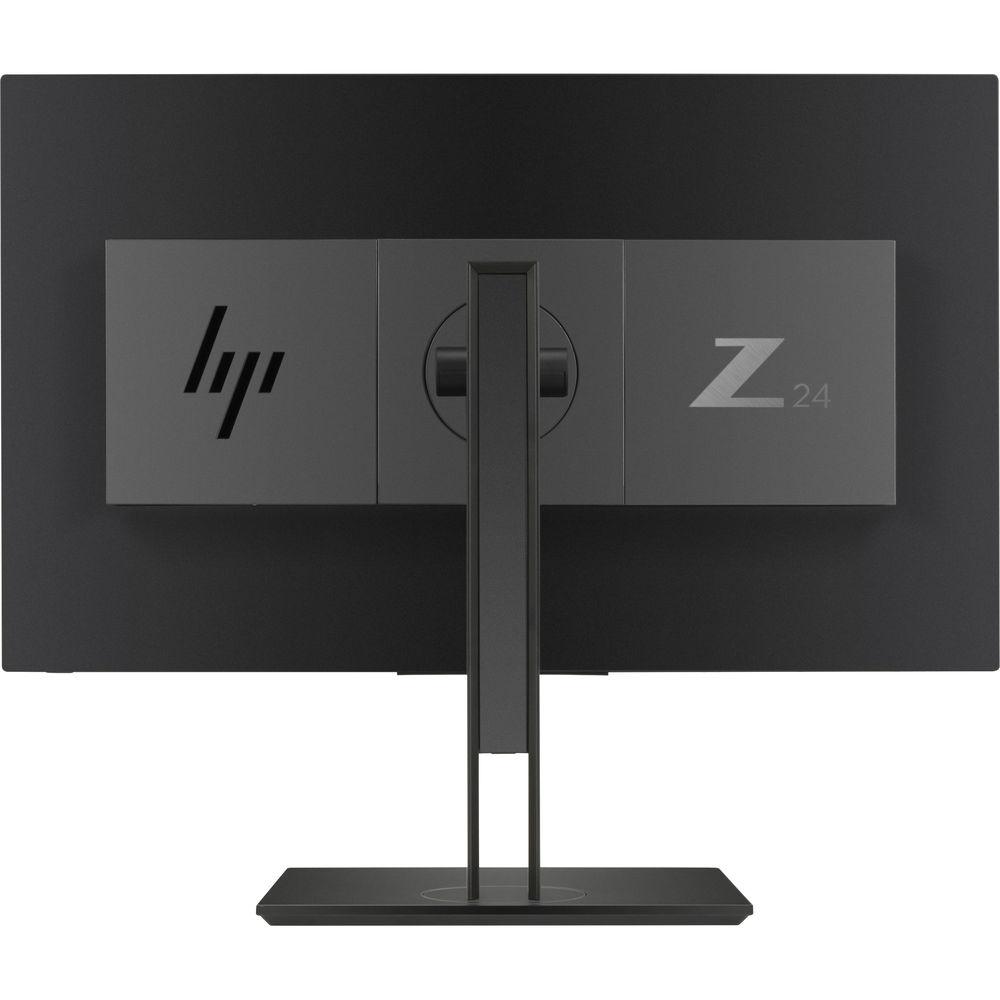

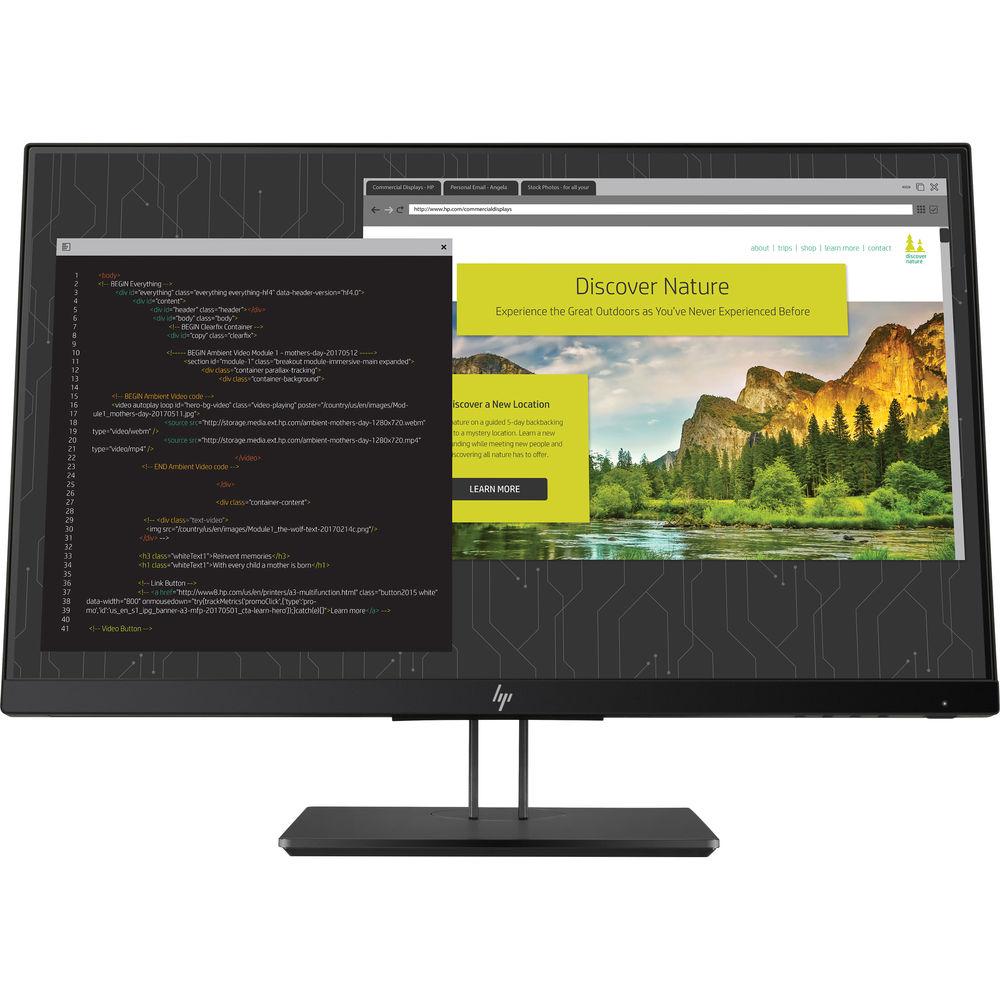

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1920 x 1080 resolution, the Z24nf G2 23.8" 16:9 IPS Monitor from HP offers enhanced picture quality to view photos, videos, documents, and more. In addition to a Full HD resolution, the HP Z24nj G2 features a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and a 5 ms response time for a more dynamic picture with reduced ghosting. This monitor is simple to set up as it features DisplayPort connectivity, making it compatible with a variety of computers. Once configured the display can be tilted, swiveled, pivoted, and the height can be adjusted for maximum viewing comfort. - Streamline Productivity
- Multi-task without disruptions across multiple displays with a 3-sided micro-edge bezel on each screen. Get improved visuals from the 1920 x 1080 resolution, 16:9 aspect ratio, 23.8" diagonal IPS (In-Plane Switching) screen and over two-million pixels.
- Enhanced Color Representation
- Consistent, accurate color between displays and from project to project is easier with factory color calibration from the very first time you power on.
- Quality from the Start
- Each HP Z Display is rigorously tested to help ensure it's a reliable, visual solution, and back it up with the HP Zero Bright Dot Guarantee, HP's most stringent pixel policy, which replaces the screen if even one bright sub-pixel fails.
- Designed for Small Spaces
- Make the most of your available workspace by mounting powerful machines like the HP Z2 Mini Workstation directly behind the display for a compact, efficient, single-footprint solution.
UPC: 190781474968 In the Box HP Z24nf G2 23.8" 16:9 IPS Monitor (Smart Buy) AC Power Cord USB Cable DisplayPort 1.2 Cable Limited 3-Year Warranty Guides & Manuals More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z24nf G2 23.8" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the HP Z24nf G2 23.8" 16:9 IPS Monitor can be downloaded in PDF format at the link stated below.
Technical parametersHP G2 Specs | | | Size | 23.8" | | Screen Area | 20.74 x 11.67" / 52.68 x 29.64 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 84 kHz | | Vertical Frequency | 50 to 75 Hz | | Pixel Clock Frequency | 180 MHz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 95% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2745 x 0.2745 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x VGA
1 x USB Type-B (USB 3.1 Gen 1) Output
2 x USB Type-A (USB 3.1 Gen 1) Input | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 35 W (Maximum)
0.5 W (Standby)
19 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0.00 to 16,404' / 0 to 5000 m | | Storage Altitude | 0.00 to 39,999' / 0 to 12,192 m | | Certifications | BSMI, CE, ENERGY STAR, EPEAT GOLD, FCC, RCM, TCO Certified, TUV, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 5.91" / 150 mm | | Rotation Adjustment | 90° (-45 to 45°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 22° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.2 x 18.2 x 8.1" / 53.8 x 46.2 x 20.6 cm (With Stand)
21.2 x 12.7 x 1.7" / 53.8 x 32.3 x 4.3 cm (Without Stand) | | Weight | 12.3 lb / 5.58 kg (With Stand)
6.8 lb / 3.08 kg (Without Stand) | | | | Package Weight | 18.3 lb | | Box Dimensions (LxWxH) | 24.0 x 15.5 x 10.5" |
