User Manual for HP Z27n G2 27" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the HP Z27n G2 27" 16:9 IPS
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z27n G2 27" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

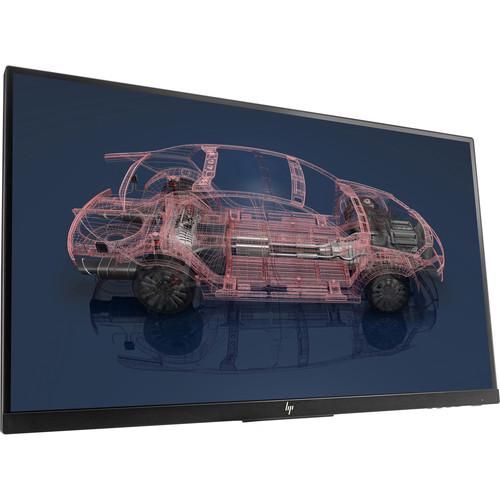

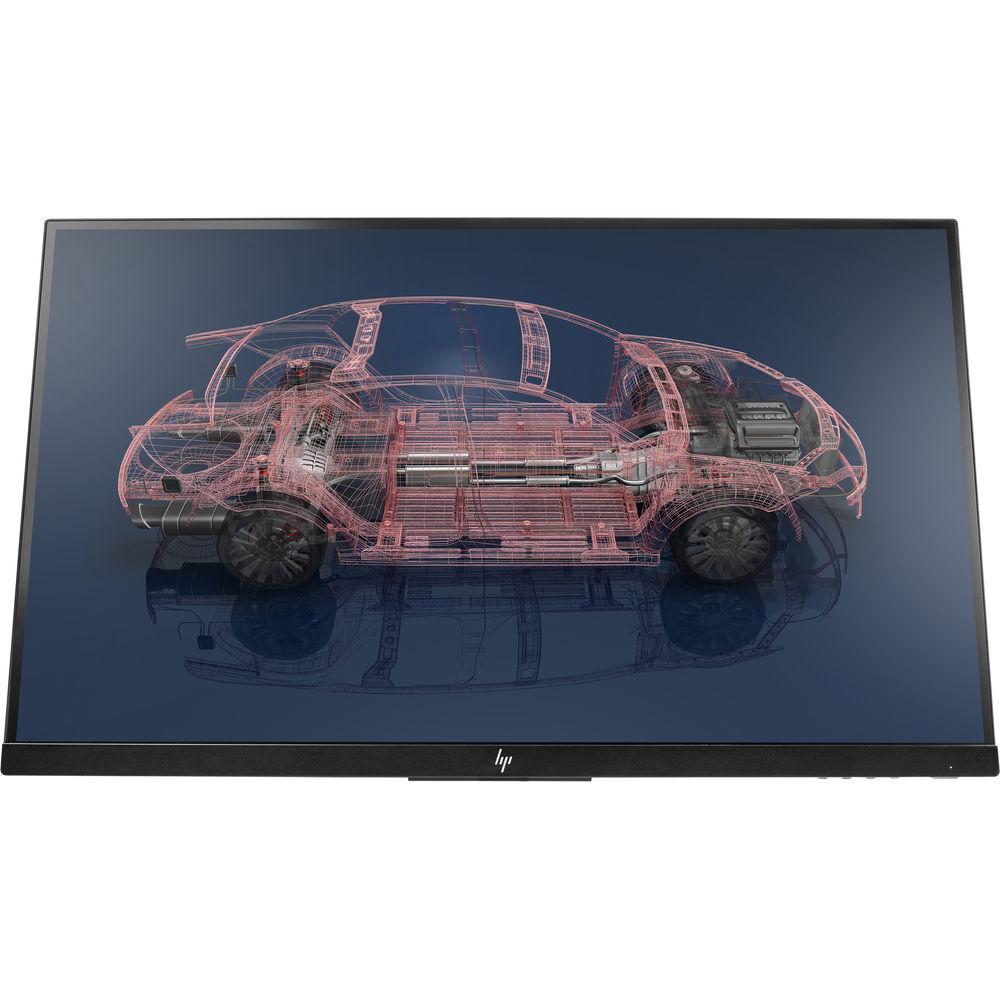

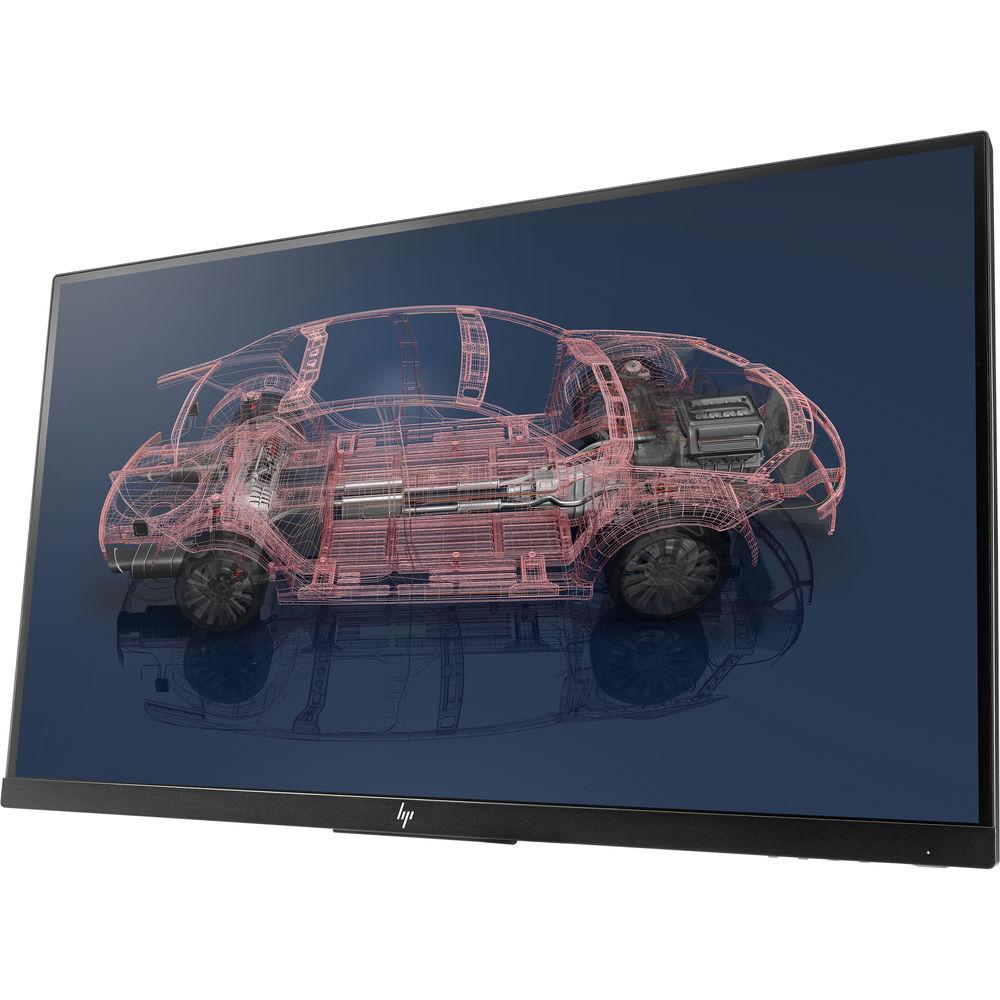

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More xzcwccryvvbfxduvbddbxrtt The Z27n G2 27" 16:9 IPS Monitor from HP is an anti-glare panel featuring a native resolution of 2560 x 1440 @ 60 Hz, In-Plane Switching (IPS) technology, a widescreen 16:9 aspect ratio, a static contrast ratio of 1000:1, a dynamic contrast ratio of 10,000,000:1, 300 cd/m2 brightness, 112 pixels per inch, and a 14 ms (GtG) response time that can be adjusted as low as 5.3 ms. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display can accept input signals using its DisplayPort 1.2, HDMI 1.4, and DVI-D inputs, plus an upstream USB 3.0 Type-C port, which not only supports DisplayPort 1.2, but also power delivery up to 15W (5V, 3A). Other featured connections include three downstream USB 3.0 Type-A ports and one downstream USB 3.0 Type-C port that provides 10W (5V/2A) of power for charging compatible devices.
HP has engineered the Z27n G2 with 8-bit color that supports up to 16.7 million colors. It also supports >99% of the sRGB color gamut with factory calibration at a color temperature of D65.
General Features - Experience sweeping panoramic visuals with the wide viewing angles of the 27" diagonal screen and 16:9 aspect ratio
- See every nuance of your project in sharp detail with 2560 x 1440 @ 60 Hz resolution. With 112 pixels per inch, your text and fonts are just the right size
- See consistently accurate and bright images across the entire screen with up to 178° horizontal and vertical viewing angles
- Less cables, less clutter. The USB 3.0 Type-C connection delivers video, data, and 15W of power, all with one cable
- DisplayPort 1.2, USB 3.0 Type-C to Type-A, and an AC power cable comes standard so you can quickly set up and easily connect most compatible devices
- Count on factory-calibrated color from the very first time you power on for reliable color between displays and from project to project
- The Z27n G2 has a standard VESA mounting adapter for mounting to monitor arms
- Your screen is guaranteed to have no bright sub-pixel defects, or HP will replace it
In the Box HP Z27n G2 27" 16:9 IPS Monitor (Head Only) AC Power Cord (6.2' / 1.9m) DisplayPort 1.2 Cable (5.9' / 1.8m) USB 3.0 Type-C to Type-A Cable (5.9' / 1.8m) VESA Mount Adapter Zero Bright Dot Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z27n G2 27" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z Display Z27n G2 Specs | | | Size | 27" | | Screen Area | 23.49 x 13.21" / 59.66 x 33.55 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 2560 x 1440 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 112 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 10,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 27 to 112 kHz | | Vertical Frequency | 24 to 75 Hz | | Pixel Clock Frequency | 310 MHz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 5 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.233 x 0.233 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2 Input
1 x DisplayPort 1.2 Output
1 x HDMI 1.4
1 x DVI-D
3 x USB Type-A (USB 3.1 Gen 1) Output
1 x USB Type-C (USB 3.1 Gen 1) Output
1 x USB Type-C (USB 3.1 Gen 1) Input | | HDCP Support | Yes | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 115 W (Maximum)
0.5 W (Standby)
48 W (Typical) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 15 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | Storage Humidity | 5 to 95% | | Operating Altitude | 0.00 to 16,404' / 0 to 5000 m | | Storage Altitude | 0.00 to 39,999' / 0 to 12,192 m | | Certifications | BSMI, ENERGY STAR, EPEAT GOLD, FCC, Microsoft WHQL, TCO Certified, WEEE, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 24.1 x 14.3 x 1.9" / 61.2 x 36.3 x 4.8 cm (Without Stand) | | Weight | 11.5 lb / 5.22 kg (Without Stand) |
