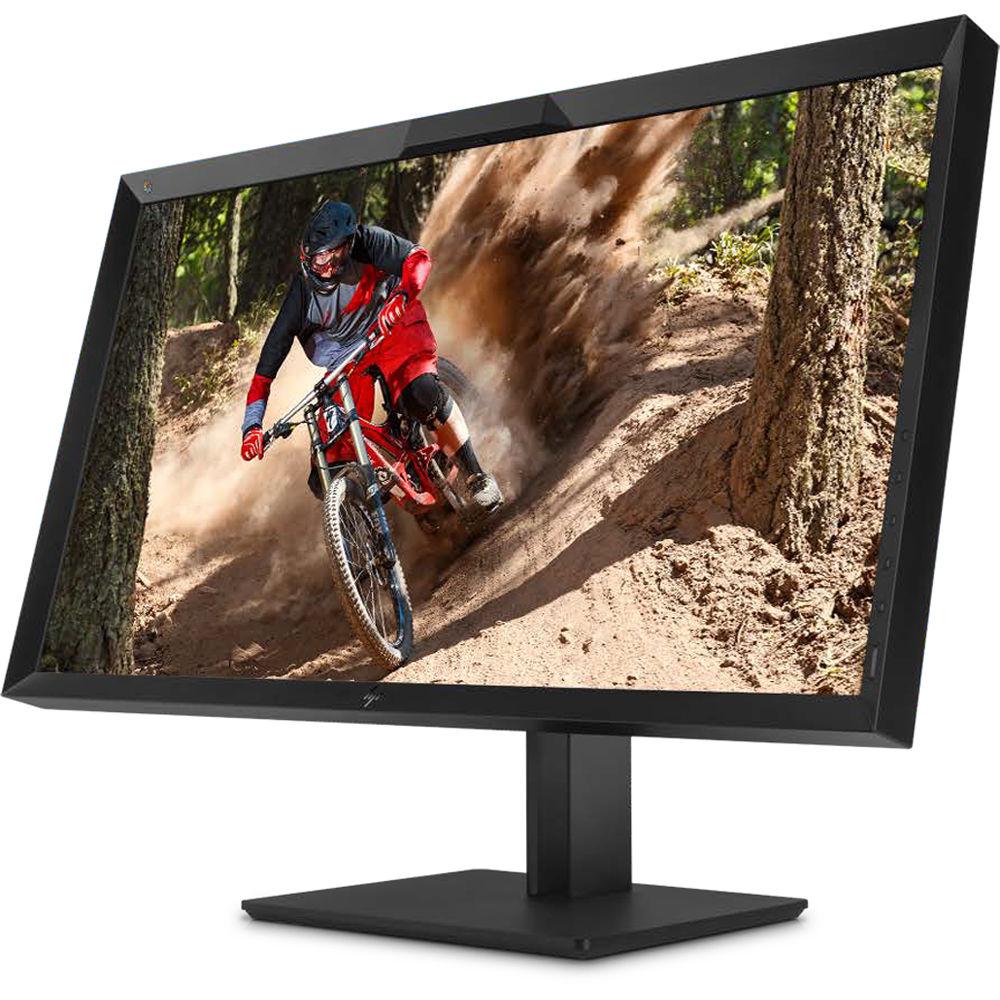

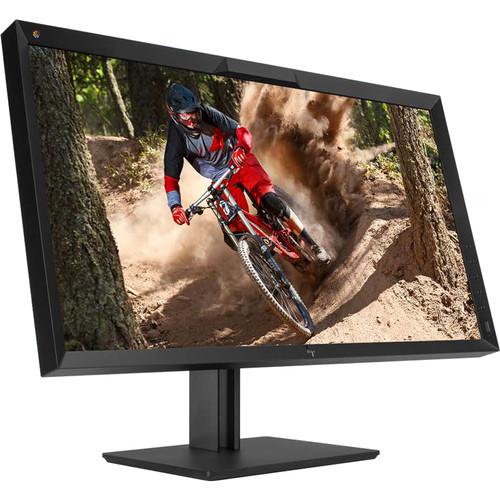

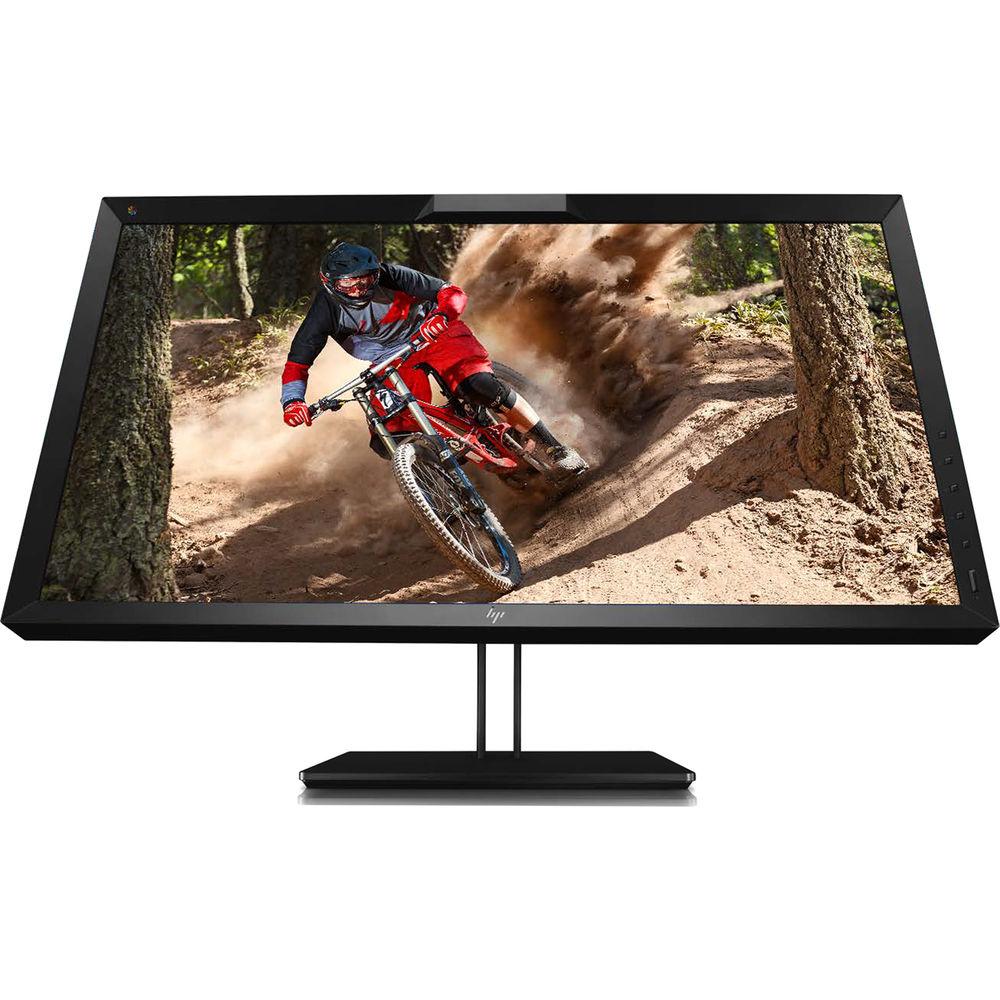

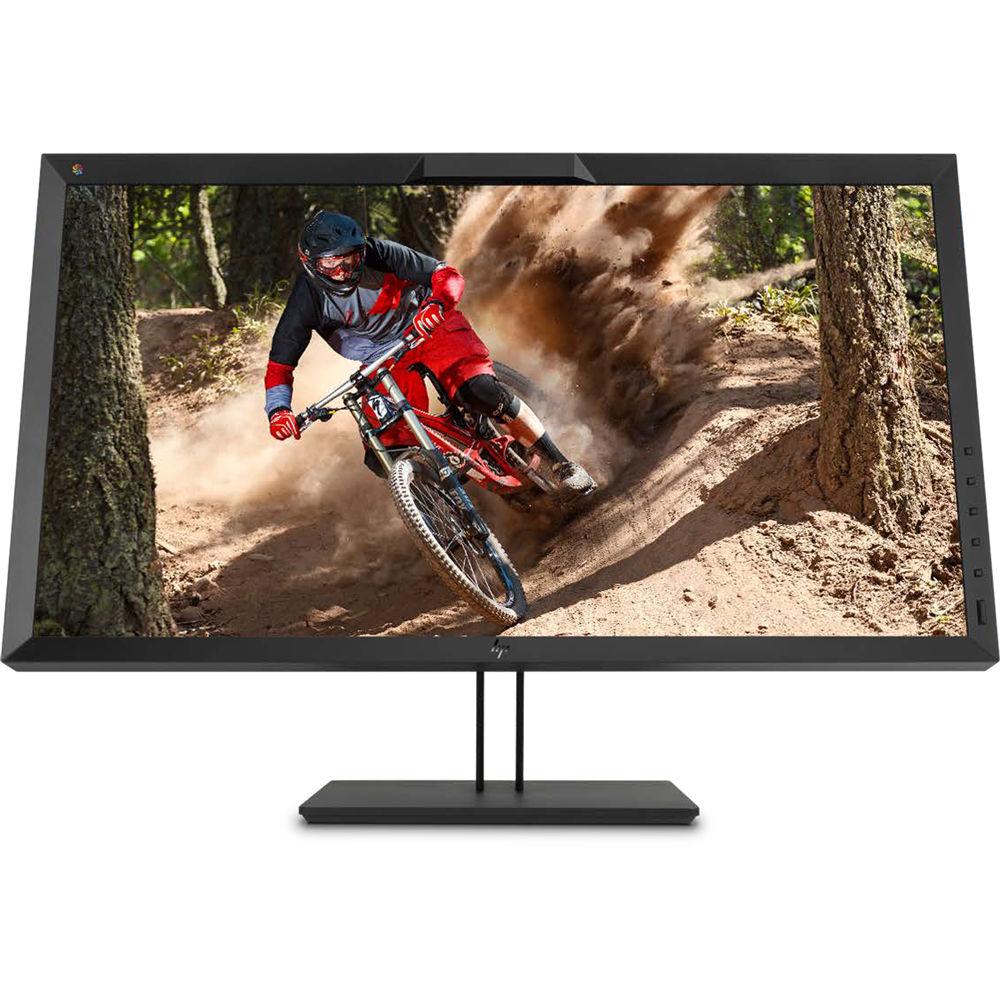

User Manual for HP Z31x 31.1" 17:9 DreamColor Studio Cinema 4K IPS Display Click to enlarge the picture
Contents of the user manual for the HP Z31x 31.1" 17:9 DreamColor Studio
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z31x 31.1" 17:9 DreamColor Studio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More rbsyrfdref Designed for elite color professionals, the Z31x 31.1" 17:9 DreamColor Studio Cinema 4K IPS Display from HP helps bring bold visions to life. This anti-glare, BrightView panel features a native Cinema 4K resolution of 4096 x 2160 @ 60 Hz, In-Plane Switching (IPS) technology, a widescreen 17:9 aspect ratio, a static contrast ratio of 1500:1, 250 cd/m2 brightness, and a 10 ms response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display can accept input signals using its dual DisplayPort 1.2 ports, dual HDMI 2.0 ports, and one USB Type-C port, which not only supports DisplayPort 1.2, but also power delivery up to 60W. Other featured connections include four USB 3.0 Type-A ports (downstream) and one USB 3.0 Type-B port (upstream).
HP has engineered the Z31x with 10-bit color that supports 100% of the sRGB, BT.709, and Adobe RGB gamuts, 99% of the DCI-P3 gamut, and 80% of the BT.2020 gamut. Aside from its native 4096 x 2160 resolution, it is also able to support resolutions of 3840 x 2160, 2048 x 2160, 2560 x 1440, 2048 x 1080, 1920 x 1080, 1366 x 768, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600, 720 x 400, and 640 x 480.
To further help improve viewing and accessibility, the Z31x features a tilt of -5 to 30°. a swivel of ±45°, and a height adjustment of 4.6". This display operates using 100 to 240 VAC and includes an AC power cable, a DisplayPort 1.2 cable, an HDMI cable, a USB Type-C to Type-C cable, a USB Type-C to Type-A cable, and a USB Type-A to Type-B cable. General Features - HP DreamColor Technology
- The HP DreamColor Technology won the 2015 Scientific and Engineering Award from the Academy of Motion Picture Arts and Sciences
- More Time Creating, Less Time Calibrating
- Maintain accurate color with a pop-up sensor that calibrates on-demand or on a regular schedule
- Designed by and for Professionals
- HP worked with leading visual effects and animation studios to create customized solutions for the design process, allowing them to deliver precise theater-quality color. Speed projects to completion with True 2K, onscreen markers, and keyboard-based input switching between your devices.
Display Features In the Box HP Z31x 31.1" 17:9 DreamColor Studio Cinema 4K IPS Display DisplayPort 1.2 Cable HDMI Cable USB Type-C to Type-C Cable USB Type-C to Type-A Cable USB Type-A to Type-B Cable AC Power Cable Zero Bright Dot Guarantee Limited 3-Year Warranty More from Manufacturer rbsyrfdref Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z31x 31.1" 17:9 DreamColor Studio Cinema 4K IPS Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP DreamColor Z31x Specs | | | Size | 31.1" | | Screen Area | 27.48 x 14.49" / 69.79 x 36.80 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 4096 x 2160 | | Aspect Ratio | 17:9 | | Pixels Per Inch (ppi) | 149 ppi | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1500:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 20 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x DisplayPort 1.2
2 x HDMI 2.0
1 x USB (USB 3.1 Gen 1) Input
4 x USB (USB 3.1 Gen 1) Output
1 x USB Type-C | | HDCP Support | Yes | | Built-In Speakers | None | | | | Power Consumption | 260 W (Maximum)
120 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 60 W | | | | Certifications | BSMI, CE, FCC, Kcc, Microsoft WHQL, TUV, VCCI, as per Manufacturer | | | | Height Adjustment | 4.61" / 117 mm | | Rotation Adjustment | None | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 30° | | Dimensions (W x H x D) | 29.1 x 9.8 x 22.3" / 73.8 x 24.8 x 56.6 cm (With Stand)
29.1 x 3.3 x 16.3" / 73.8 x 8.3 x 41.4 cm (Without Stand) | | Weight | 33.07 lb / 15 kg (With Stand) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
