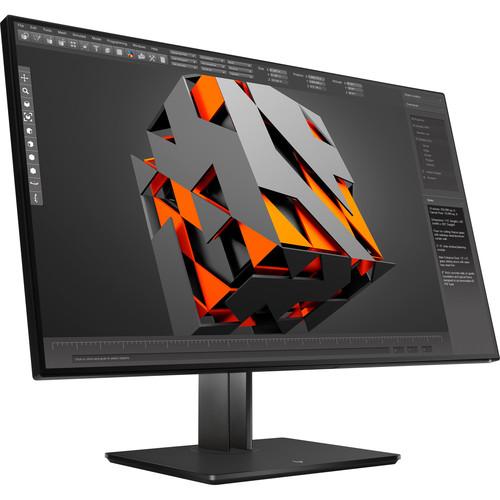

User Manual for HP Z32 31.5" 16:9 4K UHD IPS Display Click to enlarge the picture
Contents of the user manual for the HP Z32 31.5" 16:9 4K UHD
- Product category: Computer Monitors HP
- Brand: HP
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for HP Computer Monitors
 |
User manual for the HP Z32 31.5" 16:9 4K UHD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any HP product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official HP user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a HP product will considerably shorten its lifespan!
|

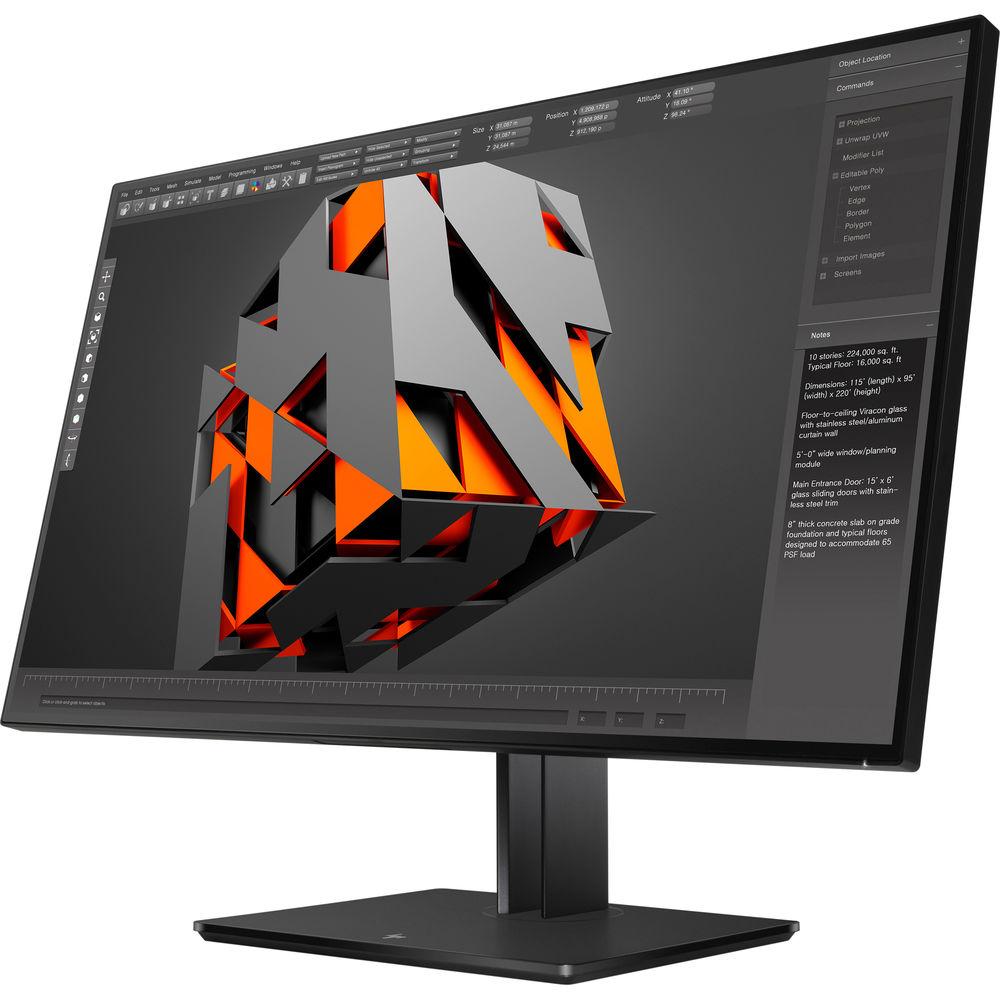

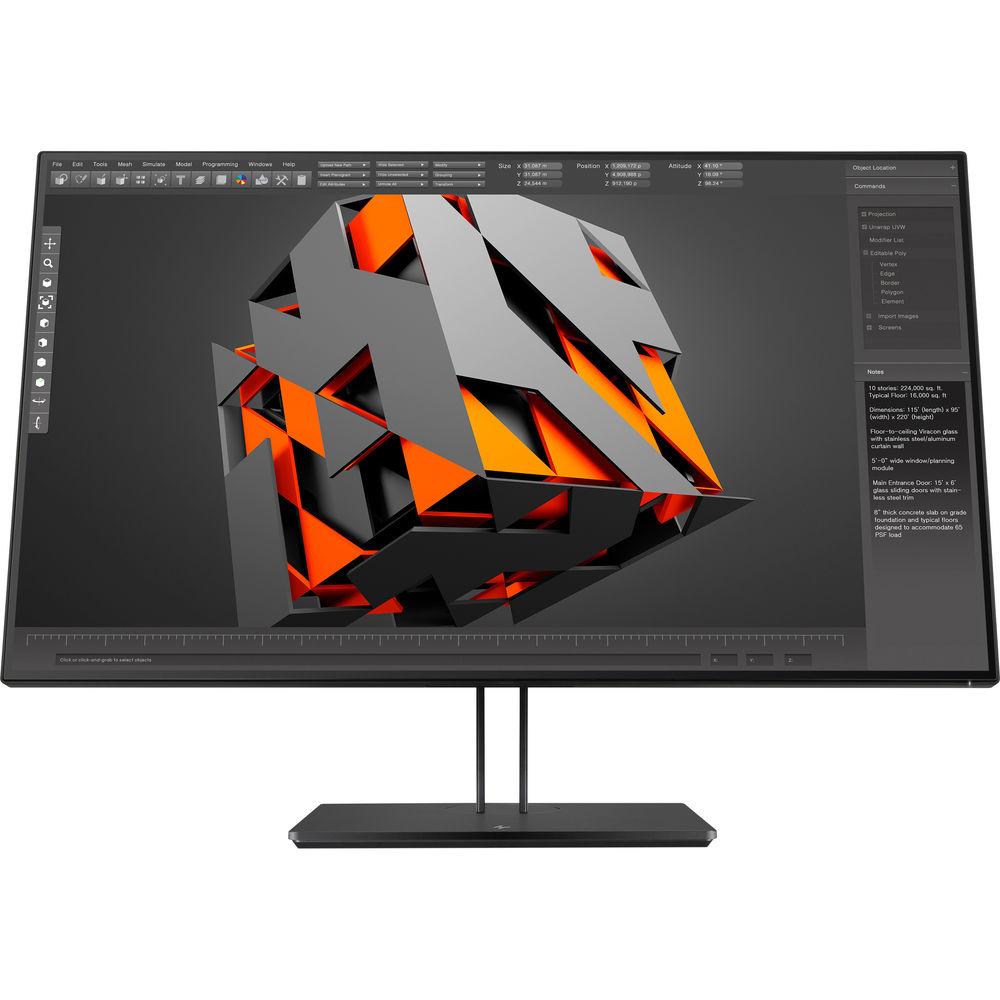

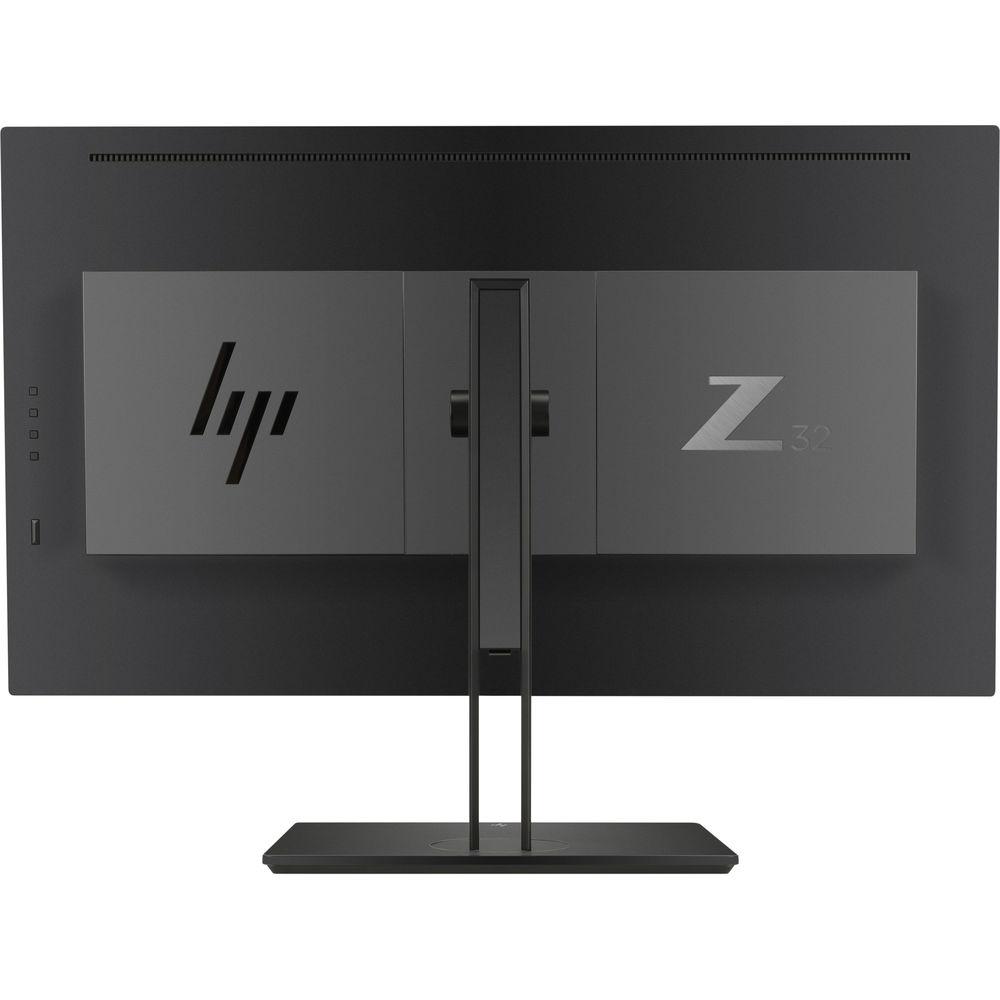

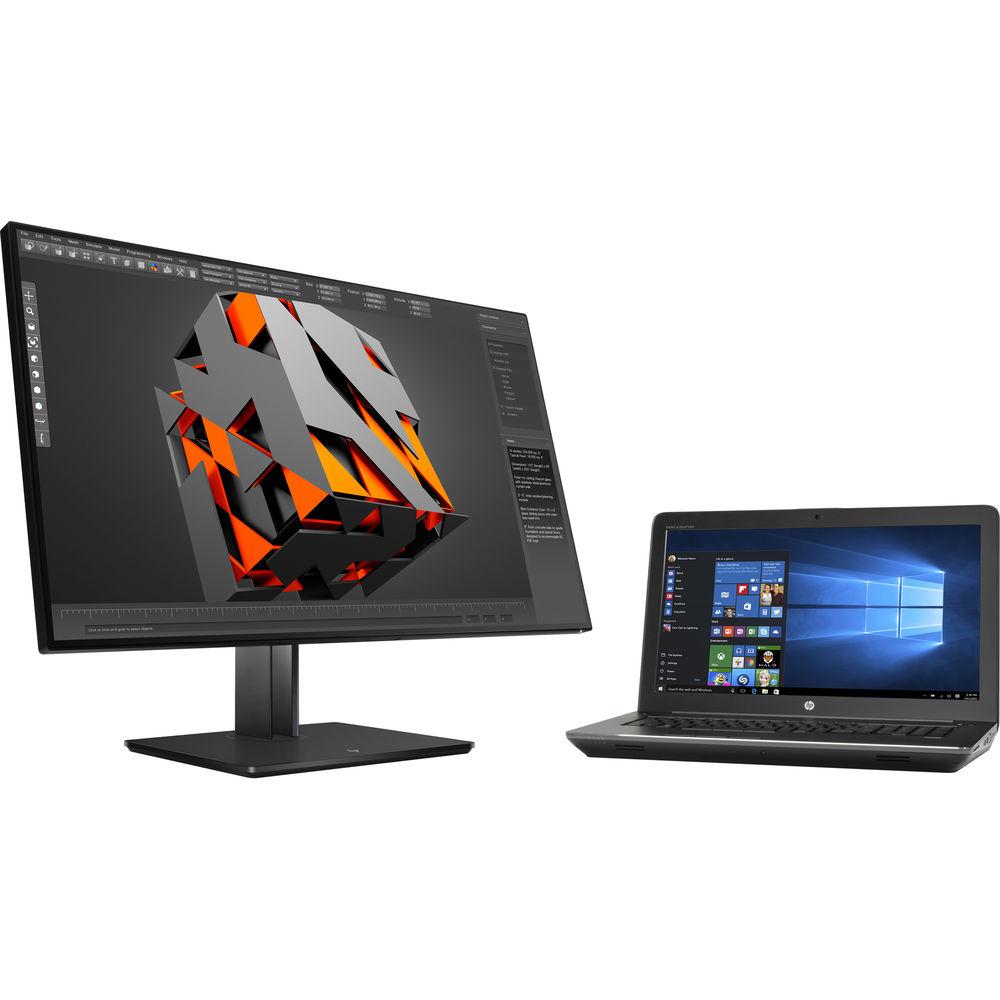

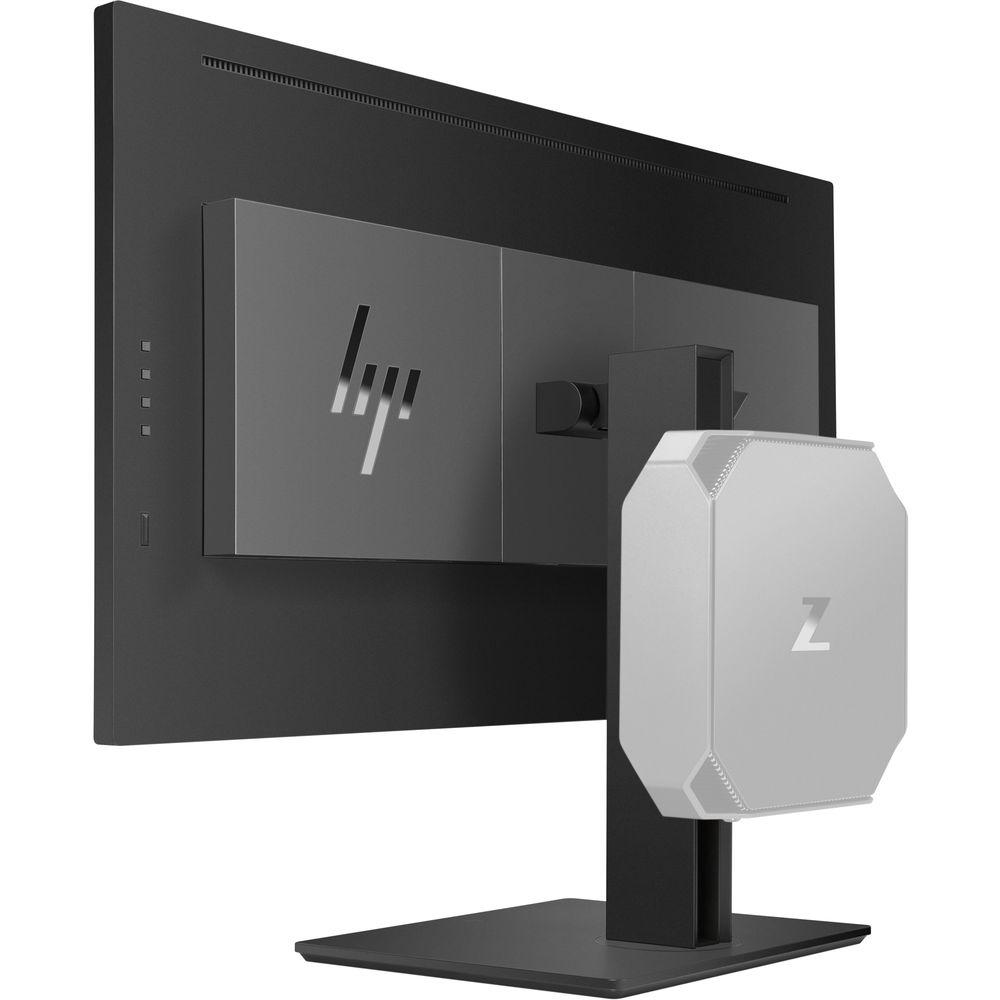

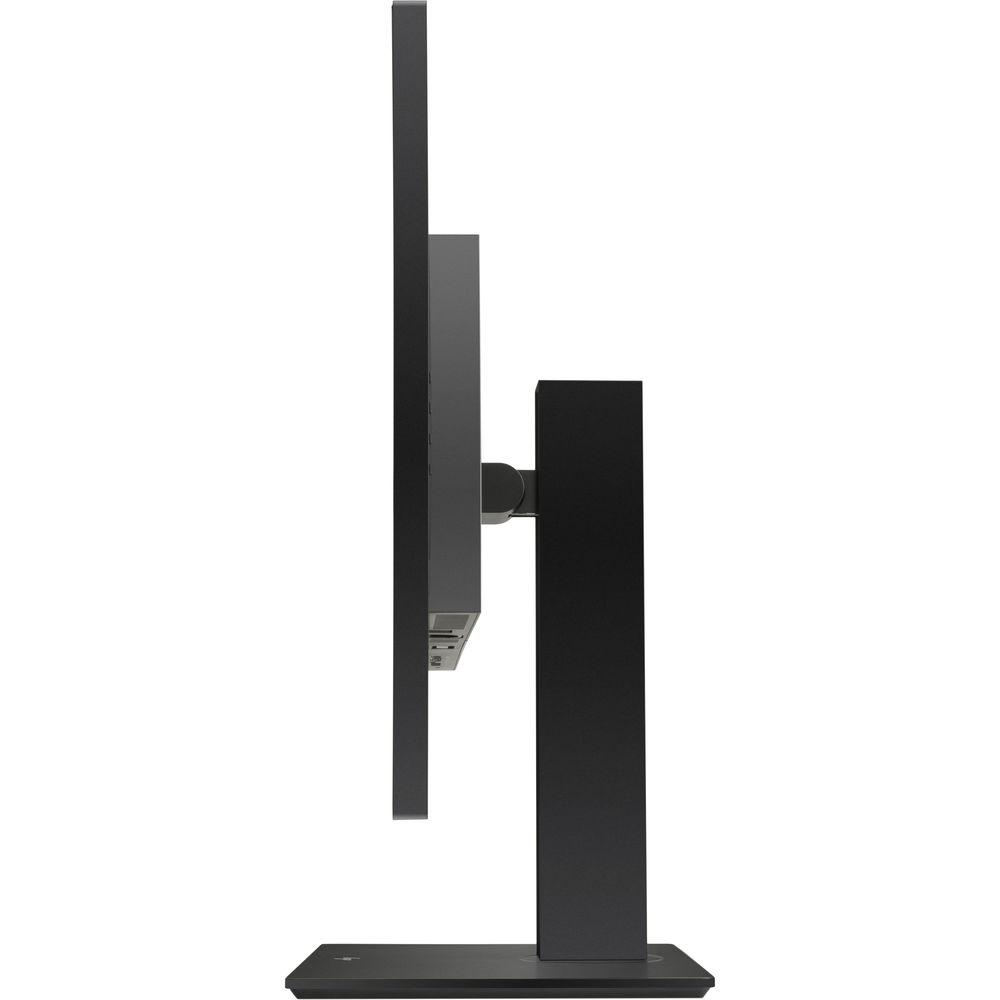

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Z32 31.5" 16:9 4K UHD IPS Display from HP features an expansive 31.5" display with slim bezels and a 3840 x 2160 4K UHD resolution for an immersive viewing experience with crisp and clear details. It also has a 350 cd/m² brightness rating, a 1300:1 static contrast ratio, and support for 1.07 billion colors to provide you with brighter bright colors and deeper blacks. With multiple connectivity options including DisplayPort, Mini DisplayPort, HDMI, and USB Type-C, this display is compatible with a wide variety of systems. Once it's connected, you'll be able to tilt, swivel, and adjust its height to your viewing preference. Otherwise, you can install your own mount, stand, or arm using the VESA mounting holes on the back. - 4K Resolution
- With a 3840 x 2160 4K UHD resolution, this display provides you with plenty of screen real estate for viewing more lines of codes, bigger spreadsheets, and more.
- USB Type-C
- USB Type-C can receive both video and data from your device as well as deliver up to 65W of power.
- Built-In USB 3.0 Hub
- With USB 3.0 ports built into the side and bottom of the monitor, you can quickly and easily connect your USB compatible devices such as a mouse, keyboard, webcam, headset, flash drive, and more.
UPC: 190781013792 In the Box HP Z32 31.5" 16:9 4K UHD IPS Display Power Cable USB Type-C to Type-A Cable DisplayPort Cable Limited 3-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z32 31.5" 16:9 4K UHD IPS Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP Z32 Specs | | | Size | 31.5" | | Screen Area | 27.45 x 15.44" / 69.73 x 39.22 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 140 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1300:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 28 to 135 kHz | | Vertical Frequency | 29 to 60 Hz | | Pixel Clock Frequency | 533.25 MHz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 99% sRGB | | Response Time | 14 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.18159 x 0.18159 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2
1 x Mini DisplayPort 1.2
1 x HDMI 2.0
1 x 3.5 mm Output
1 x USB Type-C (USB 3.1 Gen 1) Input
1 x USB Type-C (USB 3.1 Gen 1) Output
3 x USB Type-A (USB 3.1 Gen 1) | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | Supported Languages | English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 185 W (Maximum)
70 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | USB Power Delivery | 65 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 0.00 to 16,404' / 0 to 5000 m | | Storage Altitude | 0.00 to 39,999' / 0 to 12,192 m | | Certifications | BSMI, CE, EAC, ENERGY STAR, EPEAT GOLD, FCC, Kcc, TCO Certified, UL, VCCI, WEEE, as per Manufacturer | | | | Height Adjustment | 4.72" / 120 mm | | Rotation Adjustment | None | | Swivel Adjustment | 90° | | Tilt Adjustment | -5 to 20° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 28.1 x 22.2 x 9.8" / 713.7 x 563.9 x 248.9 mm (With Stand)
29.2 x 16.2 x 1.8" / 741.7 x 411.5 x 45.7 mm (Without Stand) | | Weight | 26.81 lb / 12.16 kg (With Stand)
16.73 lb / 7.59 kg (Without Stand) | | | | Package Weight | 32.6 lb | | Box Dimensions (LxWxH) | 32.5 x 20.0 x 12.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
