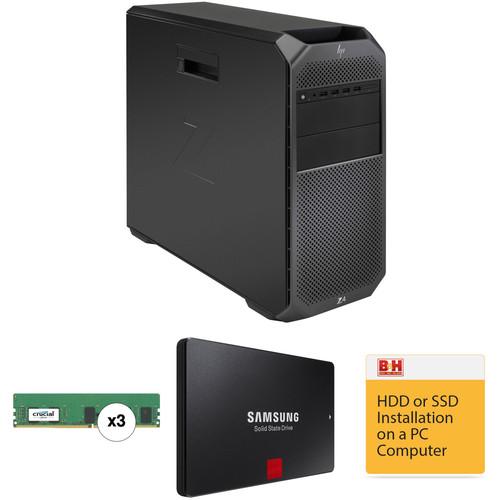

HP Z4 G4 Series Tower Custom

User Manual for HP Z4 G4 Series Tower Custom Workstation

• Product category: PC Workstations HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP PC Workstations

Product description

• HP Z4 G4 Series Tower Workstation Designed for engineering, visualization, and machine learning, the VR-ready Z4 G4 Series Tower Workstation from HP delivers the performance necessary for a wide spectrum of applications, including 3D CAD & rendering, simulation applications, VFX & design visualization, machine learning and edge-computing environments, and other intensive tasks. Its exterior provides tool-free access to a modular interior, while internal cooling solutions help to ensure its components won't overheat. The system is powered by a 3.6 GHz Intel Xeon W-2123 Quad-Core processor and 8.25MB of Intel Smart Cache memory, all of which will allow you to run multiple applications simultaneously and provide significant performance gains when running multi-threaded tasks. If more power is needed, the CPU can deliver extra performance by increasing its clock speed up to 3.9 GHz utilizing Intel's Turbo Boost 2.0 technology.

  The 8GB of 2666 MHz DDR4 ECC Registered RAM comes in a 1 x 8GB configuration, allowing the computer to run multiple applications simultaneously and to quickly access frequently-used files and programs. As this RAM features ECC technology, it is able to help detect and correct the most common kinds of internal data corruption. This RAM is also registered, and registered memory modules, also known as buffered memory modules, place less electrical load on the memory controller and allow single systems to remain stable with more memory modules than they would have otherwise.

  For long-term storage of your files, this system is equipped with a 1TB 7200 rpm SATA 3.5" hard drive. If you want to add external storage drives, optical drives, printers, memory card readers, or other peripherals, the Z4 G4 features two 10 Gb/s USB 3.1 Gen 2 Type-C ports (front) and eight 5 Gb/s USB 3.1 Gen 1 Type-A ports (2 front, 6 rear), with one of the front Type-A ports doubling as a charging port. There are also two PS/2 ports. For users who wish to add additional components to the drive bays, the Z4 G4 features two internal 3.5"/2.5" drive bays, two external 5.25" drive bays, and two M.2 slots that support 2260, 2280, and 22110 form factors. The dedicated NVIDIA Quadro P2000 graphics card has 5GB of GDDR5 RAM and delivers a sharp, clear picture while allowing for multiple simultaneous displays to be used via its four DisplayPort 1.4 outputs at resolutions up to 5128 x 2880 @ 60 Hz or 4096 x 2160 @ 120 Hz. Whether you are listening to music, watching a movie, or playing a game, the integrated Realtek HD ALC221 audio controller outputs high-definition audio and delivers higher fidelity than standard audio controllers. Network connectivity is achieved using dual integrated Gigabit Ethernet ports, and HP's Slim DVD Writer can be used to read from and write to optical media.

  The Z4 G4 Series Tower Workstation includes a USB keyboard, a USB mouse, a power cord, and an HP Z4 G4 Memory Cooling Solution. It is powered by an internal 750W power supply and the installed operating system is The installed operating system is Windows 10 Pro for Workstations (64-Bit), which scales up for machines with a high number of logical processors and large amounts of RAM for server-grade hardware and power users.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series is designed to enhance audio and video post-production workflows and more. Each HP Z series workstation or laptop features a range of top-tier processors and large RAM loadouts. The workstations are built with graphics flexibility in mind as well so that the end consumer can configure the graphics options to their needs, and each unit includes a 3/3/3 warranty - 3 years limited warranty for parts, 3 years limited warranty for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  HP Z4 G4 Workstation Features

  Feature-Rich Functionality
  • HP's Z4 G4 Series Tower Workstation offers a plethora of standard features. When combined with multiple configuration options, users can select a blend of components to meet their performance requirements.
  Visualization Powerhouse
  • Visualize your project with the power to move seamlessly between 3D CAD, rendering, and simulation applications. The Z4 can handle tasks that require high-frequency processing, multiple cores, and high-powered GPUs for an optimized design process.
  Advanced Security Features
  • Advanced security features come standard on every Z4. Rest assured that your device, identity, and data are safe with security software like HP Client Security Suite Gen3 and HP Sure Start Gen3 featuring a self-healing BIOS.
  DDR4 Memory Supported
  • The HP Z4 G4 supports up to 256GB using eight ECC Registered memory modules.
  Front I/O
  • This HP Z4 G4 is configured with the Premium Front I/O option and is equipped with two USB 3.1 Gen 2 Type-C ports and two USB 3.1 Gen 1 Type-A ports, one of which supports charging, and a headset audio port.
  Internal I/O
  • Internally, there is one USB 3.1 Gen 1 single-port header, 1 USB 2.0 single-port header, and 1 USB 2.0 dual-port header.
  Rear I/O
  • In the rear I/O area, the HP Z4 G4 provides six 5 Gb/s USB 3.1 Gen 1 Type-A ports, dual Gigabit Ethernet LAN ports, a 3.5mm audio line-in/mic-in jack, a 3.5mm audio line-out jack, and two PS/2 ports.
  PCIe Slots
  • Slot 0
    Mechanical only, for use with devices that require only rear bulkhead mounting

    Slot 1
    PCI Express Gen3 x16 (from CPU)

    Slot 2
    PCI Express Gen3 x4 (from PCH) with open-ended connector

    Slot 3
    PCI Express Gen3 x16 (from CPU)

    Slot 4
    PCI Express Gen3 x4 (from PCH) with open-ended connector

    Slot 5
    PCI Express Gen3 x8 (from CPU) with open-ended connector

    Slots 1 through 5 support full-height, full-length cards (with an extender). Open-ended connectors allows a greater bandwidth (e.g. x16) card to be installed physically into a lower bandwidth connector/slot.
  M.2 Slots
  • Slot 1
    PCI Express Gen3 x4 supplied by CPU. Socket Type 3, Key M, H4.2, sizes 2260-D5-M, 2280-D5-M, and 22110-D5-M

    Slot 2
    PCI Express Gen3 x4 supplied by CPU. Socket Type 3, Key M, H4.2, sizes 2260-D5-M, 2280-D5-M, and 22110-D5-M.

  Windows 10 Pro

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 192018814219
• 3 x Crucial 8GB DDR4 2666 MHz RDIMM Memory Module The 8GB DDR4 2666 MHz RDIMM Memory Module from Crucial is a x8-based, single-rank memory module for 288-pin DDR4 compatible systems. Moreover, it's registered, ECC, and has a CAS latency of 19. Add additional RAM to your system to increase its overall and multitasking performance.
  • Optimized for Intel platforms
  • Compatible with OEM servers
  UPC: 649528780539
• Samsung 256GB 860 PRO SATA III 2.5" Internal SSD Store your data in the 256GB 860 PRO SATA III 2.5" Internal SSD from Samsung for quick access. It features sequential read speeds of up to 560 MB/s and sequential write speeds of up to 530 MB/s, making it ideal for storing and rendering large format files such as 4K video and 3D data. Moreover, it has a 2.5" form factor, which is compatible with a wide range of notebooks and desktop computers, and utilizes the SATA III interface. With a refined ECC (Error Correction Code) algorithm and MJX controller, the PRO 860 is able to provide you with fast data transfer speeds. Download Samsung's Smart Magician software to track your drive's health, performance, and install new updates.

  Samsung Magician

  Management Software
  • Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.
  Firmware Update
  • Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.
  Performance Benchmark
  • Check your SSD's sequential and random read/write speeds, so you can maintain superb performance.
  Data Security
  • Protect data by selecting security options. The 860 PRO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.
  UPC: 887276247427

• Z4 G4 Series Tower Workstation dqafcwqewxxysxt
• HP USB Business Slim Keyboard
• HP USB Optical Mouse
• Memory Cooling for Z4/G4 Workstations
• Fan and Front Card Guide Kit for Z4 G4 Workstation
• Power Cord
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts not Eligible for Customer Self Repair (CSR)

• 3 x Crucial - 8GB DDR4 2666 MHz RDIMM Memory Module dqafcwqewxxysxt

• Samsung - 256GB 860 PRO SATA III 2.5" Internal SSD

• B&H Photo Video - Install HD or SSD into PC with System Copy

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z4 G4 Series Tower Workstation

  Operating System

  Windows 10 Pro for Workstations (64-Bit)

  Chipset	Intel C422
  CPU Socket	LGA 2066
  CPU	3.6 GHz Intel Xeon W 2123 Quad-Core
  Maximum Boost Speed	3.9 GHz
  L3 Cache	8.25 MB
  Memory Type	2666 MHz DDR4
  Total Installed Memory	8 GB
  Memory Configuration	1 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	256 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	7
  Buffered Memory	Yes
  ECC Memory	Yes
  Graphics Type	Dedicated
  GPU	NVIDIA Quadro 2000 with 4 GB GDDR5 VRAM

  Total Drive Bays	2 x 2.5/3.5" (Internal) 2 x 5.25" (External)
  SSD Slots	2 x M.2 2280 PCIe (Available)
  Total Installed Capacity	1 TB
  Hard Disk Storage	1 x 1 TB 3.5" SATA (7200 rpm)
  PCI Expansion	2 x PCIe Gen 3 x16 (x16 Mechanical) 1 x PCIe Gen 3 x8 (x8 Mechanical) 2 x PCIe Gen 3 x4 (x4 Mechanical)
  Optical Drive	8x-Speed Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Ports	8 x USB Type-A (USB 3.1 Gen 1) 2 x PS/2
  USB Type-C Ports	2 x USB 3.1 Gen 2
  Display	4 x DisplayPort 1.4 Output
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Microphone/Line Input 1 x 1/8" / 3.5 mm Line Output
  Built-In Speakers	1
  Built-In Microphones	None
  Media Card Slots	None

  Ethernet	2 x RJ45 (Gigabit)
  Wi-Fi	None
  Bluetooth	None

  Keyboard	USB Full-Size Keyboard
  Pointing Device	USB Mouse

  Security	Kensington Lock Slot, Infineon TPM Software Professional Package
  Power Supply	750 W
  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  Operating Temperature	40 to 95°F / 4 to 35°C
  Operating Humidity	10 to 85%
  Dimensions	17.5 x 15.2 x 6.7" / 44.45 x 38.61 x 17.02 cm
  Weight	24.9 lb / 11.3 kg

  Box Dimensions (LxWxH)	22.0 x 22.0 x 12.5"

• 3 x Crucial 8GB DDR4 2666 MHz RDIMM Memory Module

  Capacity	8 GB
  Kit Configuration	1 x 8 GB
  Speed	PC4-21300 (2666 MHz)
  Memory Type	DDR4
  DIMM Type	288-Pin DIMM
  Buffered/Registered	Yes
  Error Correction (ECC)	ECC
  Voltage	1.2 V
  CAS Latency	CL19
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.7 x 1.7 x 0.4"

• Samsung 256GB 860 PRO SATA III 2.5" Internal SSD

  Drive Capacity	256.00 GB

  Interface	SATA III (6 Gb/s)
  Sequential Read Speed	560 MB/s
  Sequential Write Speed	530 MB/s

  Drive Type	SSD
  Form Factor	2.5"

  Flash Controller	Samsung MJX
  SMART Support	Yes
  TRIM Support	Yes

  Encryption	256-Bit AES Hardware Encryption
  Endurance (Total Bytes Written)	300 TB
  Mean Time Between Failures (MTBF)	1.5 Million Hours

  Power Draw	2.2 W (Active)

  Operating Shock	1500 G / 0.5 ms
  Operating Temperature	32 to 158°F / 0 to 70°C

  Dimensions (W x H x D)	3.9 x 2.8 x 0.3" / 99.1 x 71.1 x 7.6 mm
  Weight	2.2 oz / 62 g

  Box Dimensions (LxWxH)	5.6 x 3.9 x 0.9"
