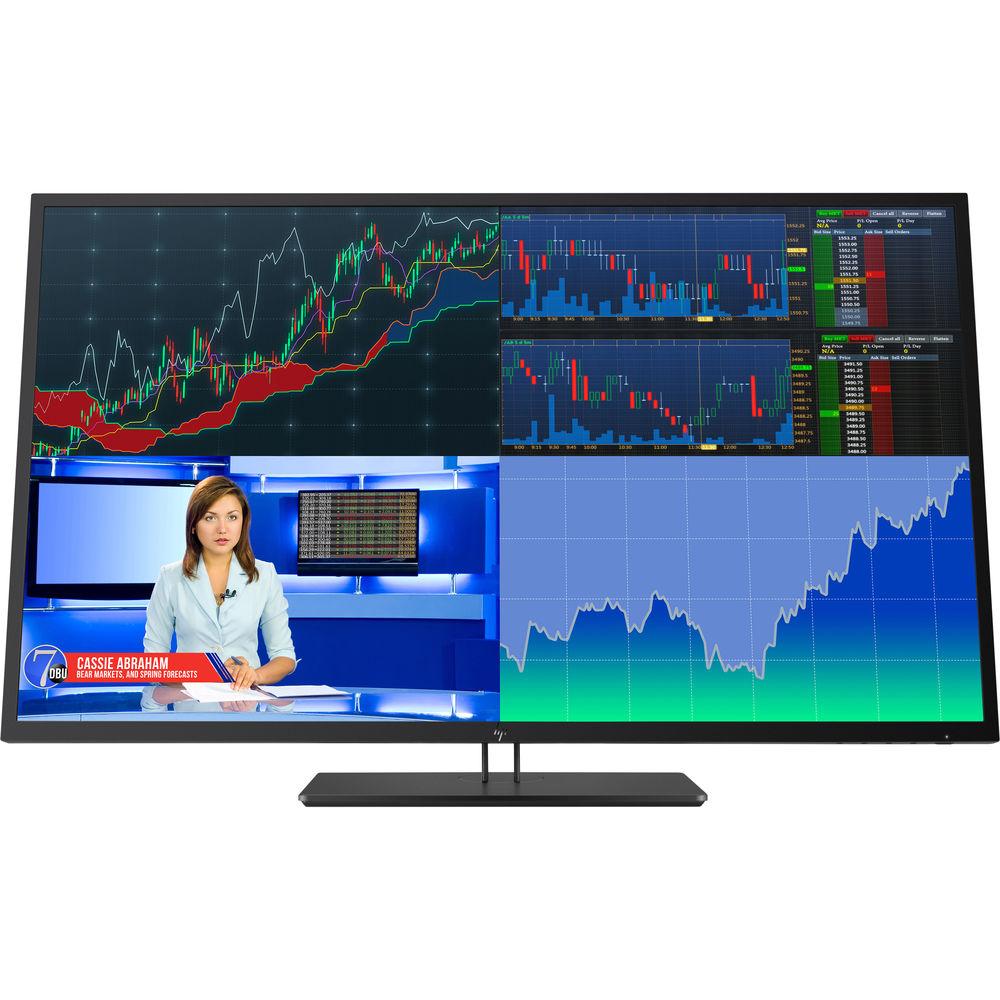

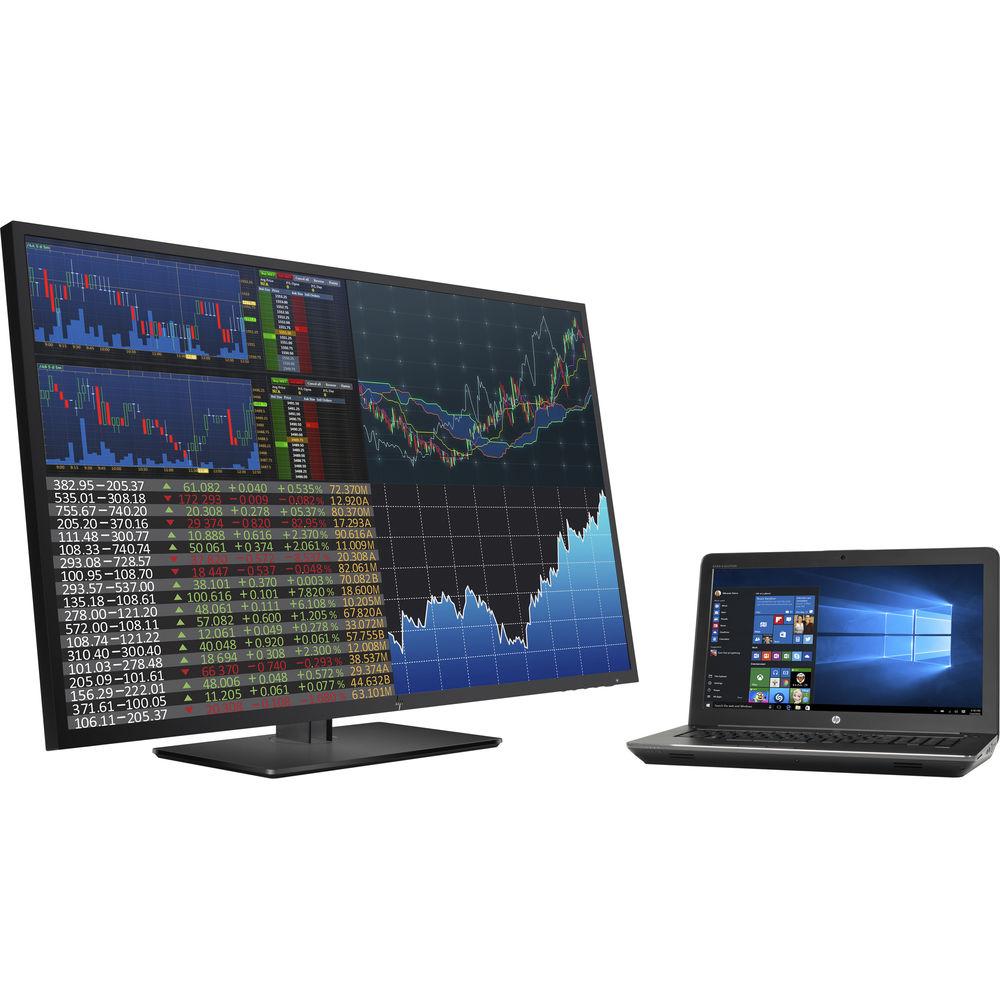

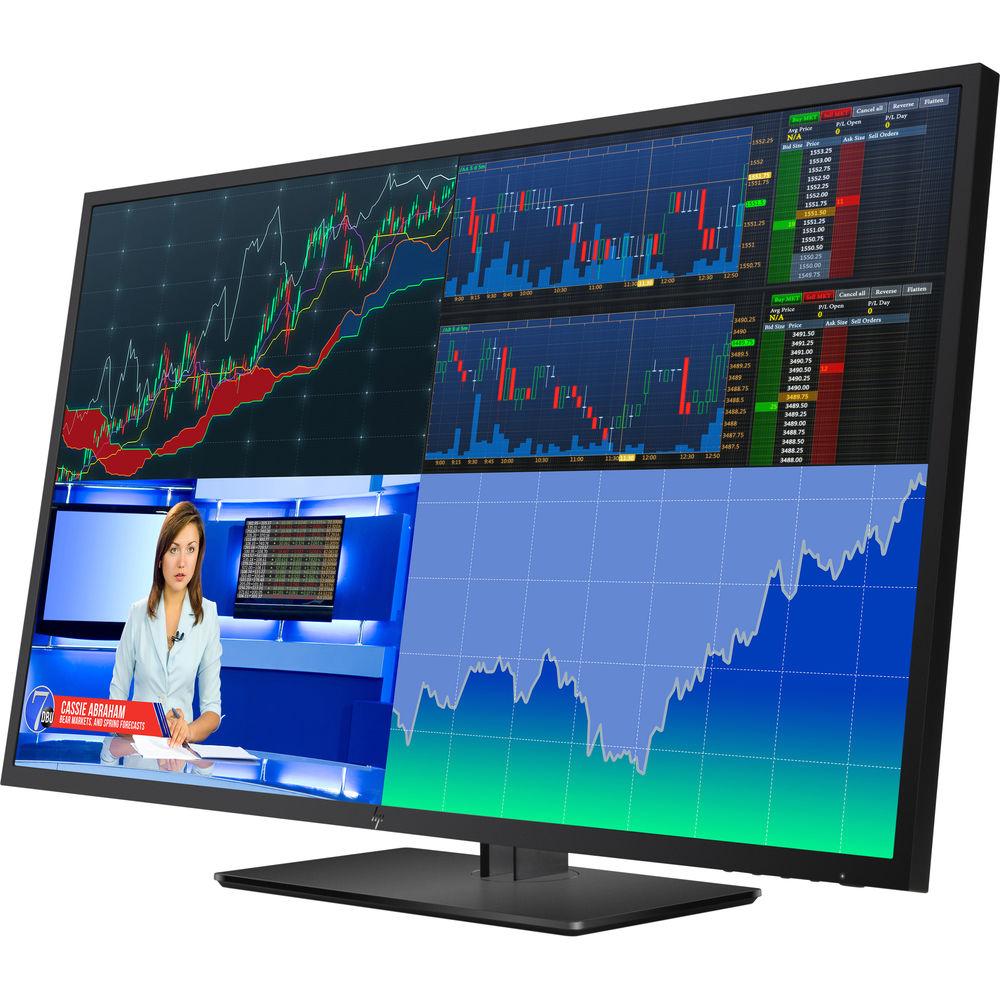

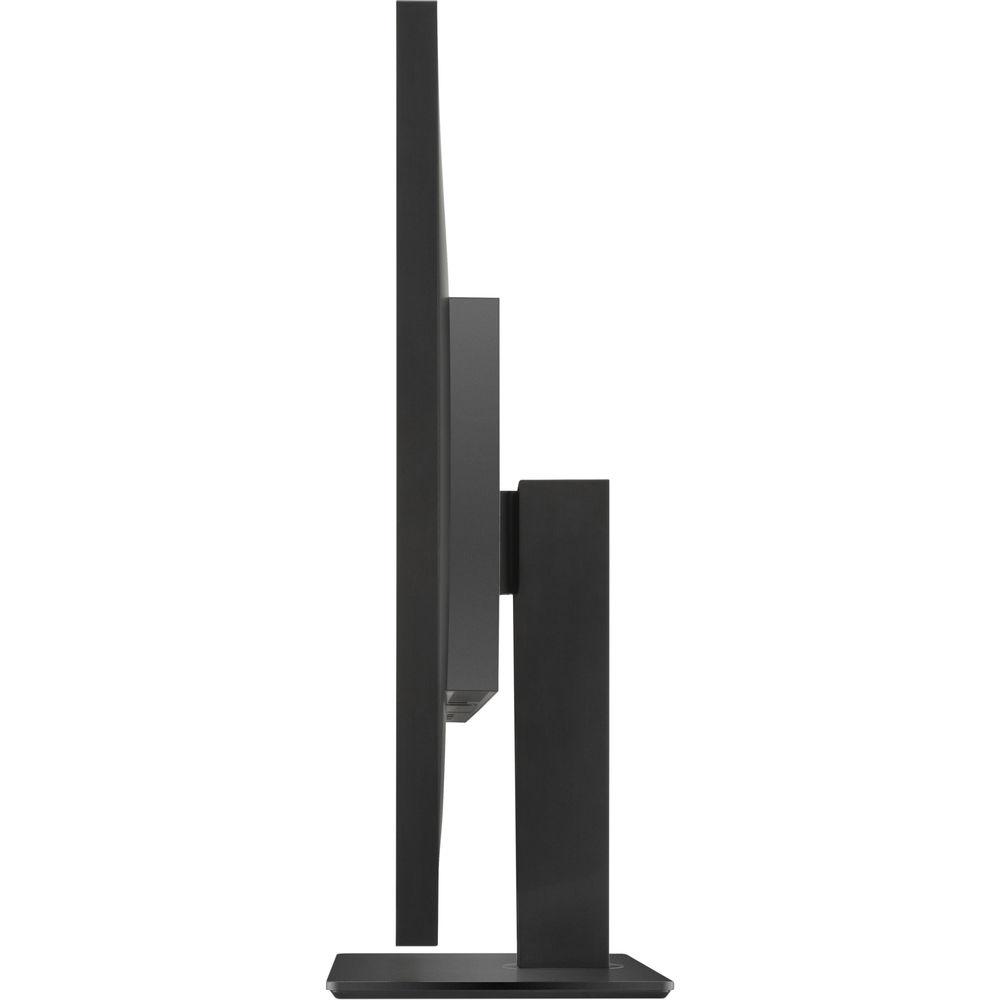

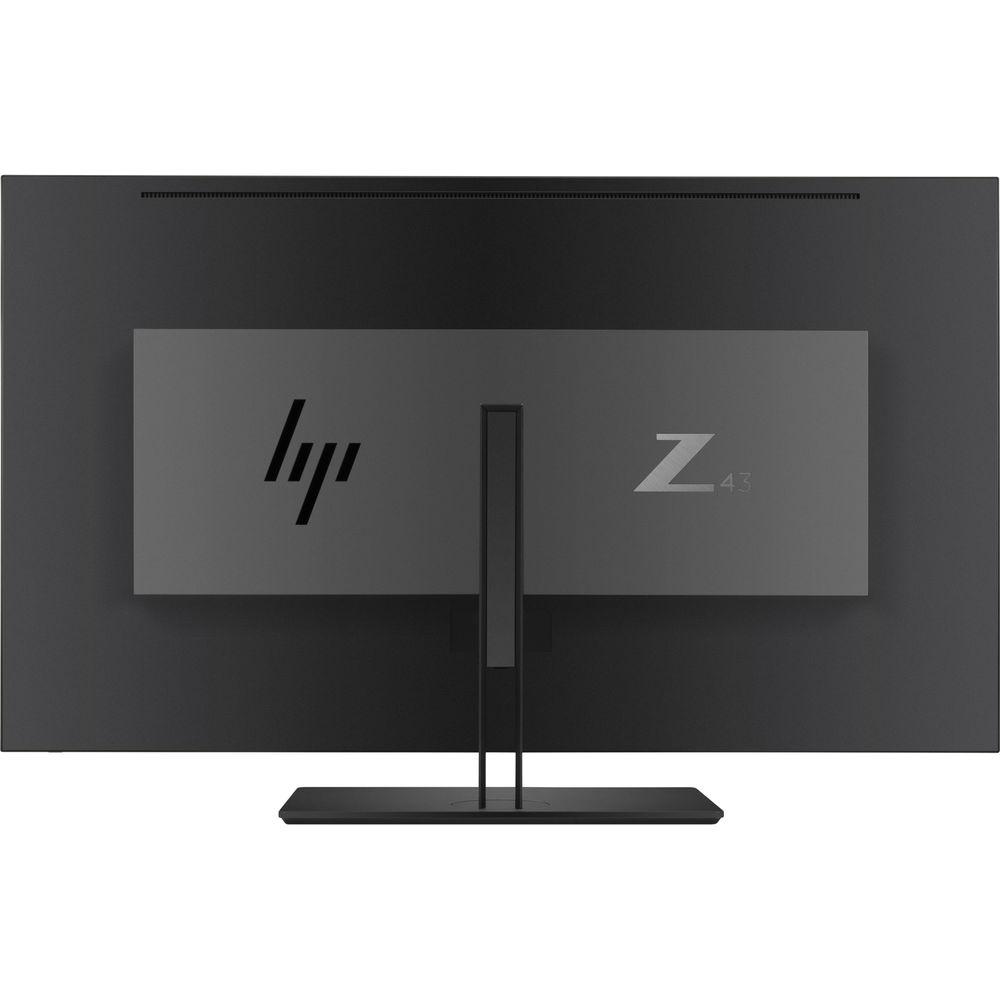

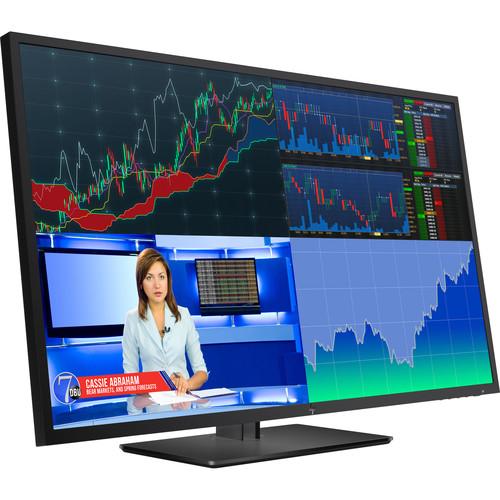

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Z43 42.5" 16:9 4K UHD IPS Display from HP features an expansive 42.5" display with slim bezels and a 3840 x 2160 4K UHD resolution for an immersive viewing experience with crisp and clear details. It also has a 350 cd/m² brightness rating, a 1000:1 static contrast ratio, and support for 1.07 billion colors to provide you with brighter bright colors and deeper blacks. With multiple connectivity options including DisplayPort, Mini DisplayPort, HDMI, and USB Type-C, this display is compatible with a wide variety of systems. Once it's connected, you'll be able to tilt, swivel, and adjust its height to your viewing preference. Otherwise, you can install your own mount, stand, or arm using the VESA mounting holes on the back. - 4K Resolution
- With a 3840 x 2160 4K UHD resolution, this display provides you with plenty of screen real estate for viewing more lines of codes, bigger spreadsheets, and more.
- USB Type-C
- USB Type-C can receive both video and data from your device as well as deliver up to 65W of power.
- Built-In USB 3.0 Hub
- With USB 3.0 ports built into the side and bottom of the monitor, you can quickly and easily connect your USB compatible devices such as a mouse, keyboard, webcam, headset, flash drive, and more.
UPC: 190781014560 In the Box HP Z43 42.5" 16:9 4K UHD IPS Display Power Cable VESA Mount Adapter DisplayPort Cable USB Type-C to Type-A Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the HP Z43 42.5" 16:9 4K UHD IPS Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersHP 1AA85A4#ABA Specs | | | Size | 42.5" | | Screen Area | 37.05 x 20.84" / 941.07 x 529.34 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 104 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 5,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 121.8 to 140 kHz | | Vertical Frequency | 47 to 63 Hz | | Pixel Clock Frequency | 78 MHz | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | HDR Compatibility | None | | Color Gamut | 72% NTSC
96% sRGB | | Response Time | 8 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2451 x 0.2451 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x DisplayPort 1.2
1 x Mini DisplayPort 1.2
1 x HDMI 2.0
1 x USB Type-C (USB 3.1 Gen 1)
1 x USB Type-B (USB 3.1 Gen 1)
4 x USB Type-A (USB 3.1 Gen 1) | | HDCP Support | Yes, Version 2.2 | | Built-In Speakers | None | | Supported Languages | Dutch
English
French
German
Italian
Japanese
Portuguese
Simplified Chinese
Spanish
Traditional Chinese | | | | Power Consumption | 205 W (Maximum)
95 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | USB Power Delivery | 65 W | | | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Storage Altitude | 0.00 to 16,404' / 0 to 5000 m | | Certifications | BSMI, CE, EAC, ENERGY STAR, EPEAT GOLD, FCC, Kcc, Microsoft WHQL, TUV, UL, VCCI, WEEE, as per Manufacturer | | | | Rotation Adjustment | None | | Swivel Adjustment | 20° (-10 to 10°) | | Tilt Adjustment | -5 to 10° | | Mounting-Hole Pattern | 200 x 200 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 38.3 x 24.4 x 9.4" / 972.8 x 619.8 x 238.8 mm (With Stand)
38.3 x 22.3 x 4.8" / 972.8 x 566.4 x 121.9 mm (Without Stand) | | Weight | 37.37 lb / 16.95 kg (With Stand)
27.45 lb / 12.45 kg (Without Stand) |
