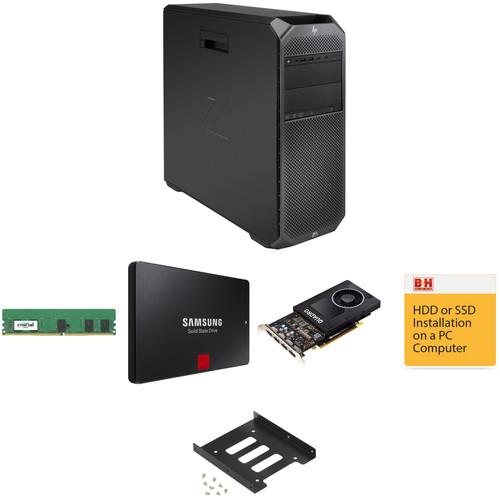

HP Z6 G4 Series Tower Custom

User Manual for HP Z6 G4 Series Tower Custom Workstation

• Product category: PC Workstations HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP PC Workstations

Product description

• HP Z6 G4 Series Tower Workstation Enjoy smooth rendering of 3D models, compiling of programming codes, and handling of other intensive tasks with the Z6 G4 Series Tower Workstation from HP. Under the hood, an Intel Xeon Silver 4108 processor can be found along with 8GB of DDR4 ECC RAM that will accompany it. Never sacrifice performance with eight processing cores running between 1.8 and 3 GHz, while the ECC RAM automatically detects and corrects errors to help prevent data corruption. Beyond memory correction, a 3.5" 7200 rpm hard drive is on board to provide 1TB of digital storage space for storing documents, photos, videos, and more. Windows 10 Pro 64 for Workstations is installed on this drive. Furthermore, HP has designed this Z8 G4 workstation with no integrated or dedicated graphics processing unit included, so you can tailor this system for your needs with a user-supplied graphics card.

  As for connectivity, you'll find two Gigabit Ethernet ports as well as ten USB 3.0 ports, with one of the USB ports supporting device charging. Other notable connections include one headset connector, audio-in, audio-out, PS/2 mouse, PS/2 keyboard, and serial. There's also a slim HP DVD writer for recording memories on to optical media. The expandability features on the HP Z6 G4 start with one 2.5"/3.5" internal bay as well as two M.2 slots and two 5.25" external bays. The workstation is armed with three PCIe 3.0 x4, one PCIe 3.0 x8, and two PCIe 3.0 x16 slots to enable support for optional Thunderbolt 3 cards, RAID controllers, and other useful PCIe cards. For accommodating up to 192GB of memory modules, a total of six memory slots are available. Additionally, the Z6 G4 can support a second sold-separately processor to further enhance the system's capabilities.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series system is designed to enhance audio and video post-production workflows and more by sporting a range of top-tier processors and large RAM loadouts. Each workstation comes with a 3/3/3 limited warranty - 3 years for parts, 3 years for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  HP Z6 G4 Workstation Features

  • HP SureStart automatically detects intrusions in real-time, notifies you, and restores the BIOS you use
  • Create two network connections without the added cost of a PCIe NIC with dual embedded 1GbE LAN ports

  Windows 10 Pro

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 192018229938
• Crucial 8GB DDR4 2666 MHz RDIMM Memory Module The 8GB DDR4 2666 MHz RDIMM Memory Module from Crucial is a x8-based, single-rank memory module for 288-pin DDR4 compatible systems. Moreover, it's registered, ECC, and has a CAS latency of 19. Add additional RAM to your system to increase its overall and multitasking performance.
  • Optimized for Intel platforms
  • Compatible with OEM servers
  UPC: 649528780539
• Samsung 256GB 860 PRO SATA III 2.5" Internal SSD Store your data in the 256GB 860 PRO SATA III 2.5" Internal SSD from Samsung for quick access. It features sequential read speeds of up to 560 MB/s and sequential write speeds of up to 530 MB/s, making it ideal for storing and rendering large format files such as 4K video and 3D data. Moreover, it has a 2.5" form factor, which is compatible with a wide range of notebooks and desktop computers, and utilizes the SATA III interface. With a refined ECC (Error Correction Code) algorithm and MJX controller, the PRO 860 is able to provide you with fast data transfer speeds. Download Samsung's Smart Magician software to track your drive's health, performance, and install new updates.

  Samsung Magician

  Management Software
  • Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.
  Firmware Update
  • Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.
  Performance Benchmark
  • Check your SSD's sequential and random read/write speeds, so you can maintain superb performance.
  Data Security
  • Protect data by selecting security options. The 860 PRO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.
  UPC: 887276247427
• HP 1ME41AT Quadro P2000 Graphics Card Designed for CAD workflows, professional graphics rendering, and processing the HP Quadro P2000 Graphics Card incorporates NVIDIA's efficient Pascal architecture. The GPU features 1024 CUDA cores coupled to 5GB of VRAM with a 160-bit memory bus providing a maximum of 3 TFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high resolution and realistic real-time 2D and 3D graphics rendering or improved computing speed with hardware acceleration. The output panel on this card features four DisplayPort terminals. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. Included with the card is one DisplayPort to DVI-D SL adapter for connecting to legacy displays. Other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, an active fansink cooler uses a radial fan to force air through the card's heatsink, dissipating heat from the GPU and other internal components. This cooling configuration is best suited for cases with unrestricted airflow.

  General Features

  3D Graphics Architecture
  • • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA GigaThread with dual copy engines
    • Up to 32K x 32K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA)
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 and HEVC encoder
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
  Advanced Display Features
  • • Supports any combination of four compatible connected displays
    • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
    • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Underscan/overscan compensation and hardware scaling
  DisplayPort and HDMI Digital Audio Support
  • Codecs: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), MPEG-2/MPEG-4 AAC
    Data Rate: 44.1/48/88.2/96/176/192 kHz
    Word Size: 16/20/24-bit

  GPU Performance Features

  Pascal Microarchitecture
  • Based on 16nm FinFET process technology with 1024 CUDA cores, the Quadro P2000 provides performance and efficiency for CAD, DCC and visualization professionals in small and power efficient form factor.
  Dynamic Load Balancing
  • Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
  Frame Buffer and Memory Bandwidth
  • 5GB GDDR5 memory with up to 140 GB/s memory bandwidth delivers the performance and responsiveness demanded by entry level graphics applications.
  H.264 and HEVC Encode/Decode Engines
  • Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with a dedicated H.264 and HEVC encode engine and a dedicated decode engine that are independent of 3D/compute pipeline.
  NVIDIA GPU Boost 3.0
  • Boosts the card's clock speed in real time based on the target temperature. If the card is running below the set target temperature, GPU Boost will increase the clock speed to improve performance. GPU Boost 3.0 adds granular control over the clock speed and voltage adjustments for performance increases.

  Image Quality Features

  NVIDIA Quadro MOSAIC Technology
  • Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
  DisplayPort 1.4 Support
  • Support up to four 5K monitors at 60 Hz, or dual 8K displays per card. The P2000 supports HDR color for 4K at 60 Hz for 10/12-bit HEVC decode and up to 4K at 60 Hz for 10-bit HEVC encode. Each DisplayPort connector is capable of driving DCI 4K displays at 120 Hz with 30-bit color.
  NVIDIA NVIEW Advanced Desktop Software
  • Configure single or multi-display environments for increased desktop workspace and productivity.
  OpenGL Quad Buffered Stereo Support
  • Provide a smooth and immersive 3D Stereo experience for professional applications.

  Software Support

  NVIDIA CUDA Parallel Computing Platform
  • Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics. Dynamic Parallelism allows the GPU to dynamically spawn new processing threads without going back to the CPU, lowering processing latency.
  NVIDIA Enterprise-Management Tools
  • Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.
  NVIDIA Multi-GPU Technology
  • Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
  UPC: 190781617181
• Pearstone 2.5" to 3.5" Hard Drive Adapter Bracket The 2.5" to 3.5" Hard Drive Adapter Bracket from Pearstone is designed to fit a 2.5" drive into a 3.5" drive bay. Use it to install a solid-state drive or a laptop drive into a desktop computer for extra storage. UPC: 847628007062

• Z6 G4 Series Tower Workstation tctyxxrbueddtdwwbzzxwa
• USB Keyboard and Mouse
• Power Cord
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)

• Crucial - 8GB DDR4 2666 MHz RDIMM Memory Module

• Samsung - 256GB 860 PRO SATA III 2.5" Internal SSD

• 1ME41AT Quadro P2000 Graphics Card

• B&H Photo Video - Install HD or SSD into PC with System Copy

• Pearstone - 2.5" to 3.5" Hard Drive Adapter Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z6 G4 Series Tower Workstation

  Operating System

  Windows 10 Pro for Workstations (64-Bit)

  Chipset	Intel C622
  CPU Socket	LGA 3647
  CPU	1.8 GHz Intel Xeon Silver 4108 8-Core
  Maximum Boost Speed	3.0 GHz
  L3 Cache	11 MB
  Memory Type	2666 MHz DDR4
  Total Installed Memory	8 GB
  Memory Configuration	1 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	192 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	5
  ECC Memory	Yes
  Graphics Type	None

  Total Drive Bays	2 x 2.5/3.5" (Internal) 2 x 5.25" (External)
  SSD Slots	2 x M.2 2280 PCIe x4 (Available)
  Total Installed Capacity	1 TB
  Hard Disk Storage	1 x 1 TB 3.5" SATA (7200 rpm)
  PCI Expansion	3 x PCIe Gen 3 x4 1 x PCIe Gen 3 x8 2 x PCIe Gen 3 x16
  Optical Drive	Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Ports	10 x USB Type-A (USB 3.1 Gen 1) 2 x PS/2 1 x DE-9 (Serial)
  Display	None
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output
  Media Card Slots	None

  Ethernet	2 x RJ45 (Gigabit)

  Keyboard	USB Full-Size Keyboard with Number Pad
  Pointing Device	USB Mouse

  Power Supply	1000 W
  AC Input Power	90 to 269 VAC, 50 / 60 Hz
  Operating Temperature	40 to 95°F / 4 to 35°C
  Operating Humidity	10 to 85%
  Dimensions	6.7 x 17.5 x 18.3" / 17 x 44.5 x 46.5 cm
  Weight	29 lb / 13.2 kg

  Box Dimensions (LxWxH)	24.0 x 23.25 x 12.0"

• Crucial 8GB DDR4 2666 MHz RDIMM Memory Module

  Capacity	8 GB
  Kit Configuration	1 x 8 GB
  Speed	PC4-21300 (2666 MHz)
  Memory Type	DDR4
  DIMM Type	288-Pin DIMM
  Buffered/Registered	Yes
  Error Correction (ECC)	ECC
  Voltage	1.2 V
  CAS Latency	CL19
  Memory Rank	Single Rank

  Box Dimensions (LxWxH)	6.7 x 1.7 x 0.4"

• Samsung 256GB 860 PRO SATA III 2.5" Internal SSD

  Drive Capacity	256.00 GB

  Interface	SATA III (6 Gb/s)
  Sequential Read Speed	560 MB/s
  Sequential Write Speed	530 MB/s

  Drive Type	SSD
  Form Factor	2.5"

  Flash Controller	Samsung MJX
  SMART Support	Yes
  TRIM Support	Yes

  Encryption	256-Bit AES Hardware Encryption
  Endurance (Total Bytes Written)	300 TB
  Mean Time Between Failures (MTBF)	1.5 Million Hours

  Power Draw	2.2 W (Active)

  Operating Shock	1500 G / 0.5 ms
  Operating Temperature	32 to 158°F / 0 to 70°C

  Dimensions (W x H x D)	3.9 x 2.8 x 0.3" / 99.1 x 71.1 x 7.6 mm
  Weight	2.2 oz / 62 g

  Box Dimensions (LxWxH)	5.6 x 3.9 x 0.9"

• HP 1ME41AT Quadro P2000 Graphics Card

  GPU	NVIDIA Quadro P2000: CUDA Cores: 1024 Node Size: 16 nm Architecture: Pascal
  Interface	PCI Express 3.0 x16
  Memory	Interface Width: 160-bit Interface: GDDR5 Bandwidth: 140 GB/s Configuration: 5 GB
  Floating Point	Single Precision Performance: 3 TFLOPS Double Precision Performance: 93 GFLOPS
  Outputs	4 x DisplayPort 1.4
  Maximum Resolution	DisplayPort: 5120 x 2880 Dual-link DVI: 2560 x 1600 Single-link DVI: 1920 x 1200
  APIs	Graphics: Shader Model 5.1 OpenGL: 4.5 DirectX: 12 Vulkan 1.0 Compute: CUDA DirectCompute OpenCL
  Form Factor	Width: Single-slot Length: 7.9" / 201 mm Form Factor: Full-height, half-length
  Power Consumption	75 W
  Compliance	Not Specified by Manufacturer
  System Requirements	Power Supply: Not Specified by Manufacturer CPU: Intel Core i5/i7/Xeon or newer, AMD Phenom/Opteron or newer PCI Slots: 1 x PCI Express 3.0 x16 RAM: 2 GB (8 GB recommended) Storage: 200 MB of available disk space OS: Microsoft Windows 7/8/8.1/10, Server 2008/2012/2012 R2 64/2016, Linux Optical Drive: Blu-ray or DVD-ROM drive for software installation (downloads also available)
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	9.8 x 8.2 x 2.6"

• Pearstone 2.5" to 3.5" Hard Drive Adapter Bracket

  Drive Bays Supported	3.5"
  Drives Supported	2.5"
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	4.6 x 4.3 x 0.8"
