User manual
HP Z6 G4 Series Tower Custom

User Manual for HP Z6 G4 Series Tower Custom Workstation

• Product category: PC Workstations HP
• Brand: HP
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for HP PC Workstations

Product description

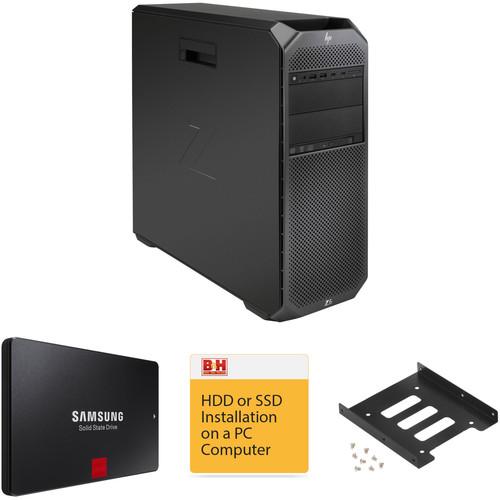

• HP Z6 G4 Series Tower Workstation Enjoy smooth rendering of 3D models, compiling of programming codes, and handling of other intensive tasks with the Z6 G4 Series Tower Workstation from HP. Under the hood, an Intel Xeon Silver 4114 processor can be found along with 8GB of DDR4 ECC RAM that will accompany it. Never sacrifice performance with ten processing cores running between 2.2 and 3 GHz, while the ECC RAM automatically detects and corrects errors to help prevent data corruption. Beyond memory correction, a 3.5" 7200 rpm hard drive is on board to provide 1TB of digital storage space for storing documents, photos, videos, and more. Windows 10 Pro 64 for Workstations is installed on this drive. Furthermore, HP has designed this Z8 G4 workstation with no integrated or dedicated graphics processing unit included, so you can tailor this system for your needs with a user-supplied graphics card.

  As for connectivity, you'll find two Gigabit Ethernet ports as well as ten USB 3.0 ports, with one of the USB ports supporting device charging. Other notable connections include one headset connector, audio-in, audio-out, PS/2 mouse, PS/2 keyboard, and serial. There's also a slim HP DVD writer for recording memories on to optical media. The expandability features on the HP Z6 G4 start with one 2.5"/3.5" internal bay as well as two M.2 slots and two 5.25" external bays. The workstation is armed with three PCIe 3.0 x4, one PCIe 3.0 x8, and two PCIe 3.0 x16 slots to enable support for optional Thunderbolt 3 cards, RAID controllers, and other useful PCIe cards. For accommodating up to 192GB of memory modules, a total of six memory slots are available. Additionally, the Z6 G4 can support a second sold-separately processor to further enhance the system's capabilities.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series system is designed to enhance audio and video post-production workflows and more by sporting a range of top-tier processors and large RAM loadouts. Each workstation comes with a 3/3/3 limited warranty - 3 years for parts, 3 years for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  HP Z6 G4 Workstation Features

  • HP SureStart automatically detects intrusions in real-time, notifies you, and restores the BIOS you use
  • Create two network connections without the added cost of a PCIe NIC with dual embedded 1GbE LAN ports

  Windows 10 Pro

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 192018190429
• Samsung 512GB 860 PRO SATA III 2.5" Internal SSD Store your data in the 512GB 860 PRO SATA III 2.5" Internal SSD from Samsung for quick access. It features sequential read speeds of up to 560 MB/s and sequential write speeds of up to 530 MB/s, making it ideal for storing and rendering large format files such as 4K video and 3D data. Moreover, it has a 2.5" form factor, which is compatible with a wide range of notebooks and desktop computers, and utilizes the SATA III interface. With a refined ECC (Error Correction Code) algorithm and MJX controller, the PRO 860 is able to provide you with fast data transfer speeds. Download Samsung's Smart Magician software to track your drive's health, performance, and install new updates.

  Samsung Magician

  Management Software
  • Samsung Magician software is designed to help you manage your SSD with a simple and intuitive user interface.
  Firmware Update
  • Get notifications when new firmware is released, and easily install updates for enhanced performance, stability, and compatibility.
  Performance Benchmark
  • Check your SSD's sequential and random read/write speeds, so you can maintain superb performance.
  Data Security
  • Protect data by selecting security options. The 860 PRO supports AES 256-bit hardware-based encryption and is compliant with TCG Opal and IEEE 1667.
  UPC: 887276247434
• Pearstone 2.5" to 3.5" Hard Drive Adapter Bracket The 2.5" to 3.5" Hard Drive Adapter Bracket from Pearstone is designed to fit a 2.5" drive into a 3.5" drive bay. Use it to install a solid-state drive or a laptop drive into a desktop computer for extra storage. UPC: 847628007062

• Z6 G4 Series Tower Workstation tfuqavzfscydfbfua
• USB Keyboard and Mouse
• Power Cord
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)

• Samsung - 512GB 860 PRO SATA III 2.5" Internal SSD

• B&H Photo Video - Install HD or SSD into PC with System Copy

• Pearstone - 2.5" to 3.5" Hard Drive Adapter Bracket

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z6 G4 Series Tower Workstation

  Operating System

  Windows 10 Pro for Workstations (64-Bit)

  Chipset	Intel C622
  CPU Socket	LGA 3647
  CPU	2.2 GHz Intel Xeon Silver 4114 10-Core
  Maximum Boost Speed	3.0 GHz
  L3 Cache	13.75 MB
  Memory Type	2666 MHz DDR4
  Total Installed Memory	8 GB
  Memory Configuration	1 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	192 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	5
  ECC Memory	Yes
  Graphics Type	None

  Total Drive Bays	2 x 2.5/3.5" (Internal) 2 x 5.25" (External)
  SSD Slots	2 x M.2 2280 PCIe x4 (Available)
  Total Installed Capacity	1 TB
  Hard Disk Storage	1 x 1 TB 3.5" SATA (7200 rpm)
  PCI Expansion	3 x PCIe Gen 3 x4 1 x PCIe Gen 3 x8 2 x PCIe Gen 3 x16
  Optical Drive	Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Ports	10 x USB Type-A (USB 3.1 Gen 1) 2 x PS/2 1 x DE-9 (Serial)
  Display	None
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output
  Media Card Slots	None

  Ethernet	2 x RJ45 (Gigabit)

  Keyboard	USB Full-Size Keyboard with Number Pad
  Pointing Device	USB Mouse

  Power Supply	1000 W
  AC Input Power	90 to 269 VAC, 50 / 60 Hz
  Operating Temperature	40 to 95°F / 4 to 35°C
  Operating Humidity	10 to 85%
  Dimensions	6.7 x 17.5 x 18.3" / 17 x 44.5 x 46.5 cm
  Weight	29 lb / 13.2 kg

  Box Dimensions (LxWxH)	23.0 x 14.0 x 12.0"

• Samsung 512GB 860 PRO SATA III 2.5" Internal SSD

  Drive Capacity	512.00 GB

  Interface	SATA III (6 Gb/s)
  Sequential Read Speed	560 MB/s
  Sequential Write Speed	530 MB/s

  Drive Type	SSD
  Form Factor	2.5"

  Flash Controller	Samsung MJX
  SMART Support	Yes
  TRIM Support	Yes

  Encryption	256-Bit AES Hardware Encryption
  Endurance (Total Bytes Written)	600 TB
  Mean Time Between Failures (MTBF)	1.5 Million Hours

  Power Draw	2.2 W (Active)

  Operating Shock	1500 G / 0.5 ms
  Operating Temperature	32 to 158°F / 0 to 70°C

  Dimensions (W x H x D)	3.9 x 2.8 x 0.3" / 99.1 x 71.1 x 7.6 mm
  Weight	2.2 oz / 62 g

  Box Dimensions (LxWxH)	5.6 x 3.9 x 0.9"

• Pearstone 2.5" to 3.5" Hard Drive Adapter Bracket

  Drive Bays Supported	3.5"
  Drives Supported	2.5"
  Dimensions	Not Specified by Manufacturer
  Weight	Not Specified by Manufacturer

  Box Dimensions (LxWxH)	4.6 x 4.3 x 0.8"
