Product description

• HP Z6 G4 Series Tower Workstation Enjoy smooth rendering of 3D models, compiling of programming codes, and handling of other intensive tasks with the Z6 G4 Series Tower Workstation from HP. Under the hood, an Intel Xeon Silver 4114 processor can be found along with 16GB of DDR4 ECC RAM that will accompany it. Never sacrifice performance with ten processing cores running between 2.2 and 3 GHz, while the ECC RAM automatically detects and corrects errors to help prevent data corruption. Beyond memory correction, an HP Z Turbo NVMe SSD operates under PCIe lanes that offer fast, sustained read and write performance for large file sizes. This solid-state drive is installed in an M.2 slot and provides 256GB of digital storage space, making it useful for recording or editing audio or high-resolution RAW video files. Windows 10 Pro 64 for Workstations is installed on this drive. Furthermore, HP has designed this Z8 G4 workstation with no integrated or dedicated graphics processing unit included, so you can tailor this system for your needs with a user-supplied graphics card.

  As for connectivity, you'll find two Gigabit Ethernet ports as well as ten USB 3.0 ports, with one of the USB ports supporting device charging. Other notable connections include one headset connector, audio-in, audio-out, PS/2 mouse, PS/2 keyboard, and serial. There's also a slim HP DVD writer for recording memories on to optical media. The expandability features on the HP Z6 G4 start with one M.2 slot as well as two 2.5"/3.5" internal bays and two 5.25" external bays. The workstation is armed with three PCIe 3.0 x4, one PCIe 3.0 x8, and two PCIe 3.0 x16 slots to enable support for optional Thunderbolt 3 cards, RAID controllers, and other useful PCIe cards. For accommodating up to 192GB of memory modules, a total of six memory slots are available. Additionally, the Z6 G4 can support a second sold-separately processor to further enhance the system's capabilities.

  Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Built with power and speed in mind, the Z Series system is designed to enhance audio and video post-production workflows and more by sporting a range of top-tier processors and large RAM loadouts. Each workstation comes with a 3/3/3 limited warranty - 3 years for parts, 3 years for labor, and 3 years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-800-334-5144.

  HP Z6 G4 Workstation Features

  • HP SureStart automatically detects intrusions in real-time, notifies you, and restores the BIOS you use
  • Create two network connections without the added cost of a PCIe NIC with dual embedded 1GbE LAN ports

  Windows 10 Pro

  Start Menu
  • After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
  Cortana
  • Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
  Microsoft Edge
  • After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
  Windows Store
  • For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
  Windows Continuum
  • Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
  Xbox on Windows 10
  • Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
  Windows 10 Pro
  • The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
  UPC: 192018160354
• HP 1ME40AT Quadro P4000 Graphics Card Designed for efficient CAD, professional programming, VR production, and video editing and processing, the HP Quadro P4000 Graphics Card is based on NVIDIA's 16nm Pascal architecture. The GPU itself features 1792 CUDA cores coupled to 8GB of VRAM with a 256-bit memory bus providing a maximum of 5.3 TFLOPS of single-precision computing power. Using supported APIs and CUDA, that computing performance can translate into high resolution and realistic real-time 2D and 3D graphics rendering or improved computing speed with hardware acceleration. The output panel on this card features four DisplayPort terminals. Up to four monitors can be simultaneously supported by a single card, without any extra hardware, to create high-resolution video walls with your workstation or for more desktop real-estate to increase productivity. DisplayPort 1.4 support allows this card to drive UHD 5K displays as well. Included with the card is one DisplayPort to DVI-D SL adapter for connecting to legacy displays. Other separately available adapters can be used with this card to drive other kinds of displays and projectors. For cooling, an active fansink cooler uses a radial fan to force air through the card's heatsink, dissipating heat from the GPU and other internal components. This cooling configuration is best suited for cases with unrestricted airflow.

  General Features

  3D Graphics Architecture
  • • Scalable geometry architecture
    • Hardware tessellation engine
    • NVIDIA Giga Thread with dual copy engines
    • Up to 32K x 32K texture and render processing
    • Transparent multisampling and super sampling
    • 16x angle independent anisotropic filtering
    • 32-bit per-component floating point texture filtering and blending
    • 64x full scene antialiasing (FSAA), 128x supported in SLI configurations
    • Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
    • Dedicated H.264 and HEVC encoder
    • Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
  Advanced Display Features
  • • Supports any combination of four compatible connected displays
    • HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
    • 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
    • NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
    • Underscan/overscan compensation and hardware scaling
  DisplayPort and HDMI Digital Audio Support
  • Codecs: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), MPEG-2/MPEG-4 AAC
    Data Rate: 44.1/48/88.2/96/176/192 kHz
    Word Size: 16/20/24-bit

  GPU Performance Features

  Pascal Microarchitecture
  • Based on 16nm FinFET process technology with 1792 CUDA cores, the Quadro P4000 provides performance for computationally demanding design visualization or immersive design reviews with VR support.
  Simultaneous Multi-Projection
  • Complete stereo rendering of geometry in a single pass to double the effective throughput for applications such as VR.
  Pascal VR-Centric Features
  • Dynamic Load Balancing: Dynamically allocate GPU resources for graphics and compute tasks as needed to maximize resource utilization.
    Preemption: Pixel level graphics preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking. Compute preemption at the thread and instruction level provides finer grain control over compute tasks.
  H.264 and HEVC Encode/Decode Engines
  • Deliver faster than real-time performance for transcoding, video editing, and other encoding applications with a dedicated H.264 and HEVC encode engine and a dedicated decode engine that are independent of 3D/compute pipeline.
  NVIDIA GPU Boost 3.0
  • Boosts the card's clock speed in real time based on the target temperature. If the card is running below the set target temperature, GPU Boost will increase the clock speed to improve performance. GPU Boost 3.0 adds granular control over the clock speed and voltage adjustments for performance increases.

  Image Quality Features

  Memory Compression
  • Increase bandwidth by up to 20% by reducing the amount of data fetched from memory for each frame with fourth generation, lossless delta compression.
  NVIDIA Quadro MOSAIC Technology
  • Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.
  DisplayPort 1.4 Support
  • Support up to four 5K monitors at 60 Hz, or dual 8K displays per card. The P4000 supports HDR color for 4K at 60 Hz for 10/12-bit HEVC decode and up to 4K at 60 Hz for 10-bit HEVC encode. Each DisplayPort connector is capable of driving DCI 4K displays at 120 Hz with 30-bit color.
  NVIDIA NVIEW Advanced Desktop Software
  • Configure single or multi-display environments for increased desktop workspace and productivity.
  OpenGL Quad Buffered Stereo Support
  • Provide a smooth and immersive 3D Stereo experience for professional applications.
  3D Stereo Synchronization
  • Connect to a separately available compatible Quadro sync card for robust control of 3D effects.

  Software Support

  NVIDIA CUDA Parallel Computing Platform
  • Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerate techniques such as ray tracing, video and image processing, and computation fluid dynamics. Dynamic Parallelism allows the GPU to dynamically spawn new processing threads without going back to the CPU, lowering processing latency.
  NVIDIA GPUDirect for Video
  • GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.
  NVIDIA Enterprise-Management Tools
  • Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations. Multi-GPU Technology.
  NVIDIA Multi-GPU Technology
  • Combine the visualization and interactive design capability of multiple GPUs by leveraging a mix of Quadro GPUs to dramatically improve the production workflow.
  NVIDIA SLI HB Technology
  • Leverage multiple P4000 GPUs to dynamically scale graphics performance, enhance image quality, expand display real estate, and assemble a fully virtualized system.
  UPC: 190781617167
• Photo Video In-house Memory Installation & Testing Service Select In-house Additional Computer Memory Installation and Testing when you want B&H to do the installation of additional memory - when purchased on the same order of the computer. The Additional Memory Installation and Testing is done by a certified technician in our Computer Service Center, so that it is assured that the original manufacturer's warranty on the computer continues on throughout the warranty period.This item doesn't include software installation. If you also need software installation use B&H item code # BHWEBPCC. Note: The only warranty on the additional memory is the warranty provided by the manufacturer of the additional memory.
  Certified Technician
  • The install is done by a certified technician who knows the do's and don'ts of installation, so that the manufacturer's original warranty on the computer continues on and doesn't get voided by unwanted moves.
  Expert Testing
  • Testing is done on the computer to check if the system recognizes and allocates the additional memory.
  Get to Work Immediately
  • The Installation and Testing will allow you to start working on your new computer as soon as you get it.

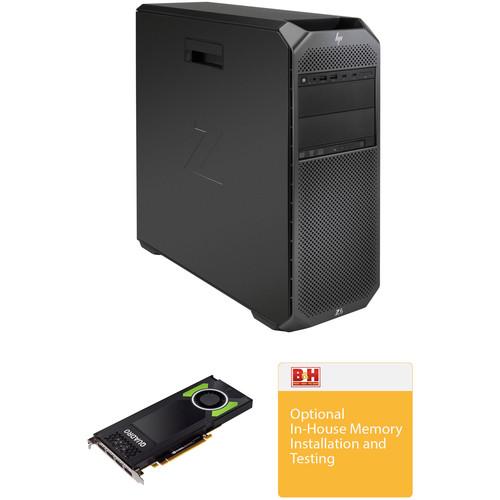

• Z6 G4 Series Tower Workstation ddqutvxbwaasqxza
• USB Keyboard and Mouse
• Power Cord
• Limited 3-Year Warranty for Parts
• Limited 3-Year Warranty for Labor
• 3 Years of Repairs Performed at Customer Site for Those Parts Not Eligible for Customer Self Repair (CSR)

• 1ME40AT Quadro P4000 Graphics Card

• B&H Photo Video - In-house Memory Installation & Testing Service

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HP Z6 G4 Series Tower Workstation

  Operating System

  Windows 10 Pro for Workstations (64-Bit)

  Chipset	Intel C622
  CPU Socket	LGA 3647
  CPU	2.2 GHz Intel Xeon Silver 4114 10-Core
  Maximum Boost Speed	3.0 GHz
  L3 Cache	13.75 MB
  Memory Type	2666 MHz DDR4
  Total Installed Memory	16 GB
  Memory Configuration	2 x 8 GB (User-Replaceable)
  Maximum Memory Capacity	192 GB
  Memory Slot Type	288-Pin DIMM
  Available Memory Slots	4
  Buffered Memory	Yes
  ECC Memory	Yes
  Graphics Type	None

  Total Drive Bays	2 x 2.5/3.5" (Internal) 2 x 5.25" (External)
  SSD Slots	1 x M.2 2280 PCIe x4 (In Use) 1 x M.2 2280 PCIe x4 (Available)
  Total Installed Capacity	256 GB
  Solid State Storage	1 x 256 GB M.2 NVMe PCIe
  PCI Expansion	2 x PCIe Gen 3 x16 1 x PCIe Gen 3 x8 3 x PCIe Gen 3 x4
  Optical Drive	Tray-Load SuperMulti DVD Burner with Dual Layer Support

  Ports	10 x USB Type-A (USB 3.1 Gen 1) 2 x PS/2 1 x DE-9 (Serial)
  Display	None
  Audio	1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output 1 x 1/8" / 3.5 mm Line Input 1 x 1/8" / 3.5 mm Line Output
  Media Card Slots	None

  Ethernet	2 x RJ45 (Gigabit)

  Keyboard	USB Full-Size Keyboard with Number Pad
  Pointing Device	USB Mouse

  Power Supply	1000 W
  AC Input Power	90 to 269 VAC, 50 / 60 Hz
  Operating Temperature	40 to 95°F / 4 to 35°C
  Operating Humidity	10 to 85%
  Dimensions	6.7 x 17.5 x 18.3" / 17 x 44.5 x 46.5 cm
  Weight	29 lb / 13.2 kg

  Box Dimensions (LxWxH)	23.0 x 23.0 x 12.0"

• HP 1ME40AT Quadro P4000 Graphics Card

  GPU	NVIDIA Quadro P4000: CUDA Cores: 1792 Node Size: 16 nm Architecture: Pascal
  Interface	PCI Express 3.0 x16
  Memory	Interface Width: 256-bit Interface: GDDR5 Bandwidth: 243 GB/s Configuration: 8 GB
  Floating Point	Single Precision Performance: 5.3 TFLOPS Double Precision Performance: 165 GFLOPS
  Outputs	4 x DisplayPort 1.4
  Maximum Resolution	DisplayPort: 5120 x 2880 Dual-link DVI: 2560 x 1600 Single-link DVI: 1920 x 1200
  APIs	Graphics: Shader Model 5.1 OpenGL: 4.5 DirectX: 12 Vulkan 1.0 Compute: CUDA DirectCompute OpenCL
  Form Factor	Width: Single-slot Length: 9.5" / 241 mm Form Factor: Full-height, full-length
  Power Consumption	105 W
  Compliance	Not Specified by Manufacturer
  System Requirements	Power Supply: Not Specified by Manufacturer CPU: Intel Core i5/i7/Xeon or newer, AMD Phenom/Opteron or newer PCI Slots: 1 x PCI Express 3.0 x16 RAM: 2 GB (8 GB recommended) Storage: 200 MB of available disk space OS: Microsoft Windows 7/8/8.1/10, Server 2008/2012/2012 R2 64/2016, Linux Optical Drive: Blu-ray or DVD-ROM drive for software installation (downloads also available)

  Box Dimensions (LxWxH)	16.8 x 8.5 x 3.3"

• Photo Video In-house Memory Installation & Testing Service

  Box Dimensions (LxWxH)	1.0 x 1.0 x 1.0"
